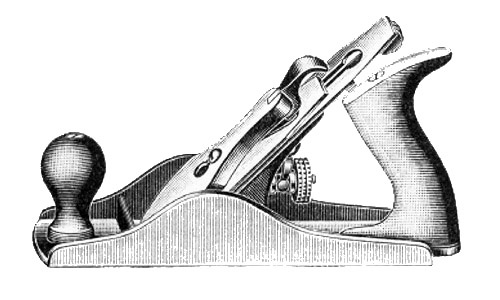

Sargent No. 1409 “HERCULES” Smooth Plane
No. 1409, Smooth, 9 Inches, 2 Inch Cutter.
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Smooth Plane |
| Features: | Adjustable. Low-price brand |
| Manufactured: | From 1927 to 1949 |
| Length: | 9 inches |
| Cutter Width: | 2 inches |
| Construction: | Cast iron body, Hardwood handle & knob |
| Finish: | Japanned. Polished bottom (1942 to 1948) |
| Uses: | General purpose bench plane |
Please check the Value Guide For Sargent Planes page for relative prices.
Additional Notes:
The No. 1409 “HERCULES” smooth plane was produced for the low-price market, probably to compete with Stanley’s “FOUR SQUARE” Brand. The finish was left to a minimum, with no polishing and only one layer of japanning. Hardwood was used for the handle and knob, rather than Mahogany.
