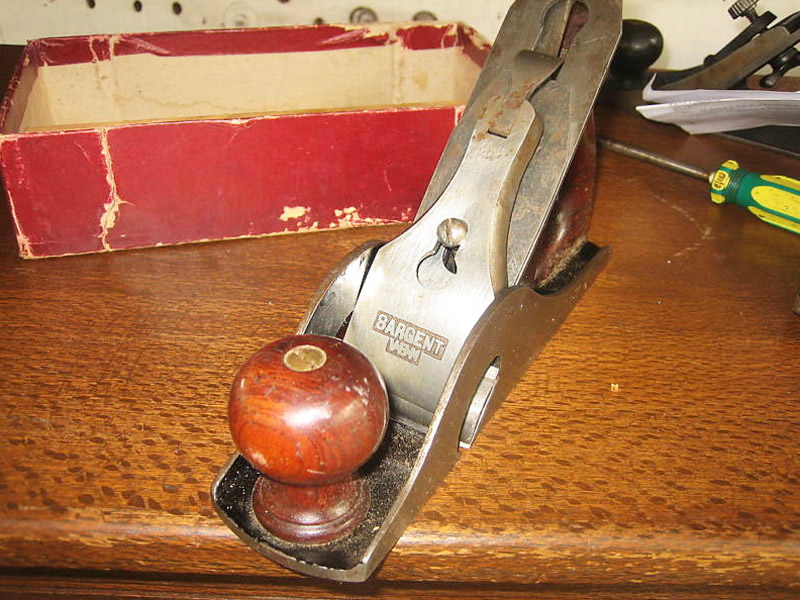

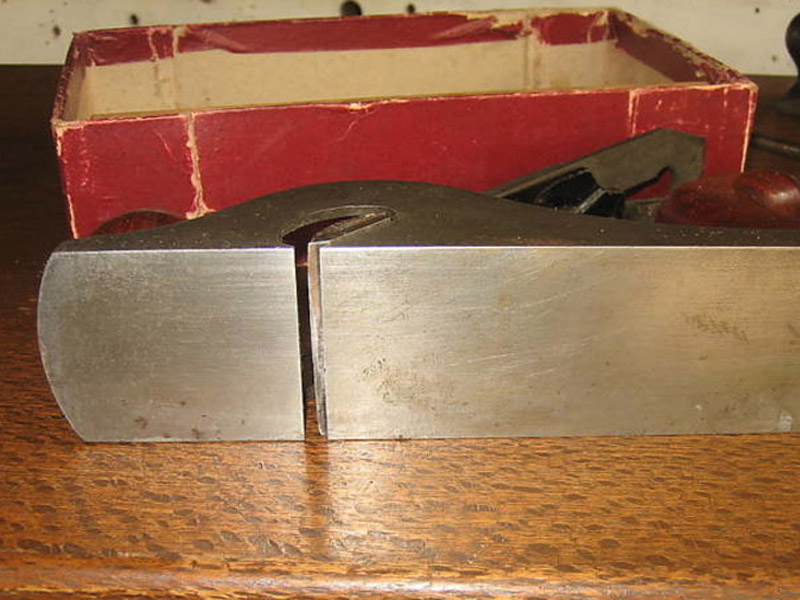

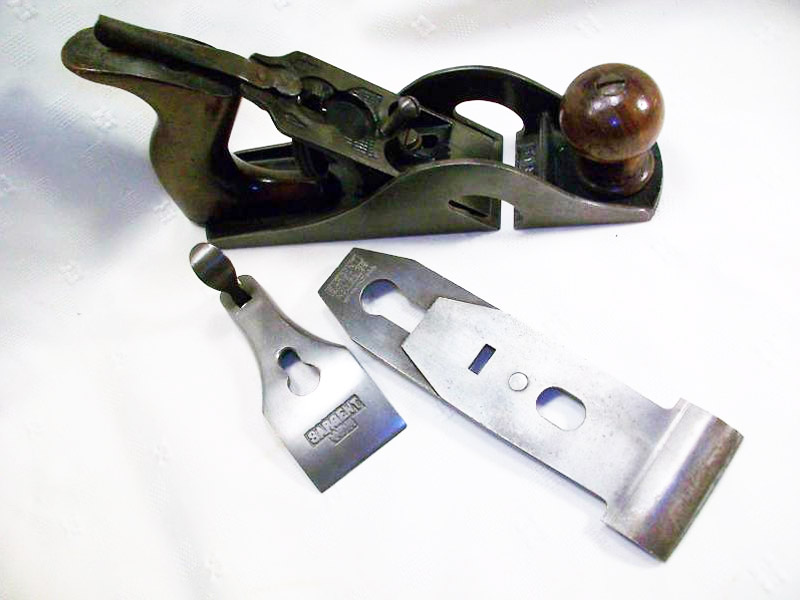

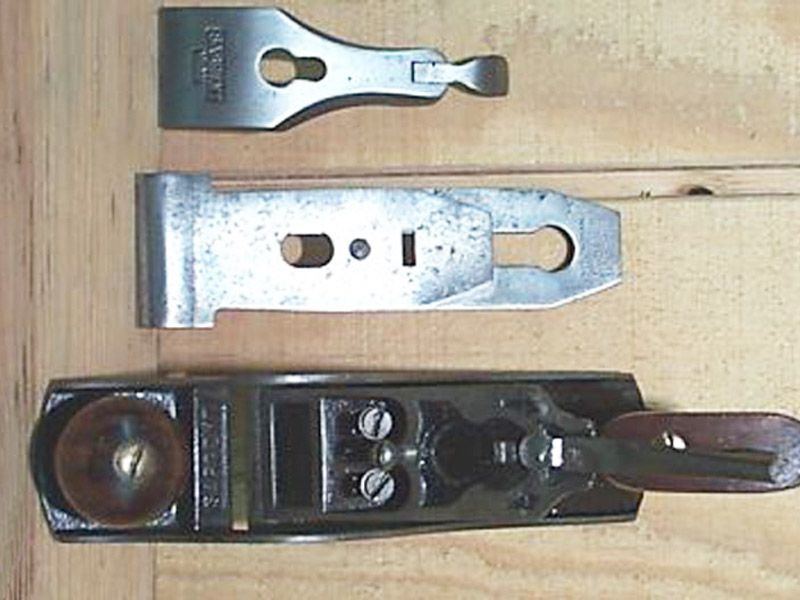

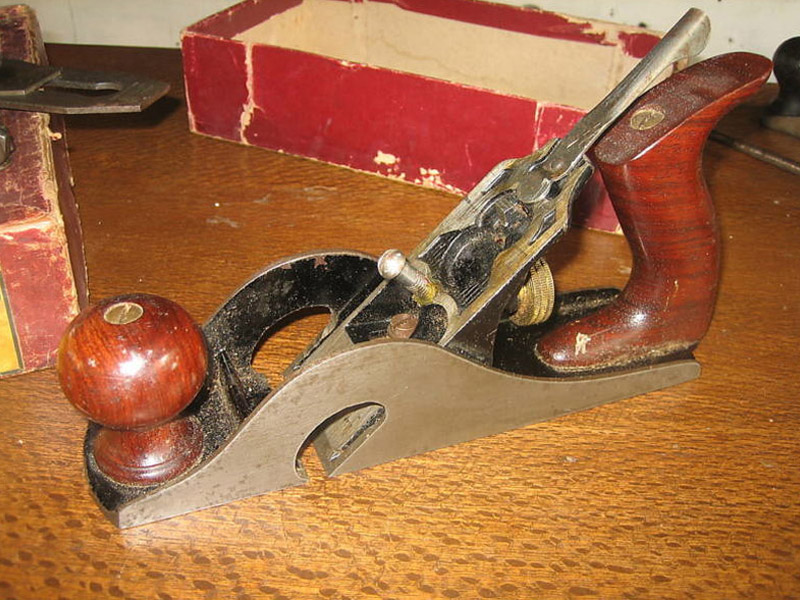

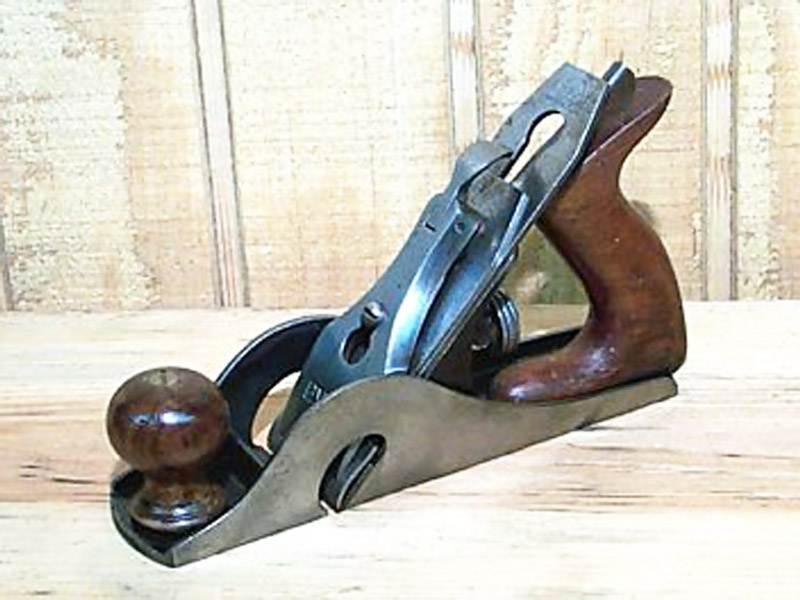

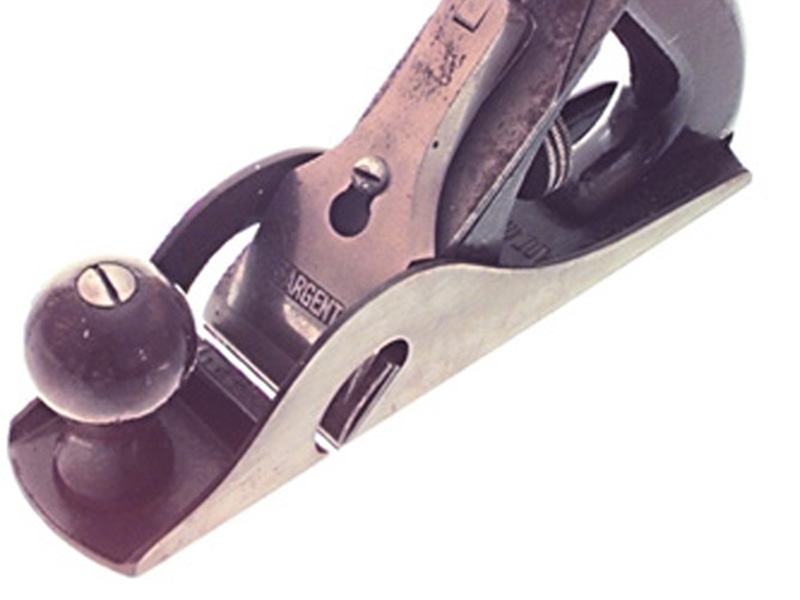

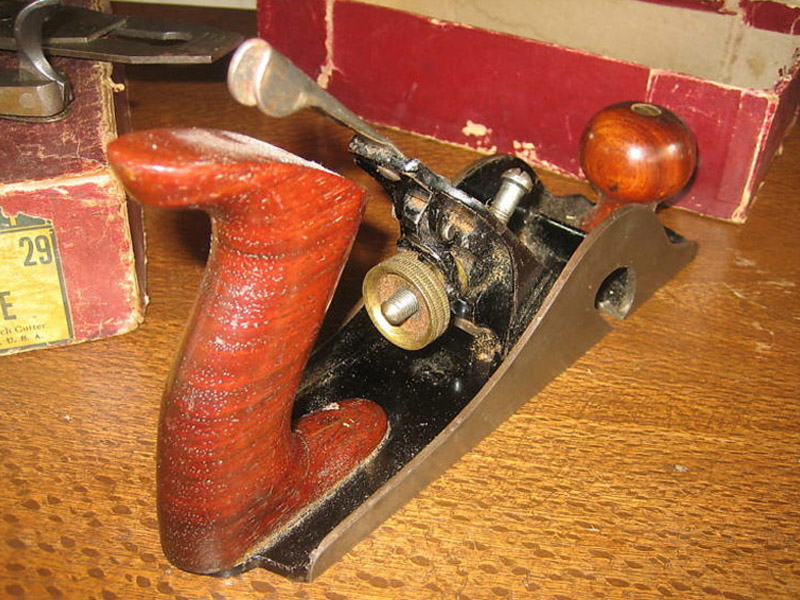

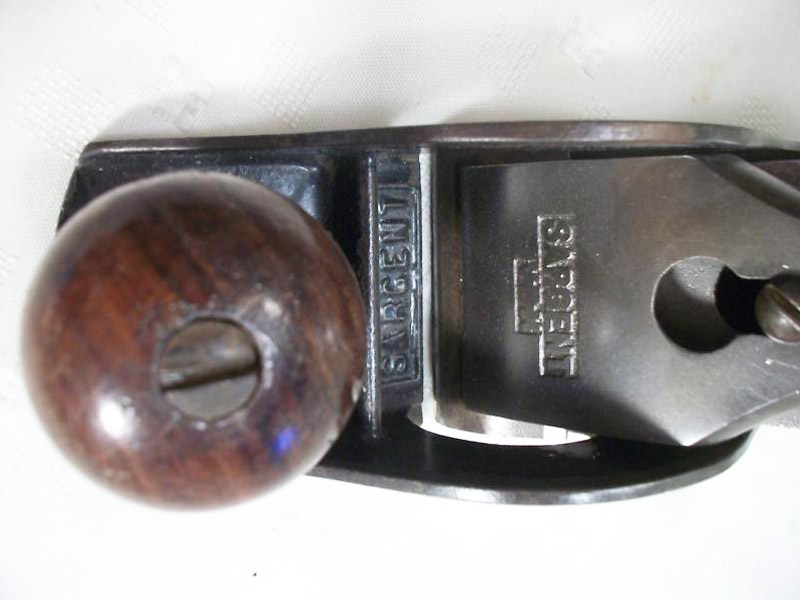

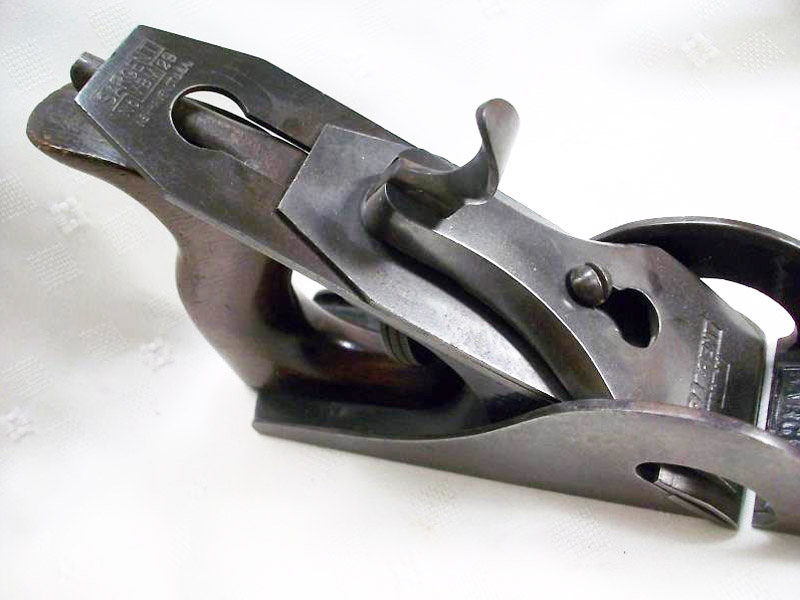

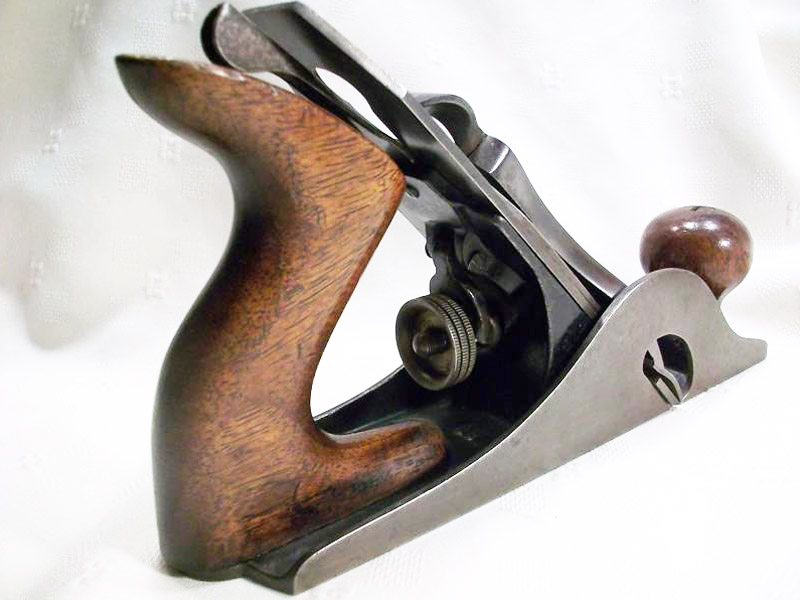

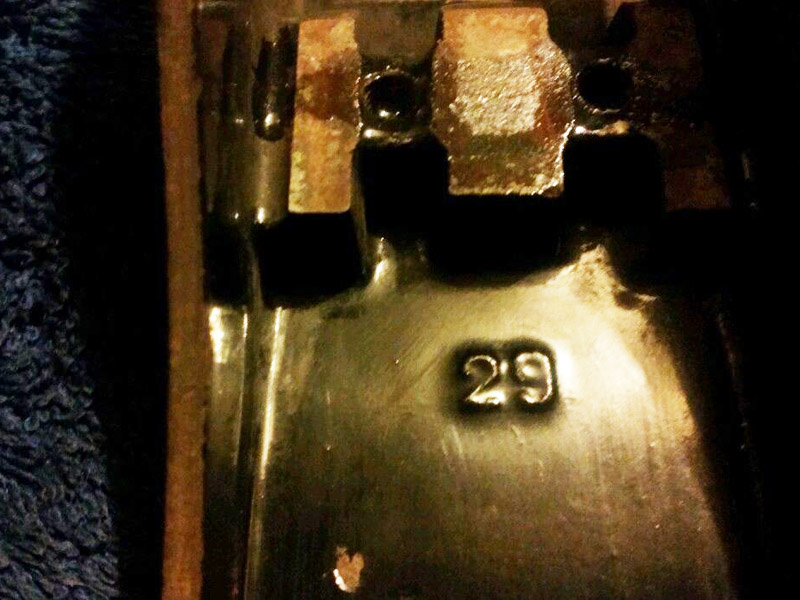

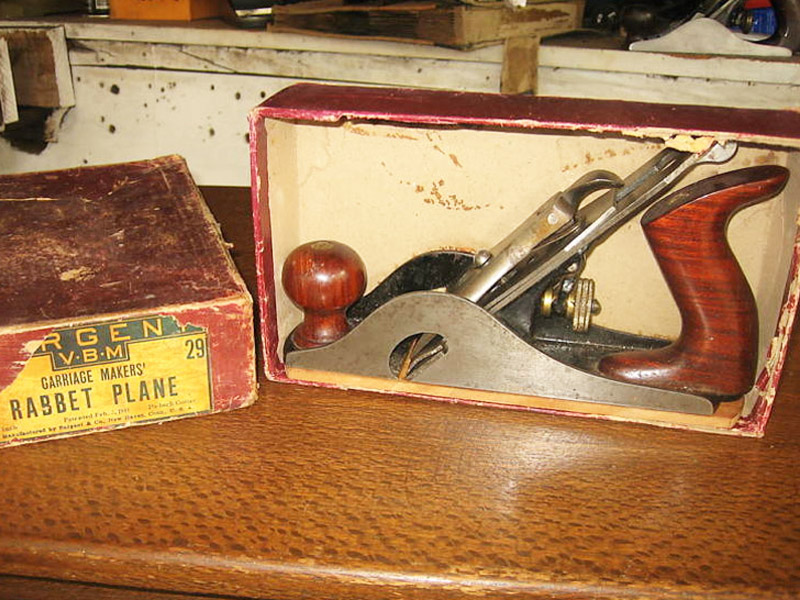

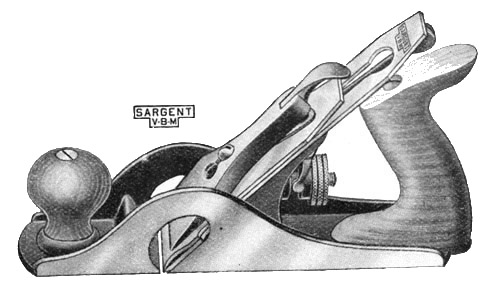

Sargent Carriage Makers’ Rabbet Plane
as illustrated in the Sargent catalog of 1911.
Sargent V.B.M Adjustable Iron Planes
Patented February 3, 1891.
Carriage Makers’ Rabbet Planes
Polished Trimmings.
East India Mahogany Handle and Knob.

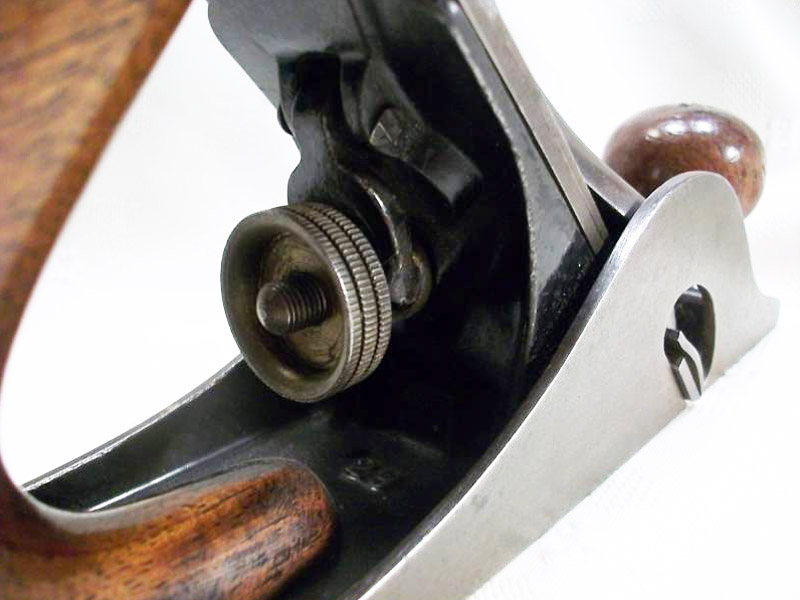

With Patent Side Adjustment for exact
adjusting of the Cutter with the face of the Plane.
No. 29, 9 Inches, 2⅛ Inch Cutter, . . . each, net $3 10
Note: The above information has been reproduced from an original catalog listing.

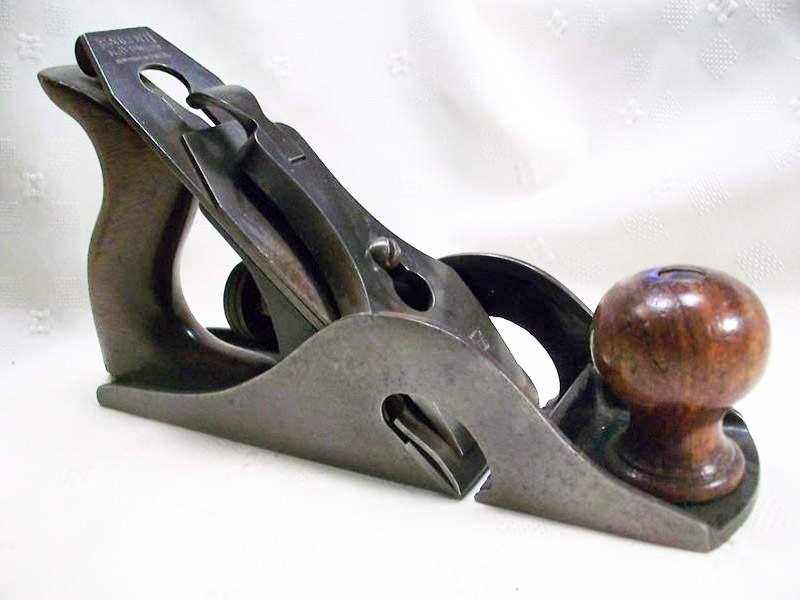

Specifications:
| Plane Type: | Bench Rabbet Plane |
| Features: | Adjustable, with screw adjustment for cutter |
| Manufactured: | From 1910 to 1943 |
| Patents: | February 3, 1891 (Second lateral adjustment) (Granville H. Wright) |
| Length: | 9 inches |

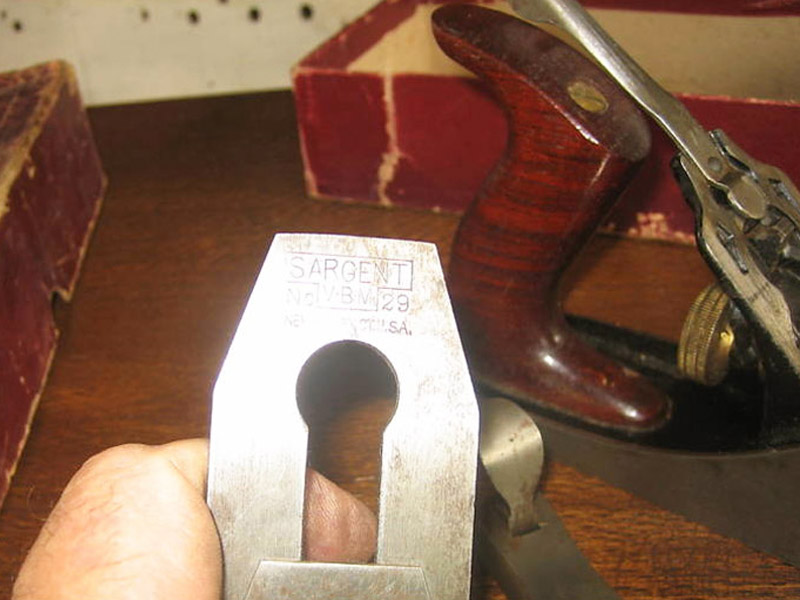

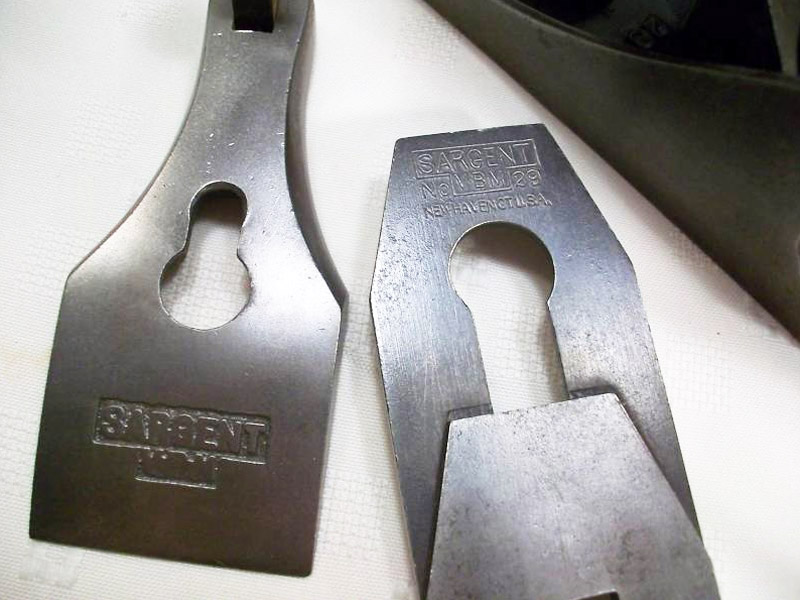

| Cutter Width: | 2⅛ inches |
| Construction: | Cast iron body, East India Mahogany handle & knob (1910 to 1924) |
| Cast iron body, Mahogany handle & knob(1925 to 1943) | |
| Finish: | Japanned. Polished Trimmings (1910 to 1941) |
| Japanned. Nickel Plated Trimmings & Lever Cap (1942 to 1943) | |
| Uses: | Special purpose bench plane |
Please check the Value Guide For Sargent Planes page for relative prices.
