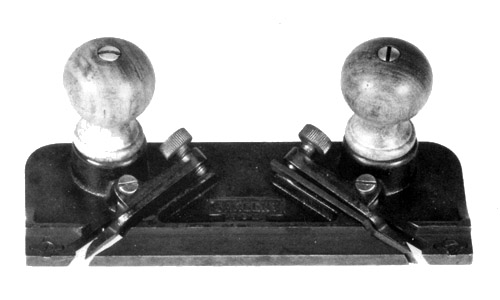

Sargent Prototype Dado Plane
Sargent Prototype Dado Plane
as shown in "Patented Transitional And Metallic Planes In America - Volume 2".


Specifications:

Plane Type: Dado Plane
Features: Reversible for left and right cutting
Manufactured: Circa 1916
Patents: Unknown
Length: 8⅛ inches
Cutter Width: 5/16 inches (Two cutters included)
Construction: Cast iron body, East India Mahogany knobs
Finish: Japanned. Polished Trimmings
Uses: Special purpose dado plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

This plane is pictured in Roger K. Smith's "Patented Transitional And Metallic Planes In America - Volume 2" (page 250). It looks very similar to a large side rabbet plane, except that the cutters have been set up differently. Side spurs are mounted on each end of the skate forward of the cutters.

Once owned by collector Darrell Chapnick, it has since been sold and its whereabouts is currently unknown.

As it is a unique plane, no established valuation can be given.
