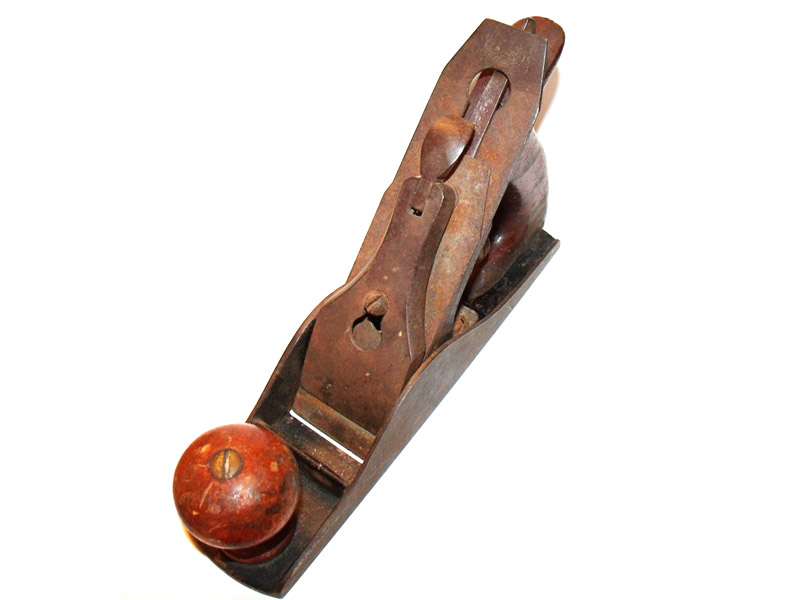

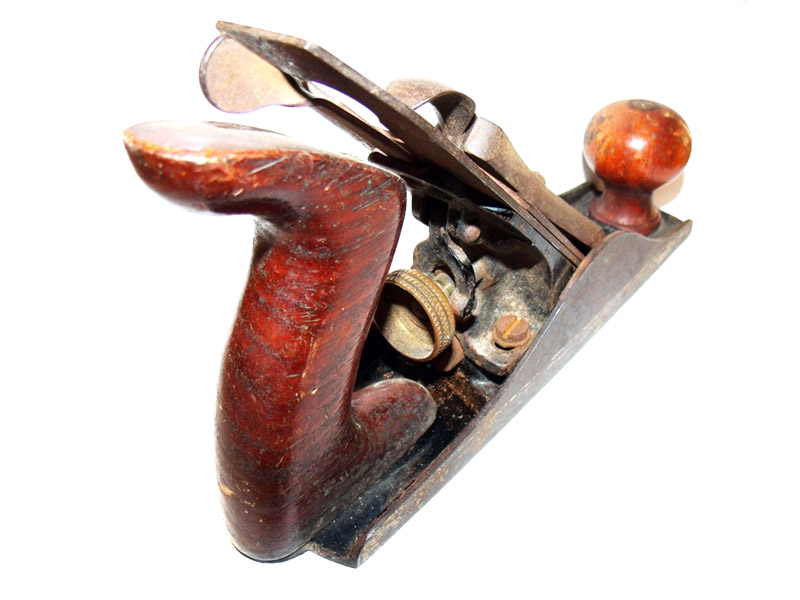

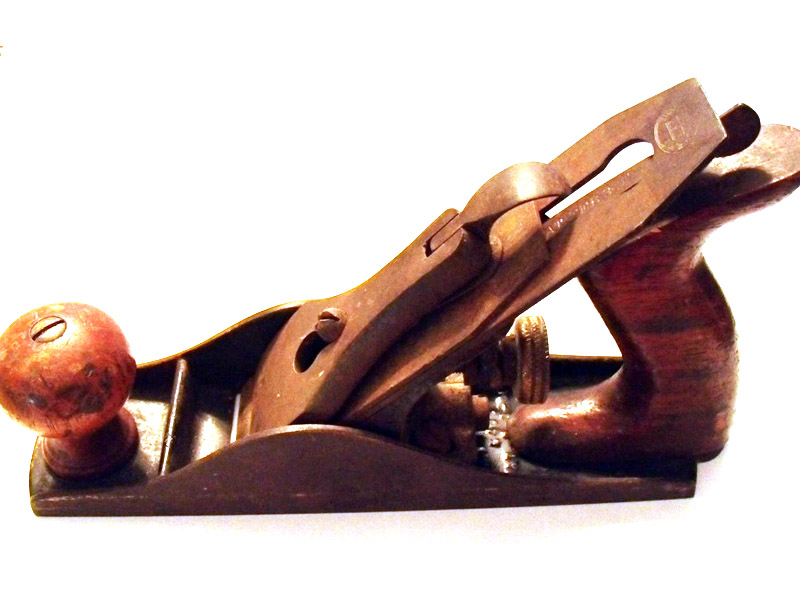

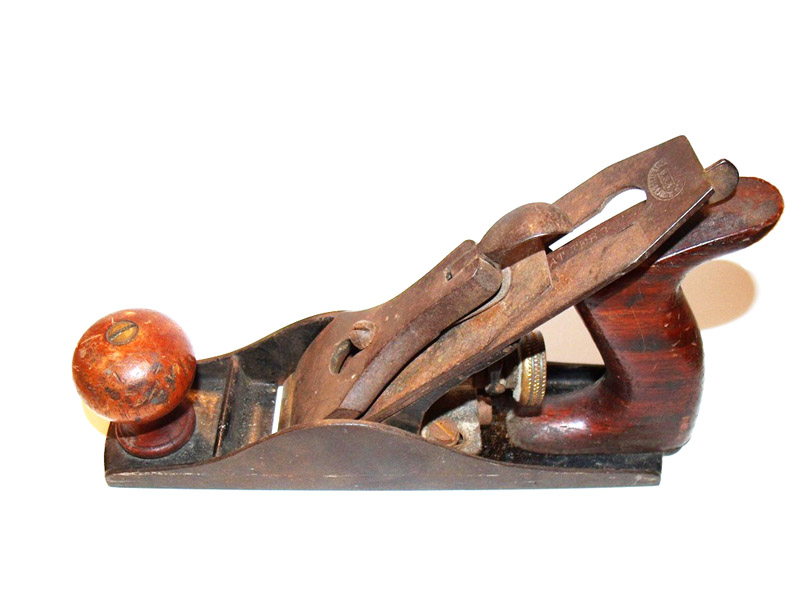

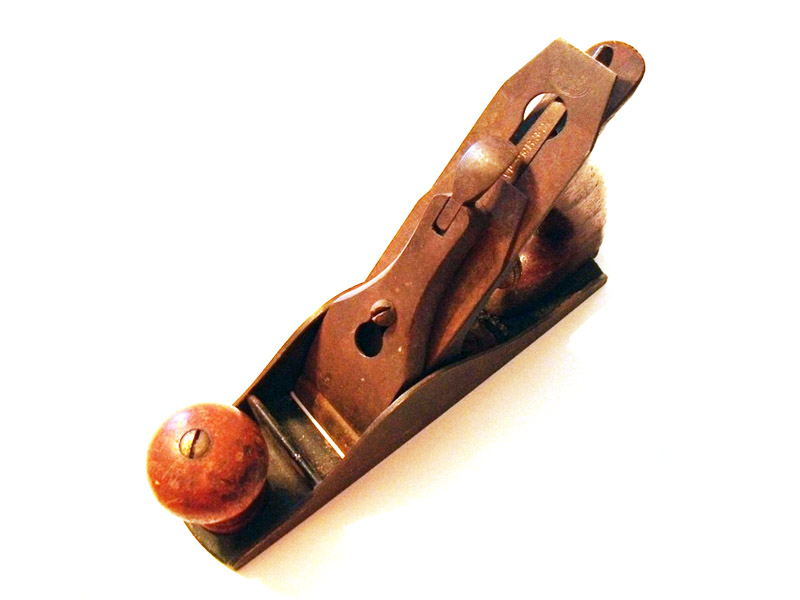

Sargent No. 6408 Smooth Plane

Sargent No 6408 Prototype Smooth Plane

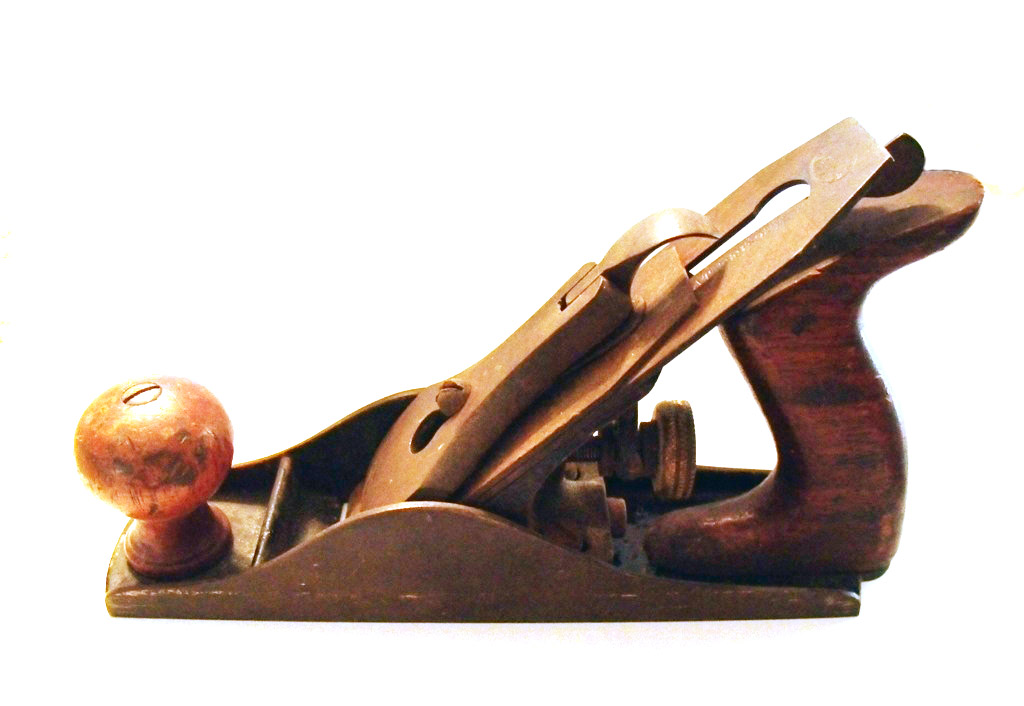

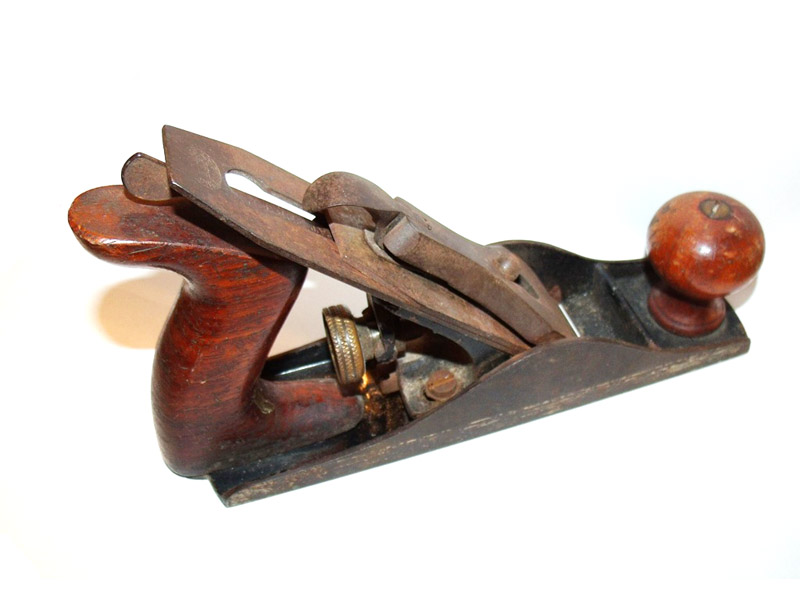

Sargent No. 6408 Prototype Smooth Plane
as shown in David E. Heckel’s “Sargent Planes Identification And Value Guide – Second Edition”.


Specifications:

Plane Type:Smooth Plane
Features:Adjustable
Manufactured:Circa 1906
Patents:February 3, 1891 (lateral adjustment) (Granville H. Wright)
July 3, 1906 (frog adjustment) (John H. Shaw)
Length:8 inches
Cutter Width:1¾ inches
Construction:Cast iron body, East India Mahogany handle & knob
Finish:Japanned. Polished Trimmings
Uses:General purpose bench plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

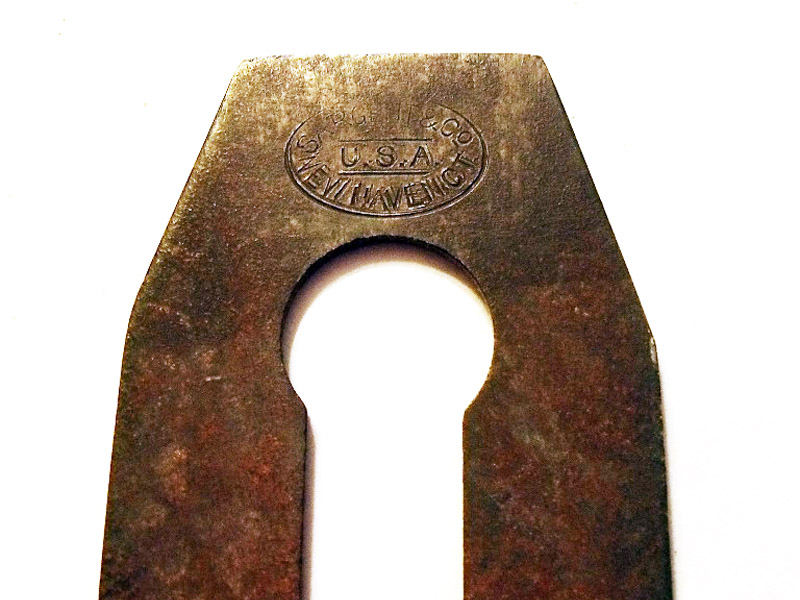

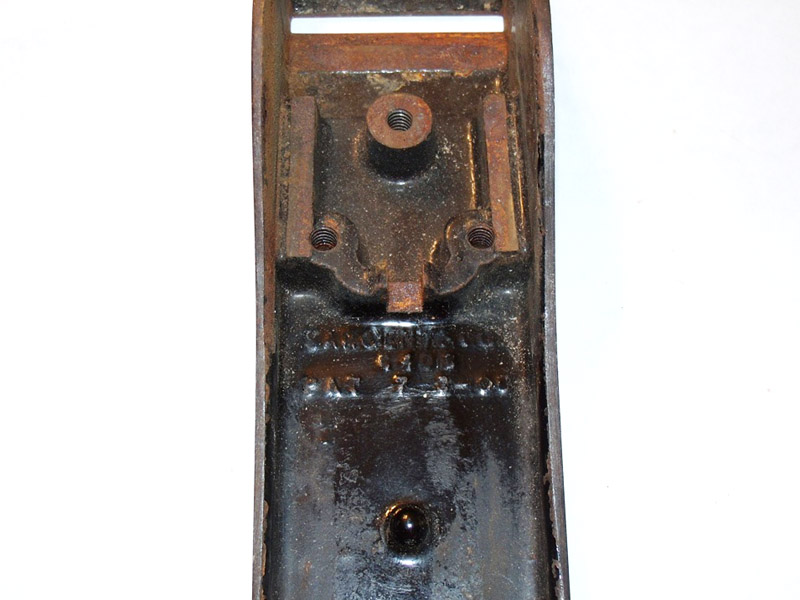

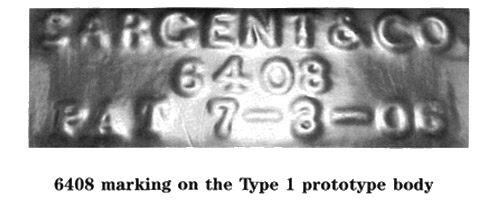

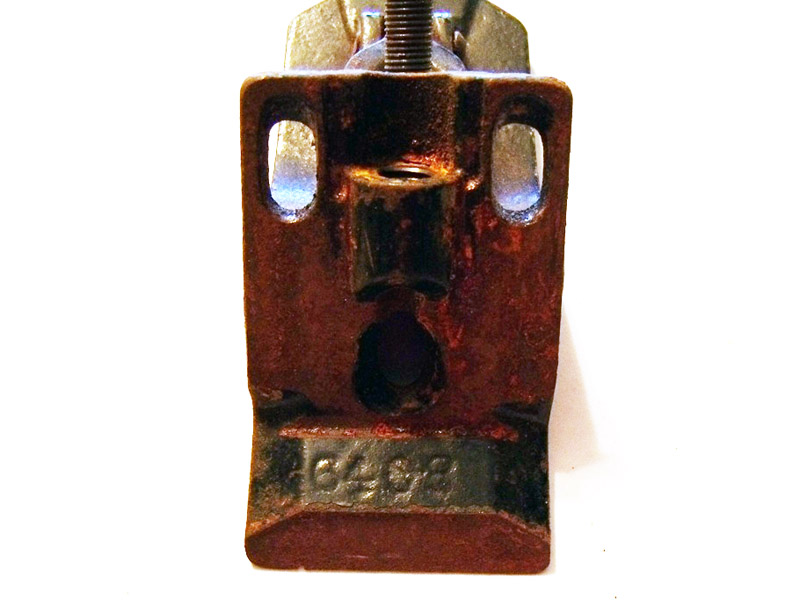

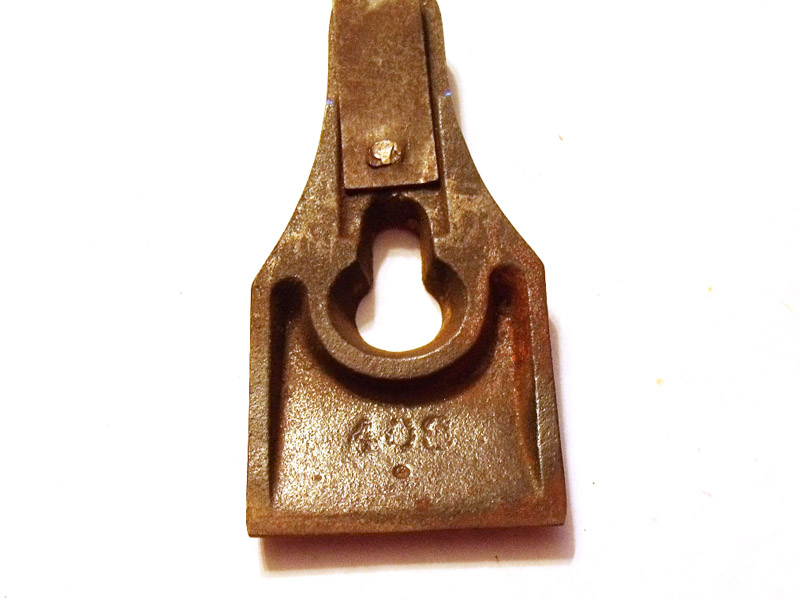

The prototype plane for the “Shaw Patent” planes (see Sargent No. 7). Marked with the number 6408 behind the frog as well as the oval U.S.A. trademark on the cutter, a blank lever cap with 408 and a dot cast into the back.

It is not known if other similarly-marked Shaw Patent planes exist. As it is unique, no valuation has been established.
