Sargent No. 1080 Combination Plane (Stanley Made)


Print Friendly, PDF & Email

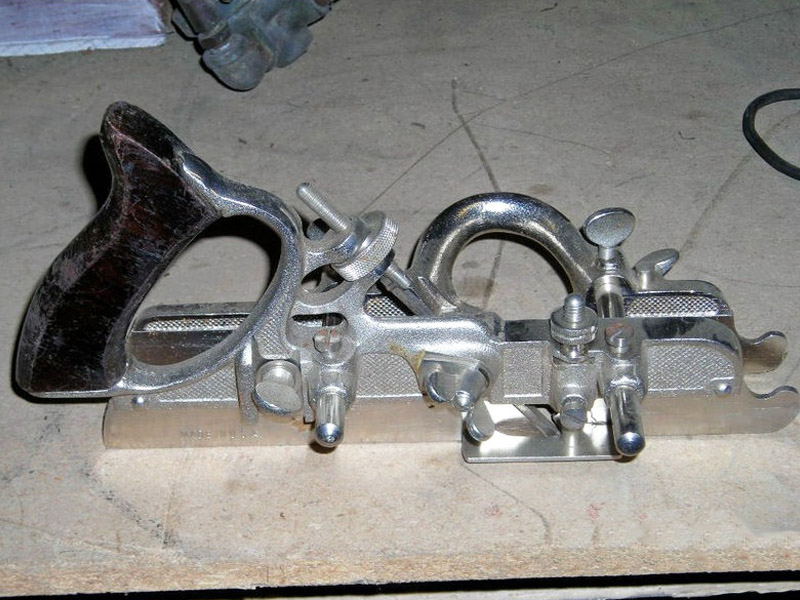

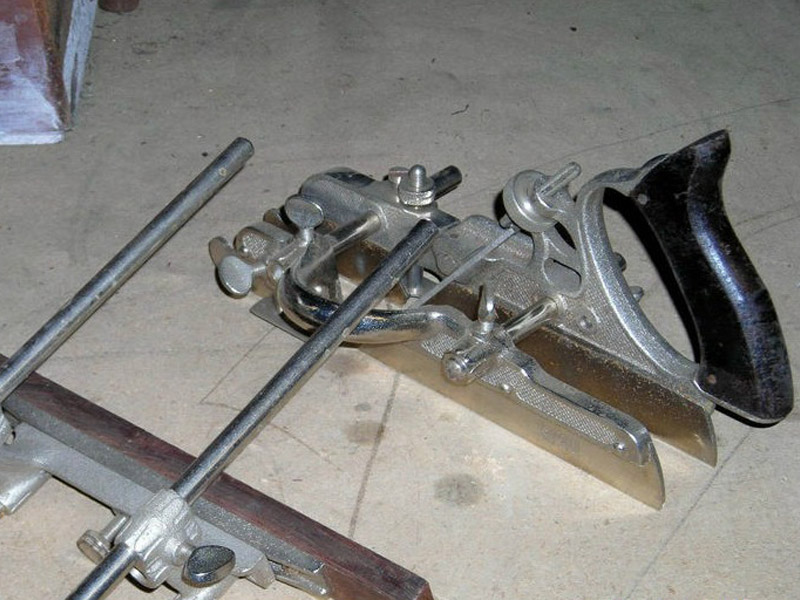

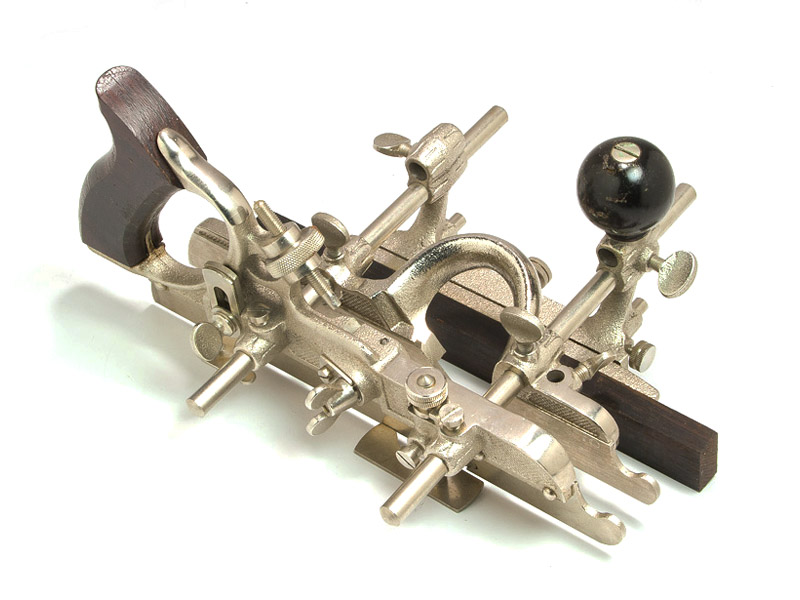

Sargent No 1080 Combination Plane
Sargent No. 1080 Combination Plane (Stanley Made)

Combination Planes.

With Screw Adjustment.
Rosewood Handle, knob and Fence Plate.

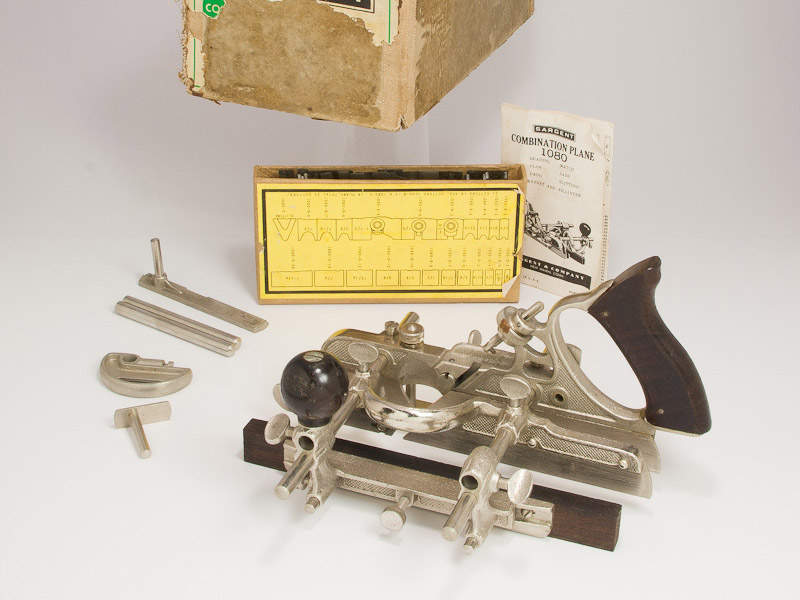

No. 1080, Nickel Plated, 10¾ Inches, complete with 23 Cutters packed in Card Board Box

Combination Plane No. 1080 is designed for use in the following types of work: Dadoing, Rabbeting, Tonguing and Grooving, Beading, Slitting and Sash Cutting. It may also be used as a Filletster and with special Cutters as a Reeding Plane.

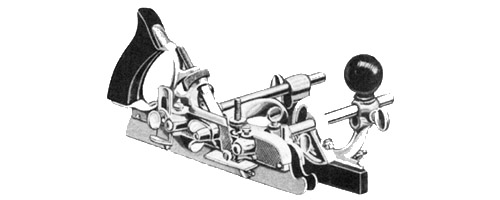

Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type: Combination Plane
Features: Adjustable, with fence, skate & depth gauge
Manufactured by Stanley and is a copy of their No. 45 plane
Manufactured: From 1949 to 1953
Length: 10¾ inches

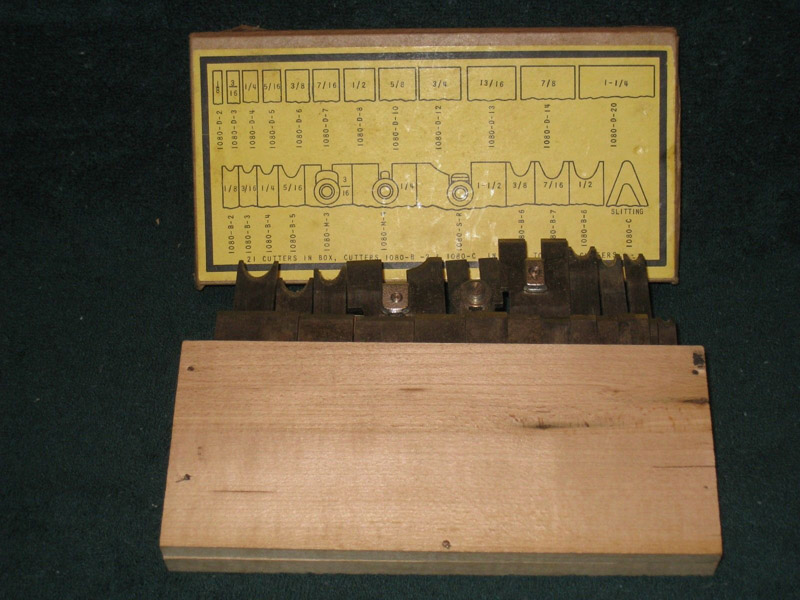

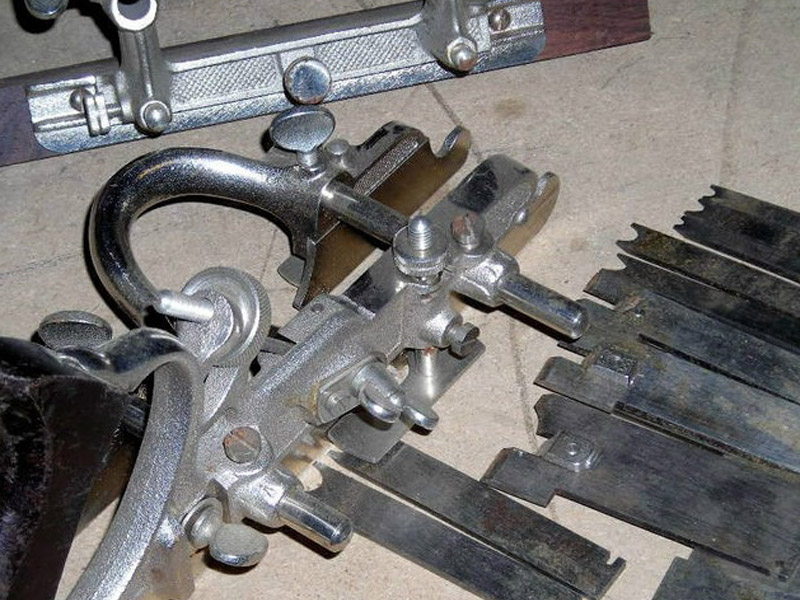

Cutter Width: 23 cutters & sizes, including:
11 Plow & Dado cutters
7 Beading cutters
1 Rabbet & Filletster cutter
1 Sash cutters
2 Match cutters
1 Slitting cutter

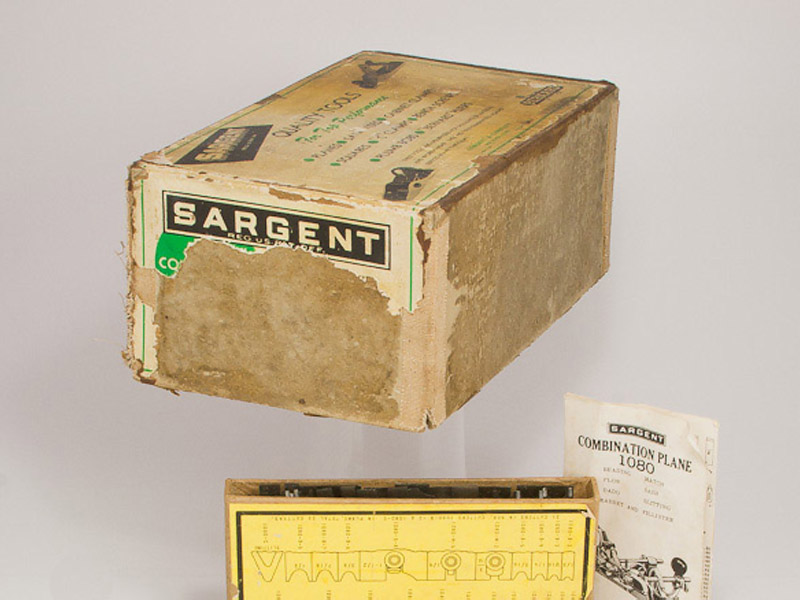

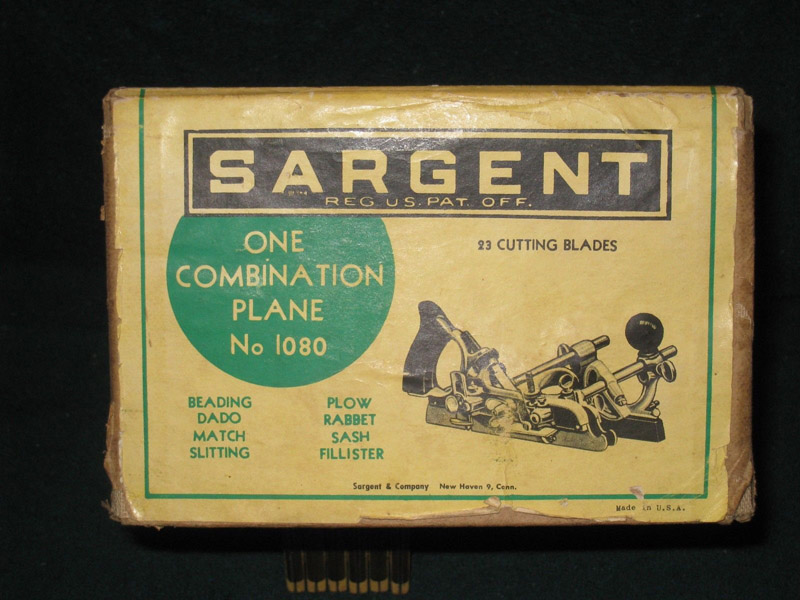

— All packed in a cardboard box
Construction: Cast iron body, Rosewood handle, knob & fence plate
Finish: Nickel Plated
Uses: Special purpose combination plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

By 1949 Sargent had stopped production on the No. 1080 combination plane and, instead, commissioned Stanley Tools to supply them with planes based on copies of Stanley's own No. 45 plane.
