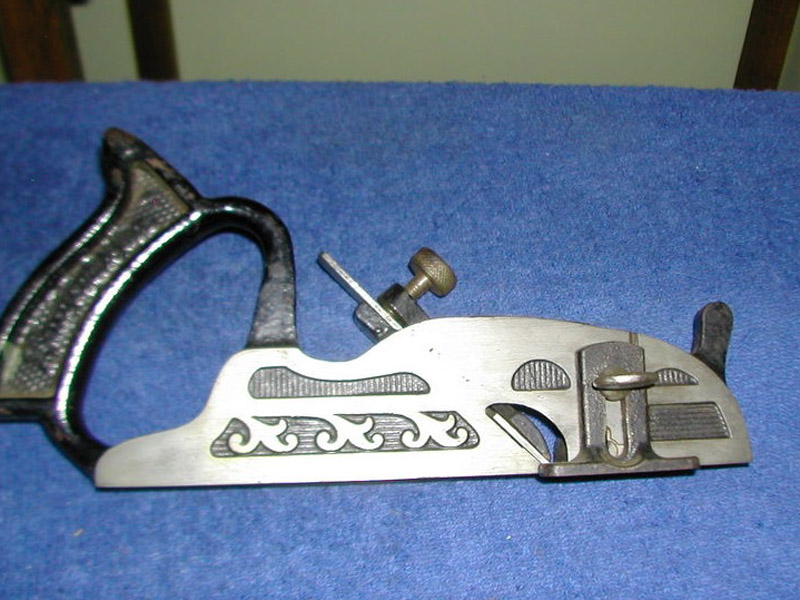

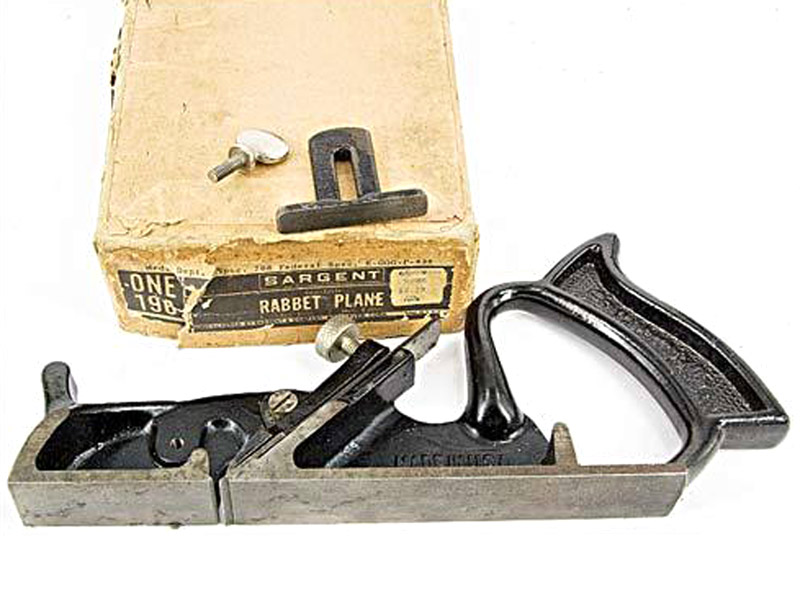

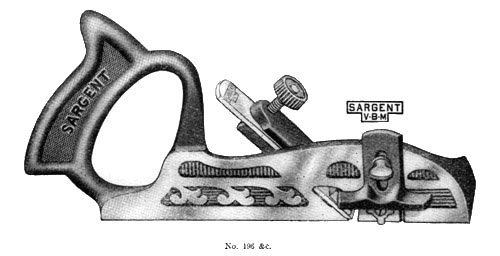

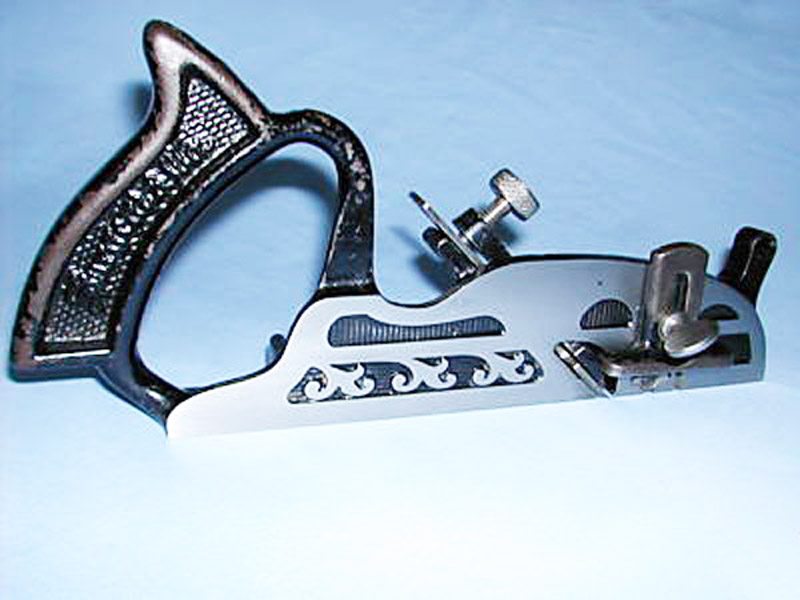

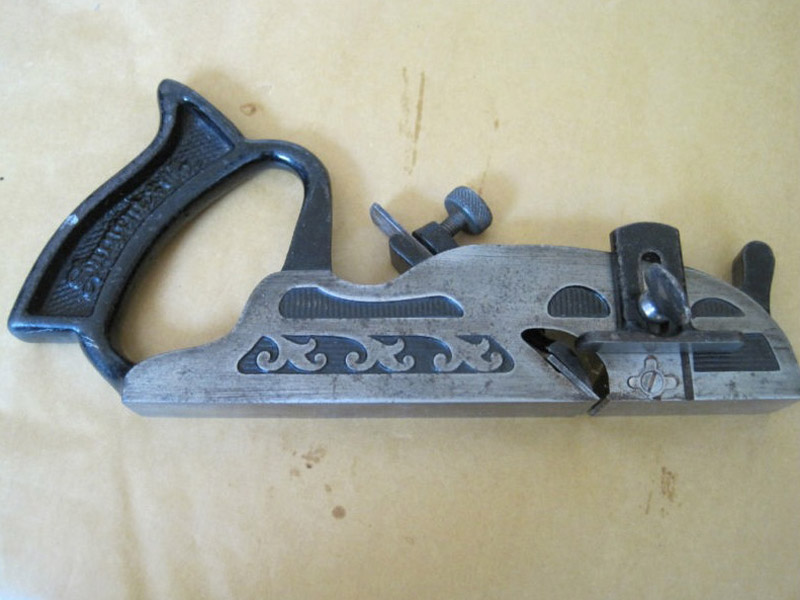

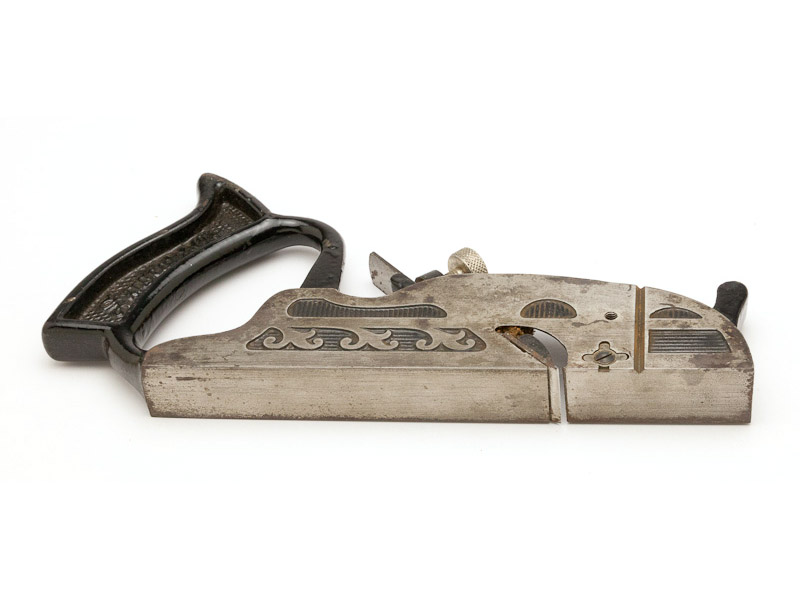

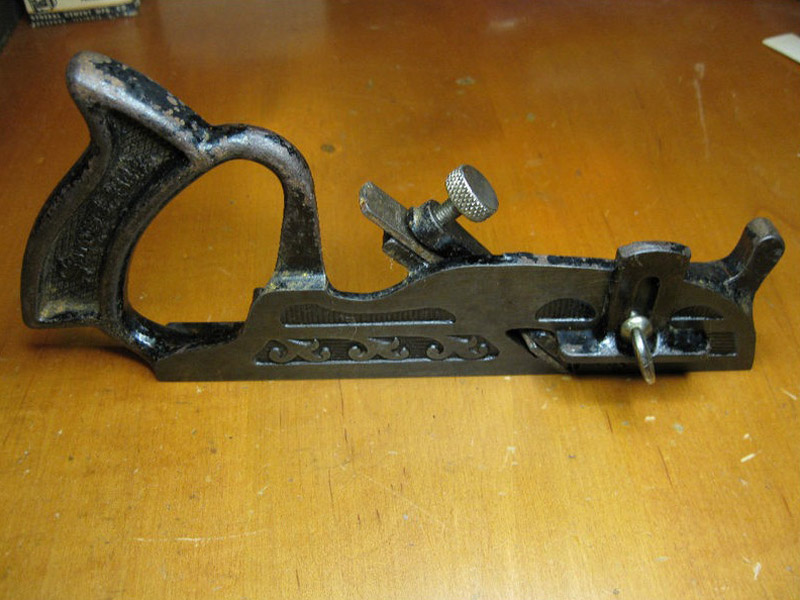

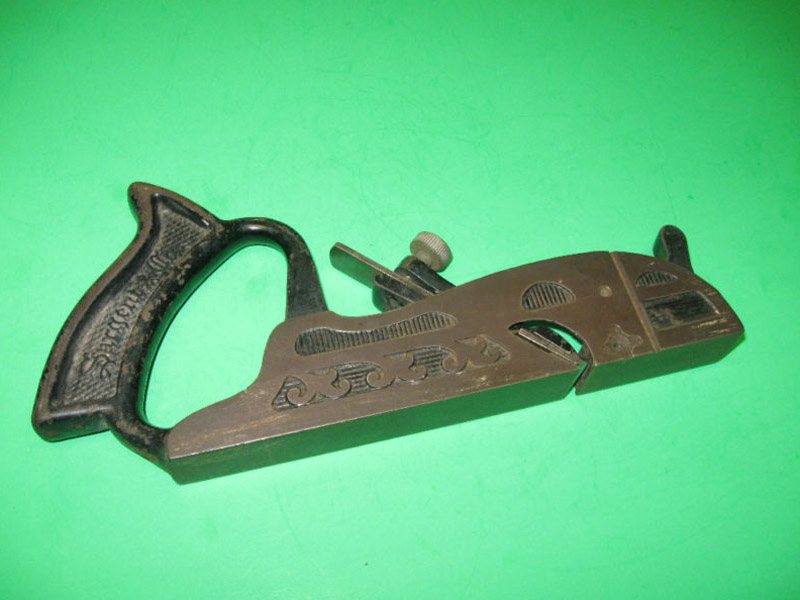

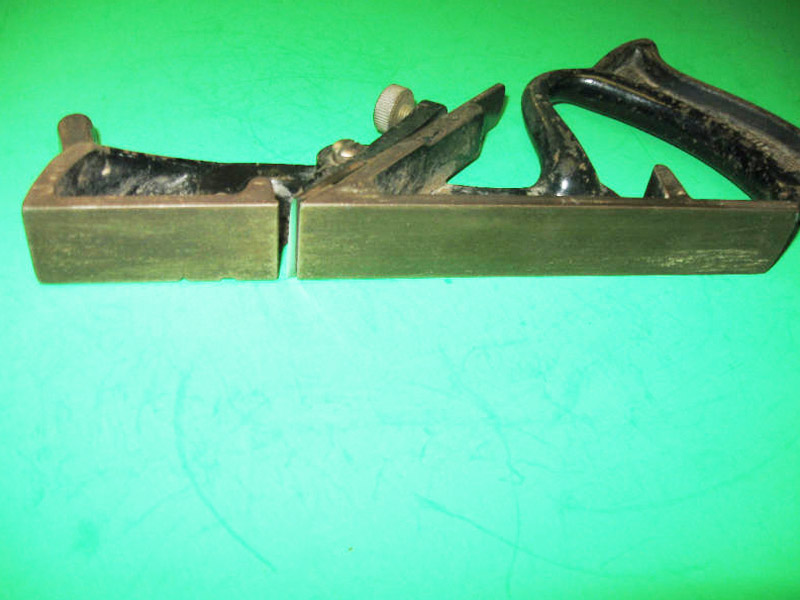

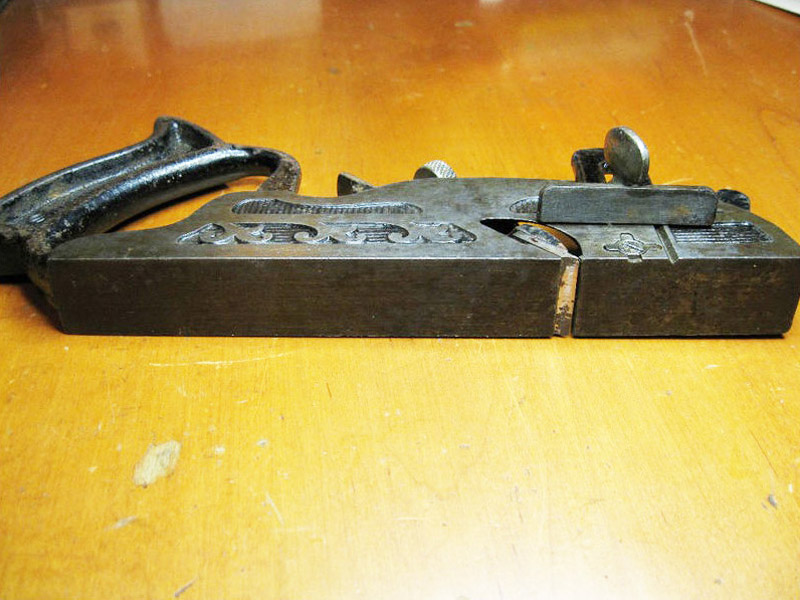

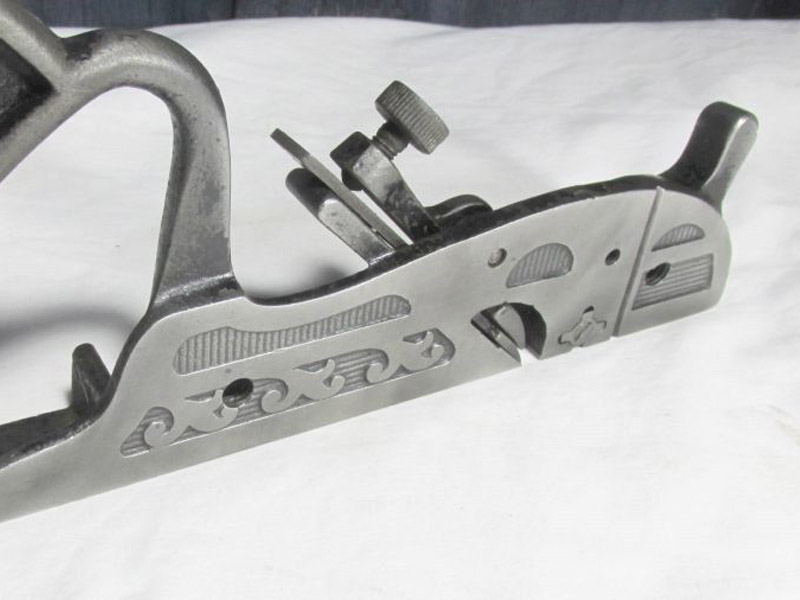

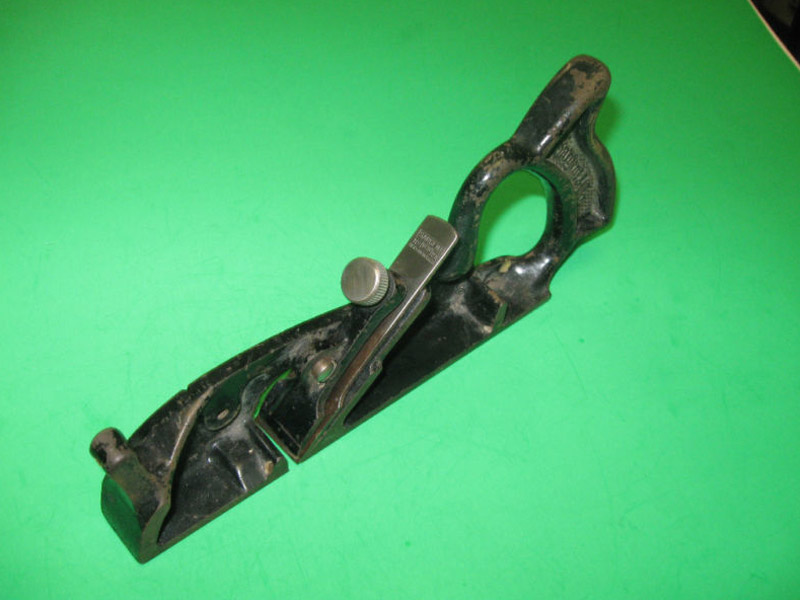

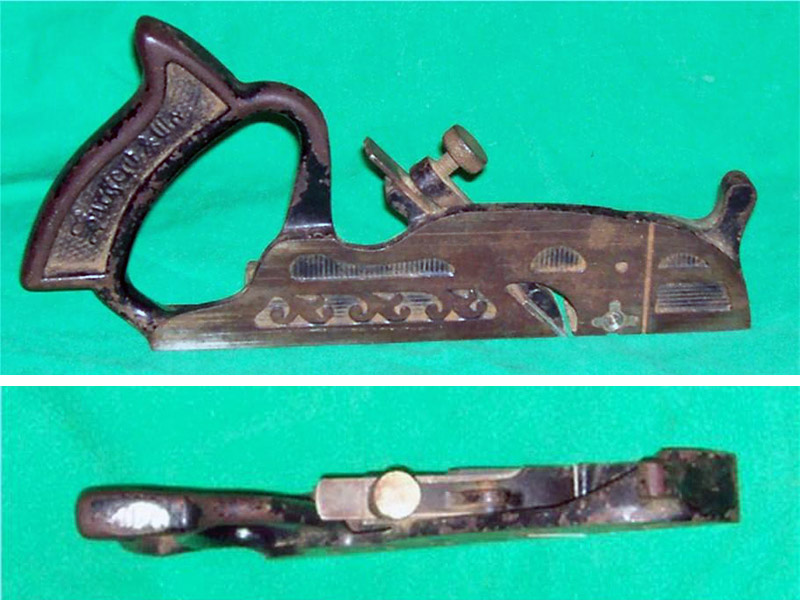

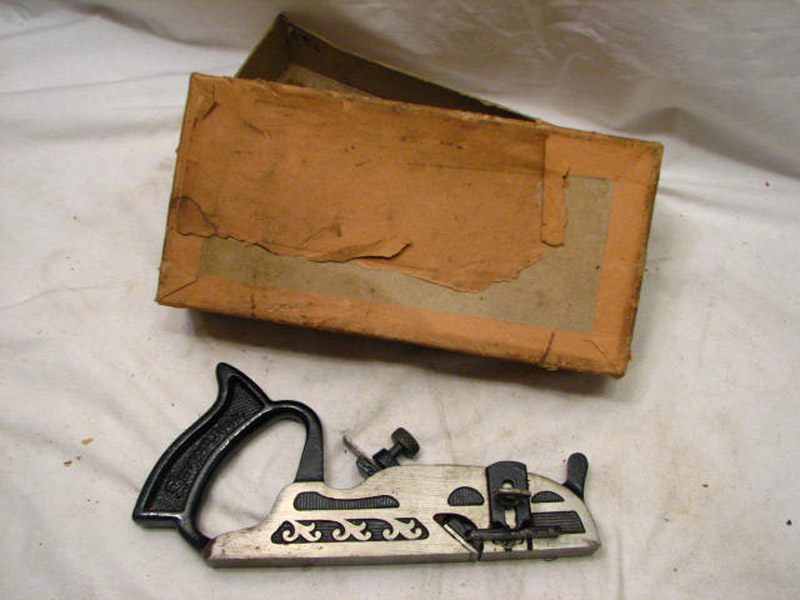

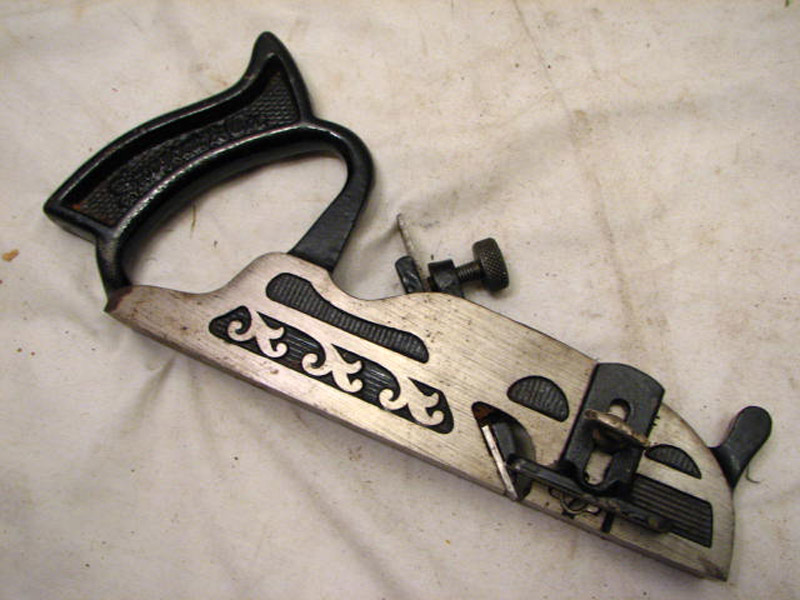

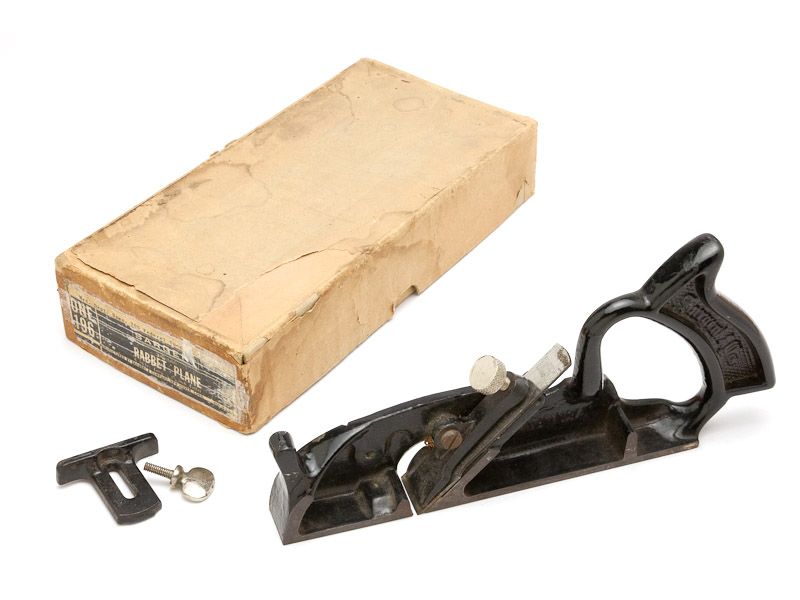

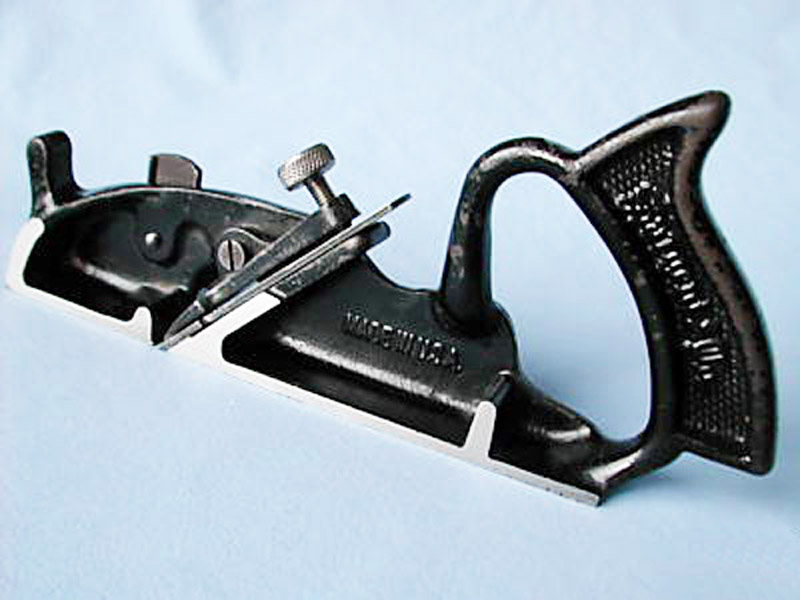

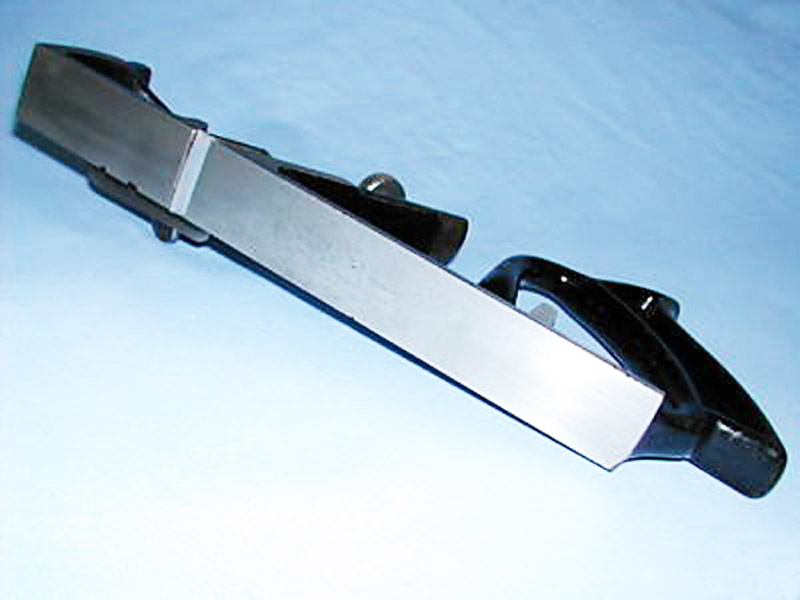

Sargent No. 196 Rabbet Plane
as illustrated in the Sargent catalog of 1911.
Sargent V.B.M Adjustable Iron Planes
Rabbet Planes

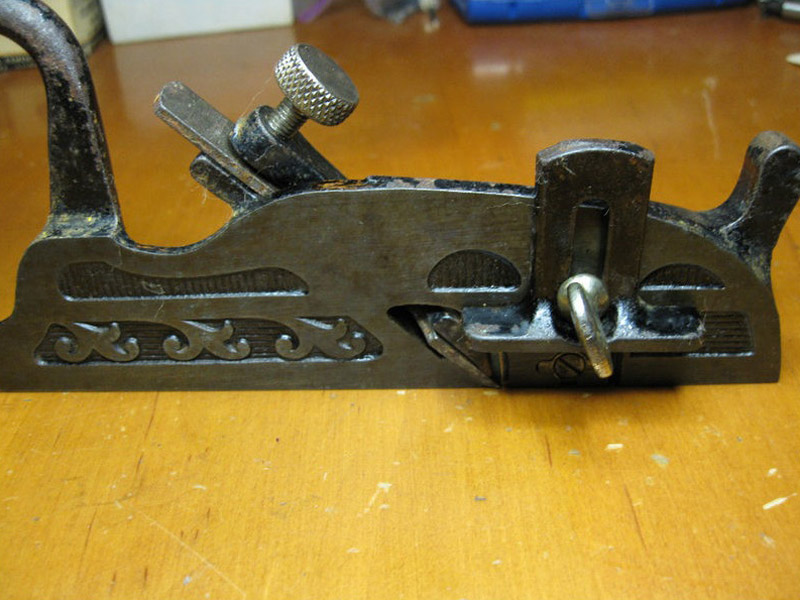

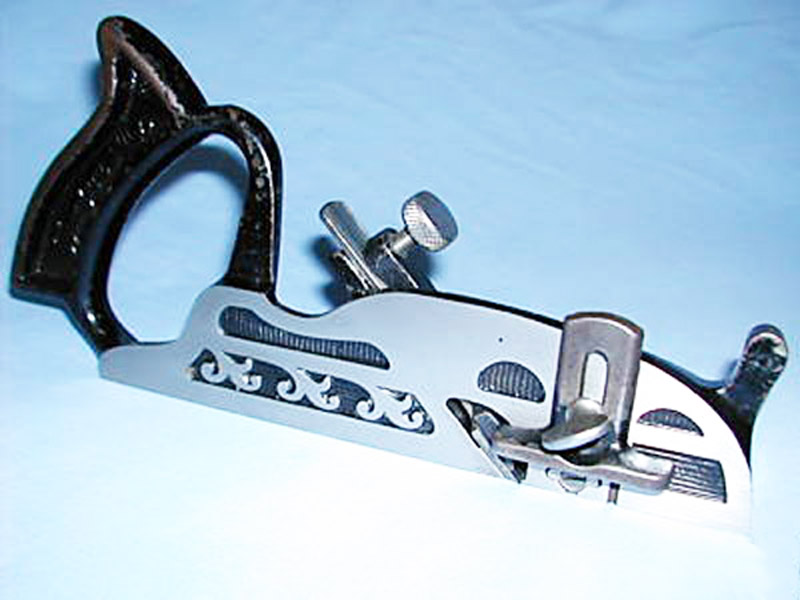

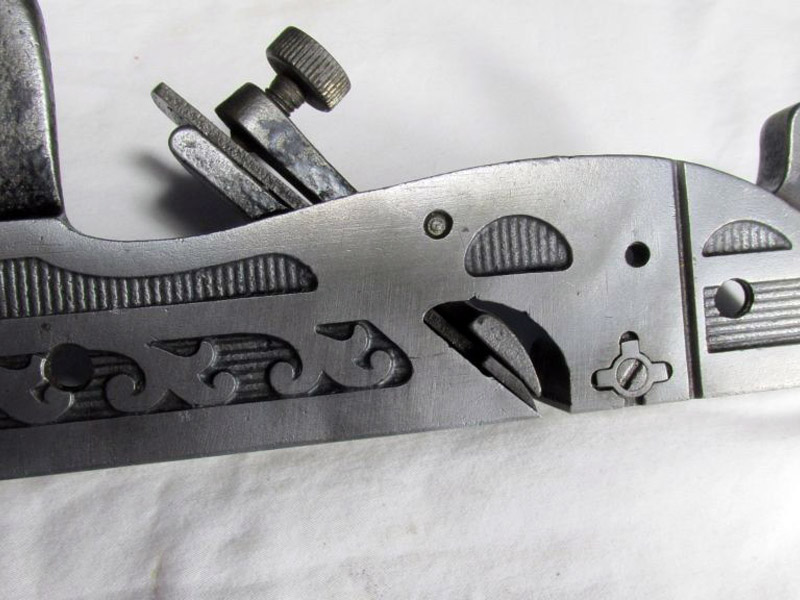

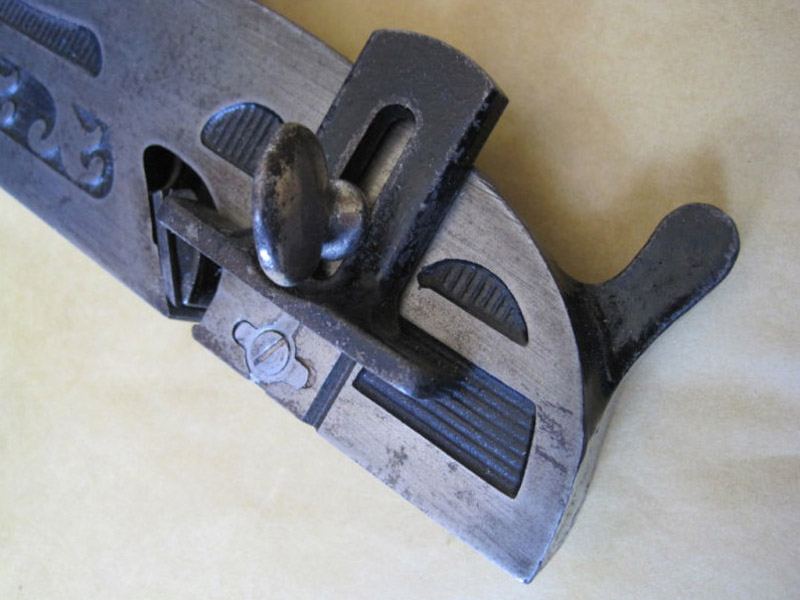

With Depth Gauge and Spur.
Japanned Finish.
No. 196, 8 Inches, 1 Inch Cutter, . . . . . each, net $1 50
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Rabbet Plane |
| Features: | Adjustable, with depth gauge & spur |
| Manufactured: | From 1910 to 1943 |
| Length: | 8 inches |
| Cutter Width: | 1 inches |
| Construction: | Cast iron |
| Finish: | Japanned |
| Uses: | General purpose rabbet plane |
Please check the Value Guide For Sargent Planes page for relative prices.
Additional Notes:

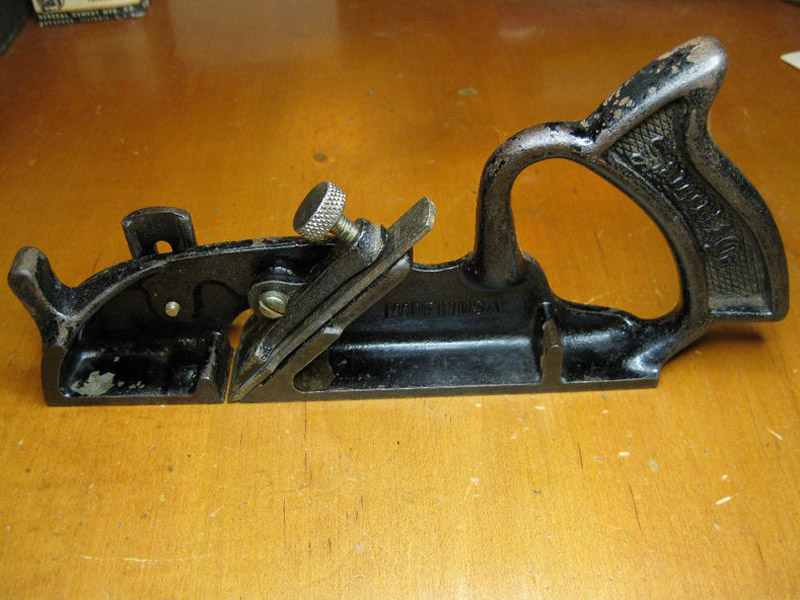

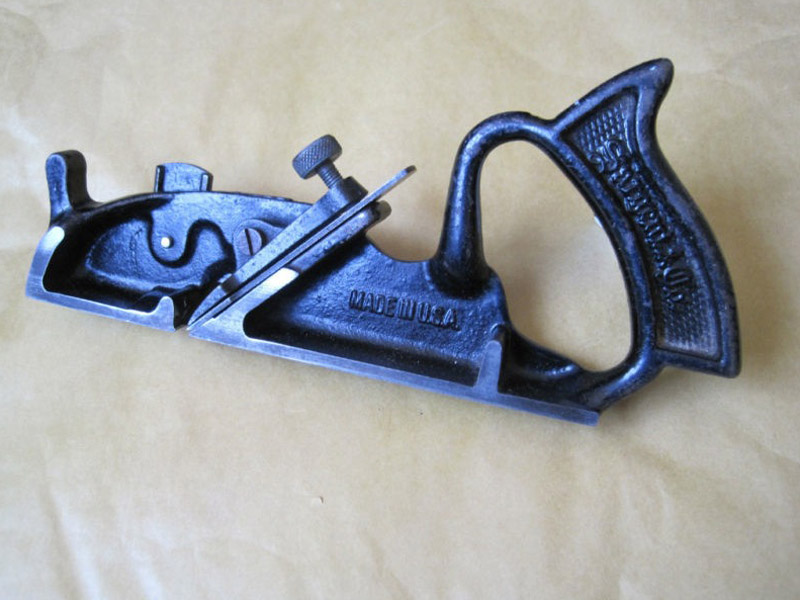

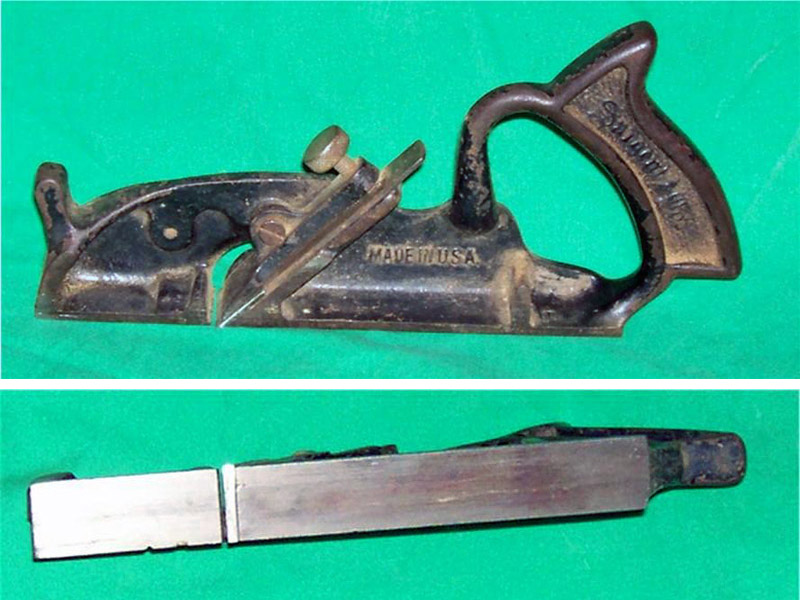

Late model planes have a forward handle, or horn, added to the casting.
