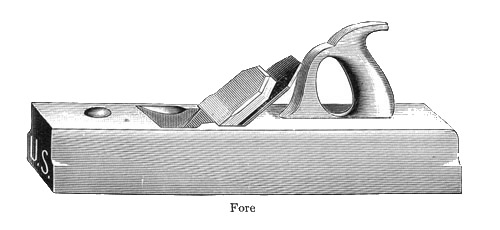

Sargent No. 614½ “U. S.” Fore Plane
as illustrated in the Sargent catalog of 1911.
Sargent & Co.’s “U. S.” Bench Planes — Warranted.
No. 614½, Fore, Razee Handle, Double Irons, 2⅜, 2½, 2⅝ Inch Iron,, . . .
. . . . . . . . Length 18, 20 or 22 Inches, . . each $2 70
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Fore Plane |
| Features: | Razee handle. Double irons |
| Manufactured: | Mid 1880’s to mid 1920’s |
| Length: | 18, 20 or 22 inches |
| Cutter Width: | 2⅜, 2½, 2⅝ inches |
| Construction: | Beech |
| Finish: | Either shellac, wax or no finish, depending on era. |
| Uses: | General purpose bench plane |
Additional Notes:
Most, if not all, wooden planes were made for Sargent by the Sandusky Tool Company of Sandusky, Ohio. The precise dating of the wooden planes sold by Sargent is not known.
For additional information, please check out the Comparative List Of Sargent Wooden Planes page to view model numbers with other manufacturers.
Please check the Value Guide For Sargent Planes page for relative prices.
