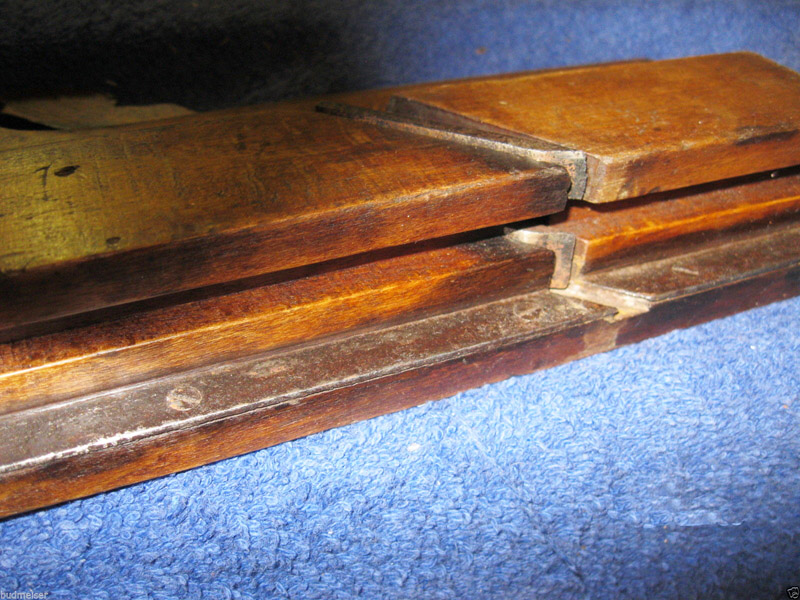

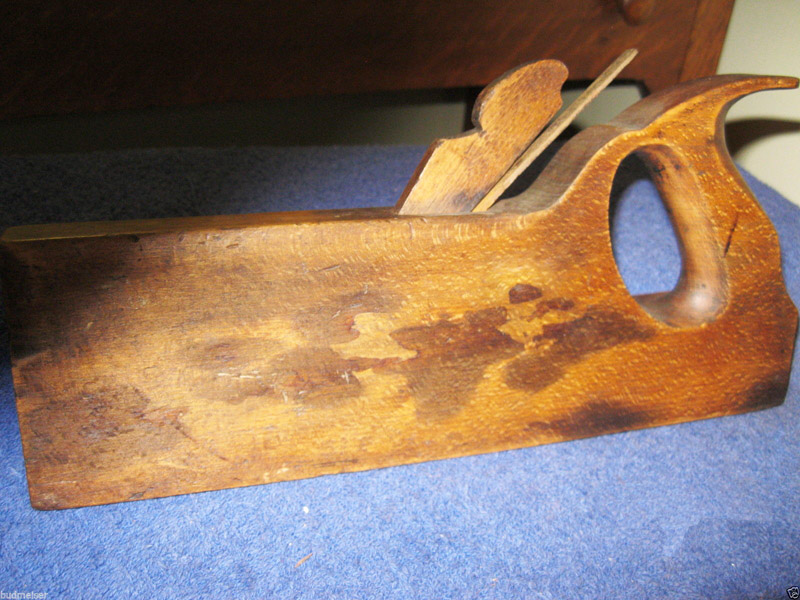

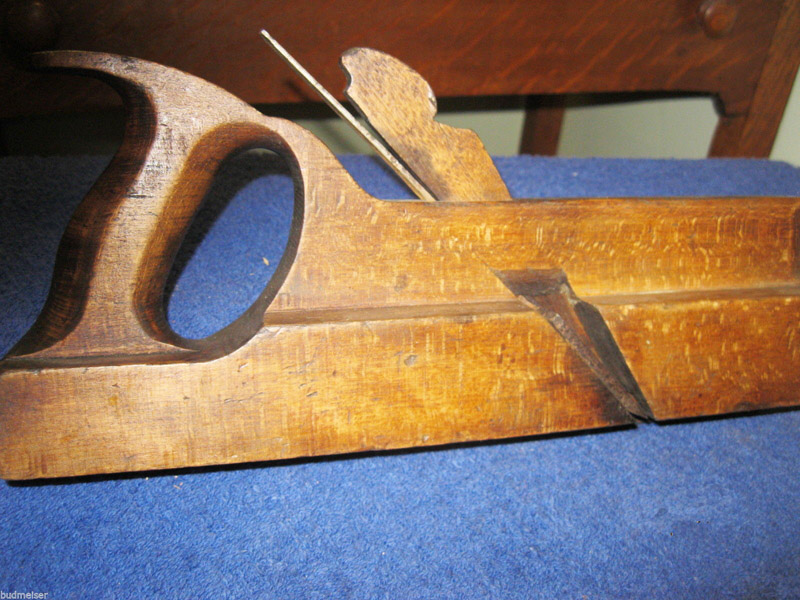

Sargent “U. S.” Match Plane

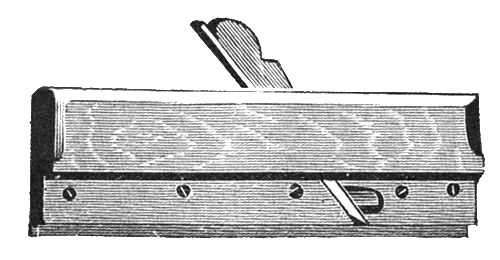

as illustrated in the Sargent catalog of 1911.
“U. S.” Miscellaneous Planes.
Match Plane
No. 676, Solid Handle, Separate, Plated . . ¾, ⅞ and 1 Inch . per pair $3 75
No. 676, Solid Handle, Separate, Plated . . 1¼ and 1½ Inch . per pair $4 50
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Match Plane |
| Features: | Separate pair. Solid handle. Plated |
| Manufactured: | Mid 1880’s to mid 1920’s |
| Length: | 11 inches |
| Cutter Width: | Various (see above) |
| Construction: | Beech |
| Finish: | Either shellac, wax or no finish, depending on era. |
| Uses: | General purpose match plane |
Additional Notes:
Most, if not all, wooden planes were made for Sargent by the Sandusky Tool Company of Sandusky, Ohio. The precise dating of the wooden planes sold by Sargent is not known.
For additional information, please check out the Comparative List Of Sargent Wooden Planes page to view model numbers with other manufacturers.
Please check the Value Guide For Sargent Planes page for relative prices.
