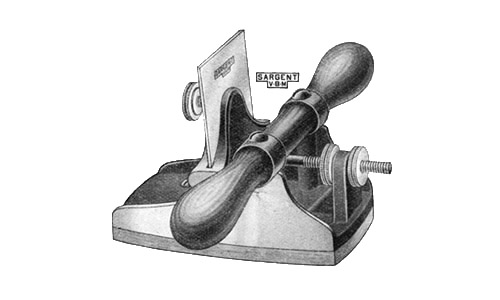

Sargent No. 42 Scraper Plane
as illustrated in the Sargent catalog of 1911.
Sargent V.B.M.
Adjustable Iron Planes.
Scraper Planes.
These Planes are especially suitable for scraping veneers and finishing cabinet and other fine work. They may also be used for removing old paint and glue.
No. 42, 3 Inch Cutter . . . . . . . . . . each, net $2 50
Extra Cutters for the above Planes.
Extra Cutters, 3 Inch Cutter . . . . . . . . each, net $0 25
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Scraper Plane |
| Features: | Adjustable, with screw adjustment for cutter |
| Manufactured: | From 1910 to 1943 |
| Length: | 6¼ inches |
| Cutter Width: | 3 inches |
| Construction: | Cast Iron, Mahogany Double Handle |
| Finish: | Japanned, Polished Trimmings |
| Uses: | General purpose veneer & cabinet scraping |
Please check the Value Guide For Sargent Planes page for relative prices.
Additional Notes:

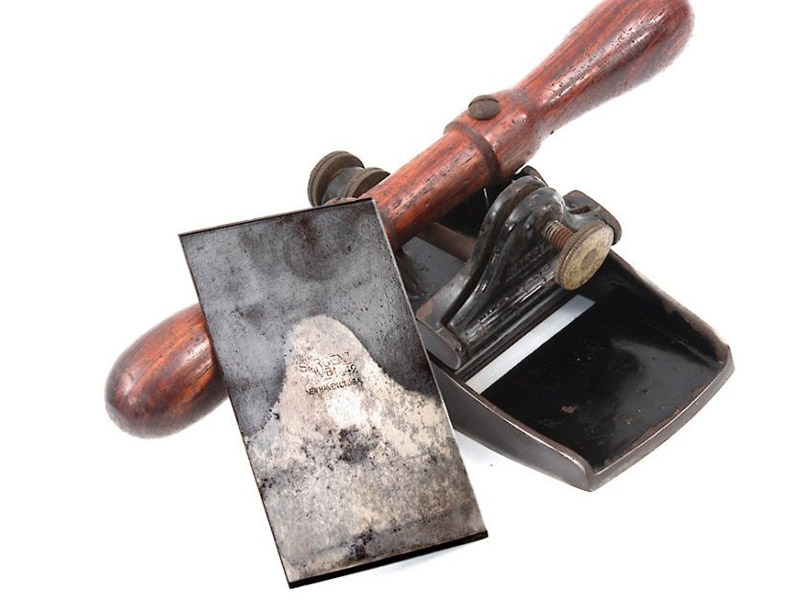

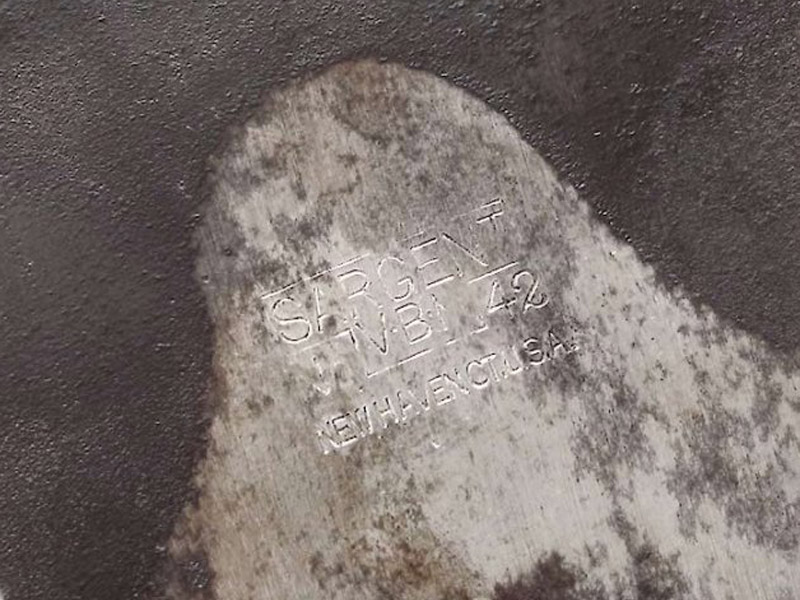

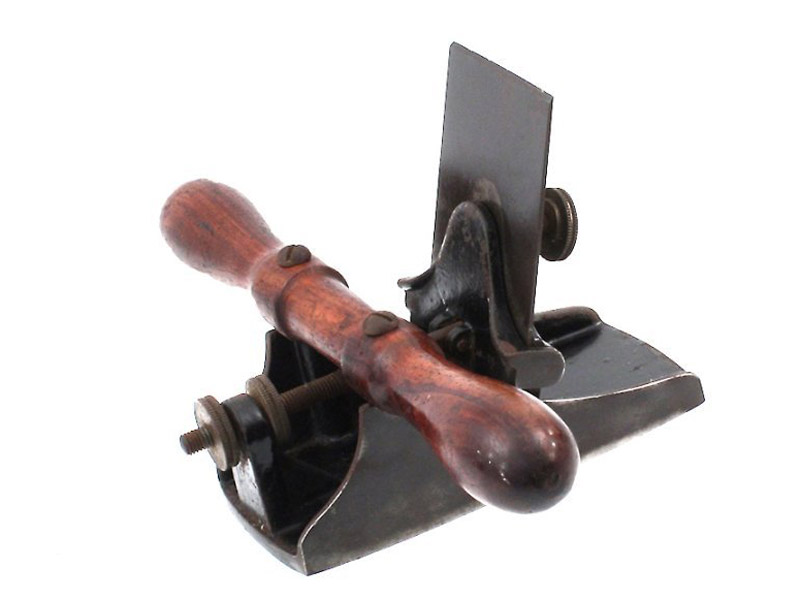

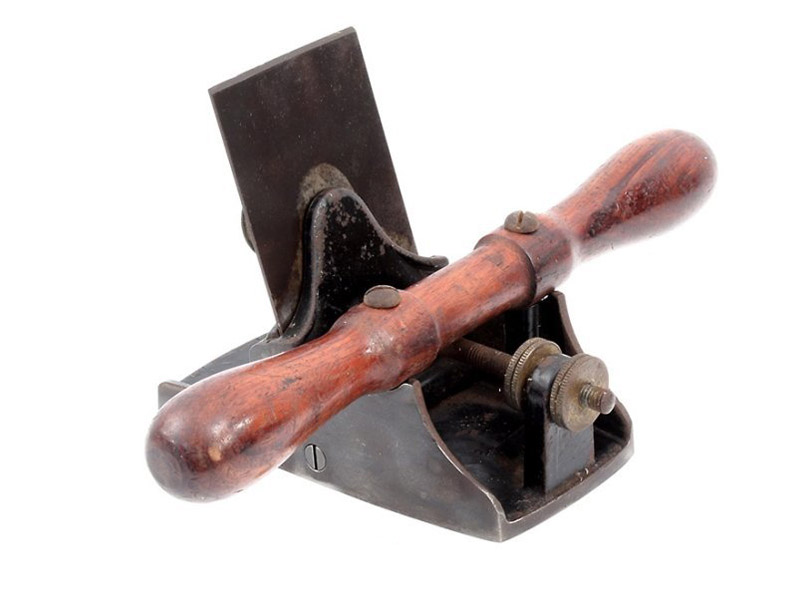

The No. 42 Scraper Plane came with an East India Mahogany Double Handle from 1910 to 1924 and then was replaced by a Mahogany Double Handle from 1925 to 1943. It is the same plane as the No. 43 but does not have the wooden face. The No. 42 scraper cutter is stamped with the plane number on it.
