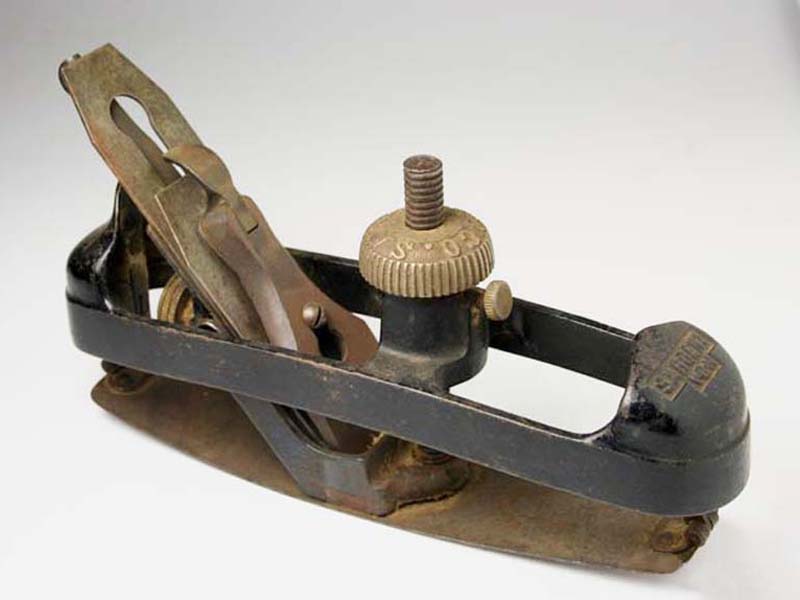

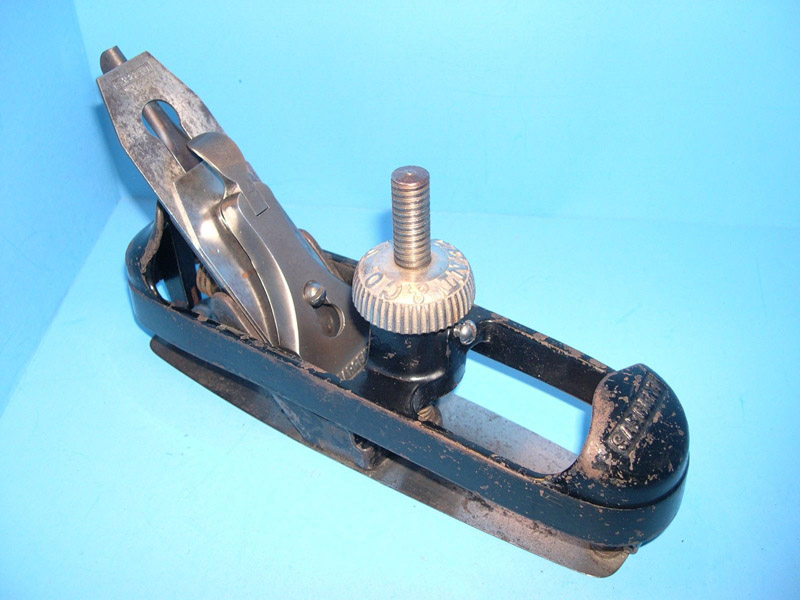

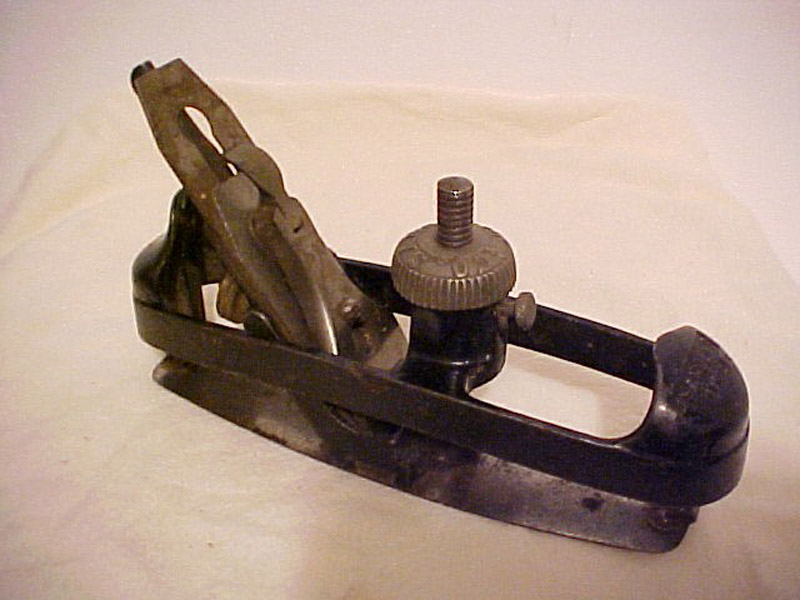

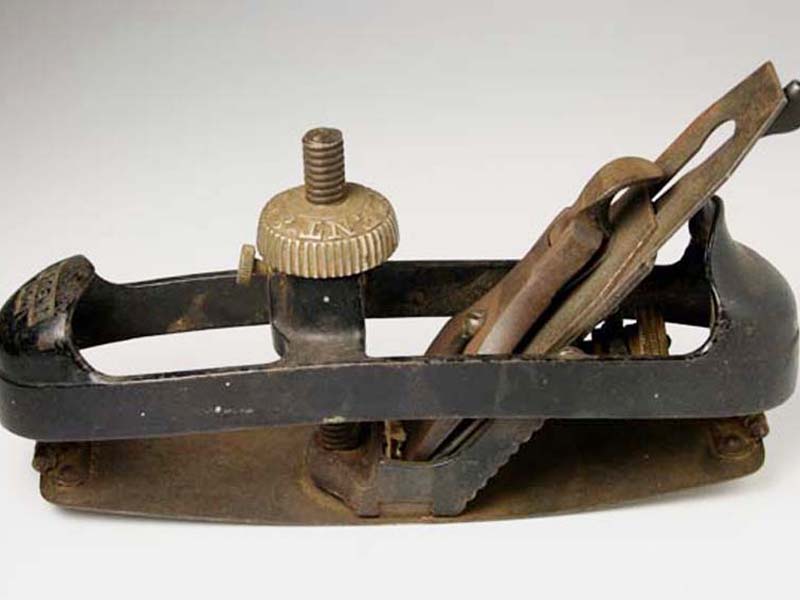

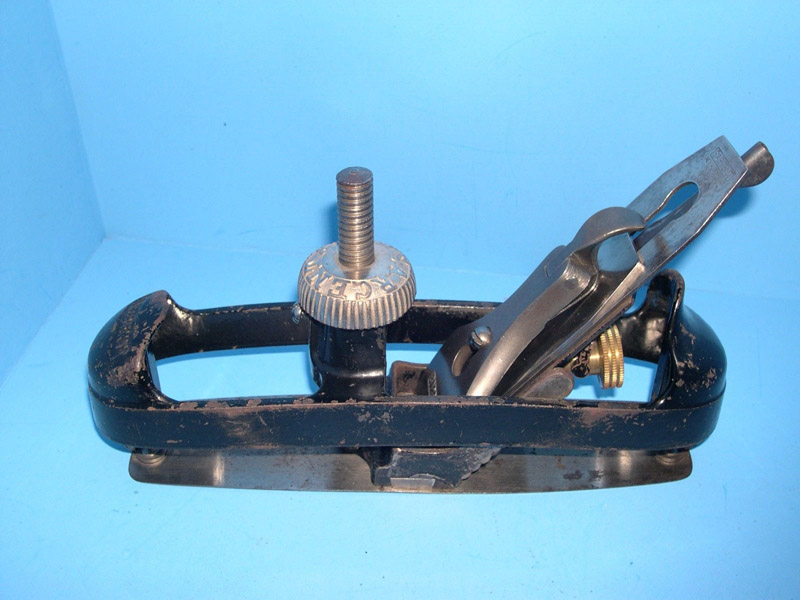

Sargent No. 74 Circular Plane
as illustrated in the Sargent catalog of 1911.

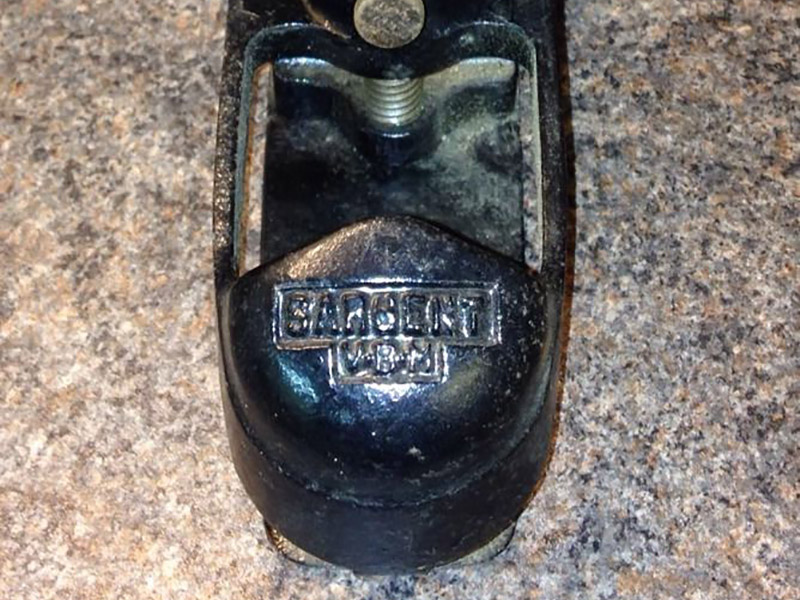

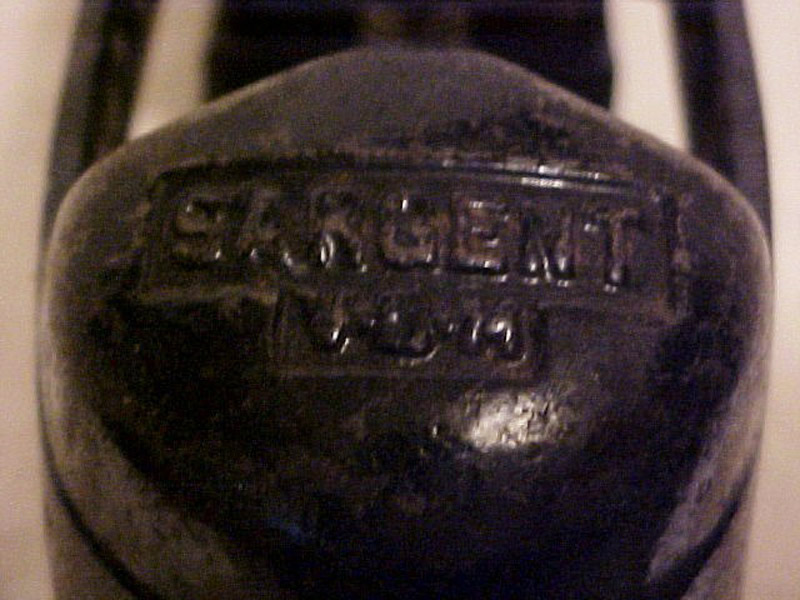

Sargent V.B.M. Adjustable Iron Planes.
Patented February 3, 1891.
Circular Planes.

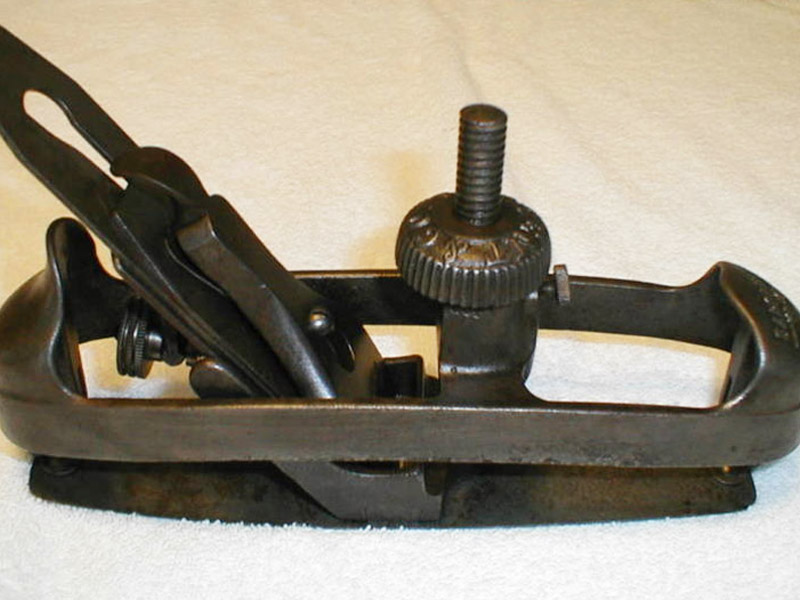

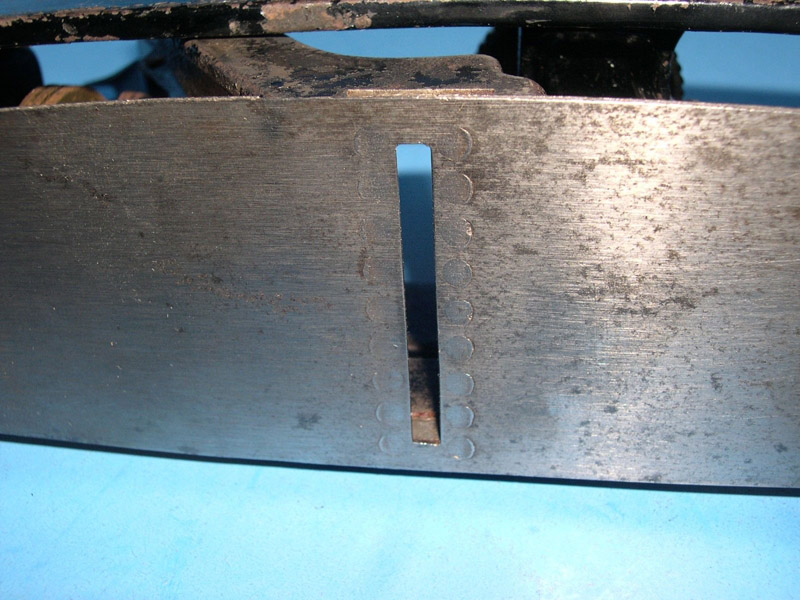

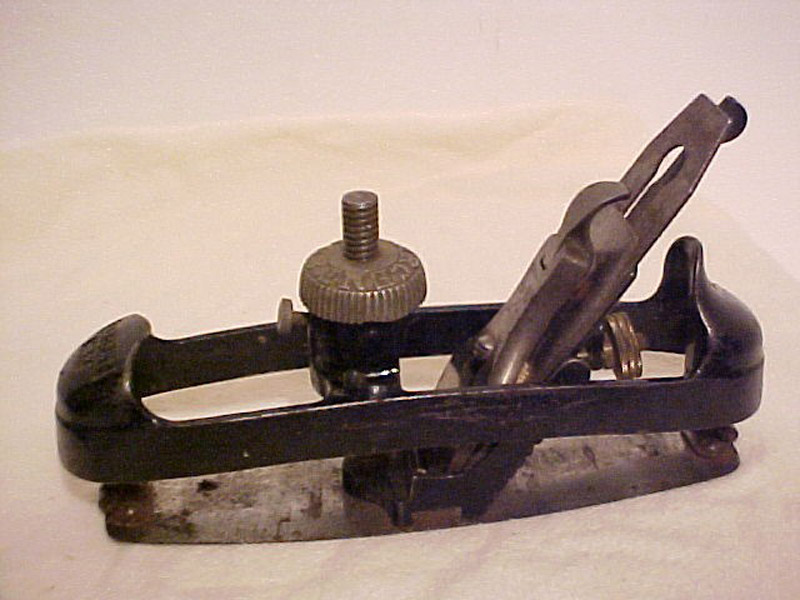

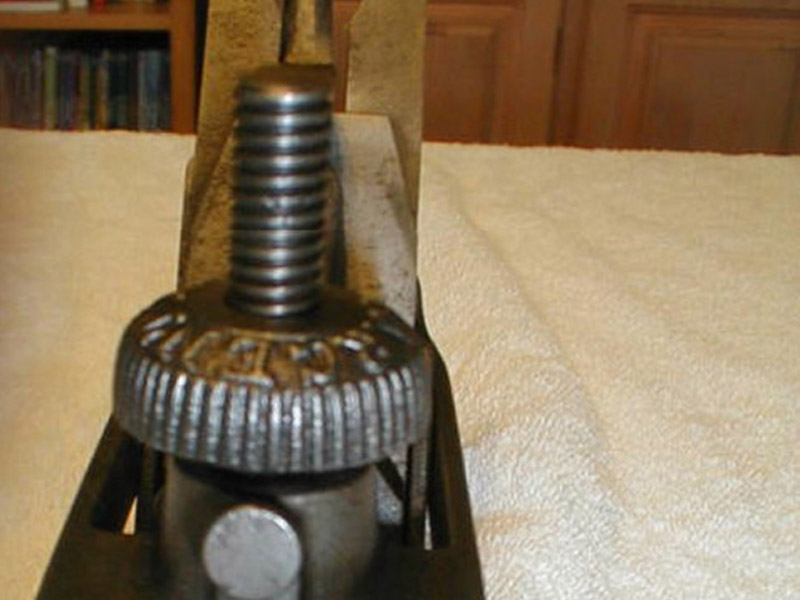

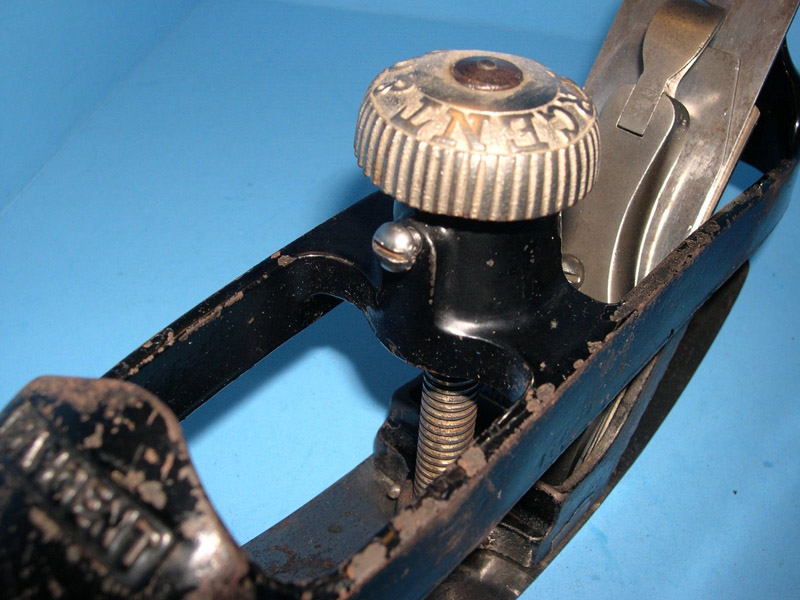

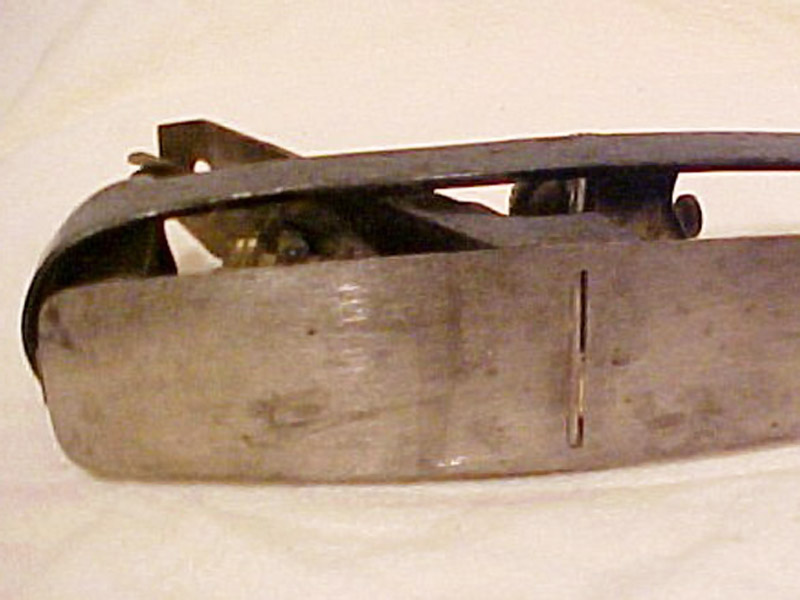

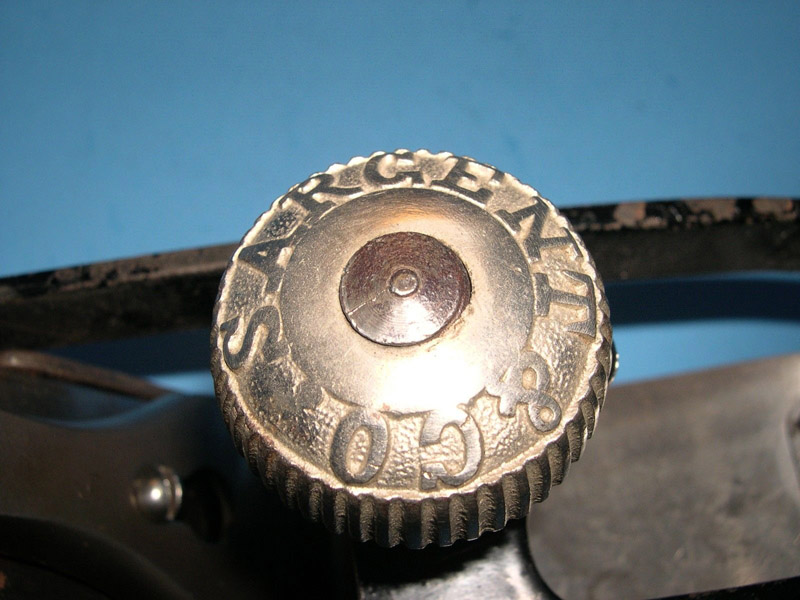

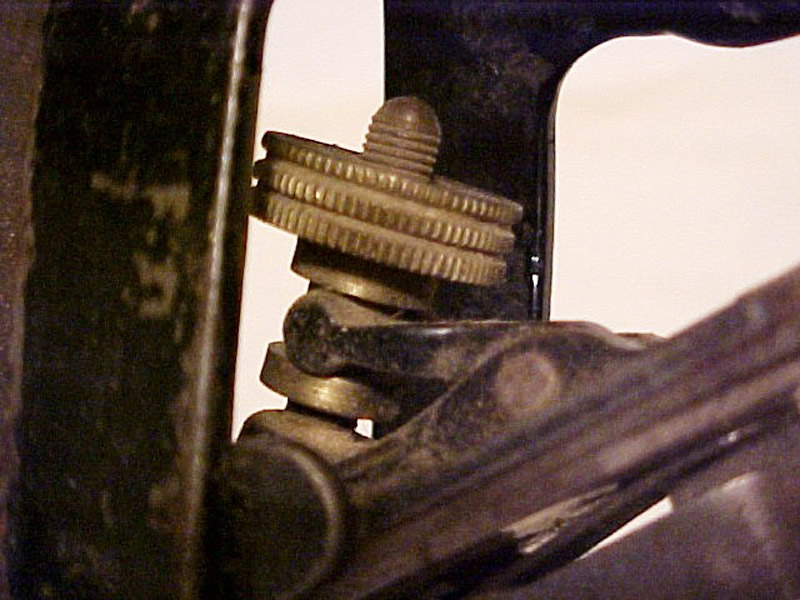

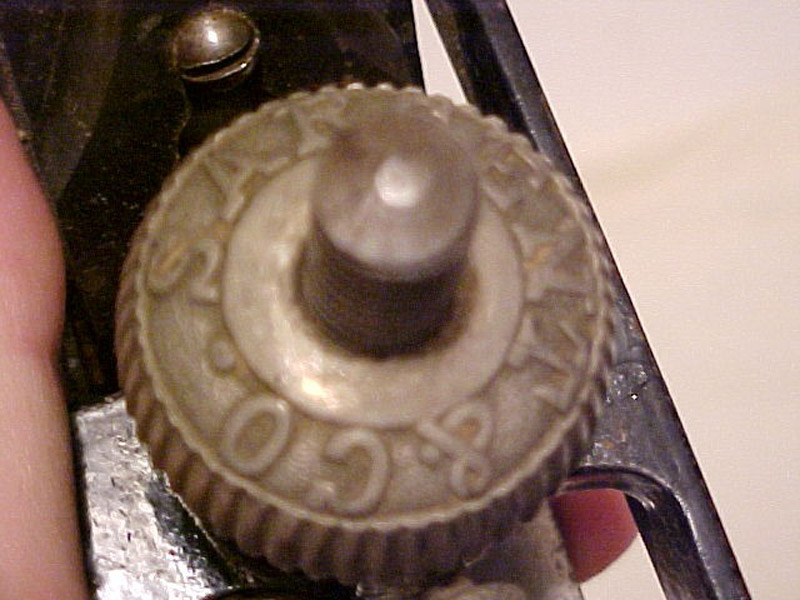

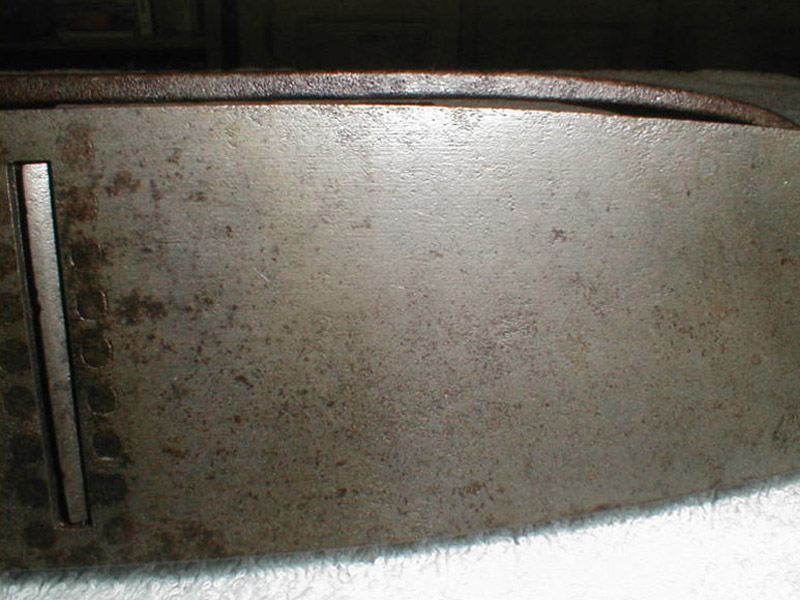

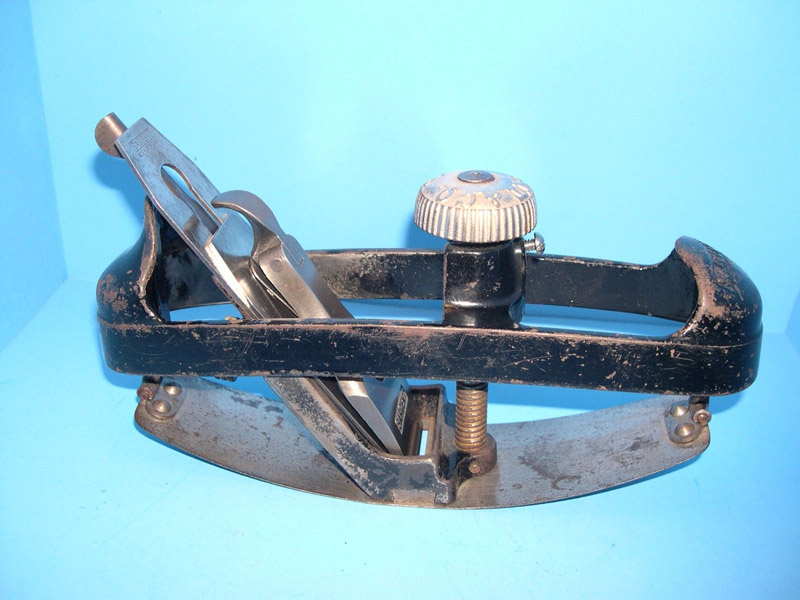

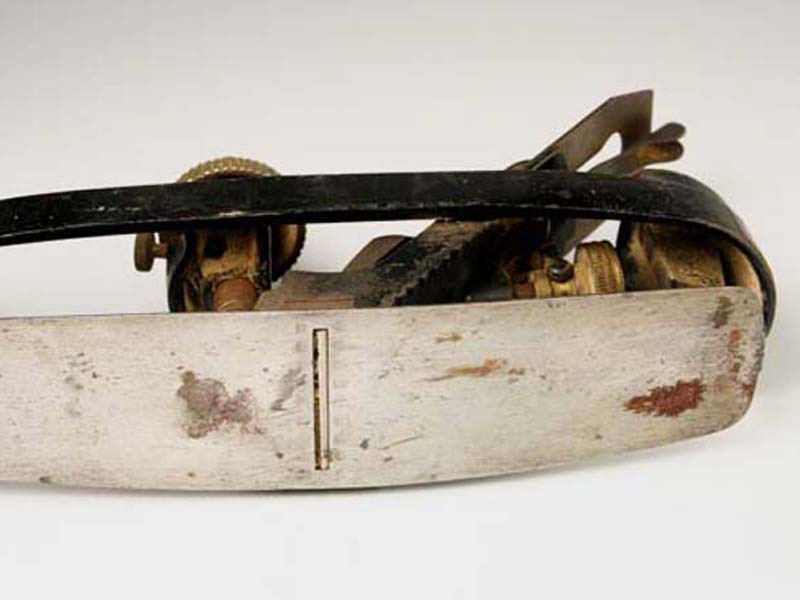

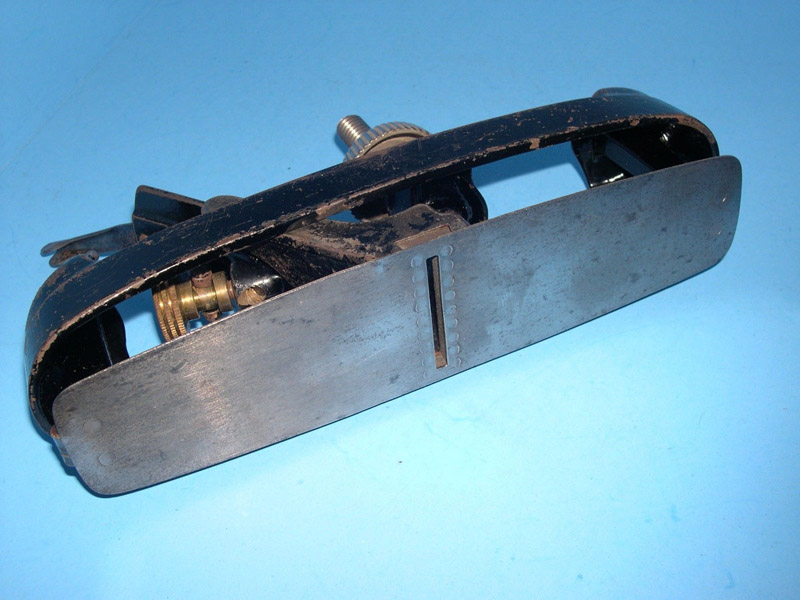

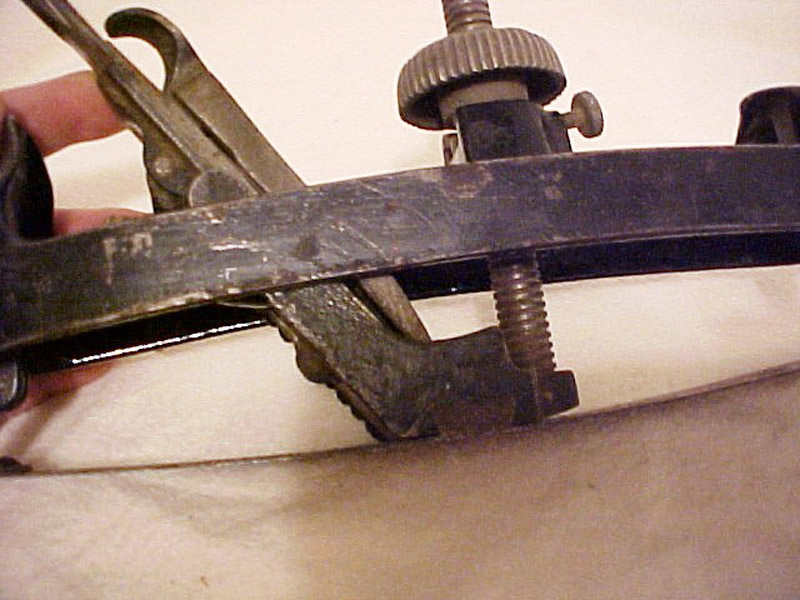

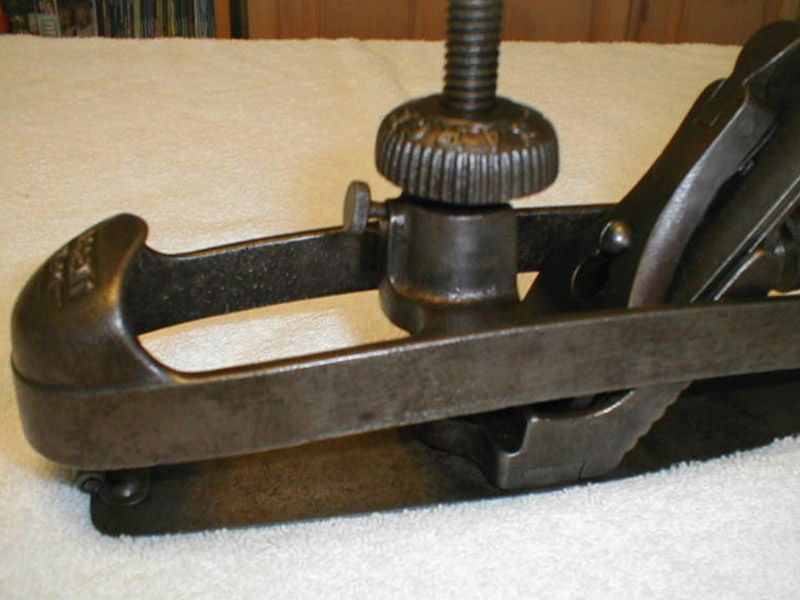

This is an improved durable pattern built for strength. The flexible steel face may be adjusted to the required arc, either convex or concave, for planing curved surfaces and is accurately set and firmly held in position by the knob and set screw.
10 Inches, 1¾ Inch Cutter.
No. 74, Japanned . . . . . . . . . . . each, net $4 00
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Circular Plane |
| Features: | Adjustable, with screw adjustment for cutter |
| Manufactured: | From 1910 to 1943 |
| Patents: | February 3, 1891 (lateral adjustment) (Granville H. Wright) |
| Length: | 10 inches |
| Cutter Width: | 1¾ inches |
| Construction: | Cast Iron |

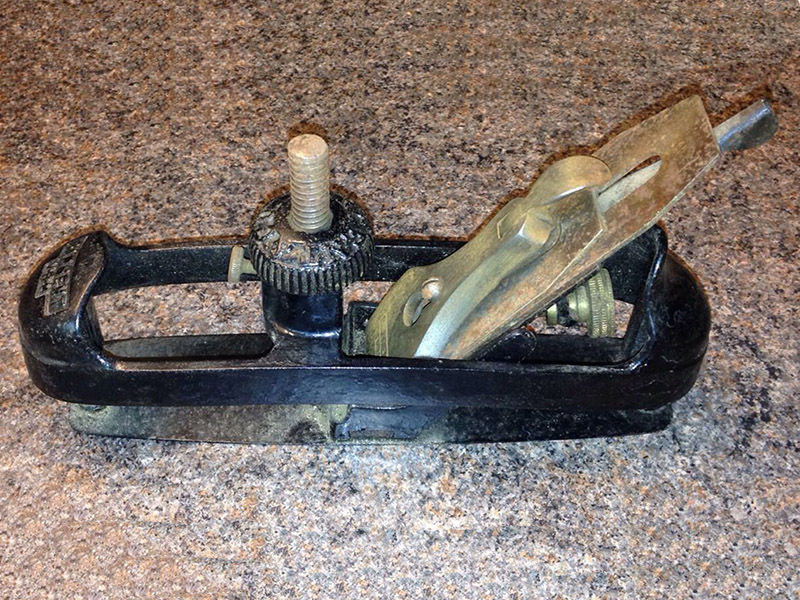

| Finish: | Japanned, Polished Trimmings (1910 to 1941) Nickel Plated Trimmings (1942 to 1943) |
| Uses: | For circular & curved work |
Please check the Value Guide For Sargent Planes page for relative prices.
Additional Notes:

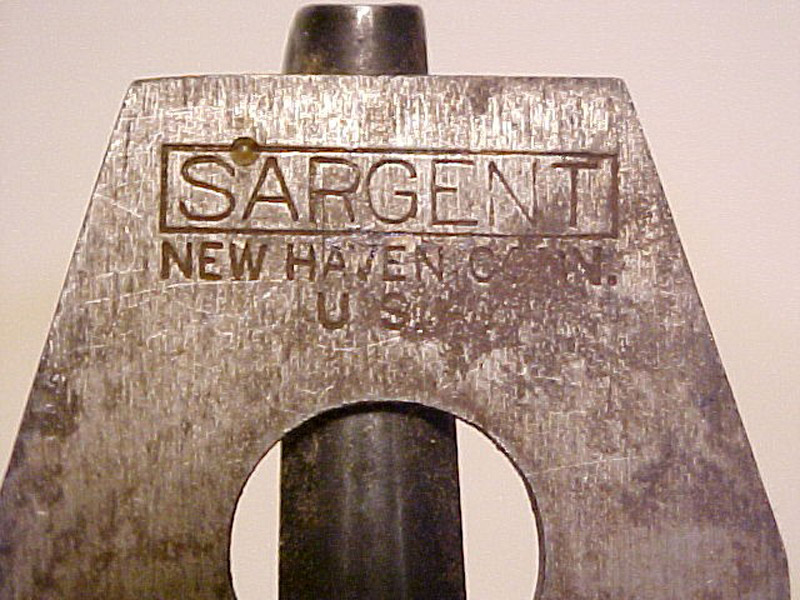

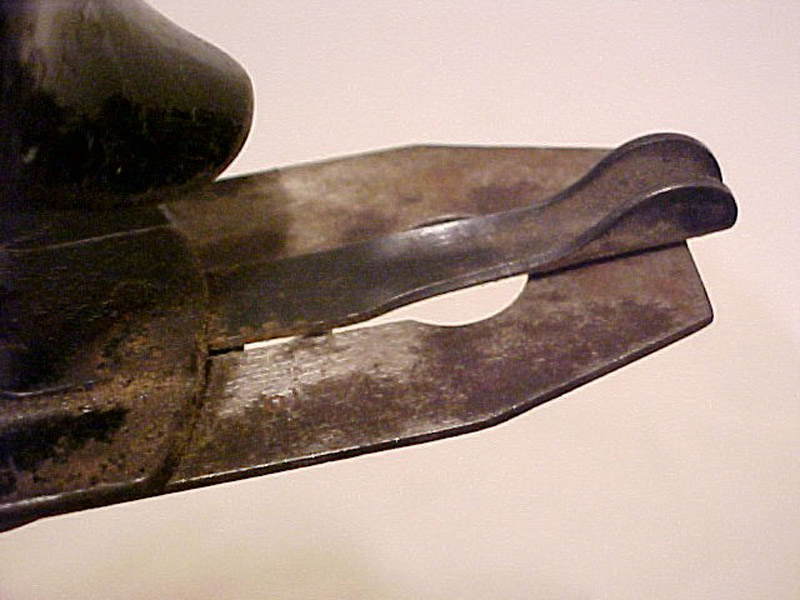

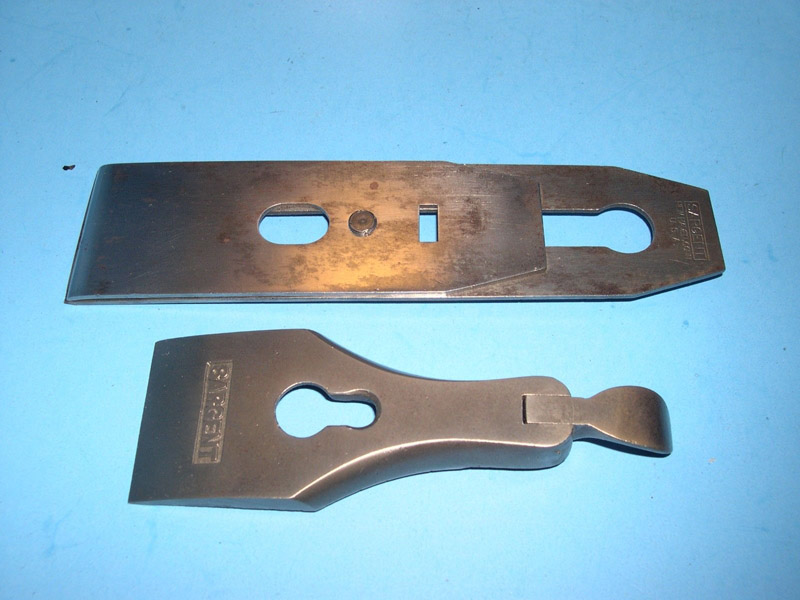

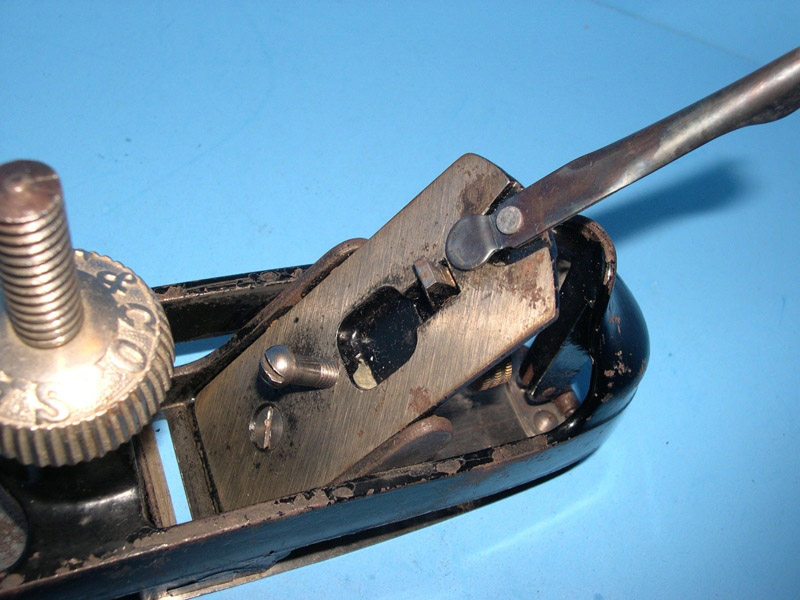

Unlike the No. 76, the cutter for the No. 74 Circular Plane does not have the plane number stamped on it.
