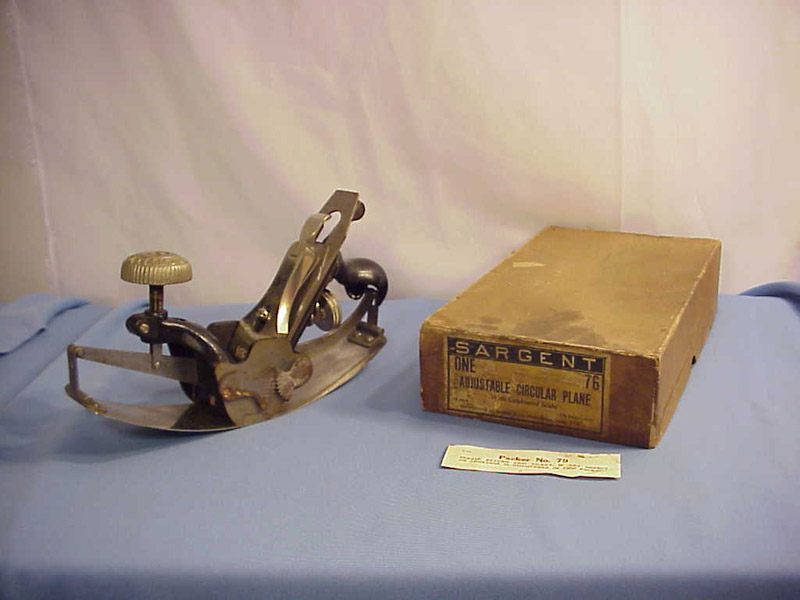

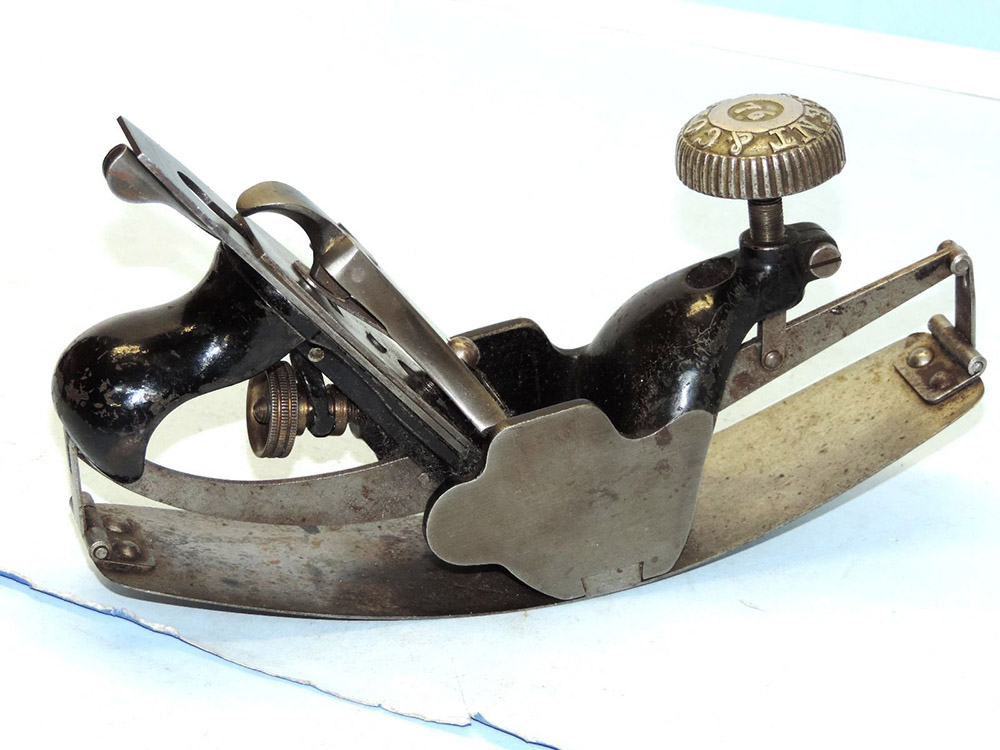

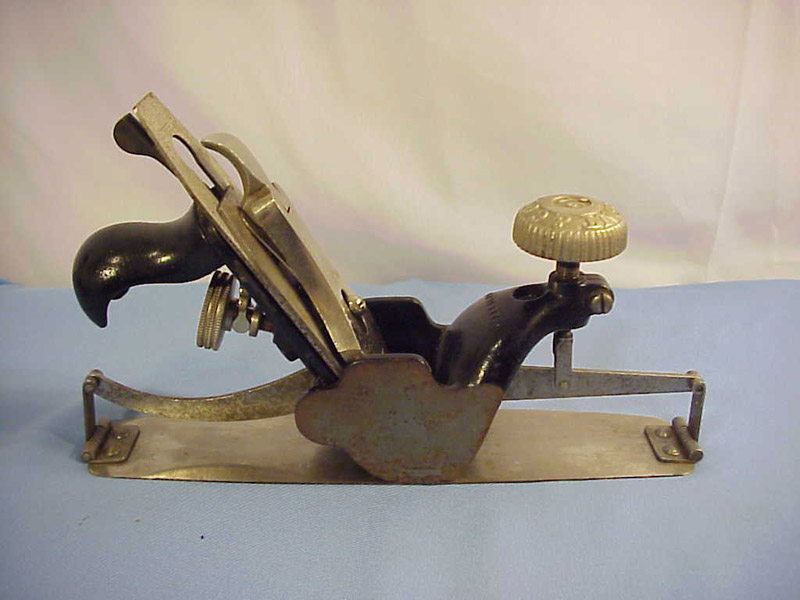

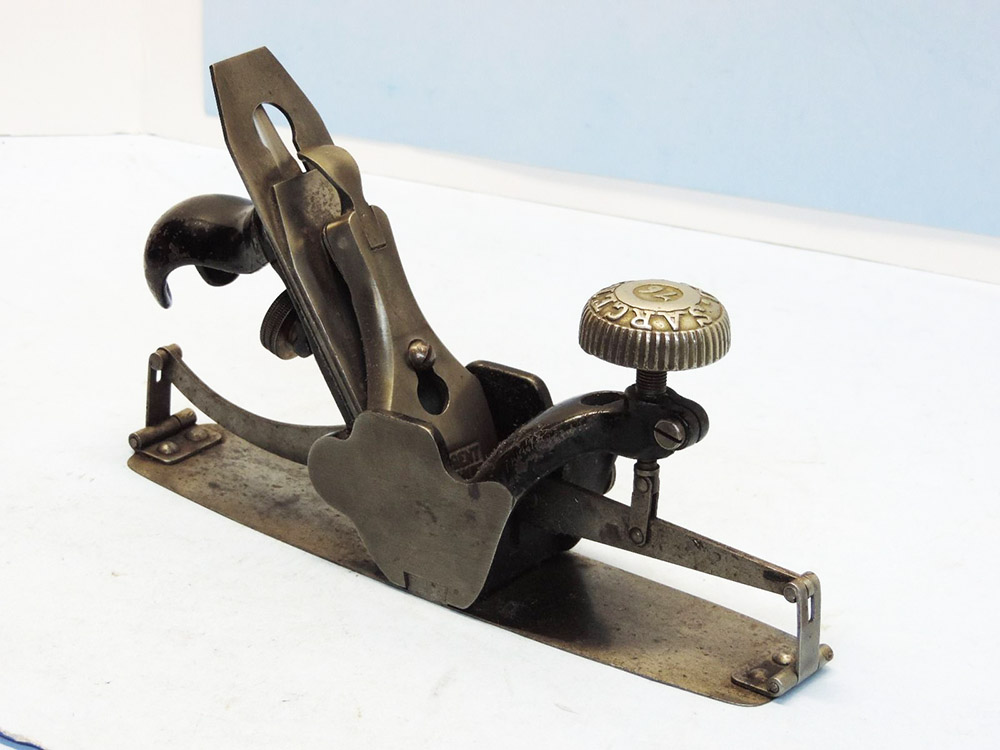

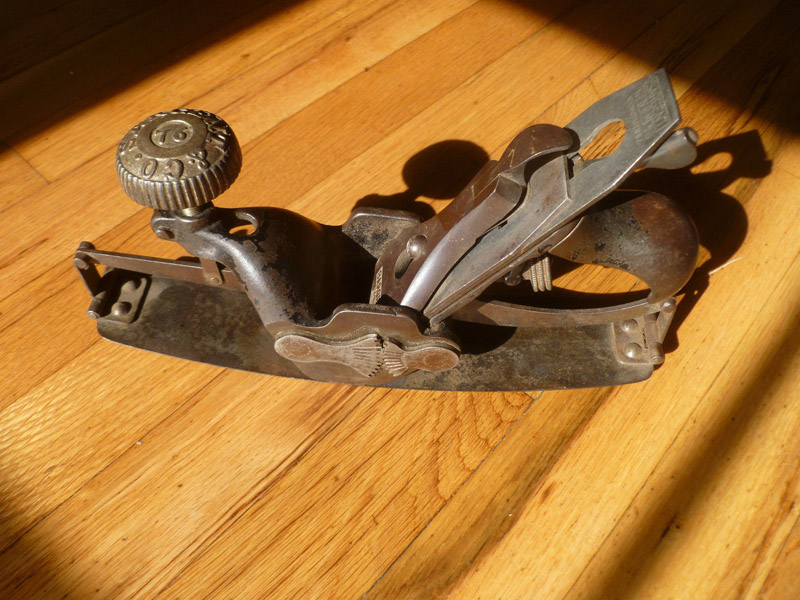

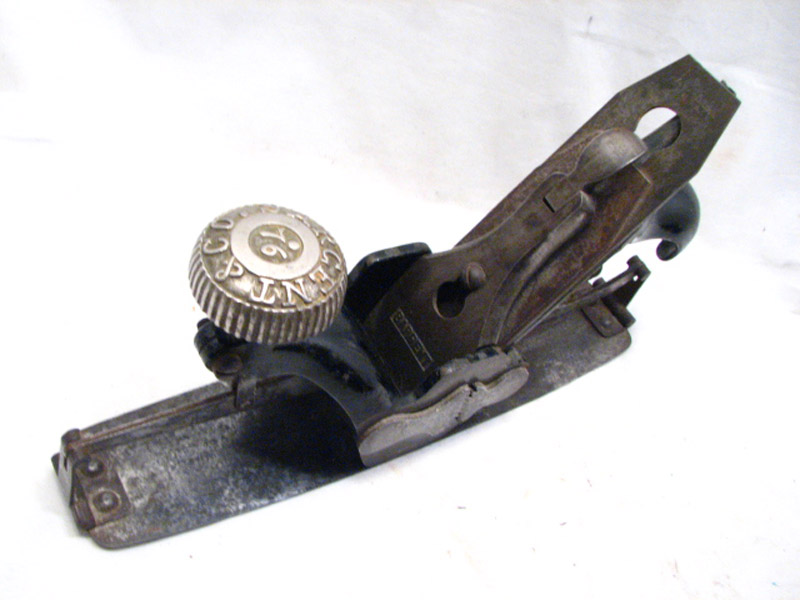

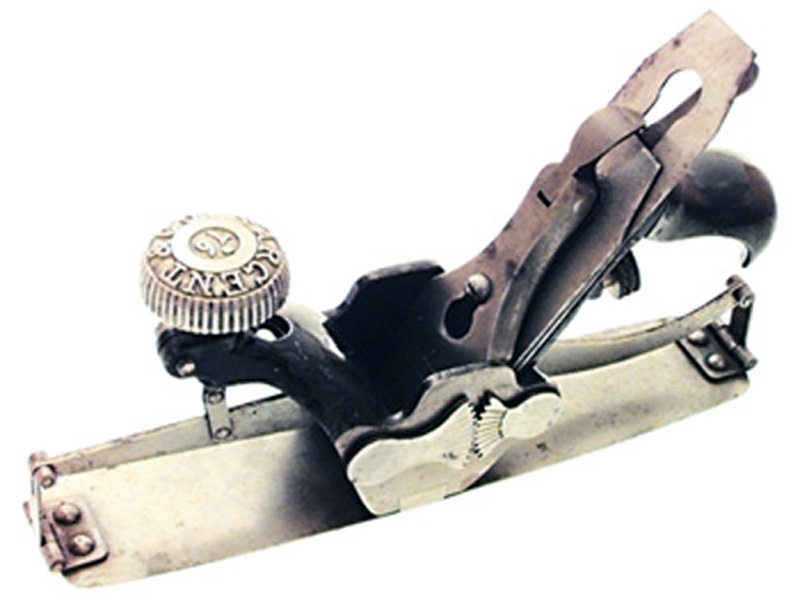

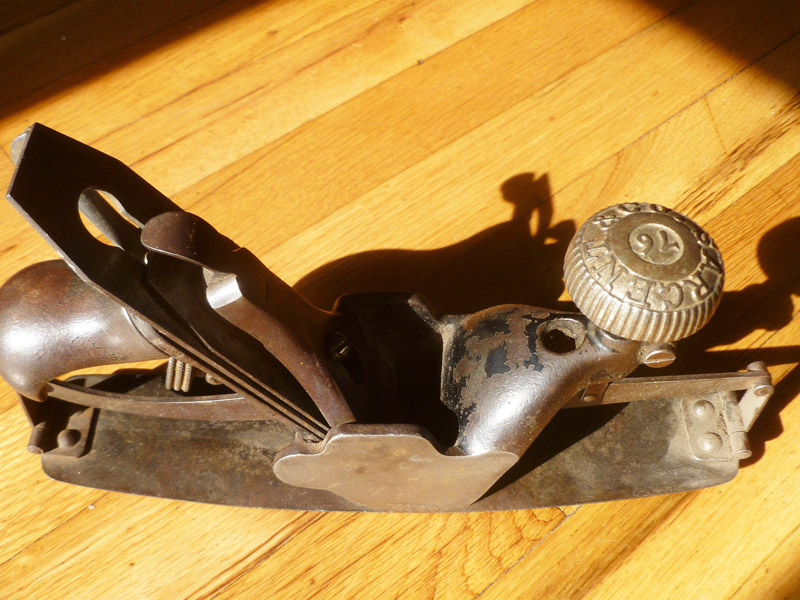

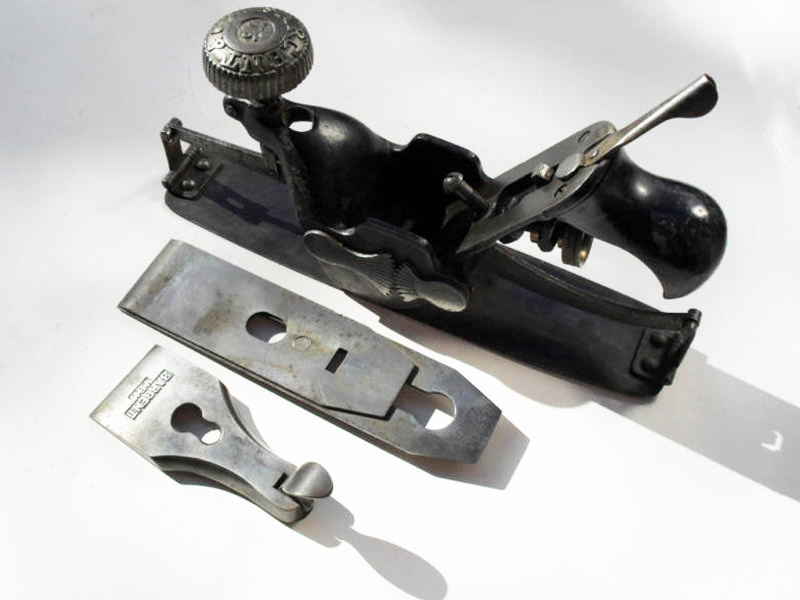

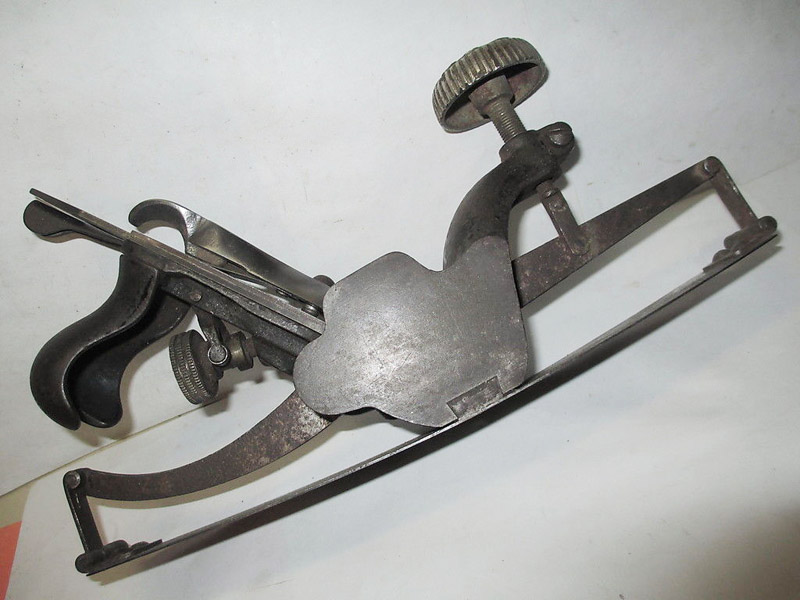

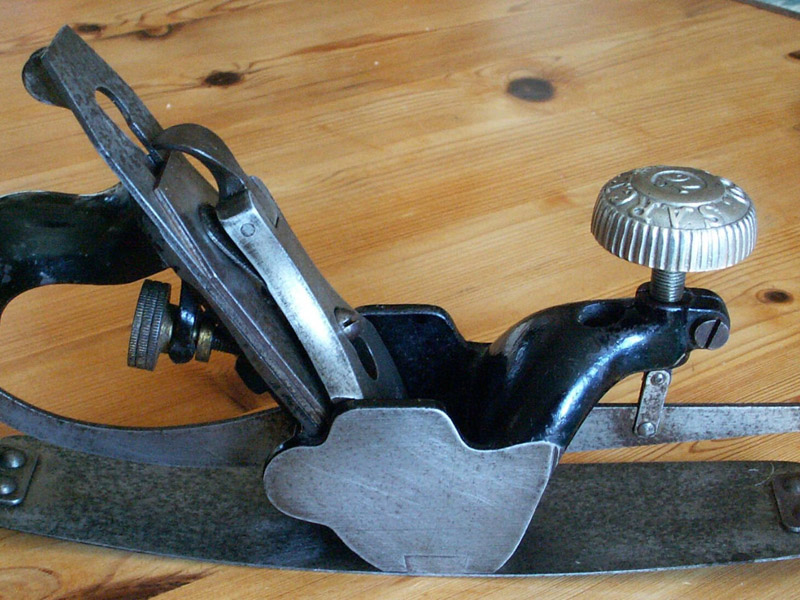

Sargent No. 76 Circular Plane
as illustrated in the Sargent catalog of 1911.
Sargent V.B.M. Adjustable Iron Planes.
Patented February 3, 1891.
Circular Planes.

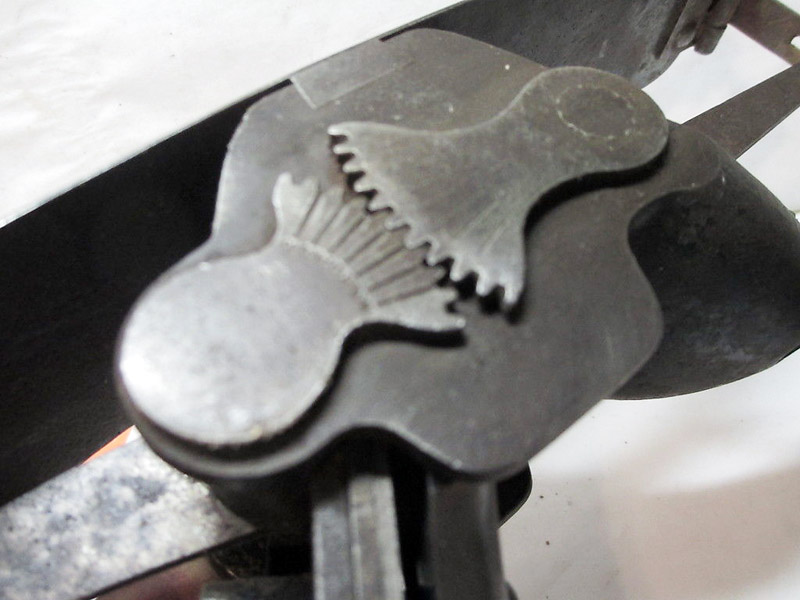

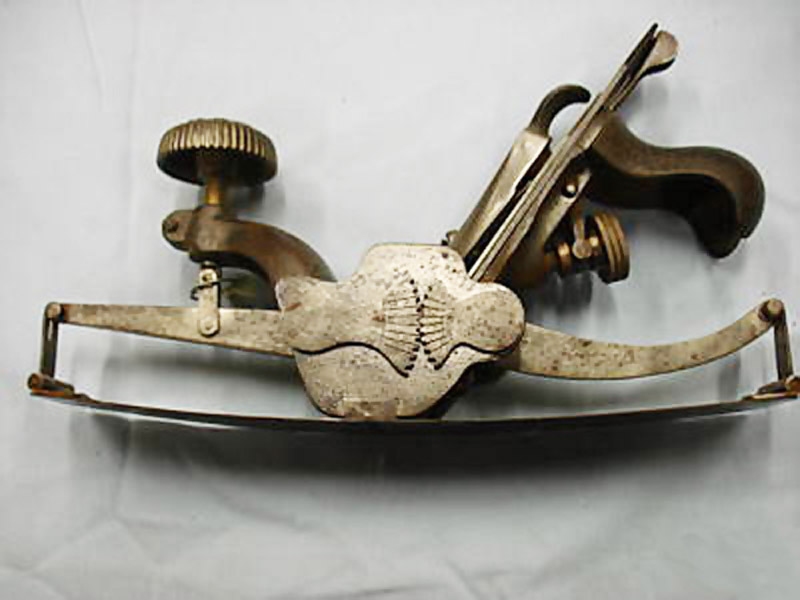

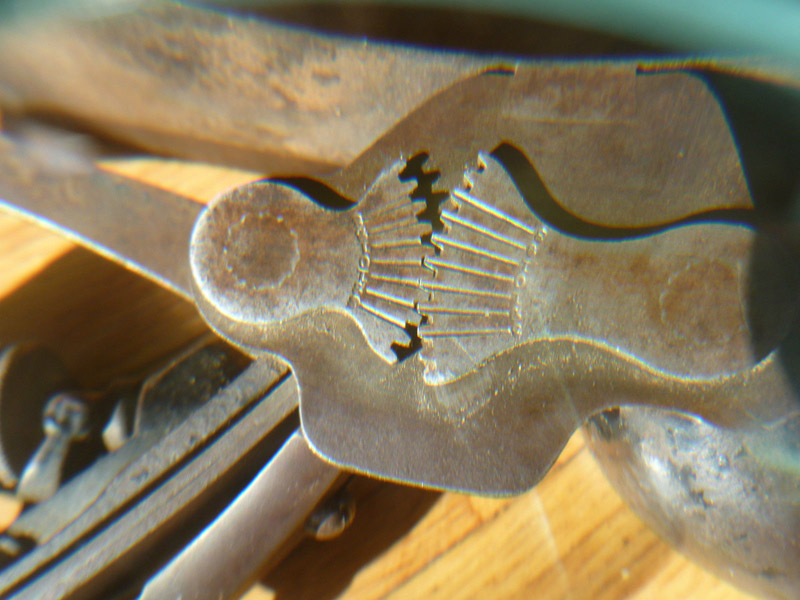

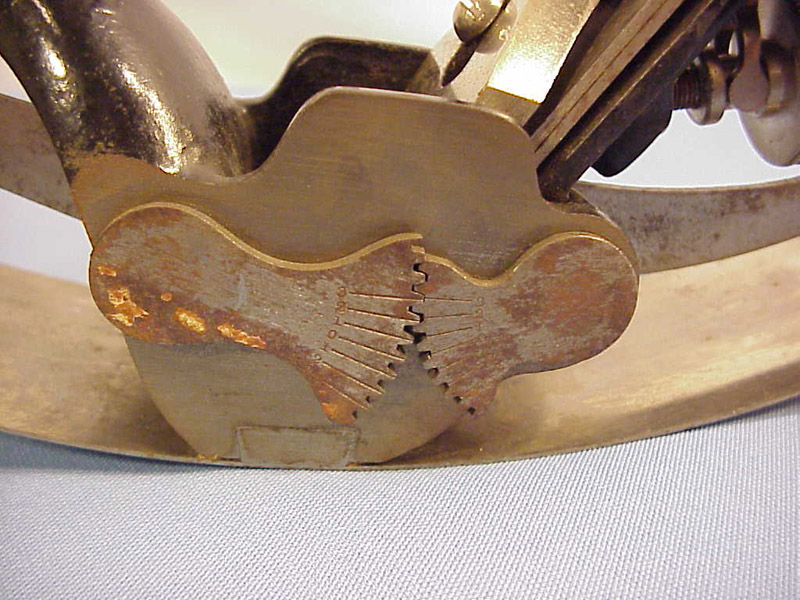

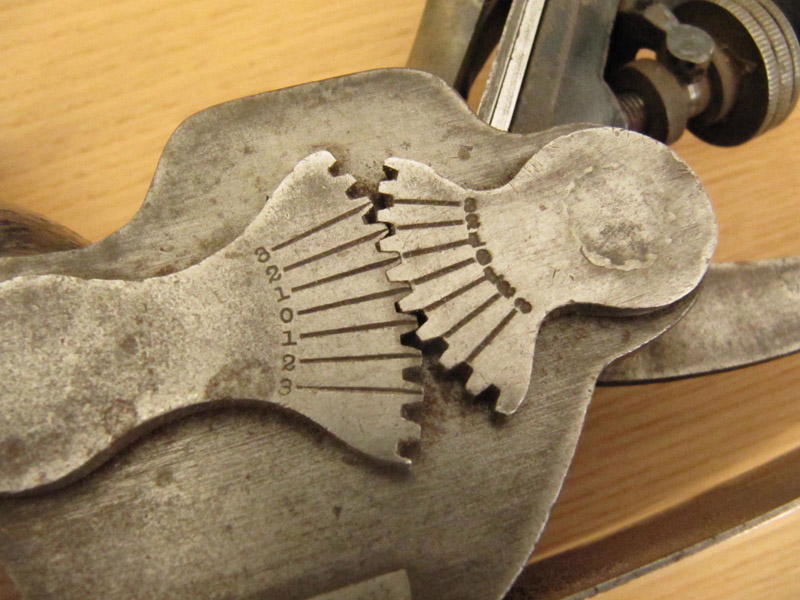

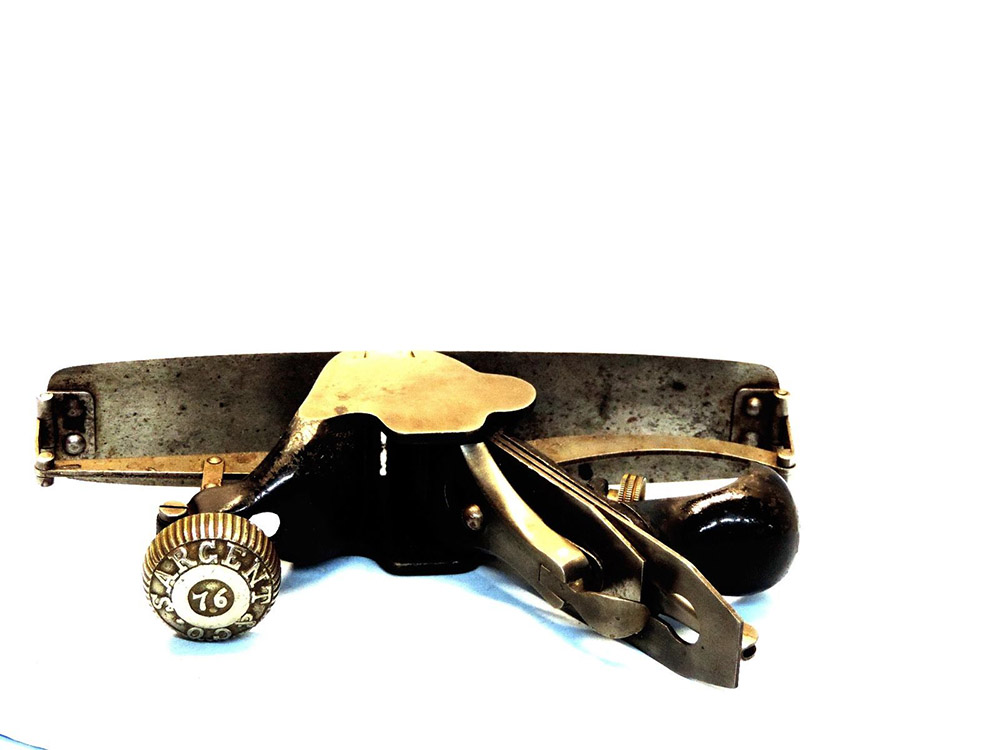

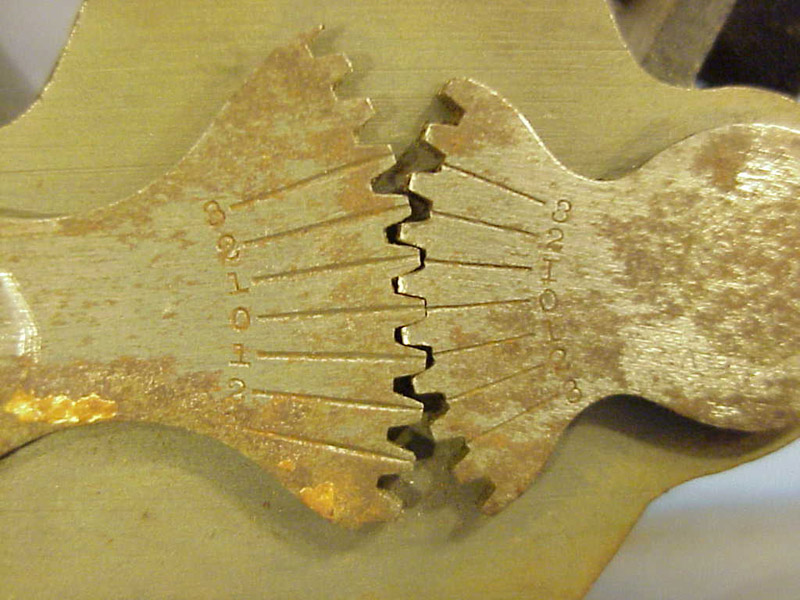

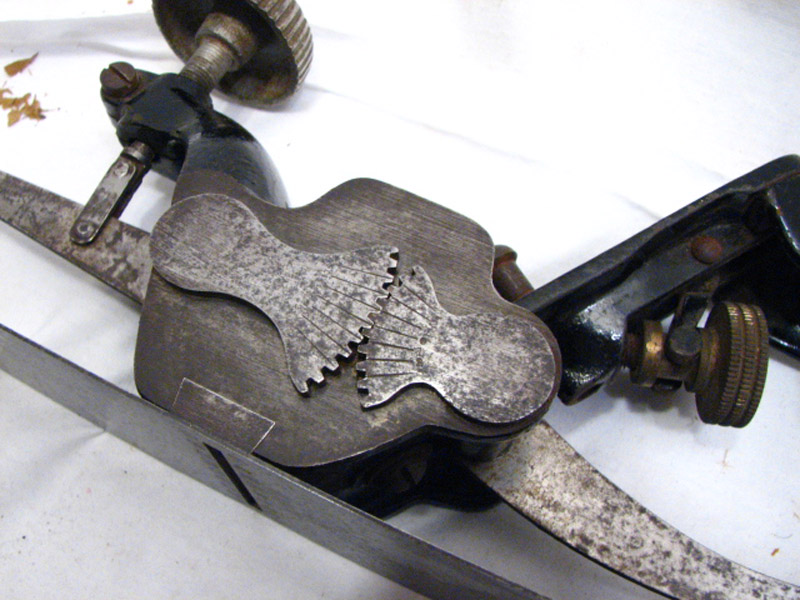

Graduated Scale.

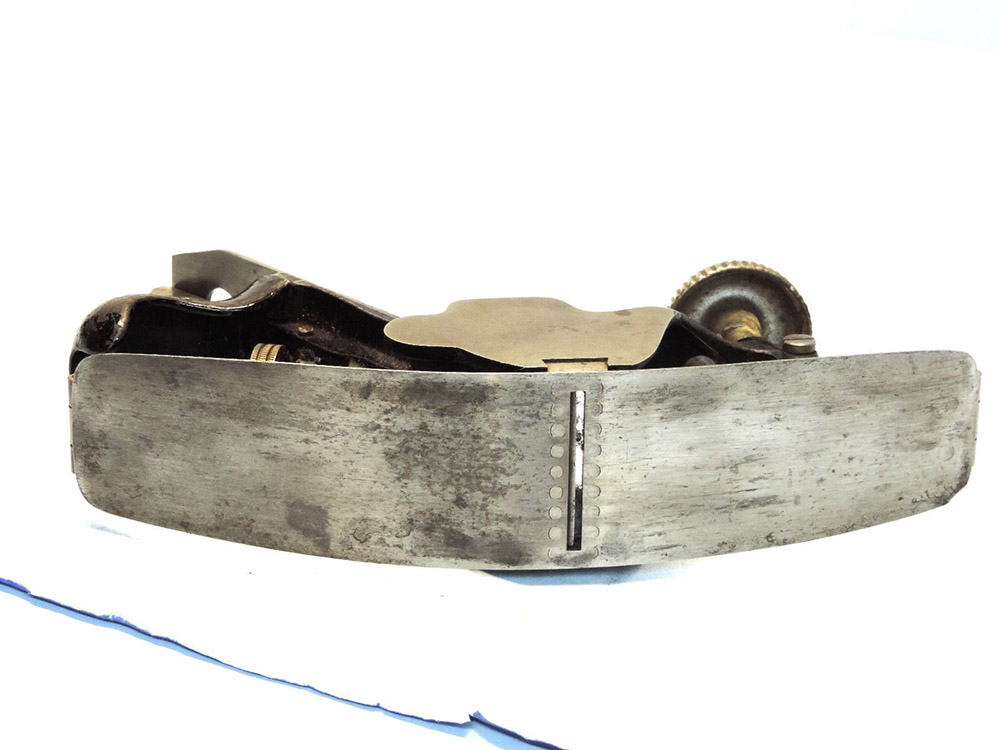

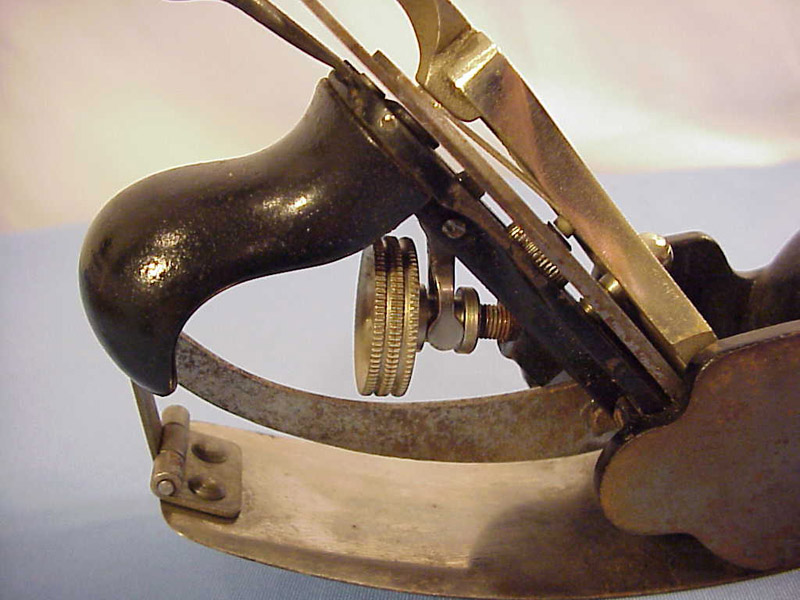

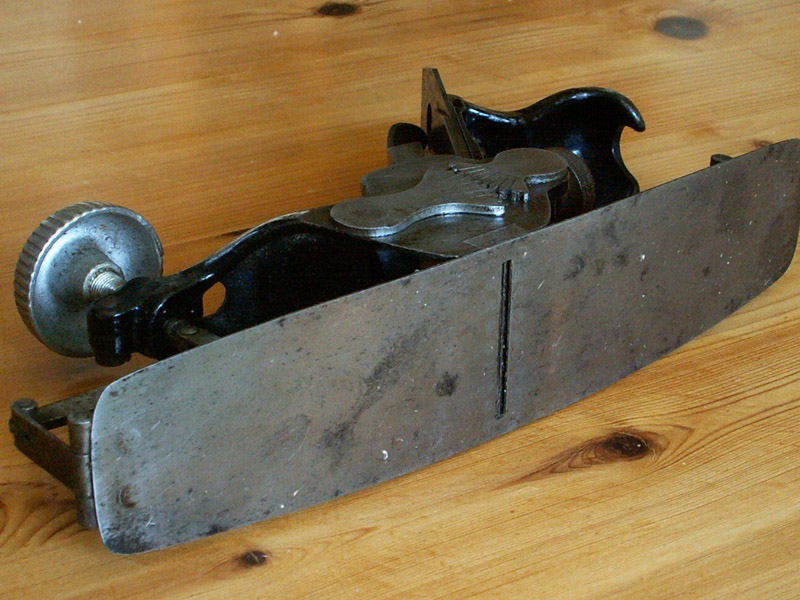

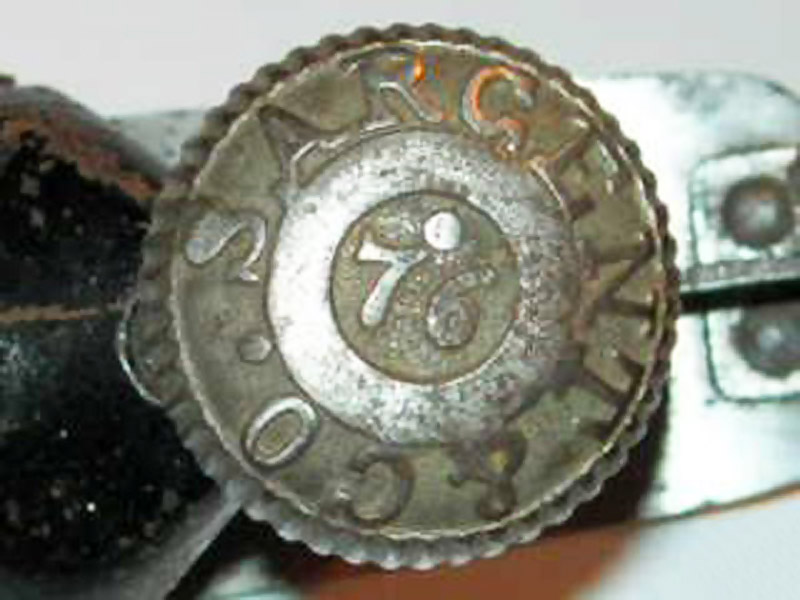

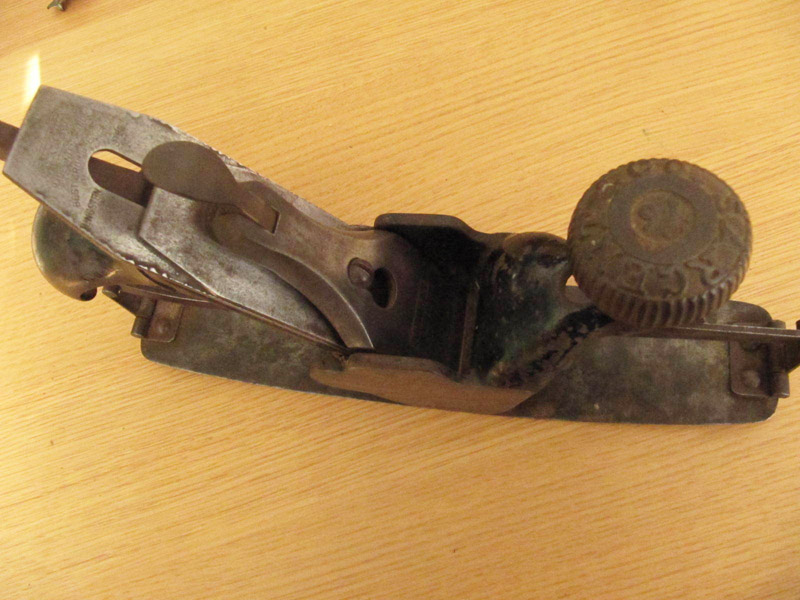

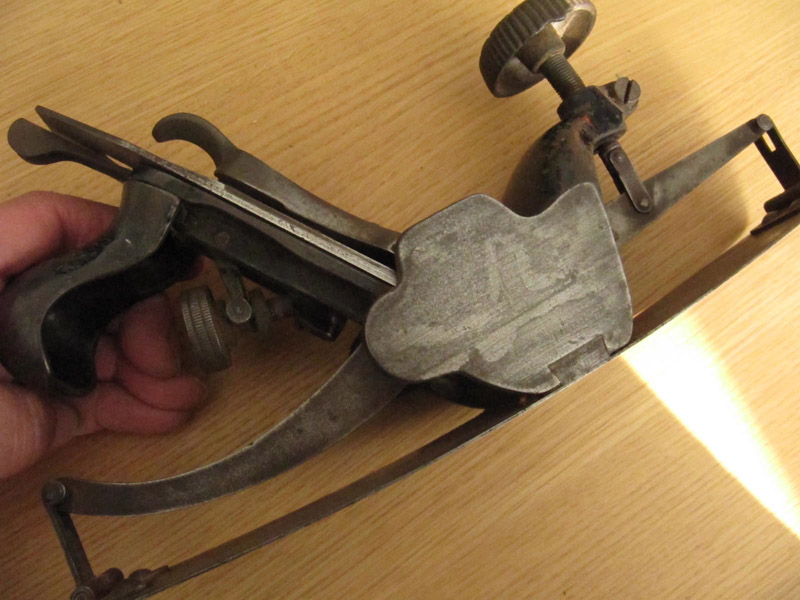

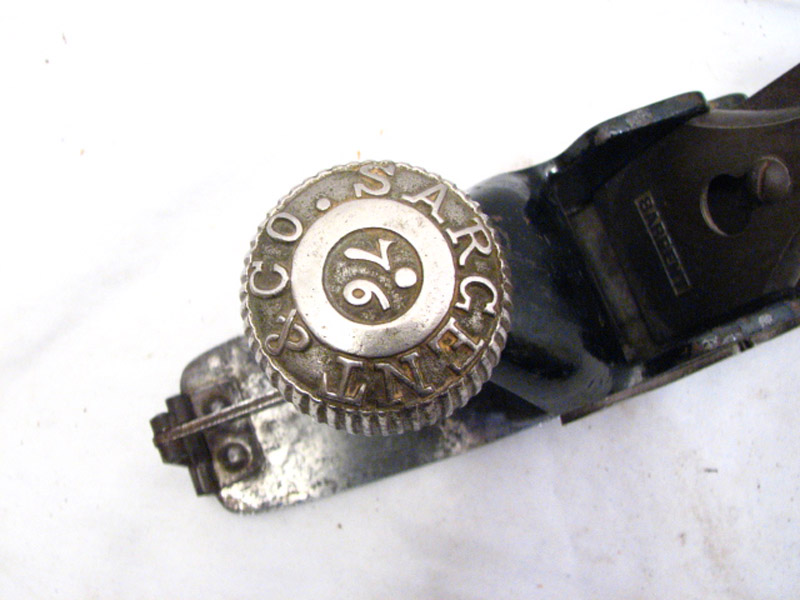

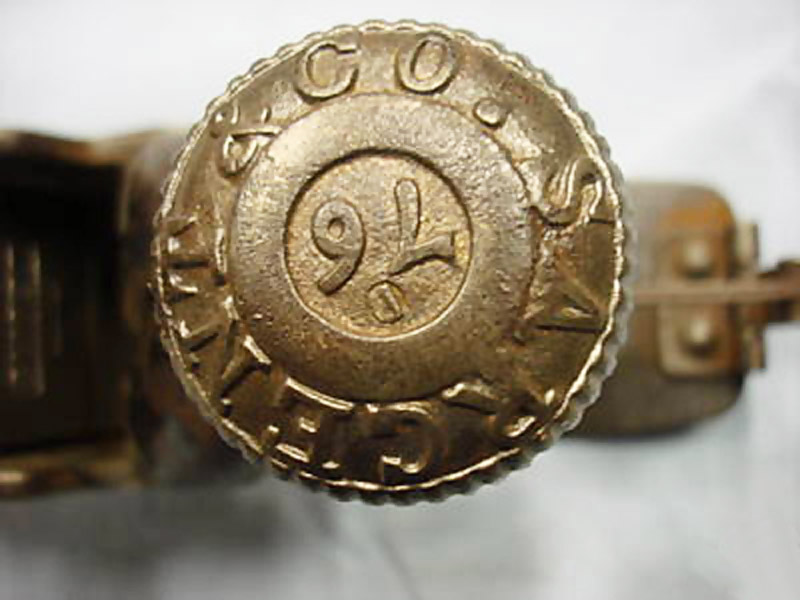

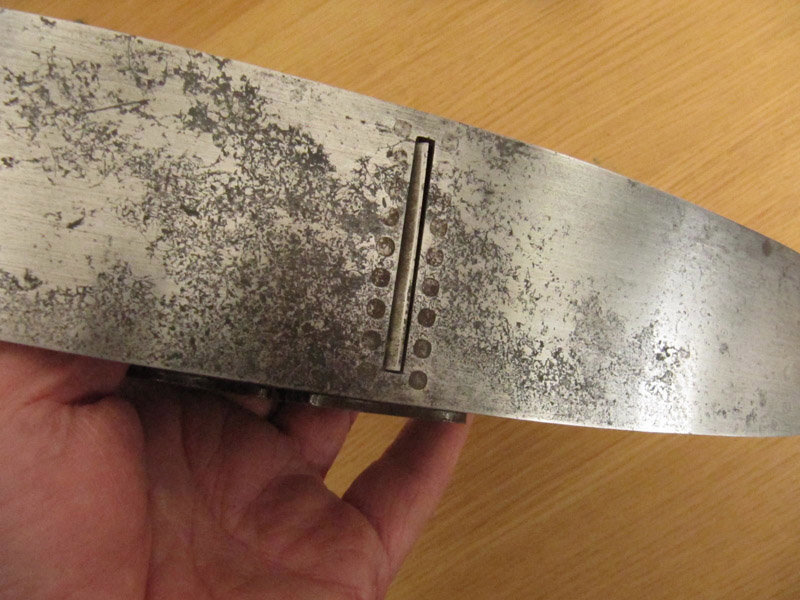

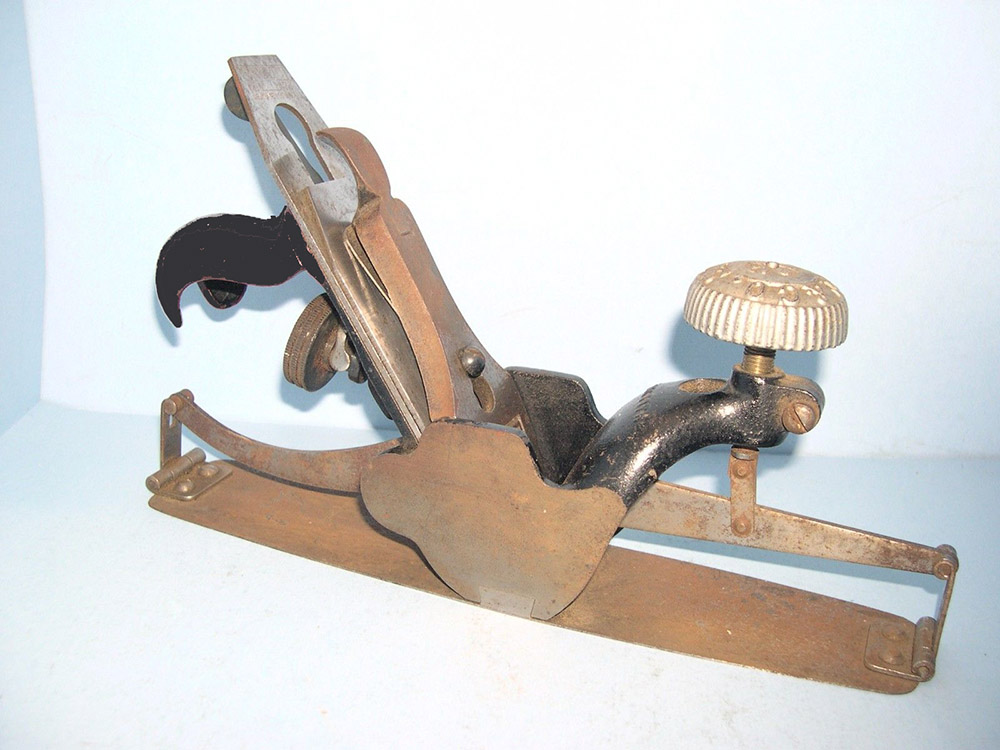

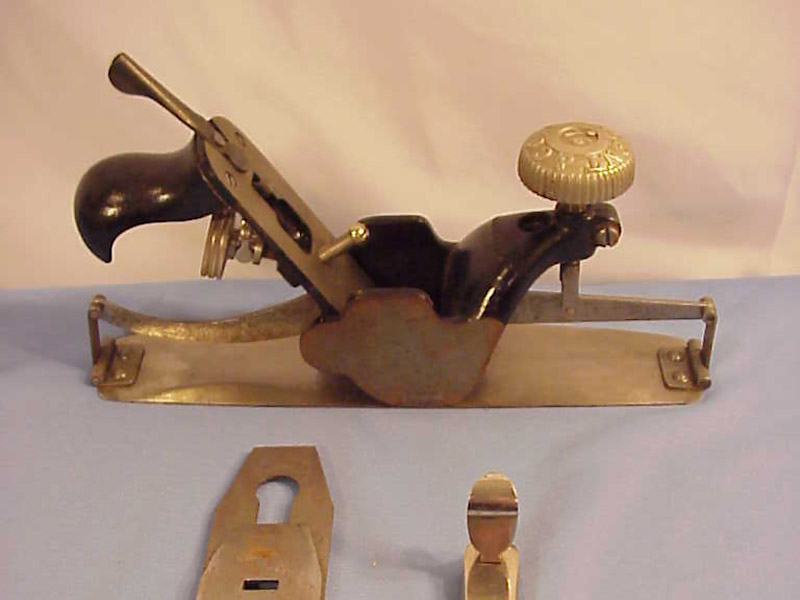

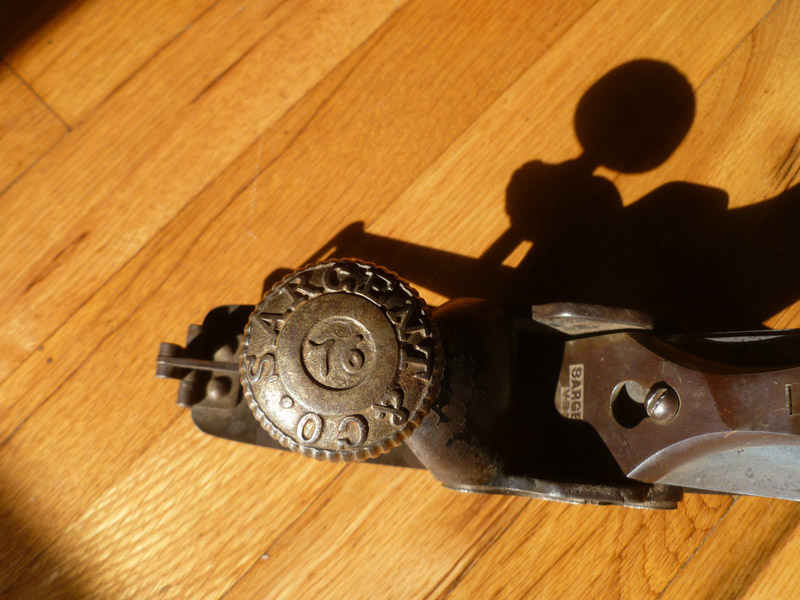

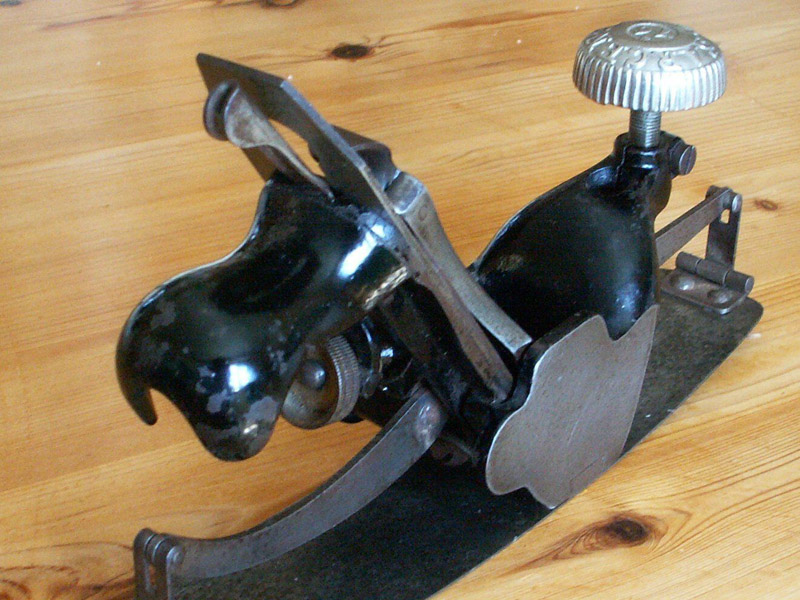

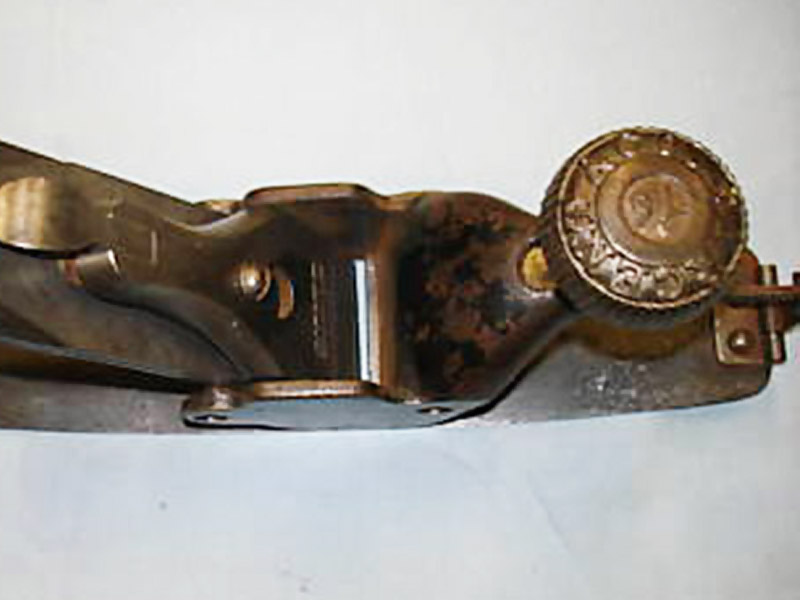

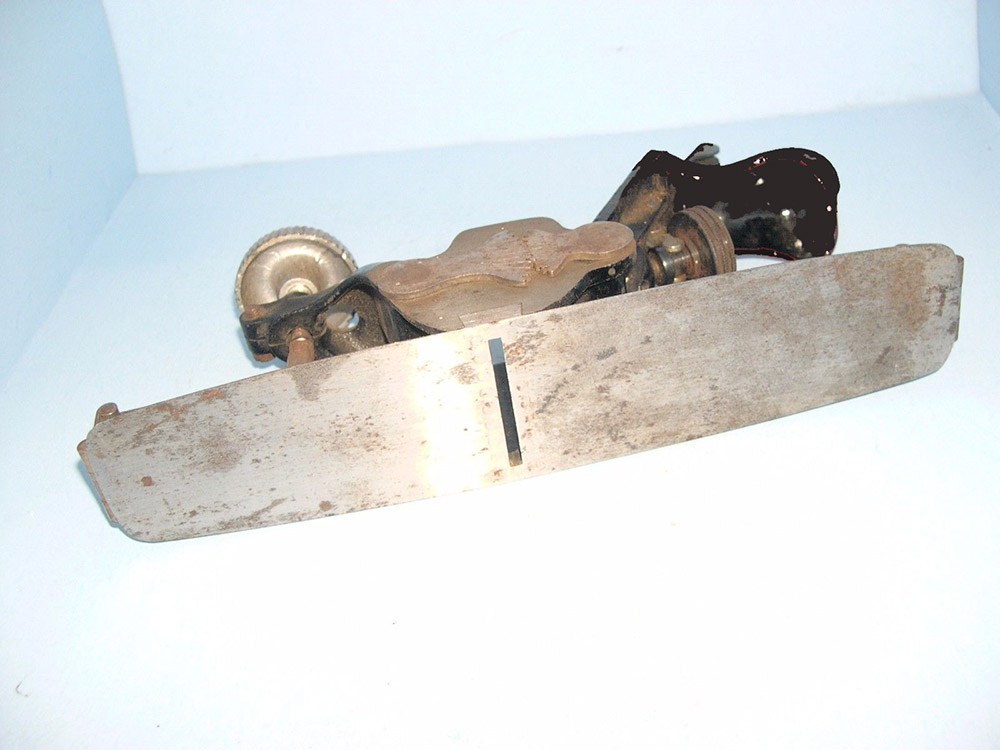

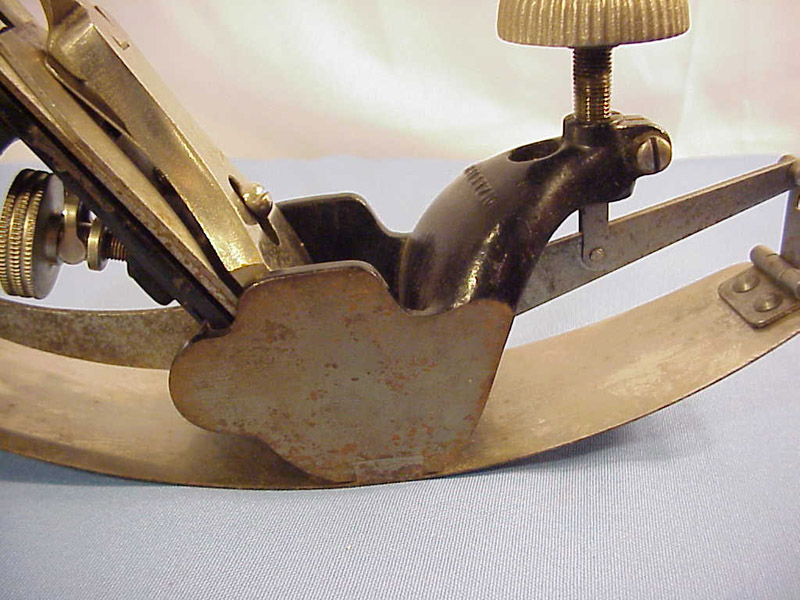

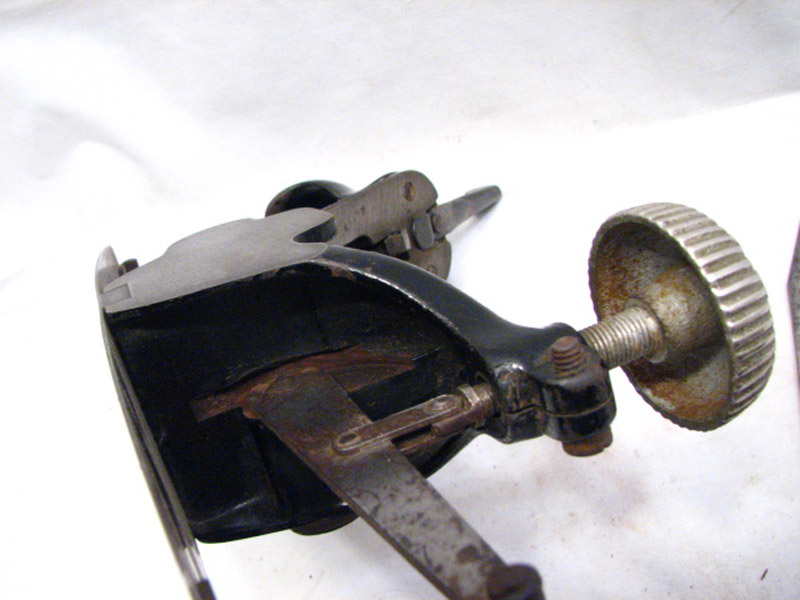

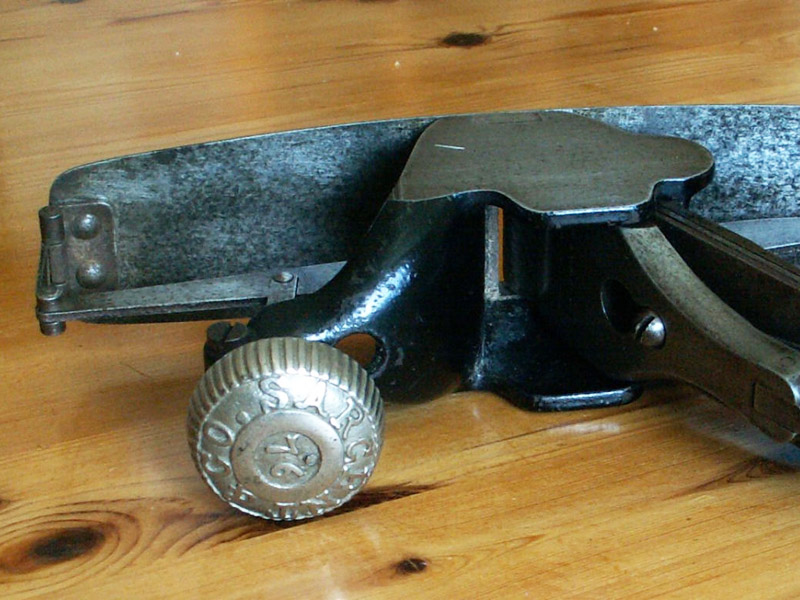

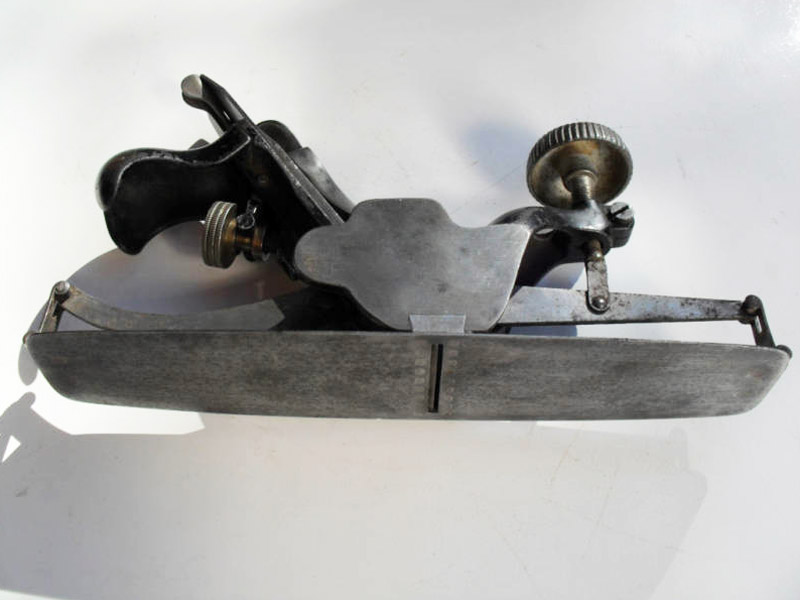

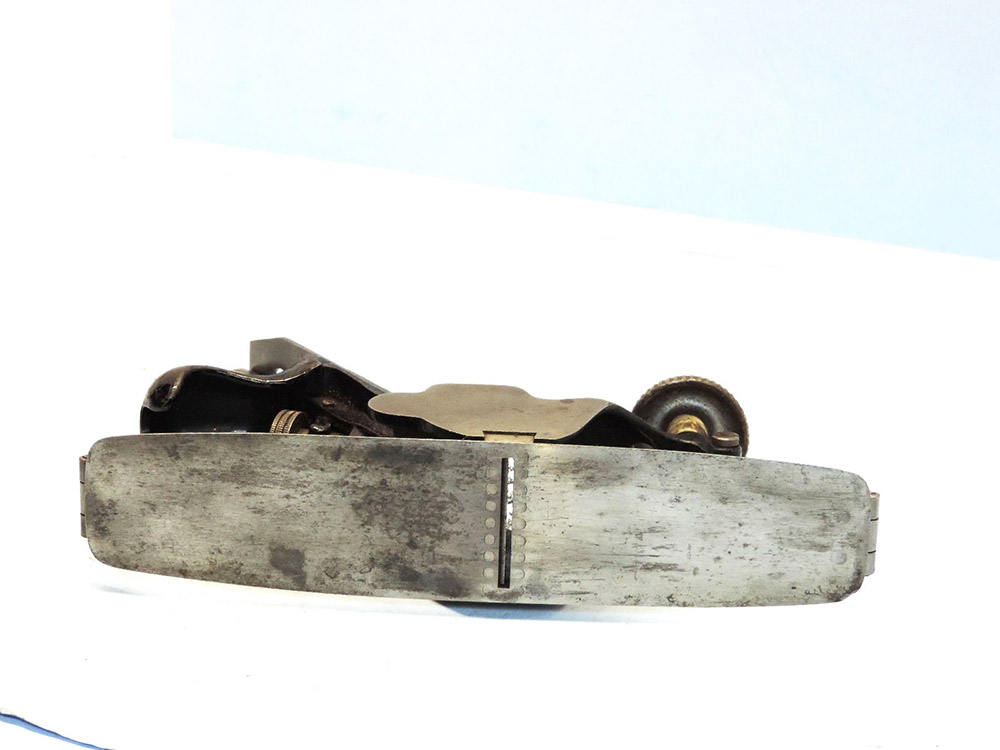

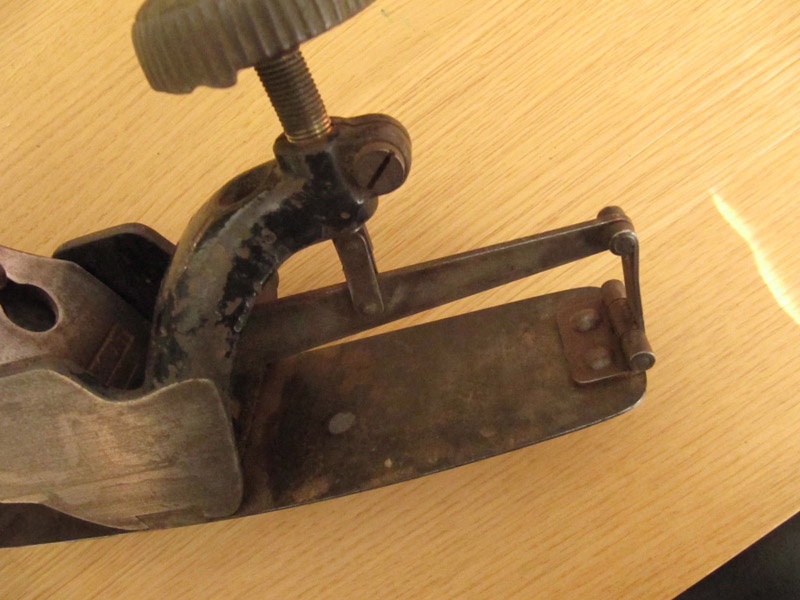

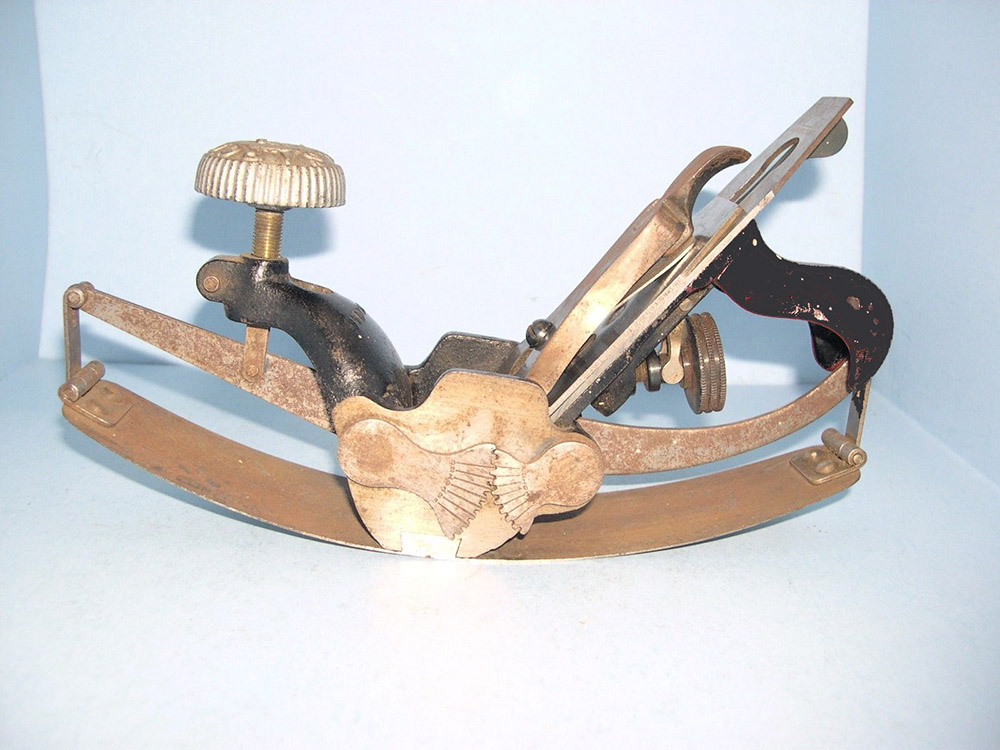

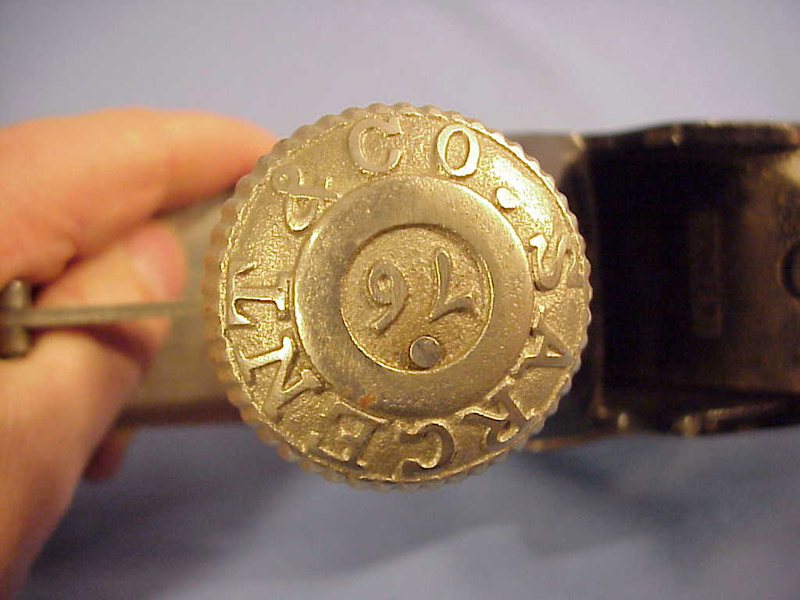

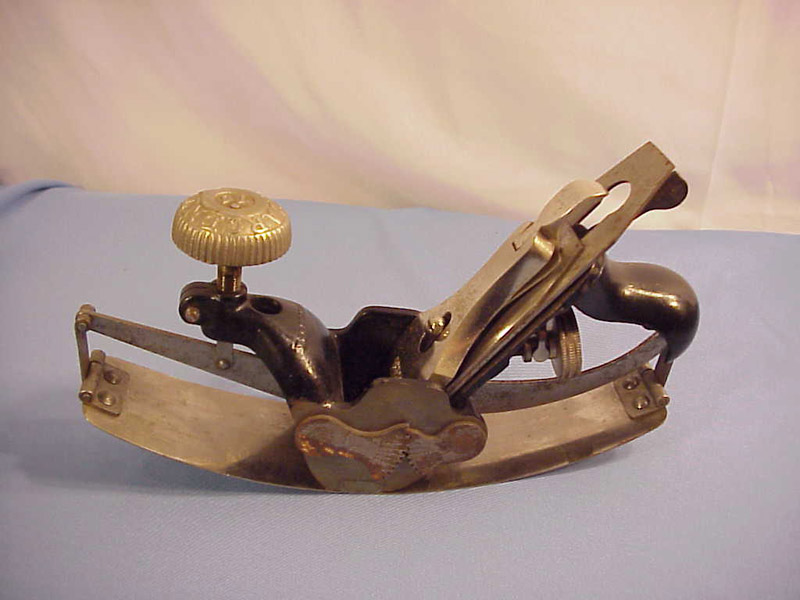

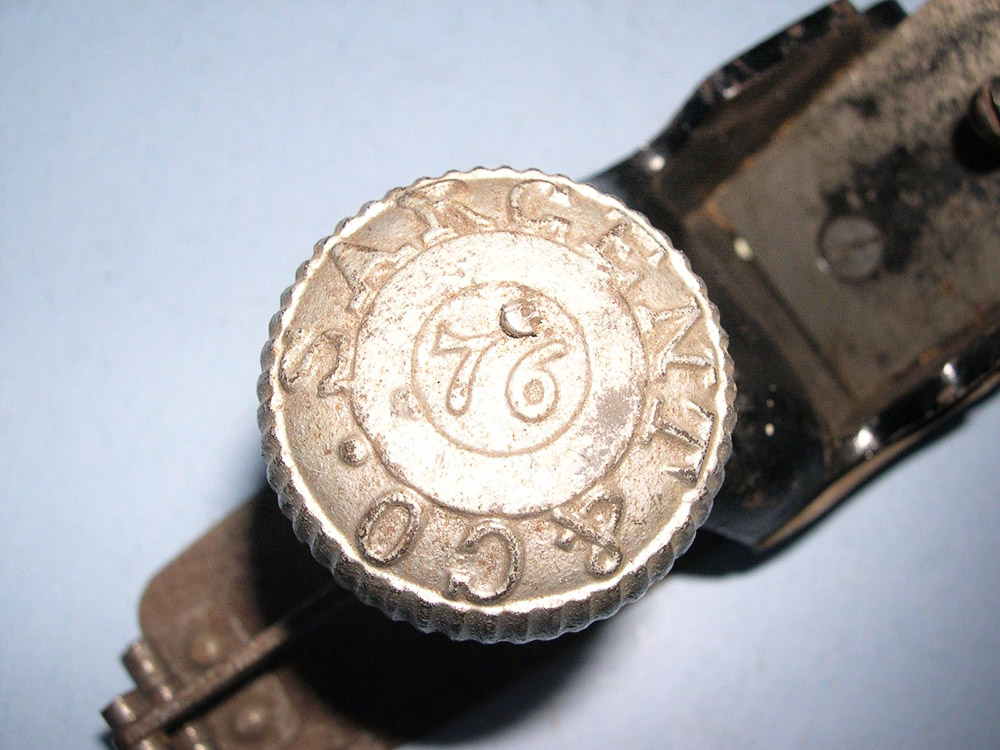

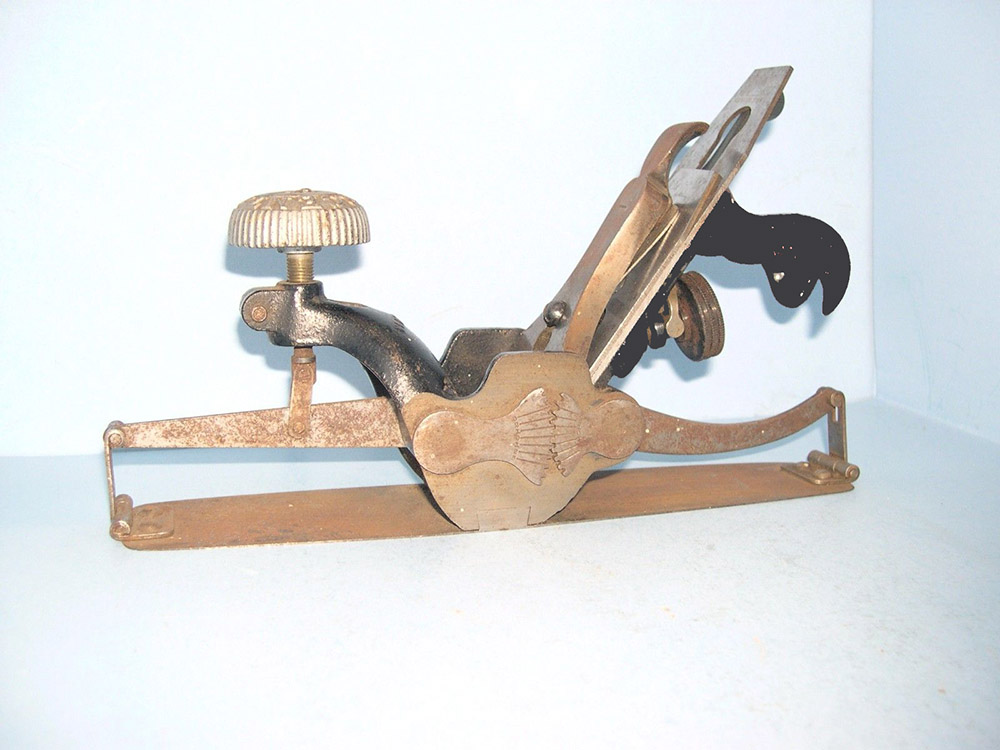

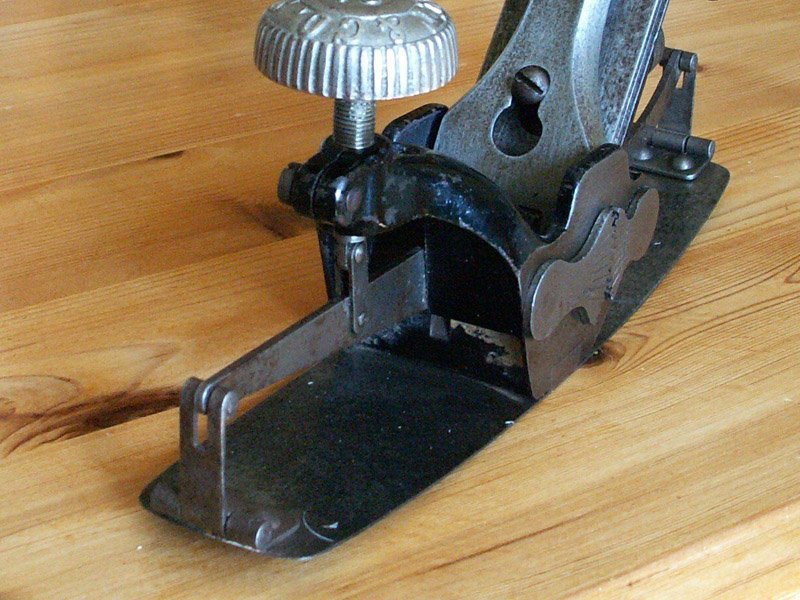

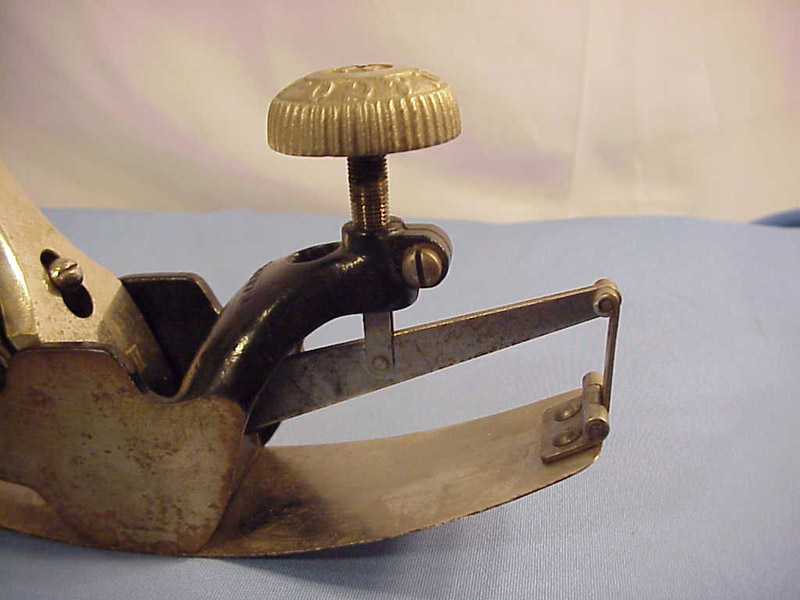

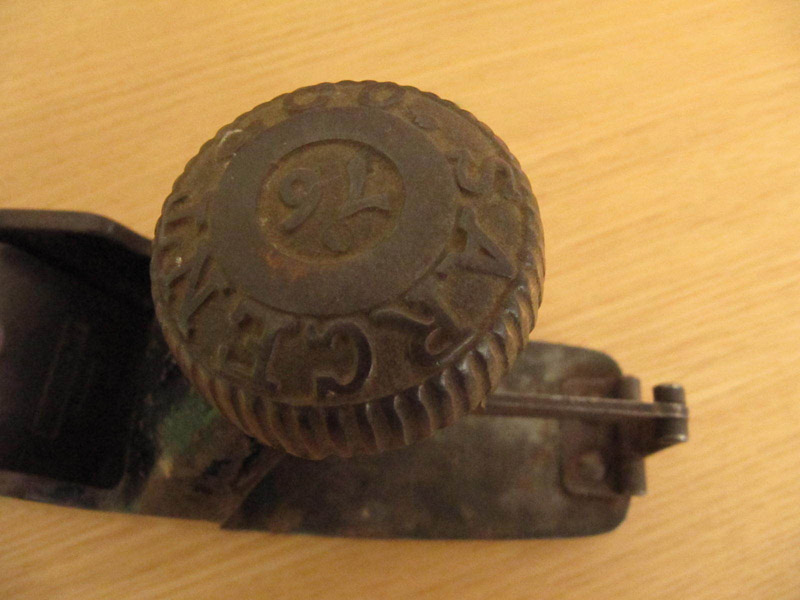

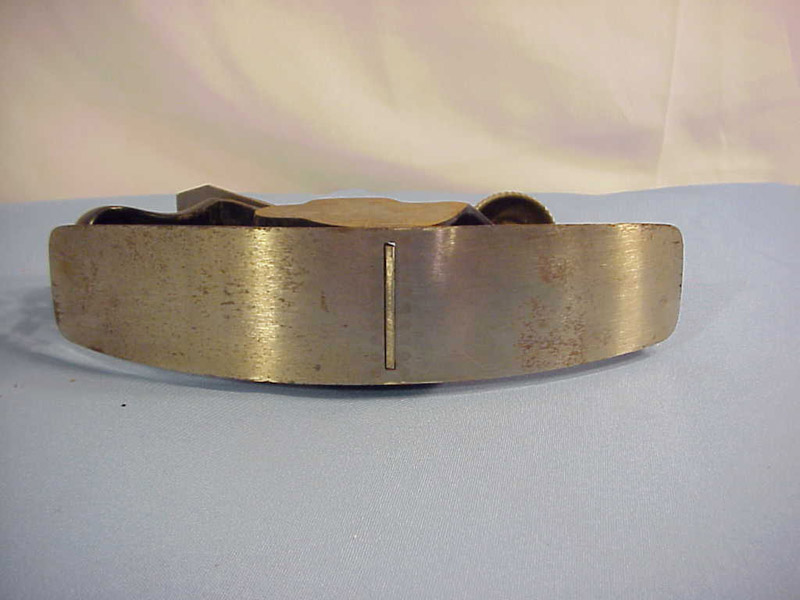

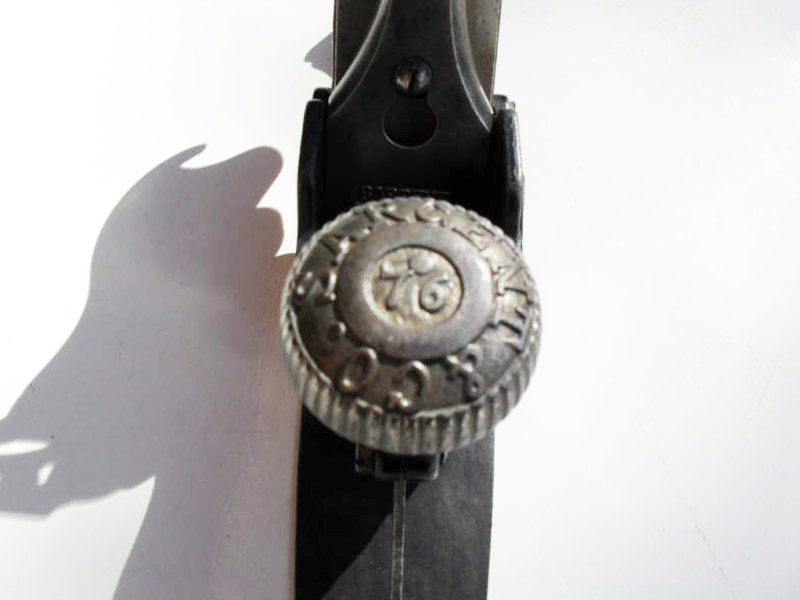

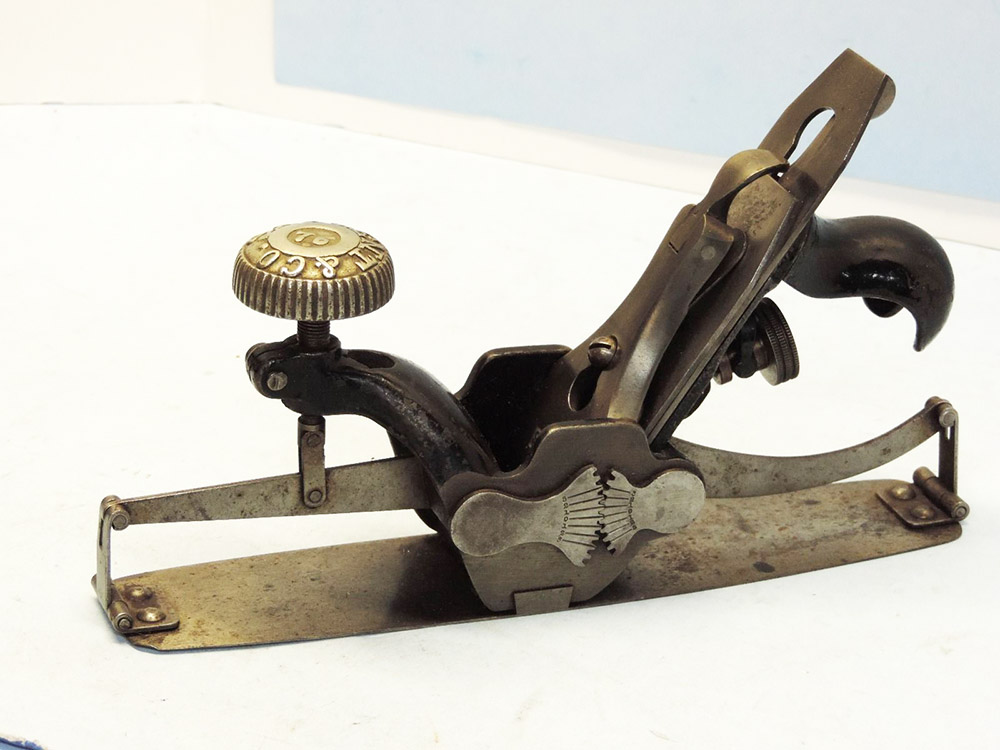

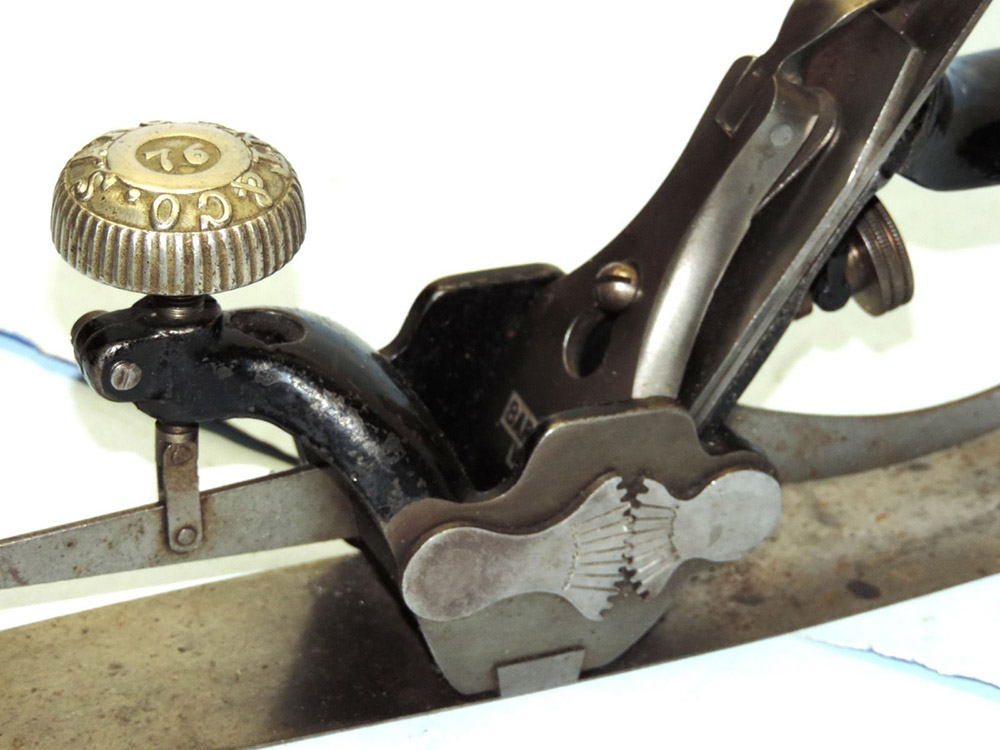

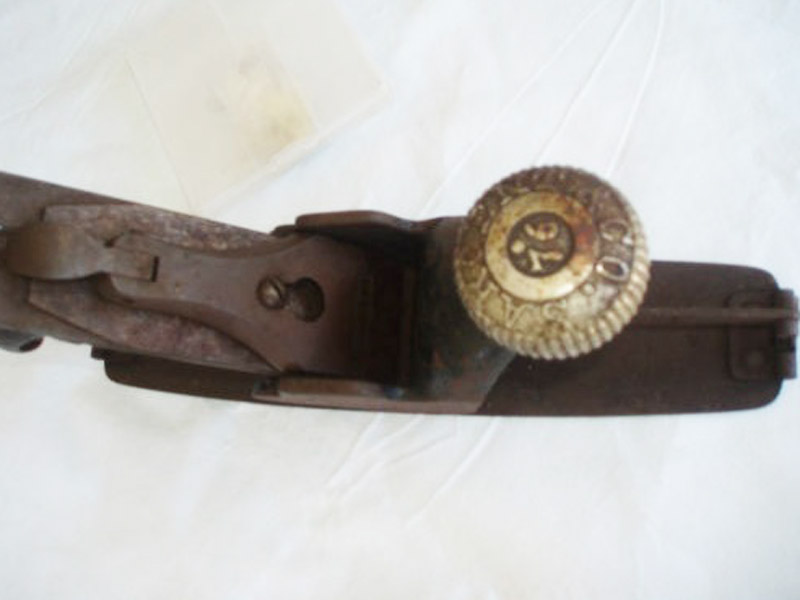

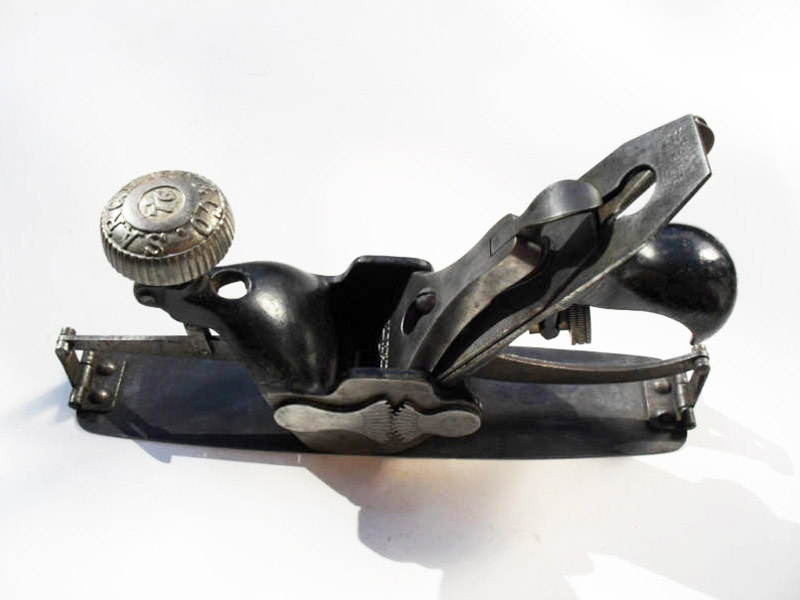

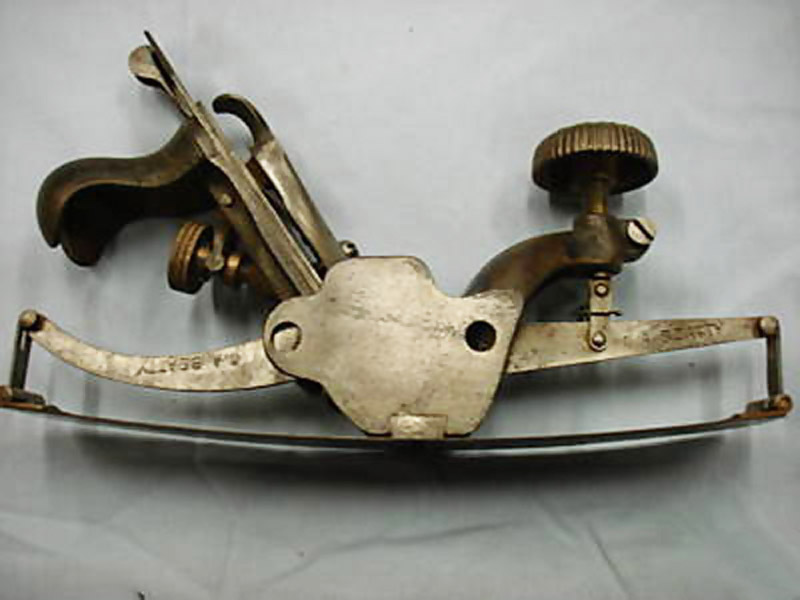

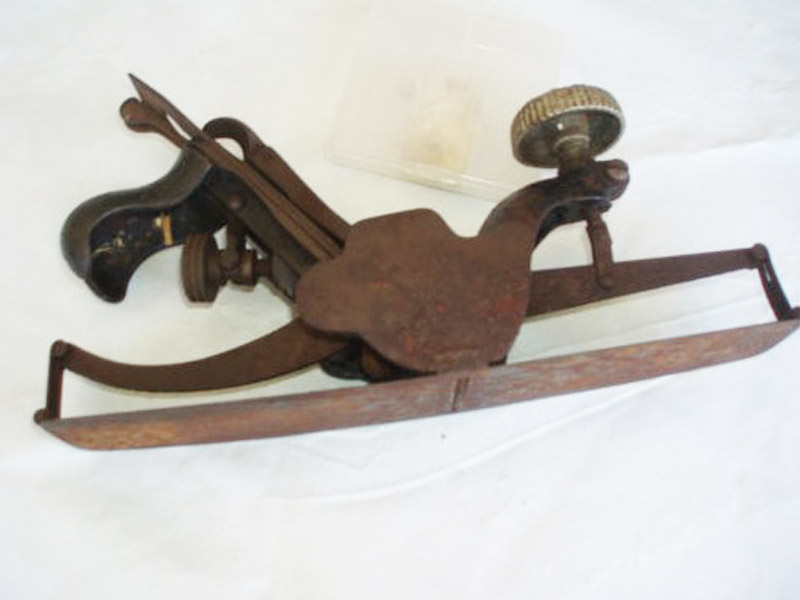

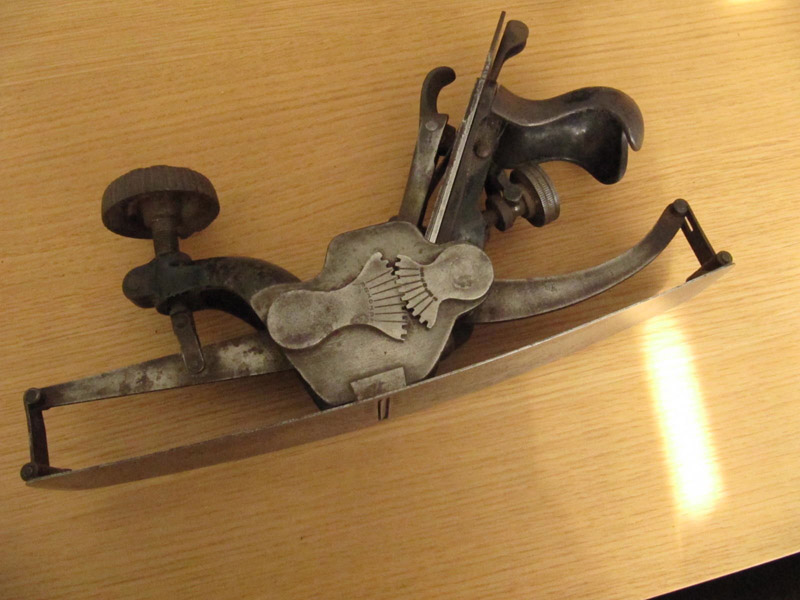

These Planes have a flexible steel face which may be adjusted by turning the knob, to plane the arc of the required circle, either convex or concave. The graduated scale on the side serves as a gauge, which enables the user to set the Plane accurately.

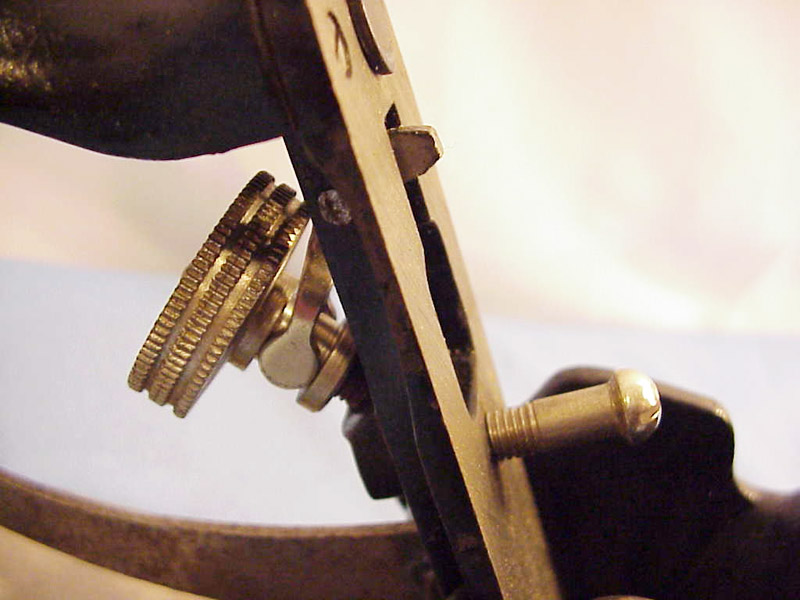

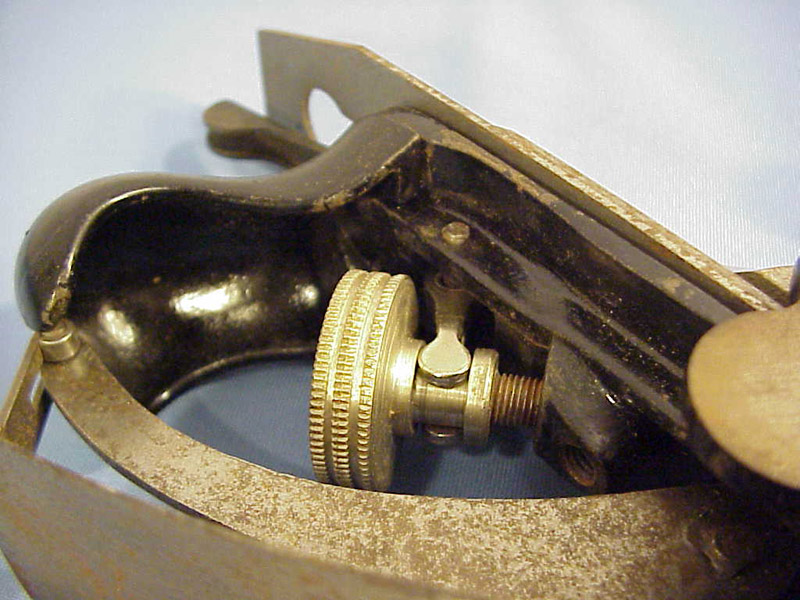

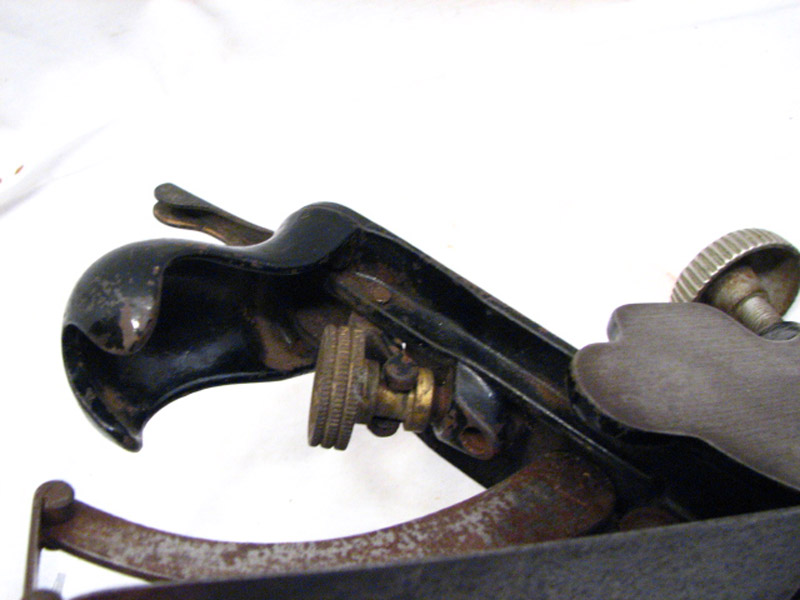

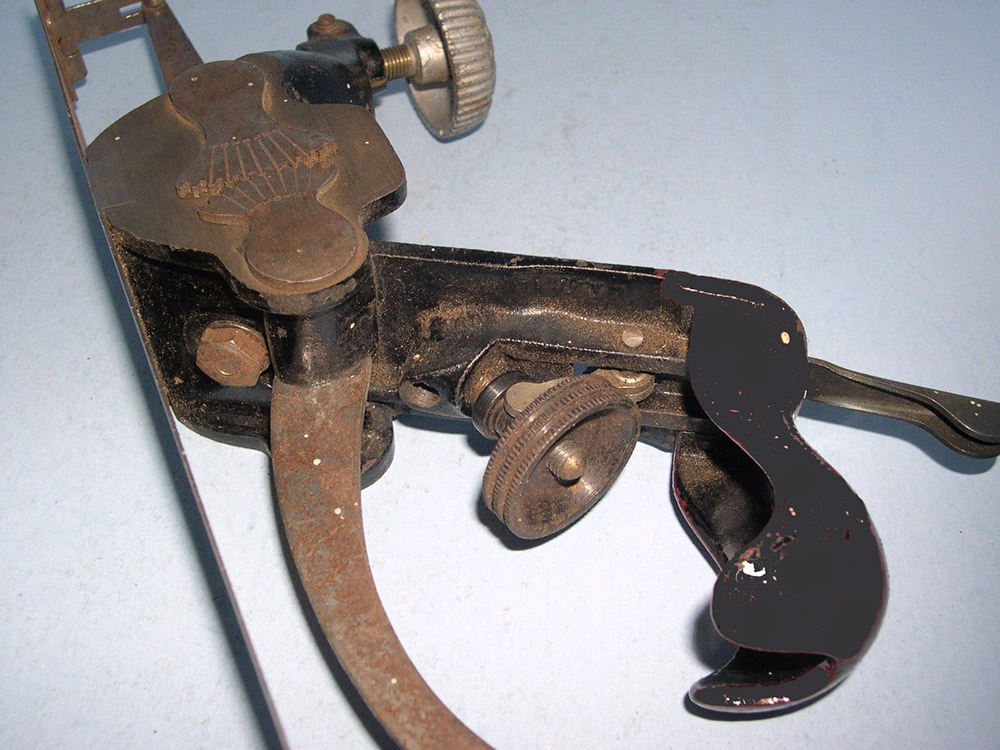

Patent Side Adjustment for exact adjusting of the Cutter with the face of the Plane.
10 Inches, 1¾ Inch Cutter.
No. 76, Japanned . . . . . . . . . . . each, net $4 00
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Circular Plane |
| Features: | Adjustable, with screw adjustment for cutter and graduated scale |
| Manufactured: | From 1910 to 1943 |
| Patents: | February 3, 1891 (lateral adjustment) (Granville H. Wright) |
| Length: | 10 inches |
| Cutter Width: | 1¾ inches |
| Construction: | Cast Iron |
| Finish: | Japanned, Polished Trimmings (1910 to 1941) Nickel Plated Trimmings (1942 to 1943) |
| Uses: | For circular & curved work |
Please check the Value Guide For Sargent Planes page for relative prices.
Additional Notes:

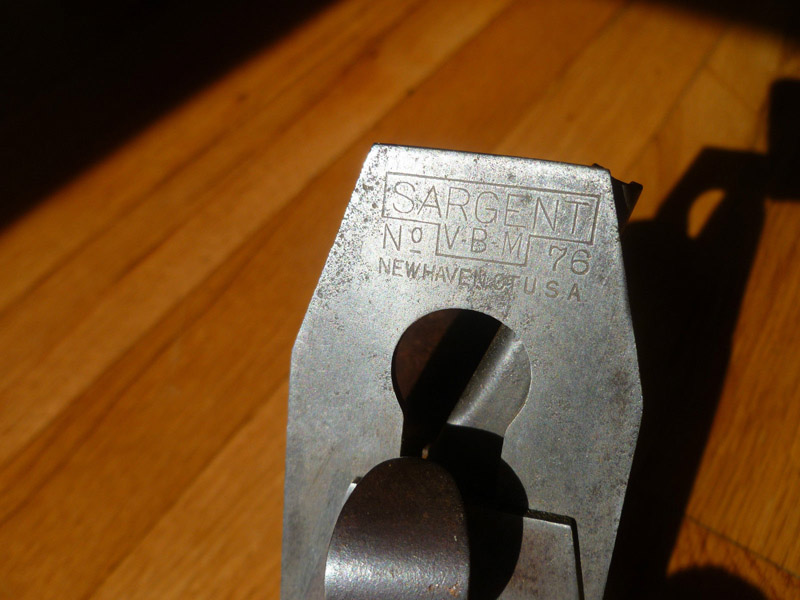

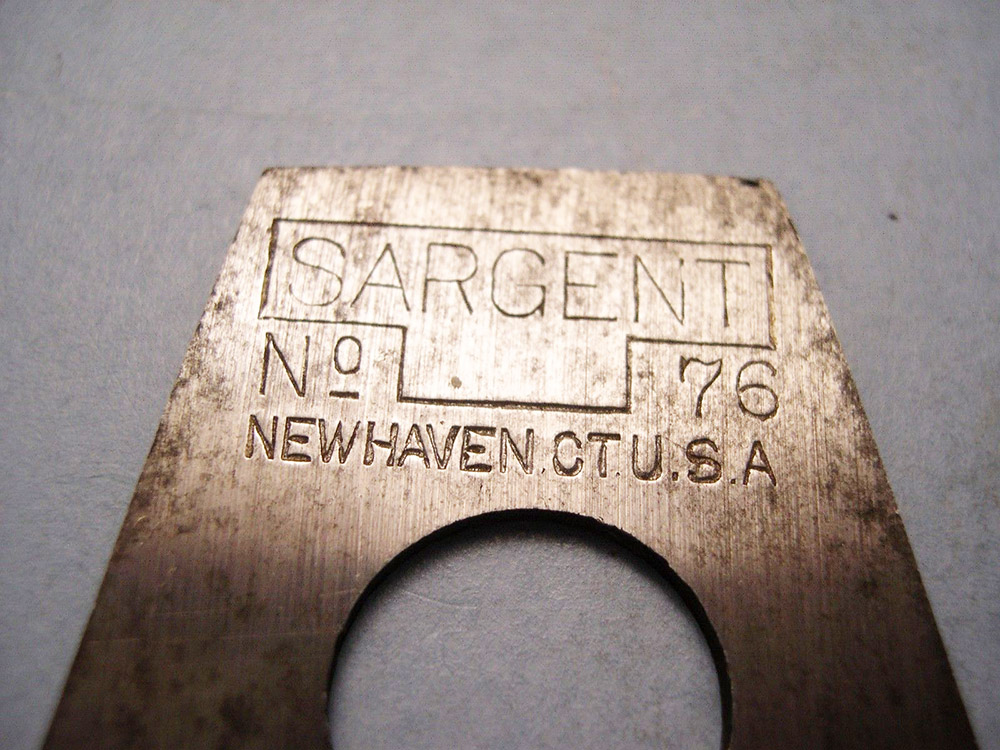

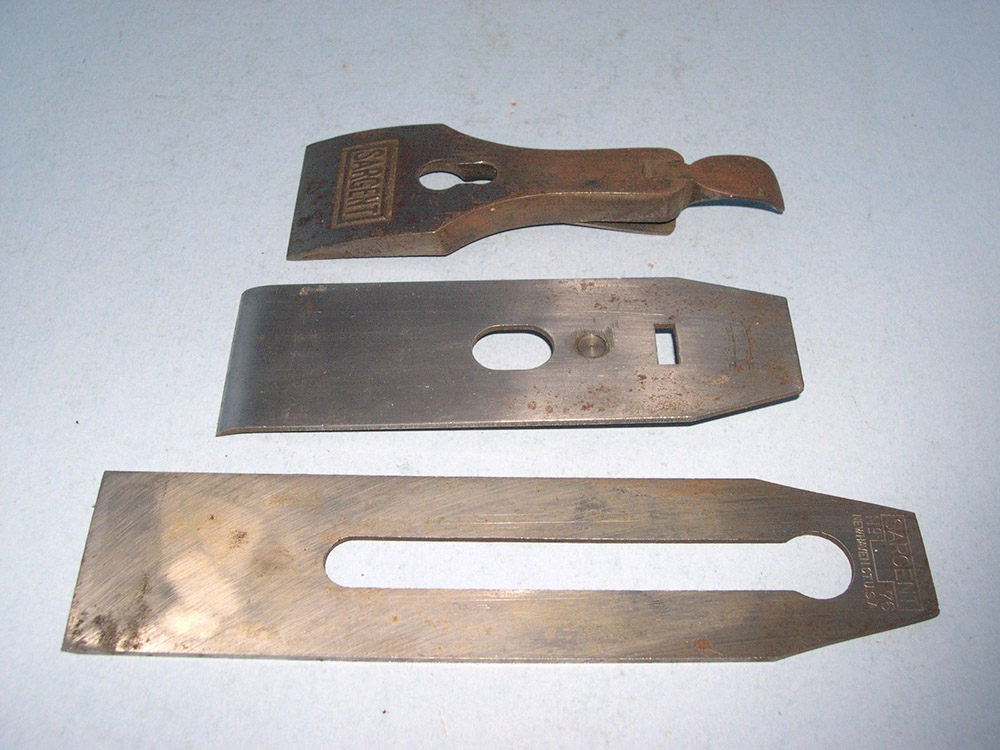

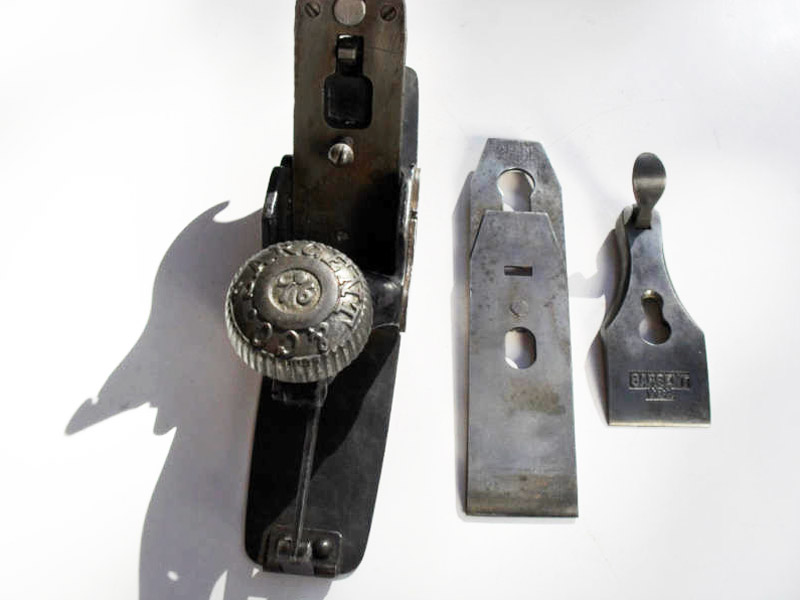

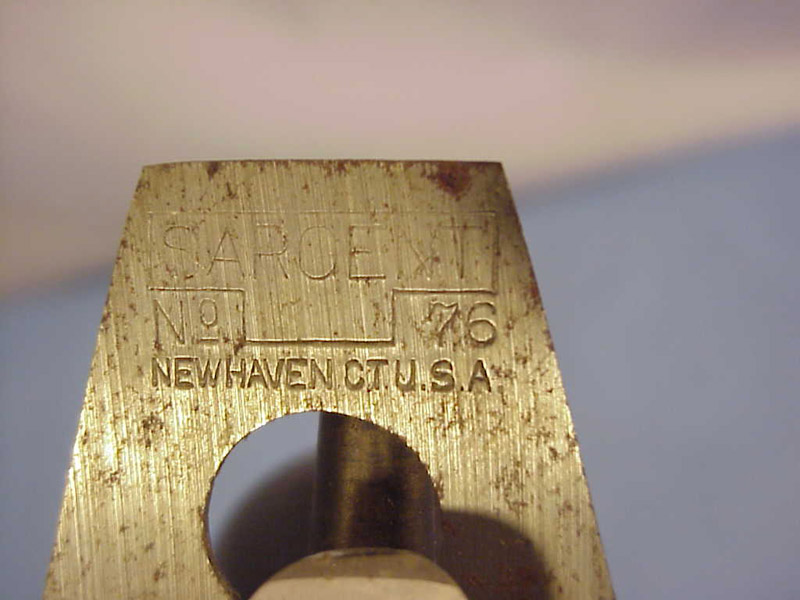

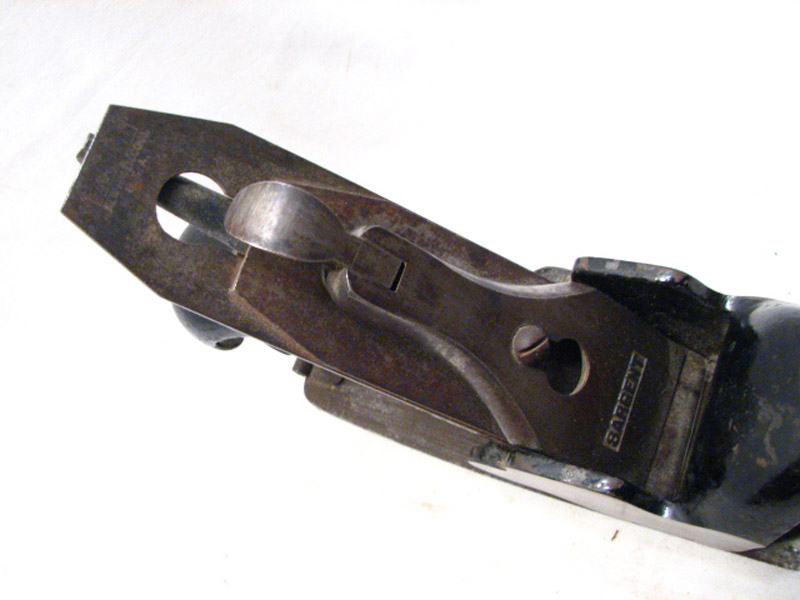

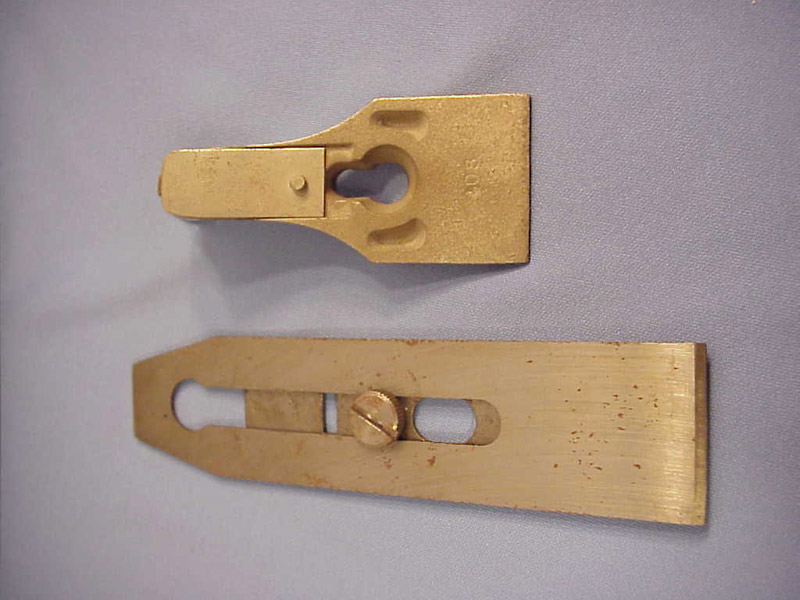

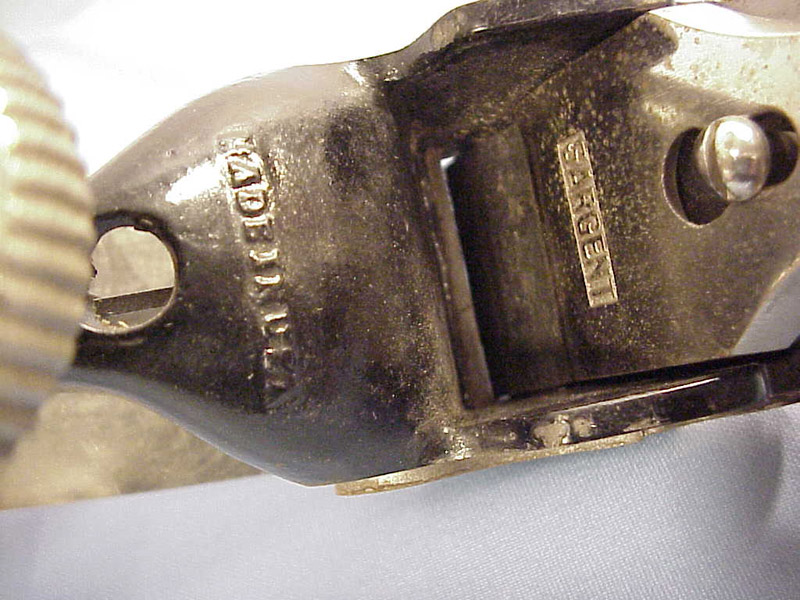

The cutter for the No. 76 Circular Plane has the plane number stamped on it.
