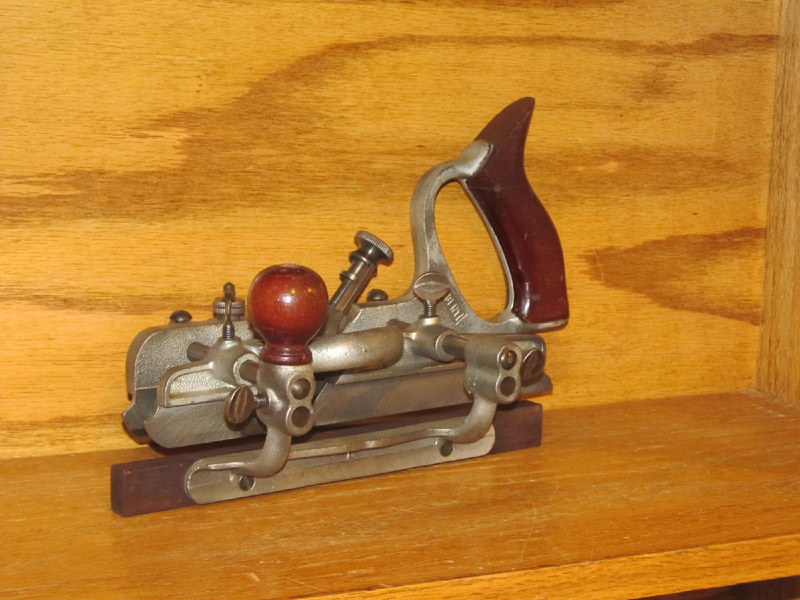

Sargent No. 1080-PB Combination Plane

Sargent No 1080-PB Combination Plane
Sargent No. 1080-PB Combination Plane

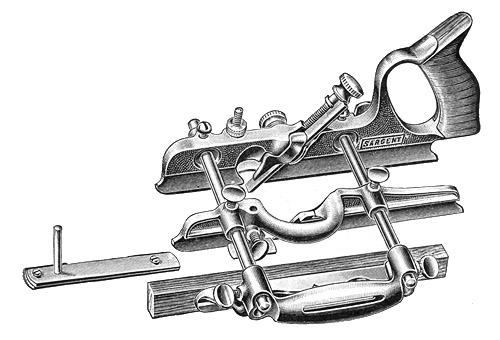

as illustrated in the Sargent Planes catalog of 1926.

Combination Planes.

With Screw Adjustment.

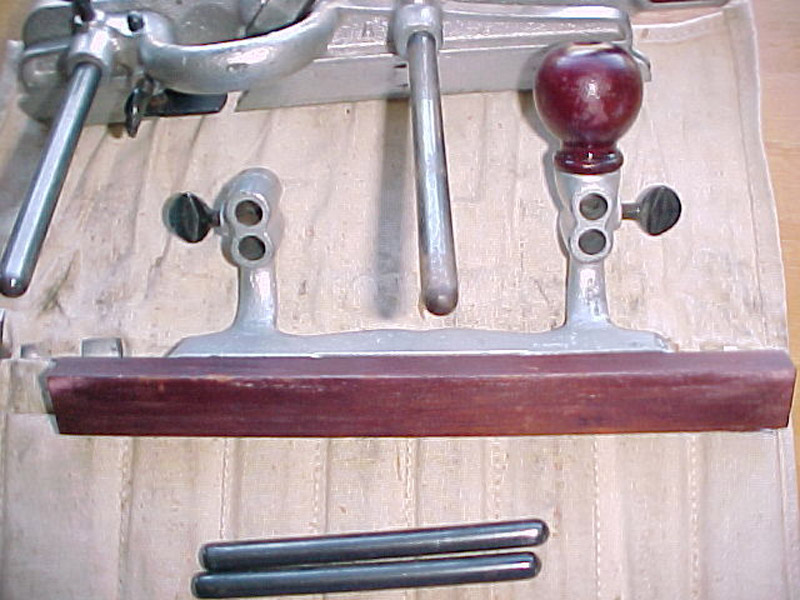

Mahogany Handle and Fence Plate.

No. 1080PB, Nickel Plated, 10¾ Inches, complete with 25 Cutters packed in Card Board Box,
     .     .     .     .     .     .     .     .     .     .     .     .     .     .     .     .     .     .     .     .     each, $15 50

Combination Plane No. 1080PB is designed for use in the following types of work: Dadoing, Rabbeting, Tonguing and Grooving, Beading, Slitting and Sash Cutting. It may also be used as a Filletster and with special Cutters as a Reeding Plane.

The canvas case containing the Cutters and the wooden box used for carrying the Plane, are illustrated on pages 32 and 33.

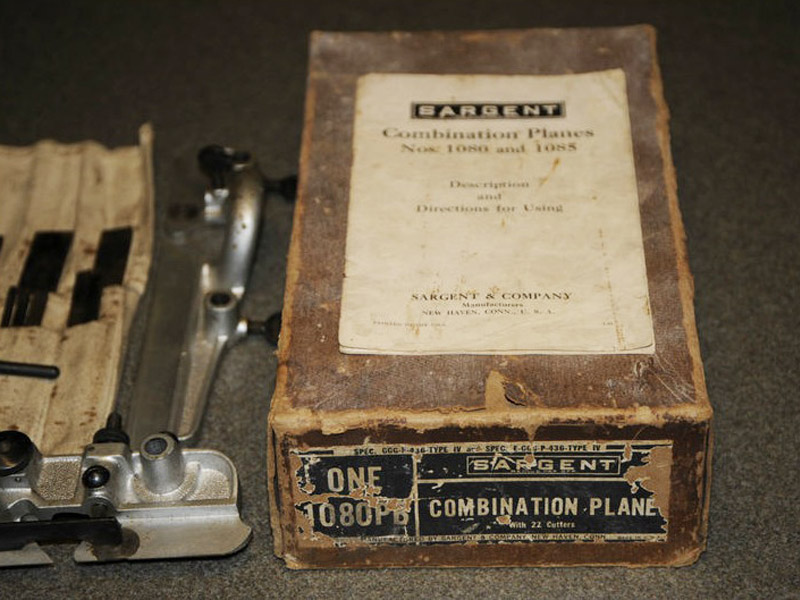

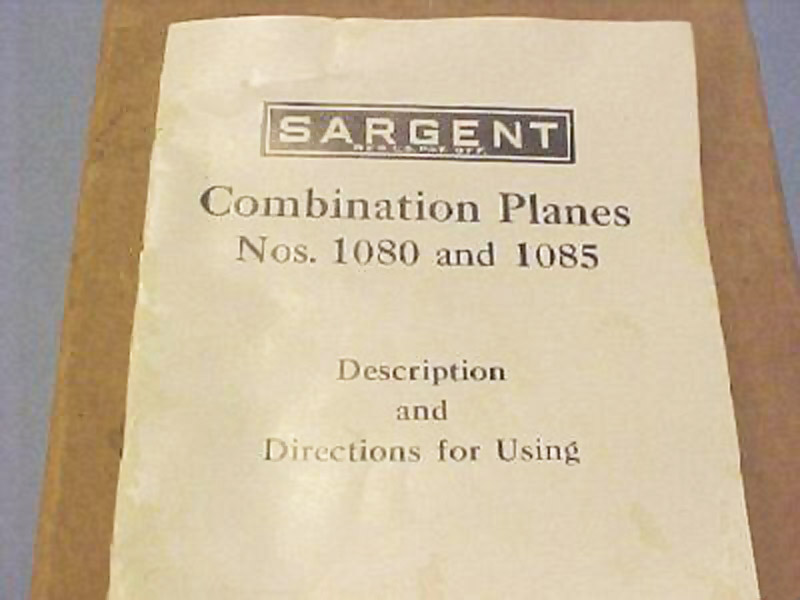

A detailed description and directions for using are packed with each Plane.

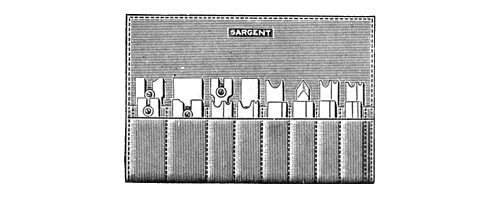

Sargent No 1080 Combination Plane Canvas Case

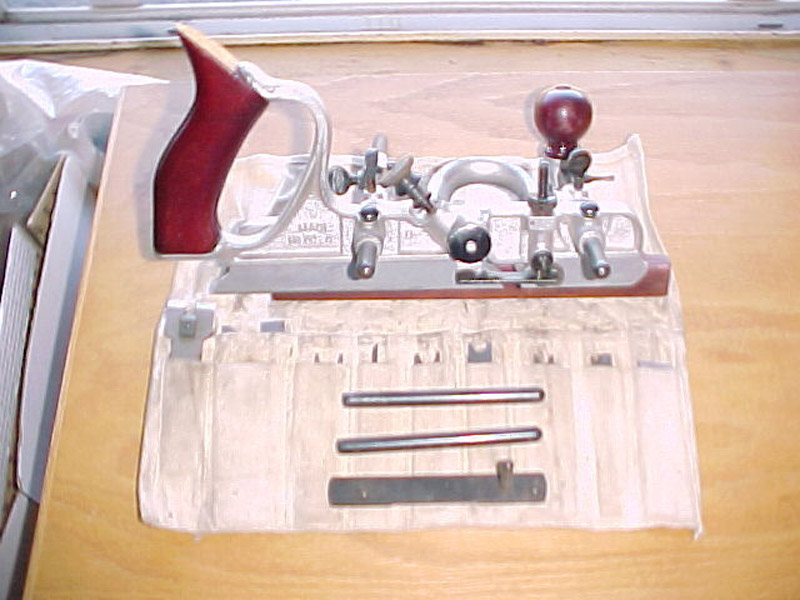

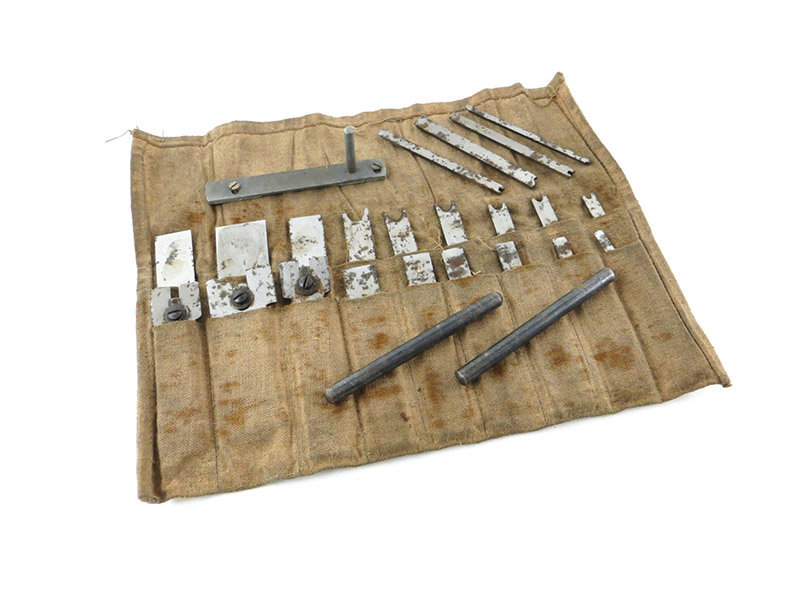

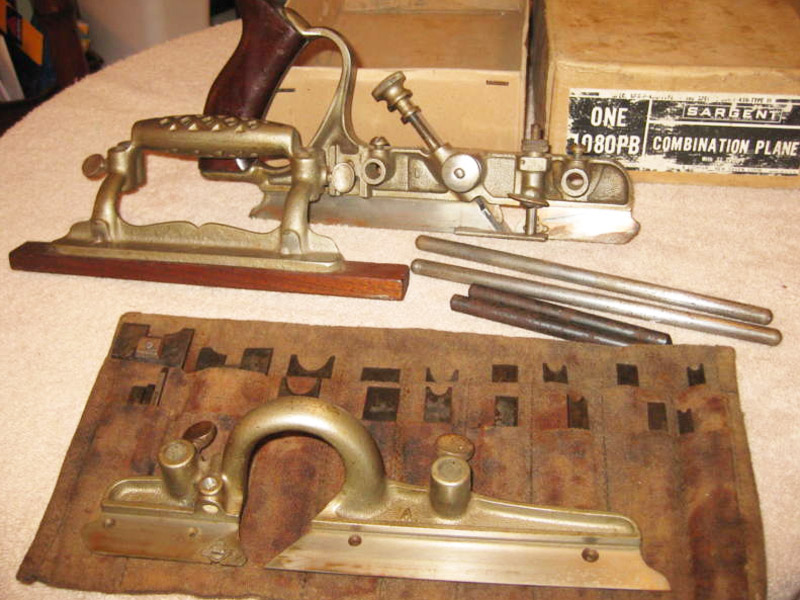

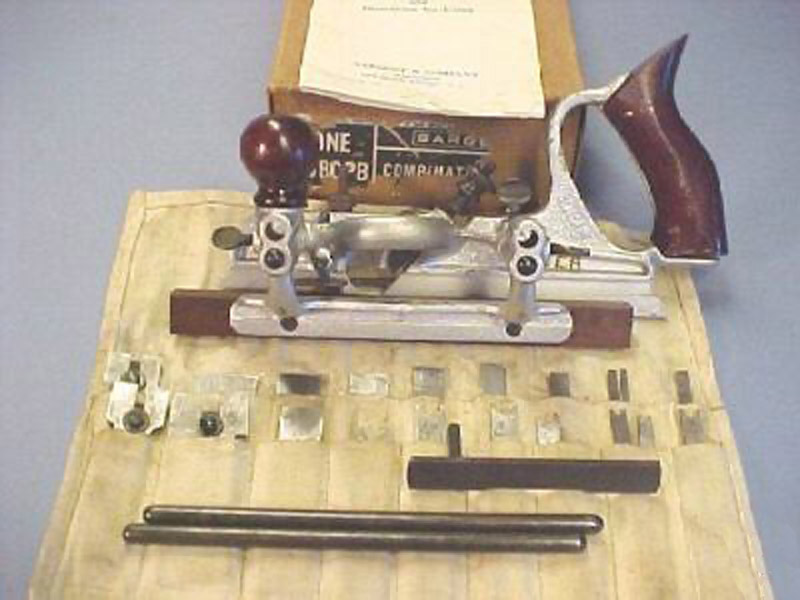

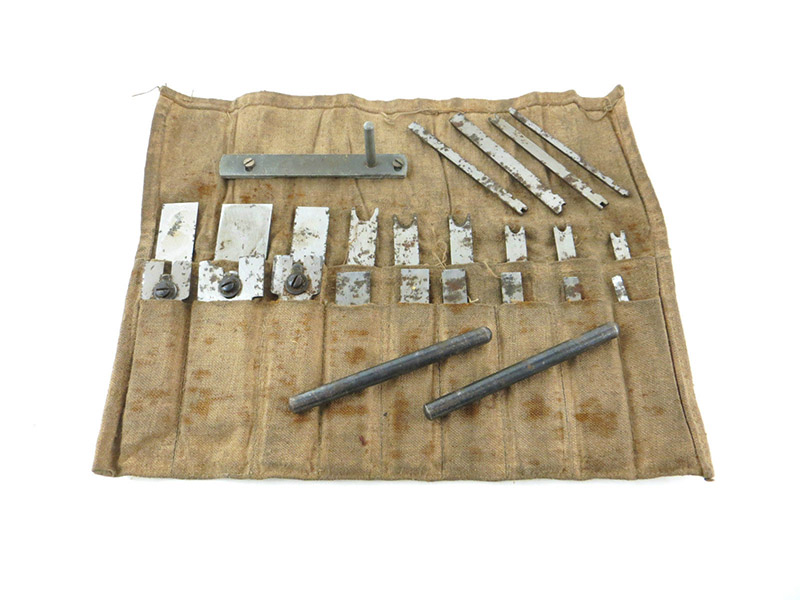

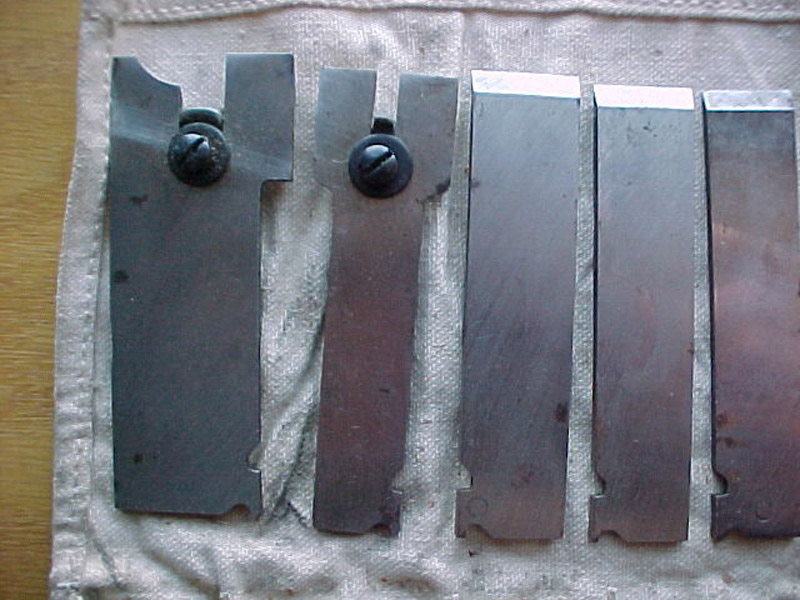

Cutters and Rods for No. 1080 Plane in canvas case.

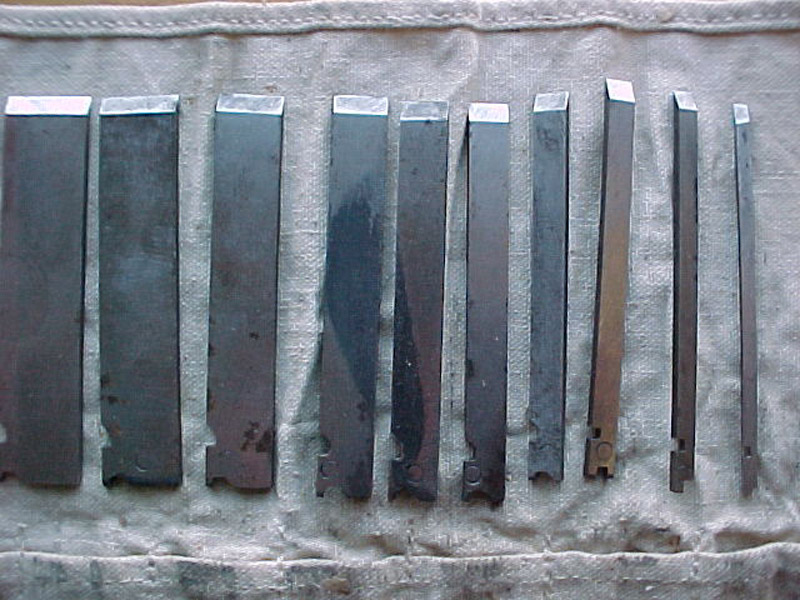

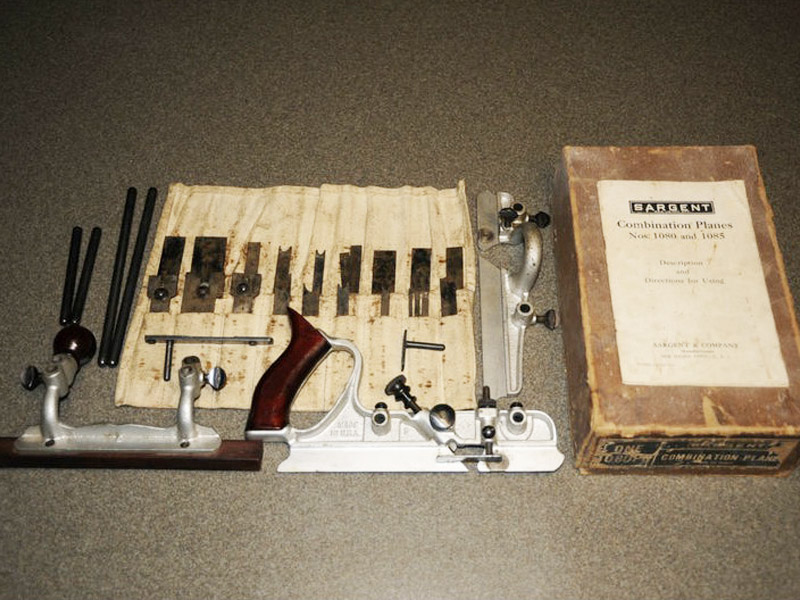

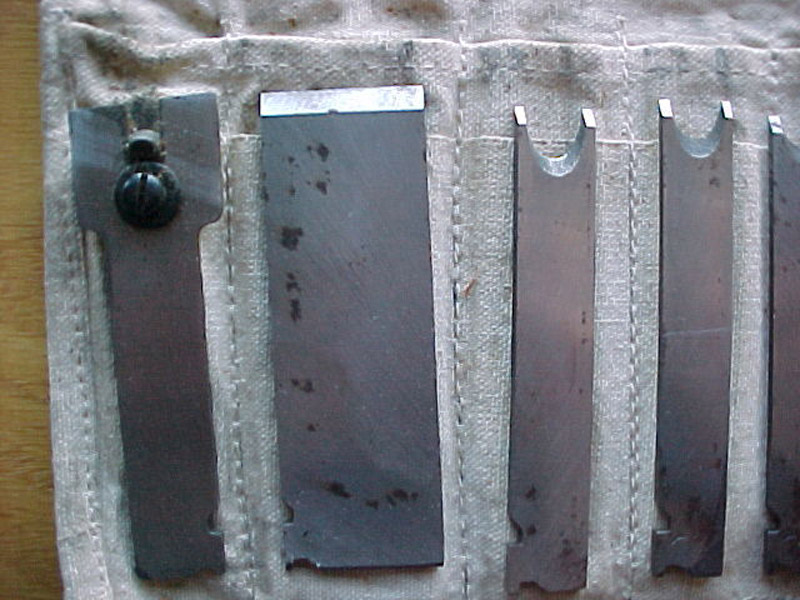

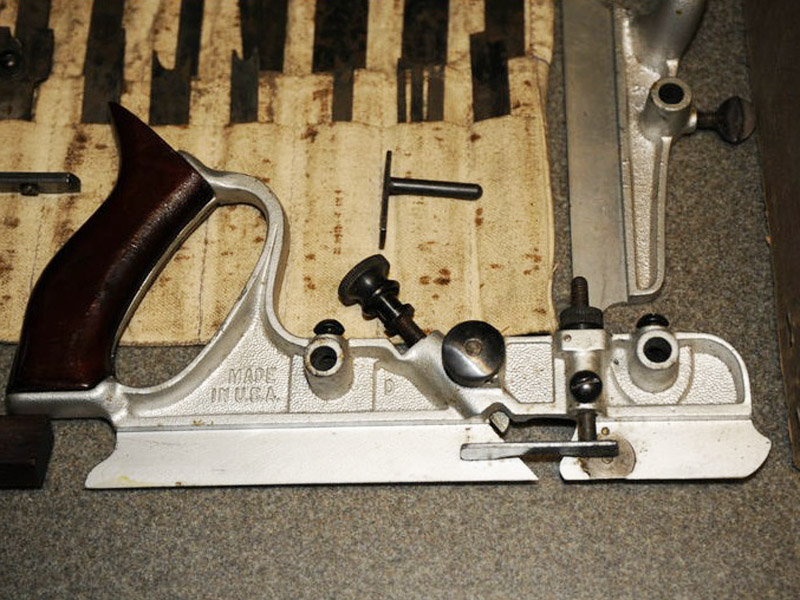

The No. 1080 is packed regularly with 25 different Cutters. These are packed in a canvas case arranged with a series of pockets so that each Cutter may be taken out and replaced without confusion. The flap is folded over the Cutters to protect them before the case is rolled up.

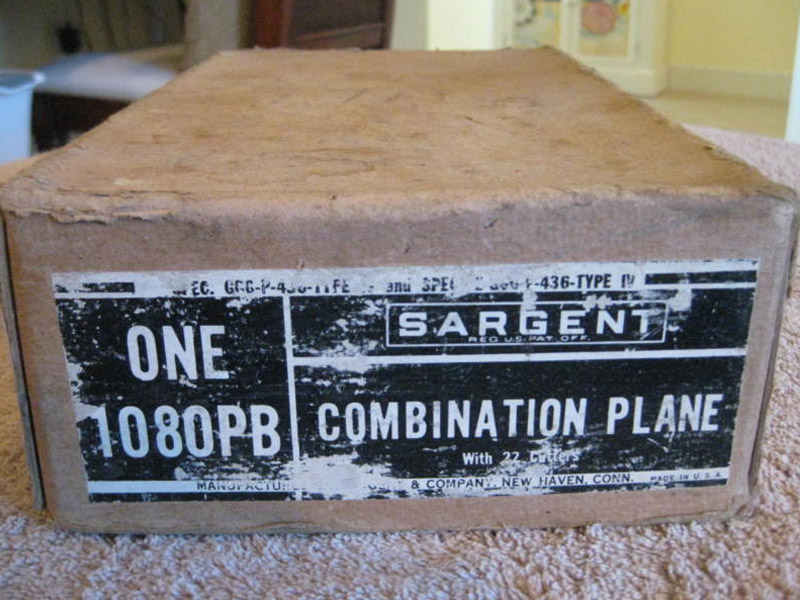

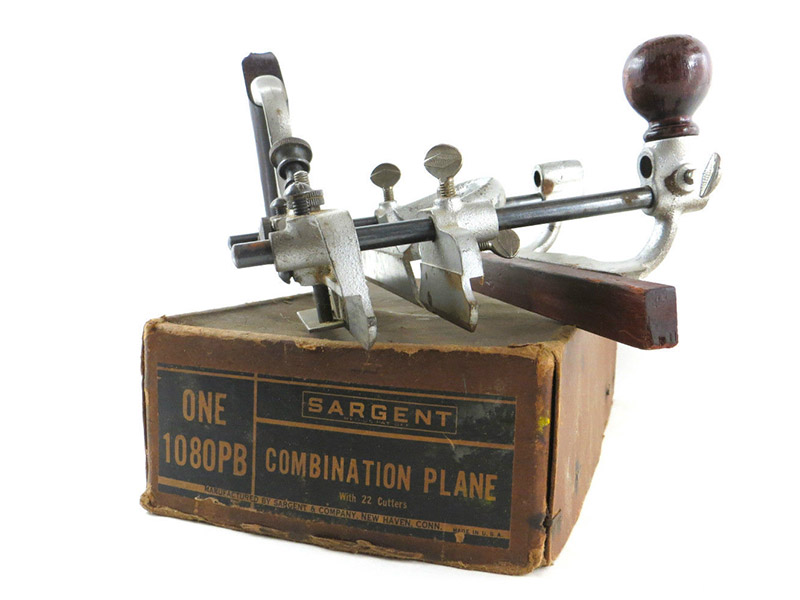

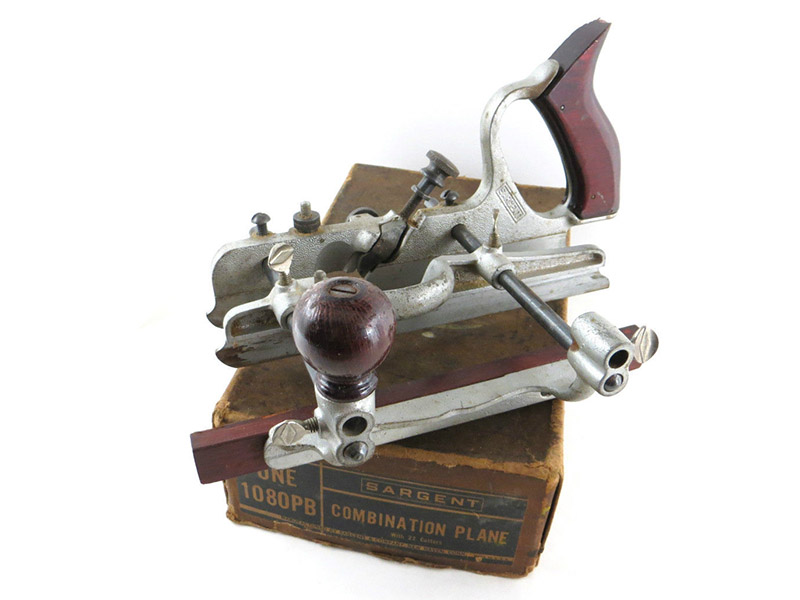

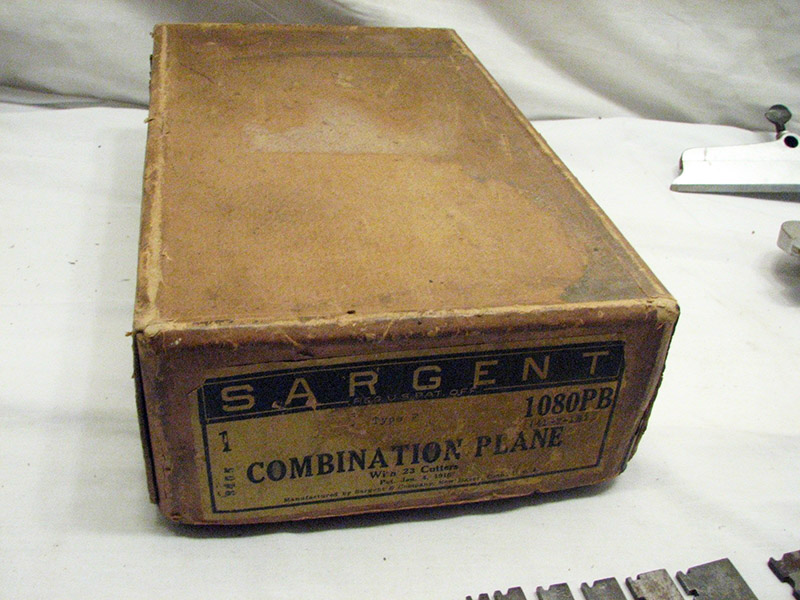

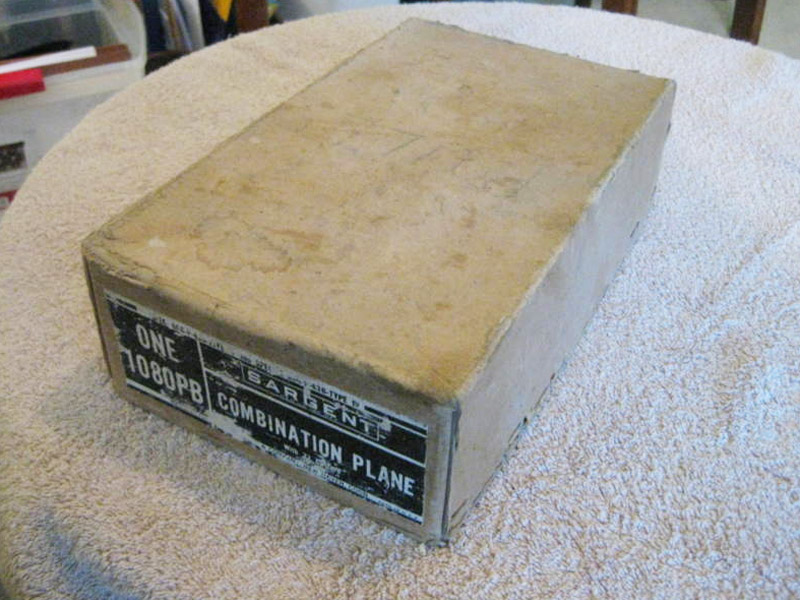

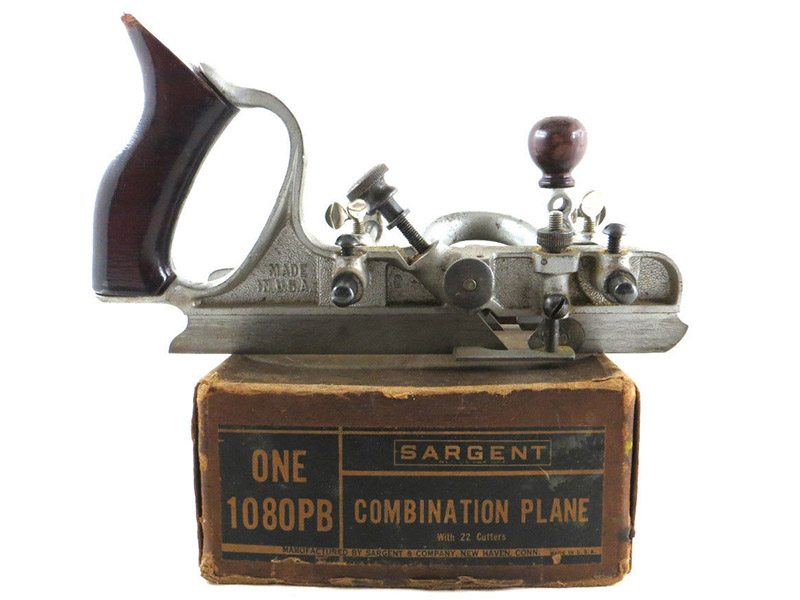

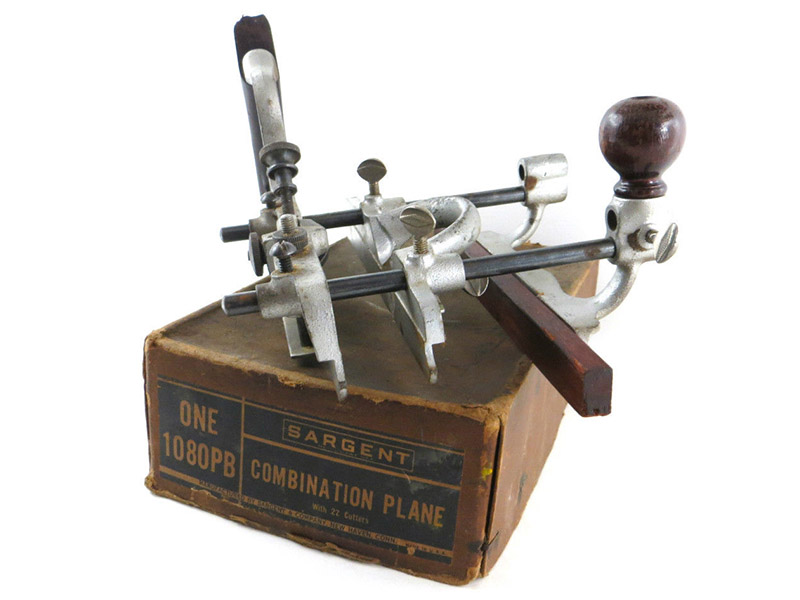

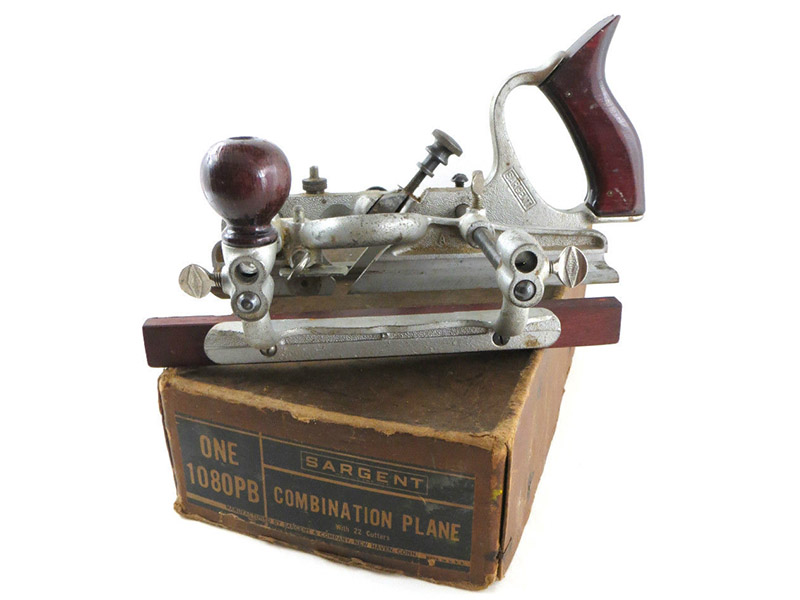

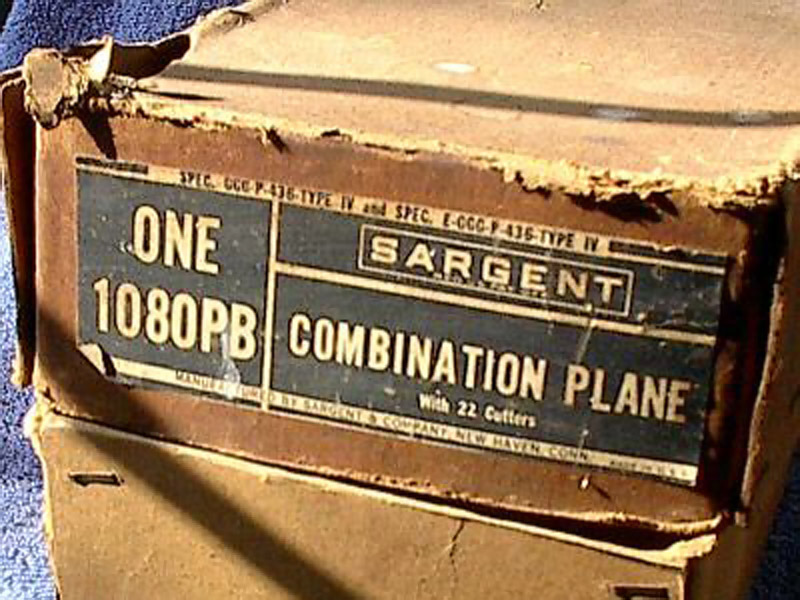

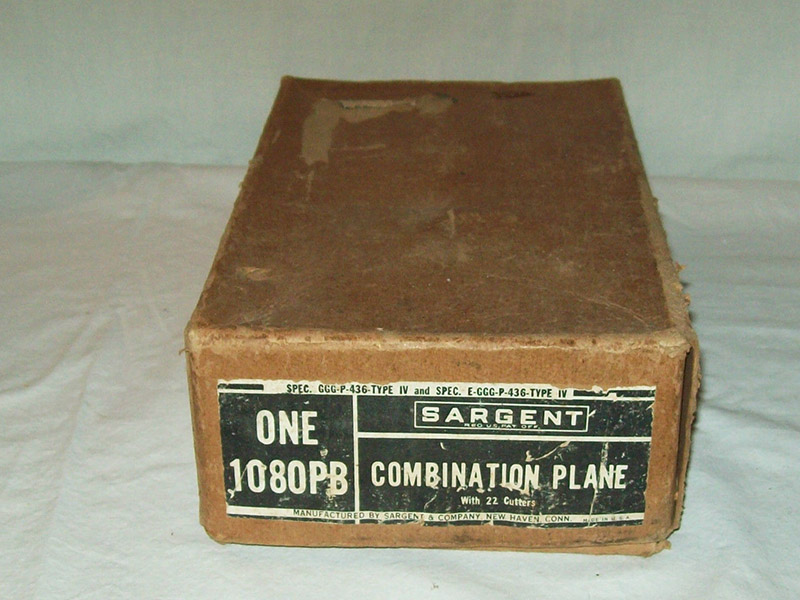

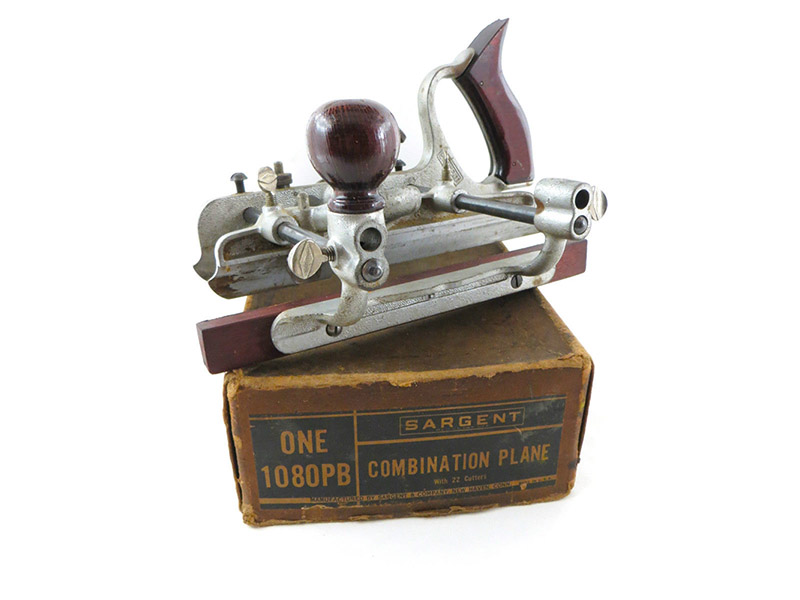

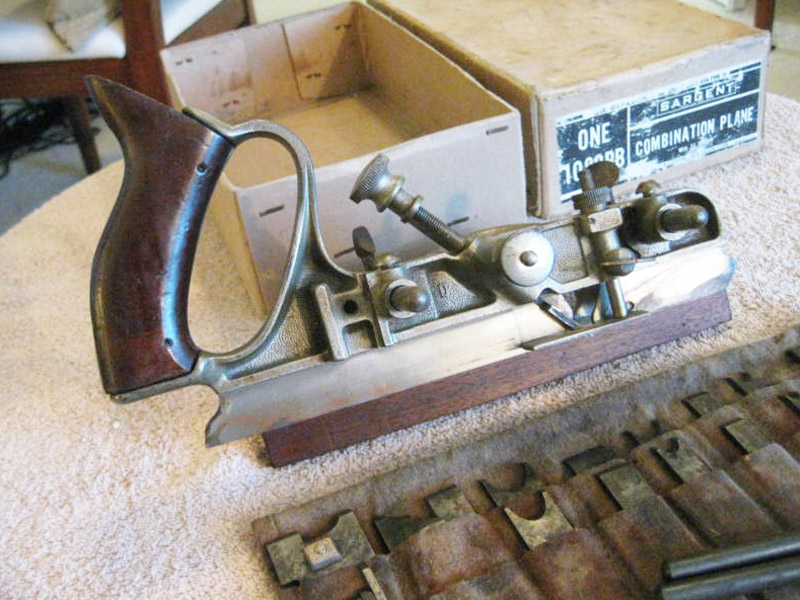

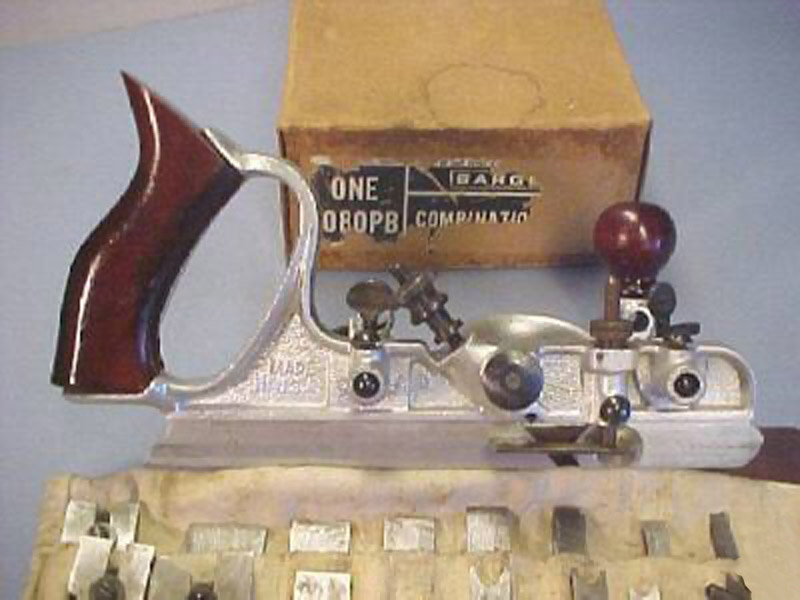

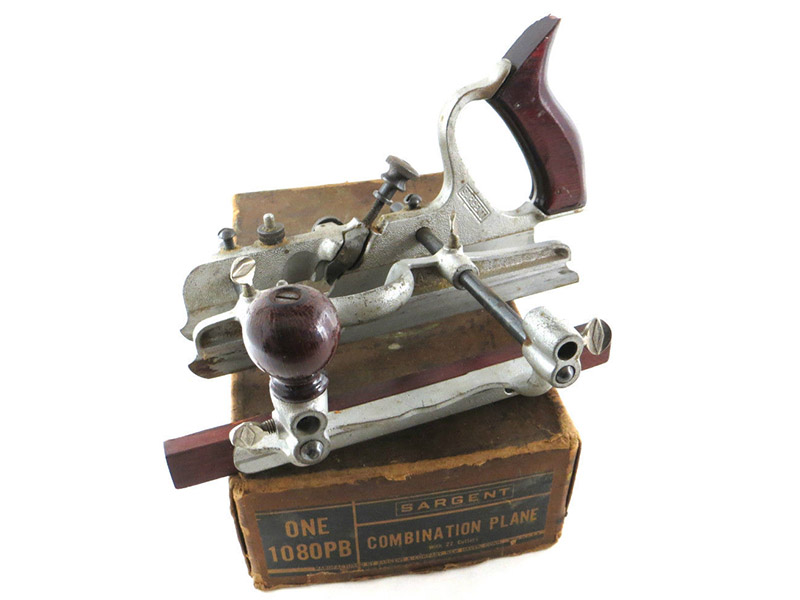

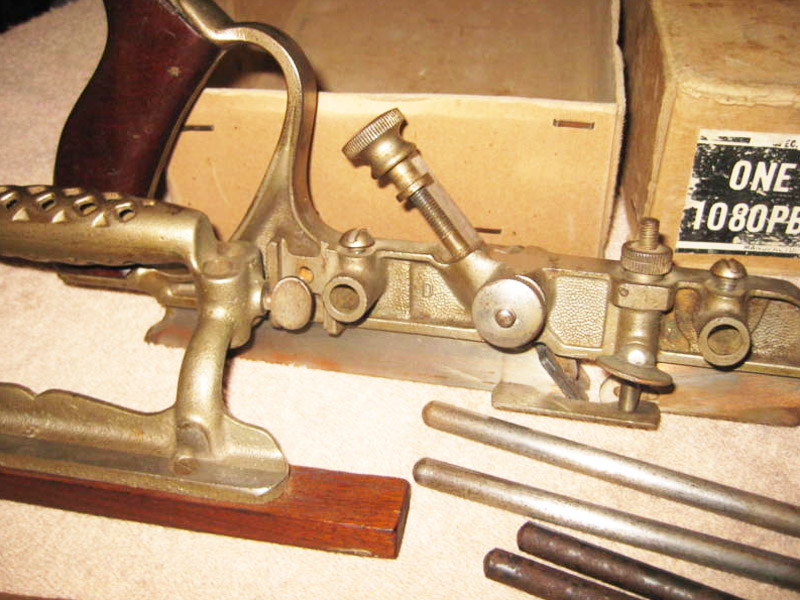

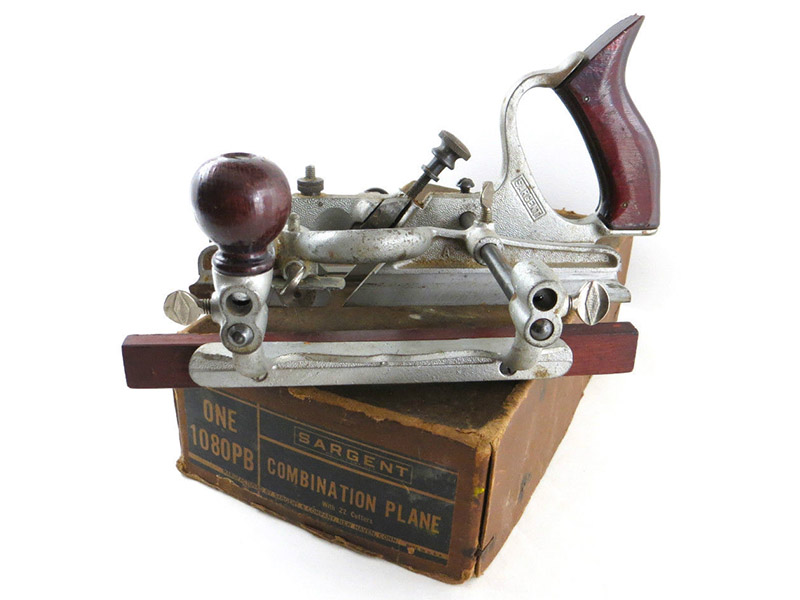

Planes No. 1080PB are packed in a compact cardboard box as priced on page 30. In ordering specify No. 1080PB. They can also be furnished in wooden boxes as explained below.

Nos. 1080 and 1085 Combination Planes are packed in handled boxes of stained hard wood, which may be used conveniently by a carpenter as a case for the tool. The fixtures are so arranged that the parts of the Plane are held firmly in position in the box, but may be removed easily as required.

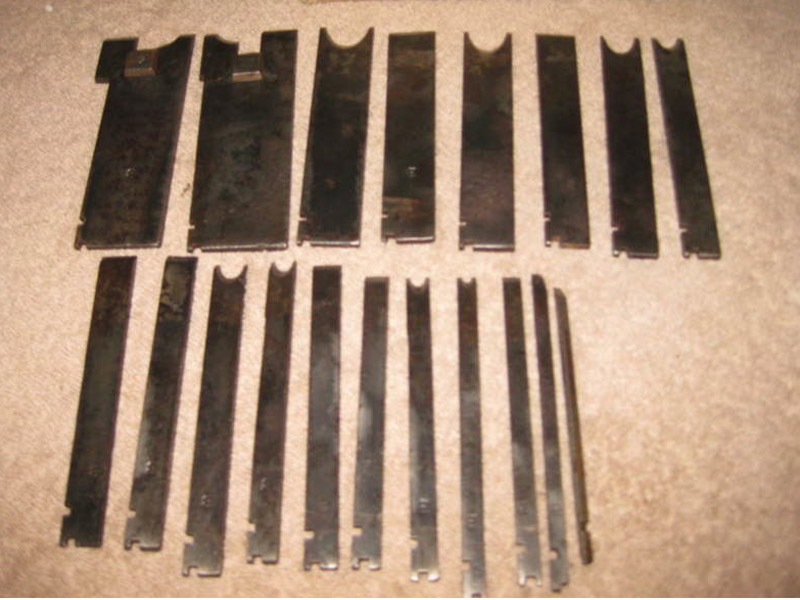

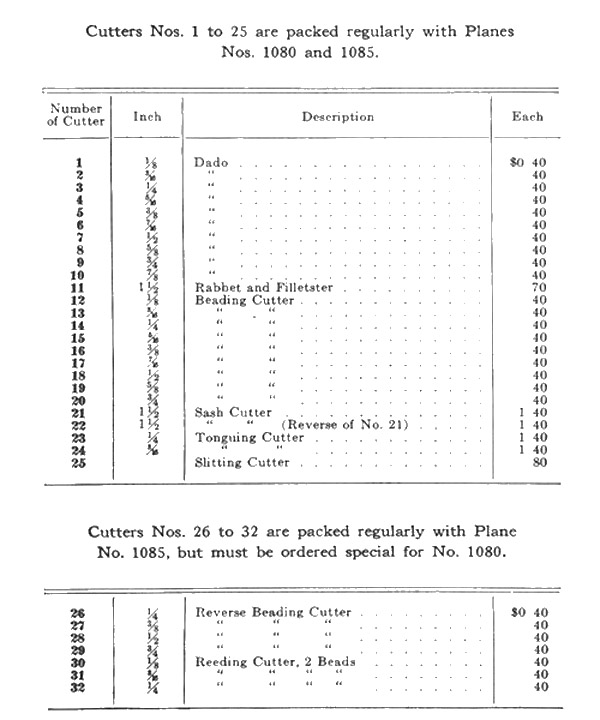

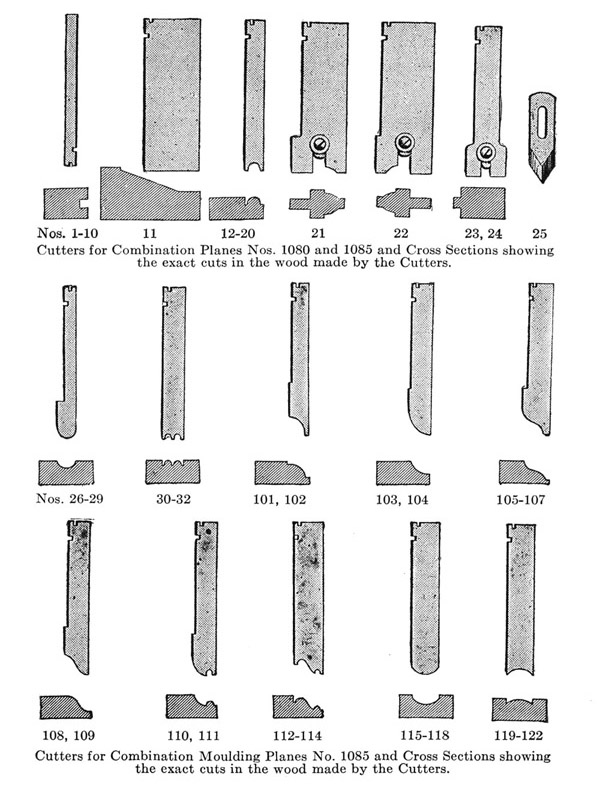

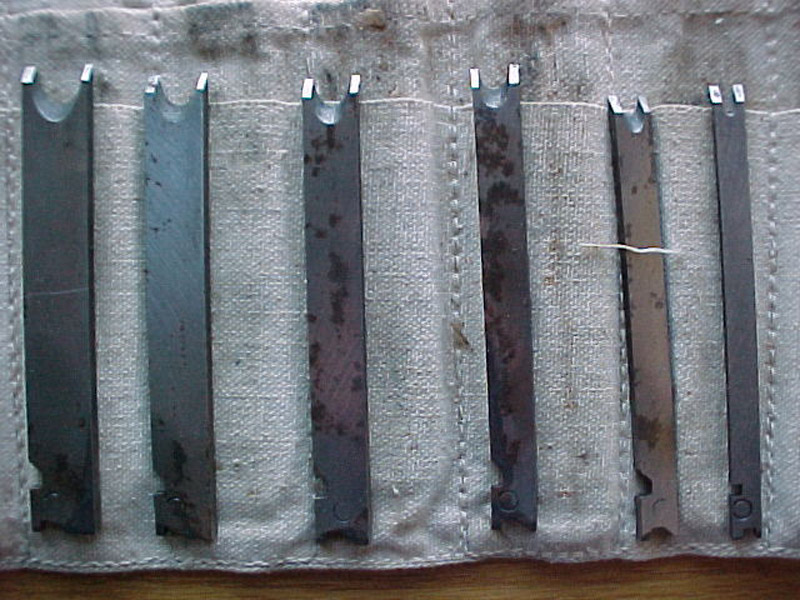

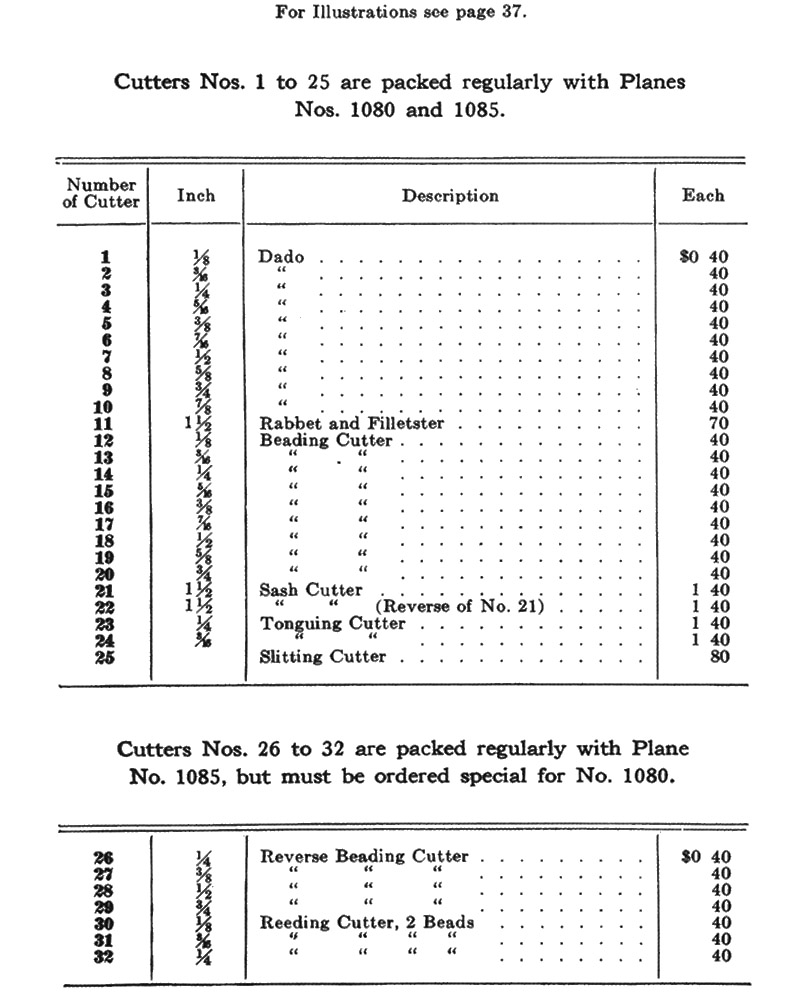

Cutters for Sargent Combination Planes.

Sargent No 1080 Combination Plane Cutters

Sargent No 1080 Combination Plane Cutters

Blanks for Cutters and special Cutters for Combination Planes Nos. 1080 and 1085, suitable for various types of work, and not included in the foregoing, will be furnished to order at a reasonable price. A drawing with full description and measurements of Cutter is required where a special Cutter is ordered.


Note: The above information has been reproduced from an original catalog listing.


Specifications (Type 1):

Plane Type:Combination Plane

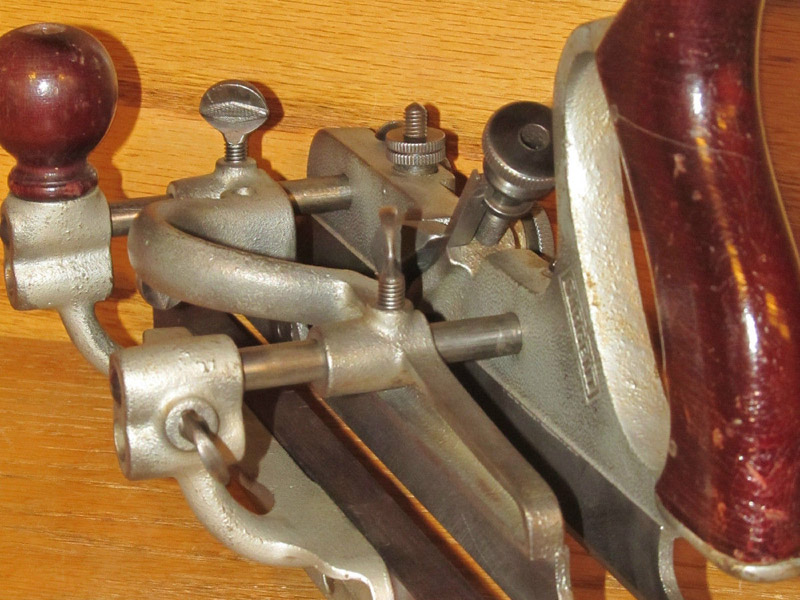

Features:Adjustable, with fence, skate & depth gauge
Manufactured:From 1926 to 1927
Patents:January 4, 1916 (cutter adjustment) (Herbert G. Collins)
Length:10¾ inches
Cutter Width:25 cutters & sizes, including:
10 Plow & Dado cutters
9 Beading cutters
1 Rabbet & Filletster cutter
2 Sash cutters
2 Match cutters
1 Slitting cutter
— All packed in a canvas case

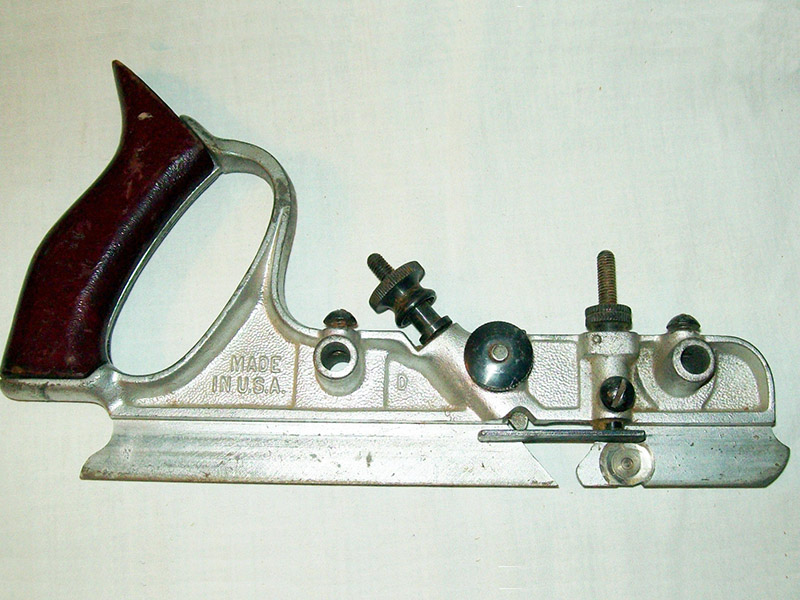

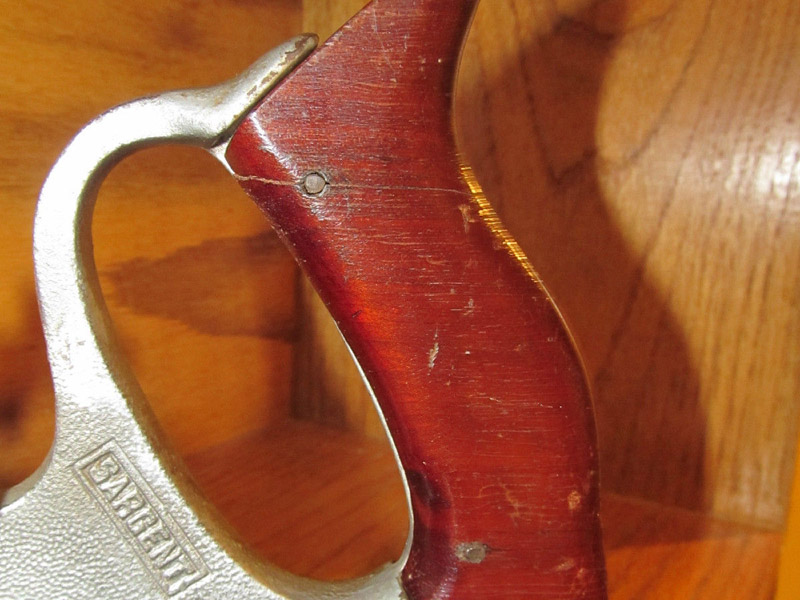

Construction:Cast iron body, Mahogany handle & fence plate
Finish:Nickel Plated
Uses:Special purpose combination plane


Specifications (Type 2):

Plane Type:Combination Plane
Features:Adjustable, with fence, skate & depth gauge
Manufactured:From 1928 to 1943
Patents:January 4, 1916 (cutter adjustment) (Herbert G. Collins)
Length:10¾ inches
Cutter Width:23 cutters & sizes, including:
11 Plow & Dado cutters
7 Beading cutters
1 Rabbet & Filletster cutter
1 Sash cutters
2 Match cutters
1 Slitting cutter
— All packed in a canvas case
Construction:Cast iron body, Mahogany handle & fence plate
Finish:Nickel Plated
Uses:Special purpose combination plane


Specifications (Type 3):

Plane Type:Combination Plane
Features:Adjustable, with fence, skate & depth gauge
Manufactured:1944 only
Length:10¾ inches
Cutter Width:23 cutters & sizes, including:
11 Plow & Dado cutters
7 Beading cutters
1 Rabbet & Filletster cutter
1 Sash cutters
2 Match cutters
1 Slitting cutter
— All packed in a canvas case

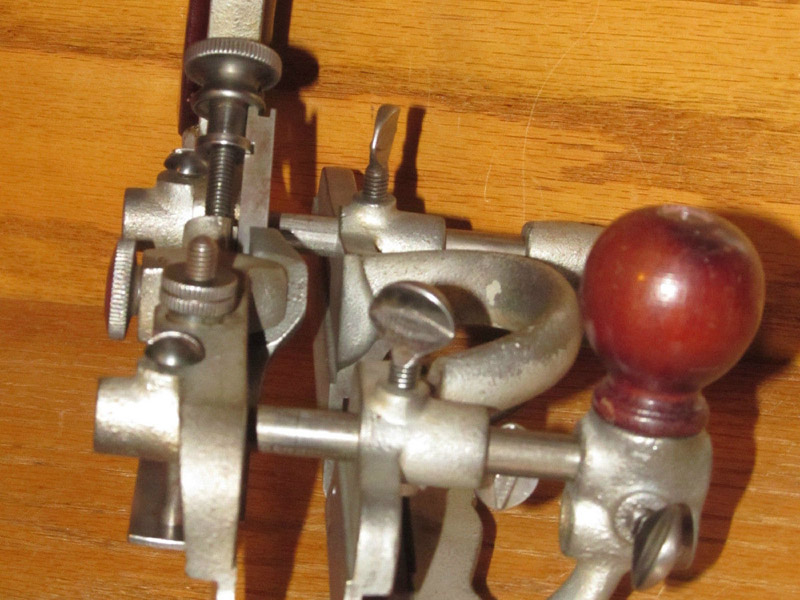

Construction:Cast iron body, Mahogany handle, knob & fence plate
Finish:Nickel Plated
Uses:Special purpose combination plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

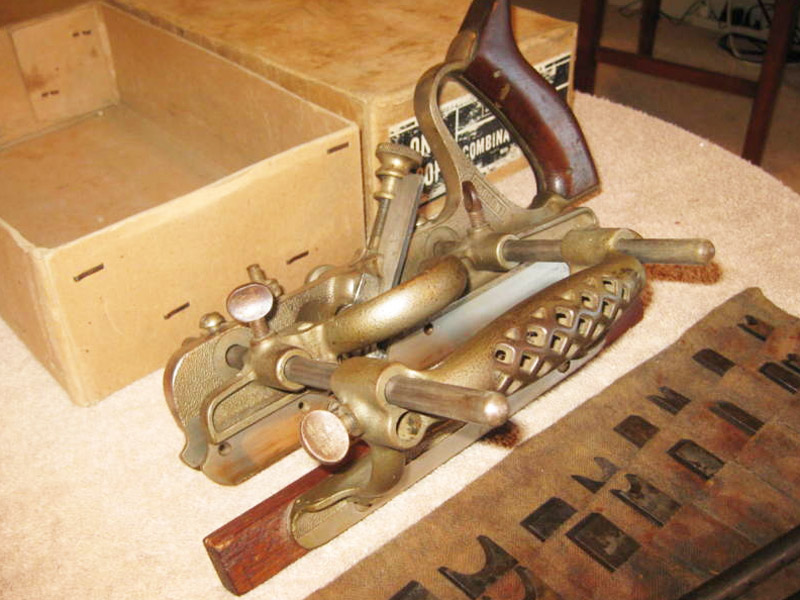

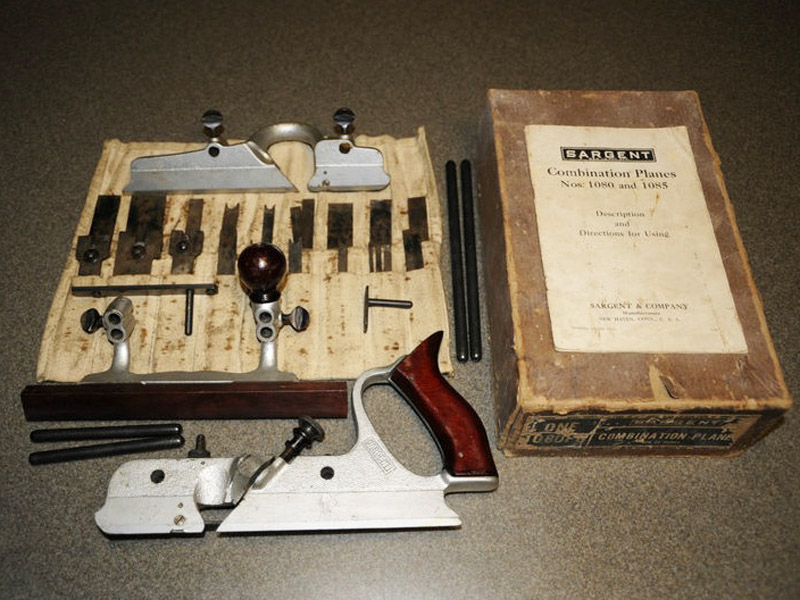

The Sargent No. 1080-PB combination plane was the same plane as the No. 1080 except that it was packed in a cardboard, or pasteboard, box rather the a wooden case. This was a less expensive option to purchasing the plane – $15.50 as opposed to $17.50 in the 1926 Sargent Planes catalog, for instance – which meant that the buyer would be responsible for making their own box to house the plane and its various attachments and cutters, should they so desire. The “PB” in the model name stands for Paste Board.

This plane was closely modeled on Stanley’s No. 45 combination plane. The main difference being in the way the cutters were placed in the adjusting wheel, using two notches to engage the supports in the screw nut.
