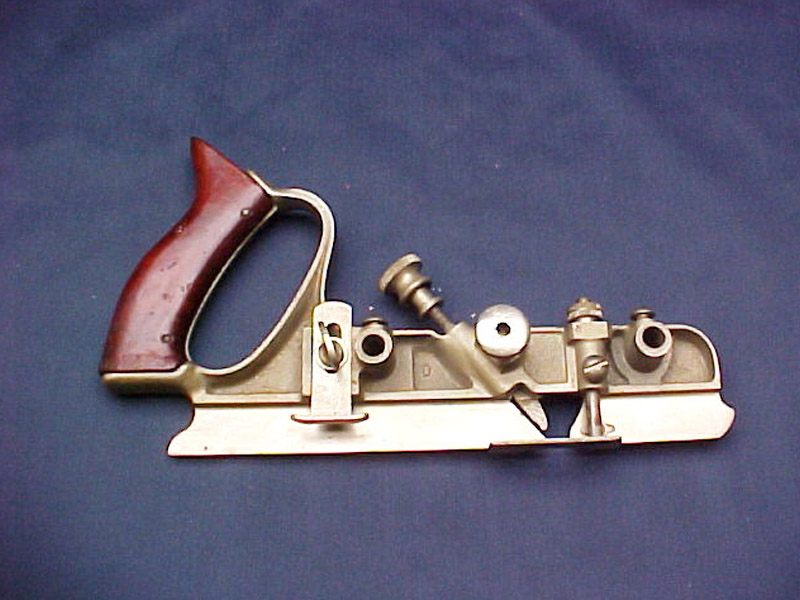

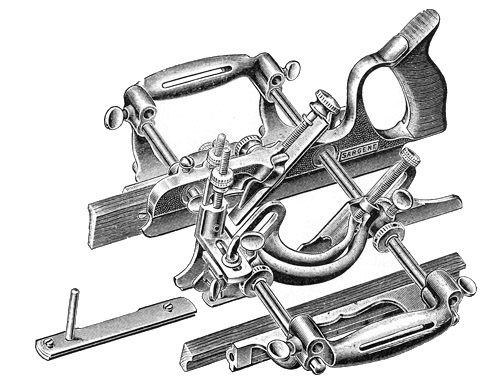

Sargent No. 1085 Combination Plane
as illustrated in the Sargent Planes catalog of 1926.
Combination Planes.
With Screw Adjustment.
Mahogany Handle and Fence Plate.
No. 1085, Nickel Plated, 10¾ Inches, complete with 54 Cutters and Wooden Box, . .
. . . . . . . . . . . . . . . . . . . each, $30 80
Combination Moulding Plane No. 1085 will do all the work for which No. 1080 is suitable: Dadoing, Rabbeting, Tonguing and Grooving, Beading, Slitting and Sash Cutting. It may also be used as a Filletster and as a Reeding Plane and is also adapted for Matching, making Hollows and Rounds and a variety of mouldings, including Ogee (Reverse, Roman and Grecian) and Quarter Round with Bead.
The canvas case containing the Cutters and the wooden box used for carrying the Plane, are illustrated on pages 32 and 33.

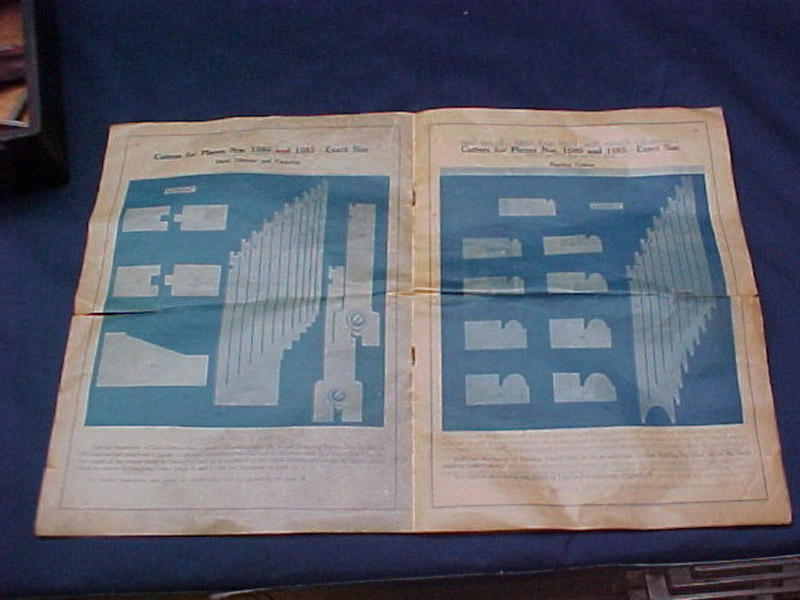

A detailed description and directions for using are packed with each Plane.

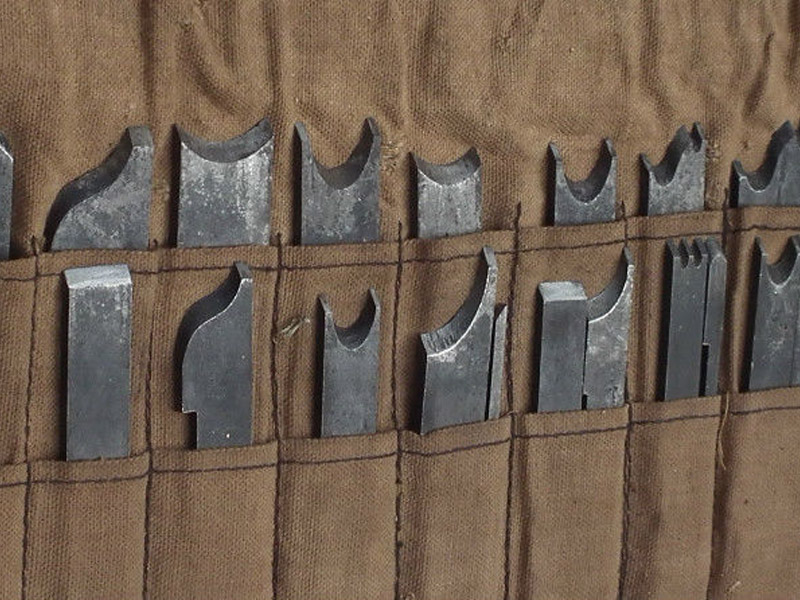

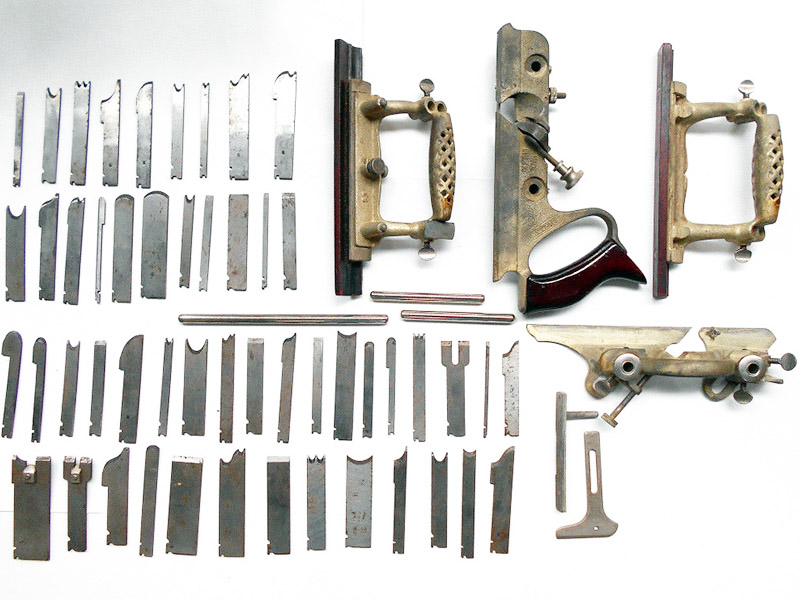

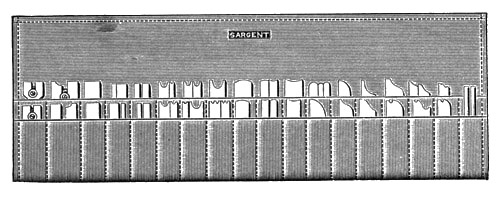

Cutters and Rods for No. 1085 Plane in canvas case.>

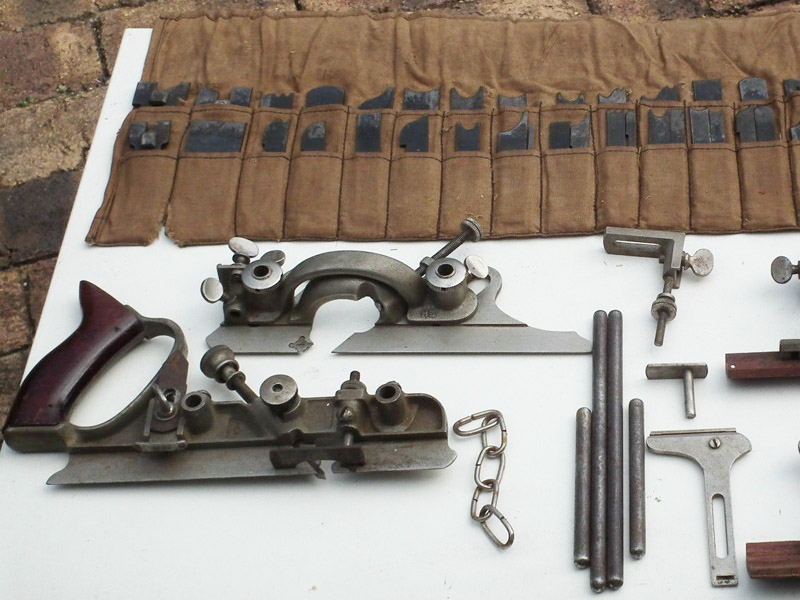

The No. 1085 is packed regularly with 54 different Cutters. These are packed in a canvas case in separate pockets, making them easy to select when required and to replace. When the case is rolled up the flap is folded over the Cutters to protect them.

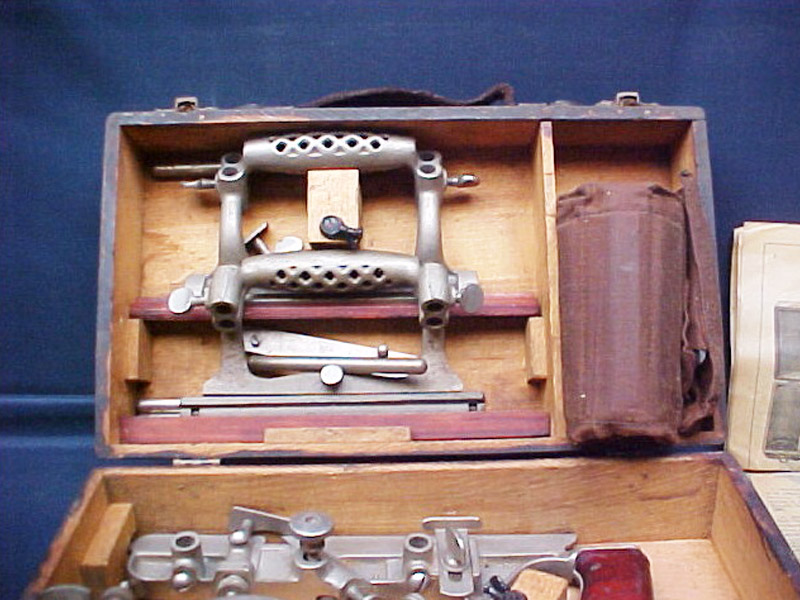

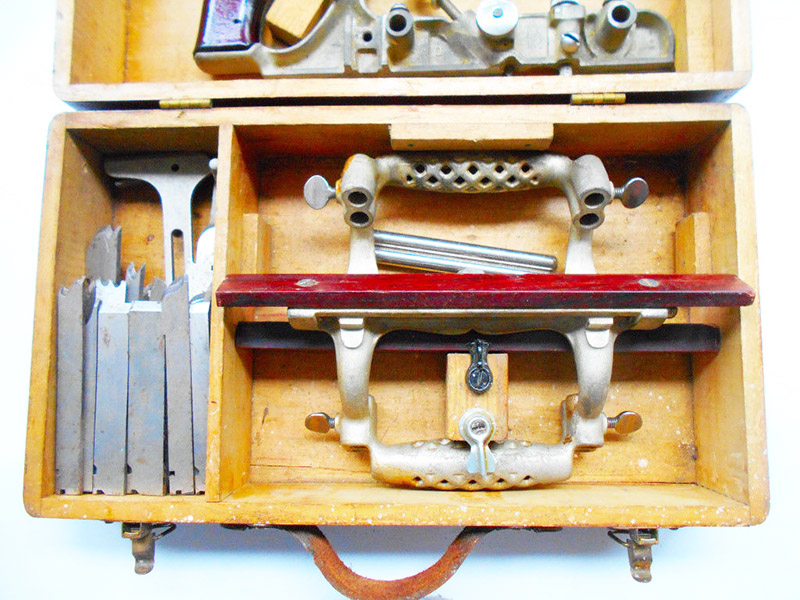

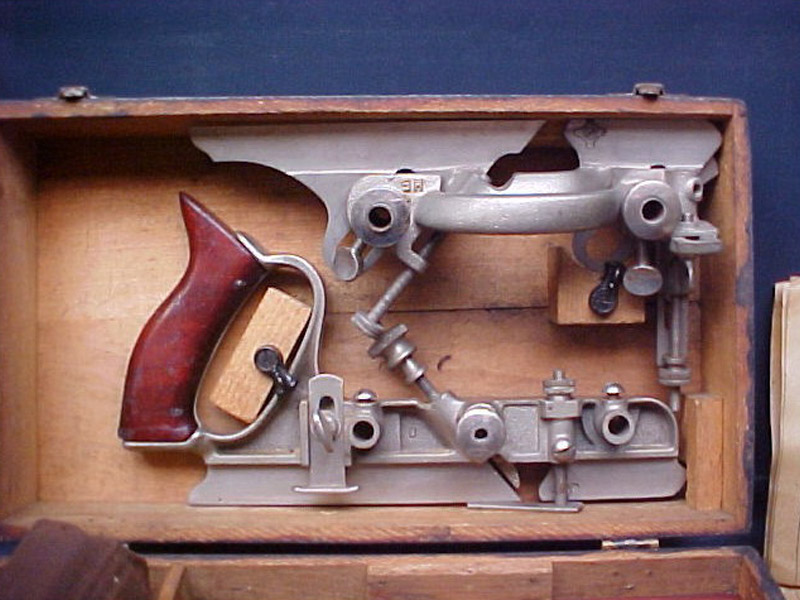

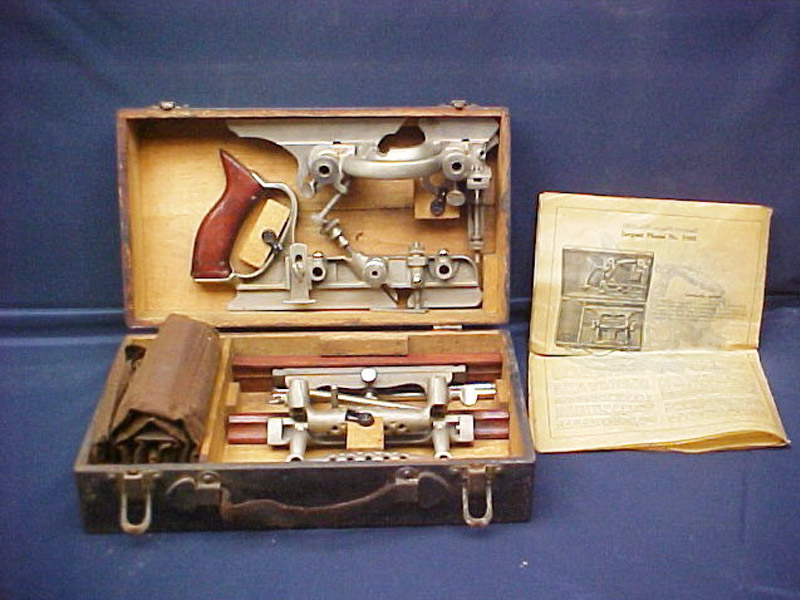

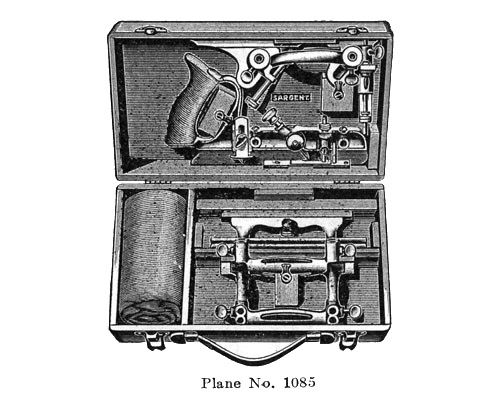

Showing the wooden boxes open and the Planes in place.

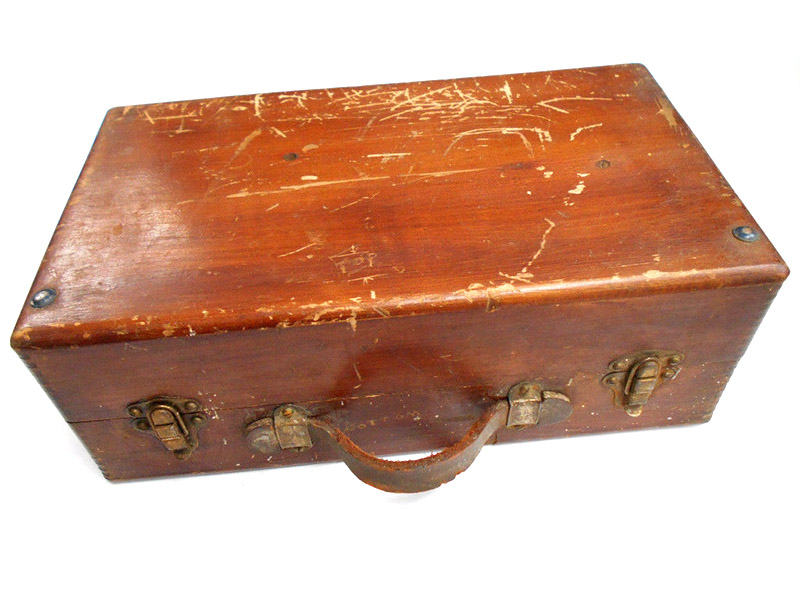

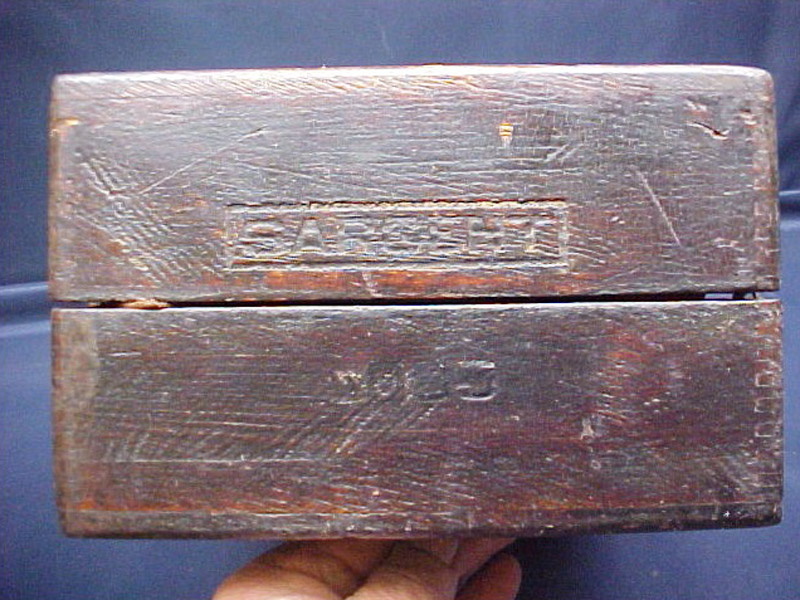

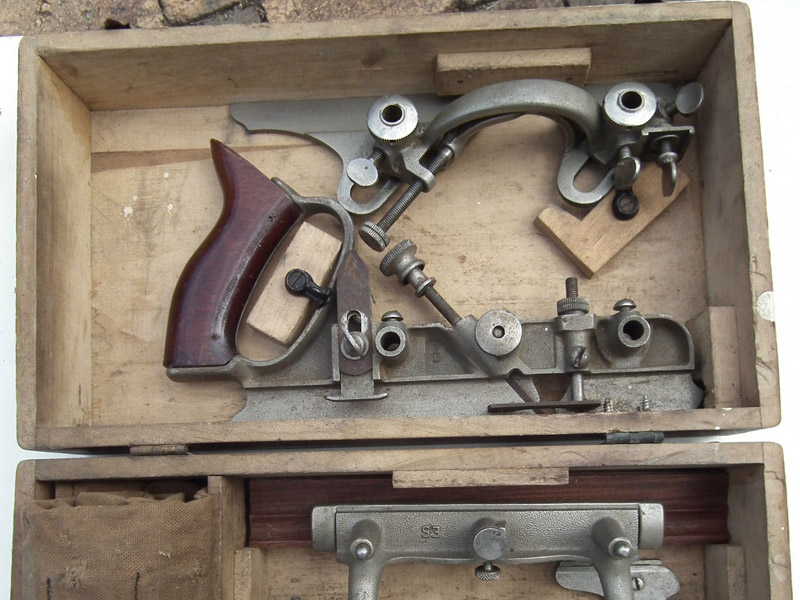

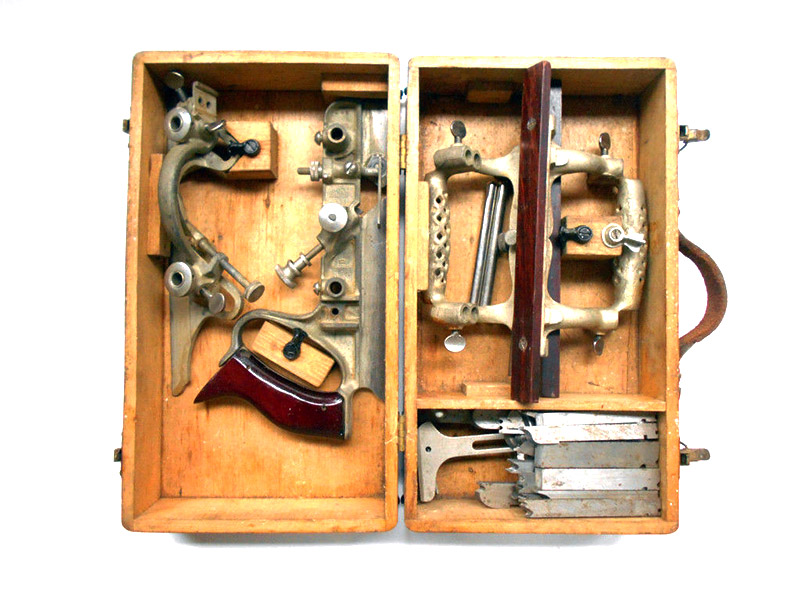

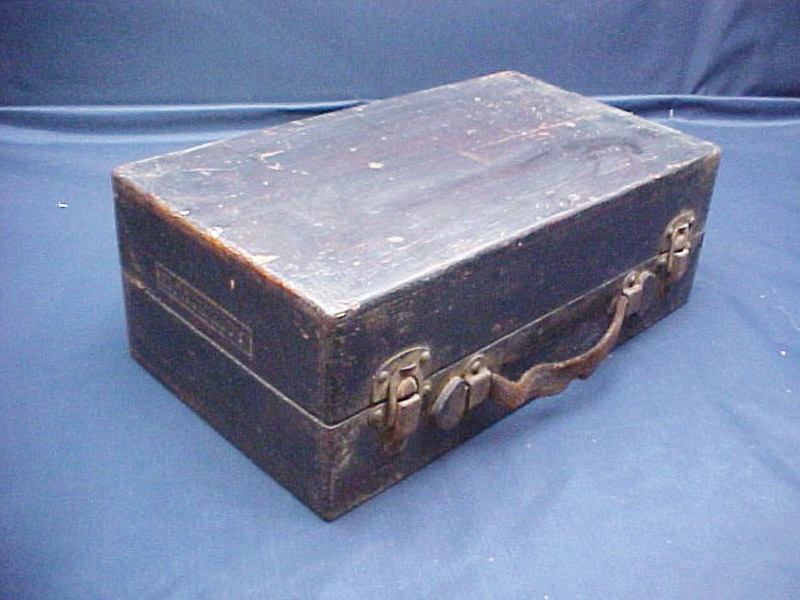

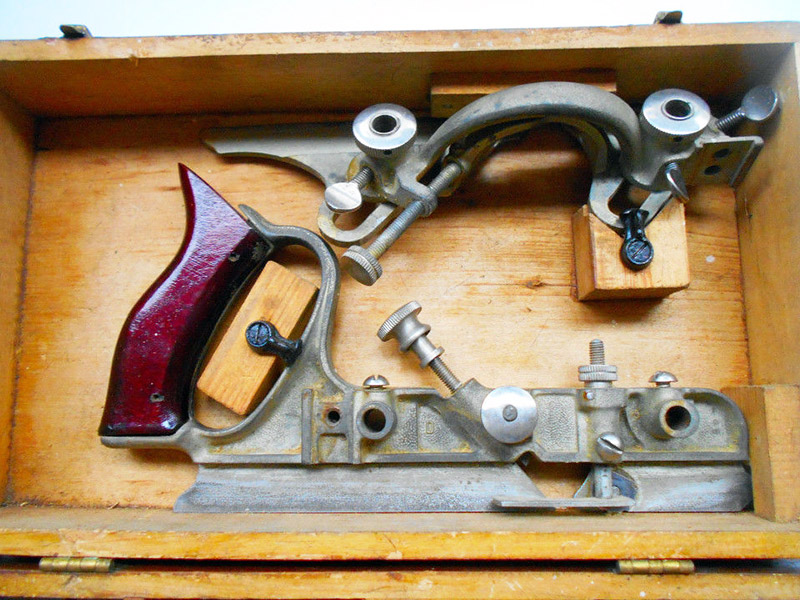

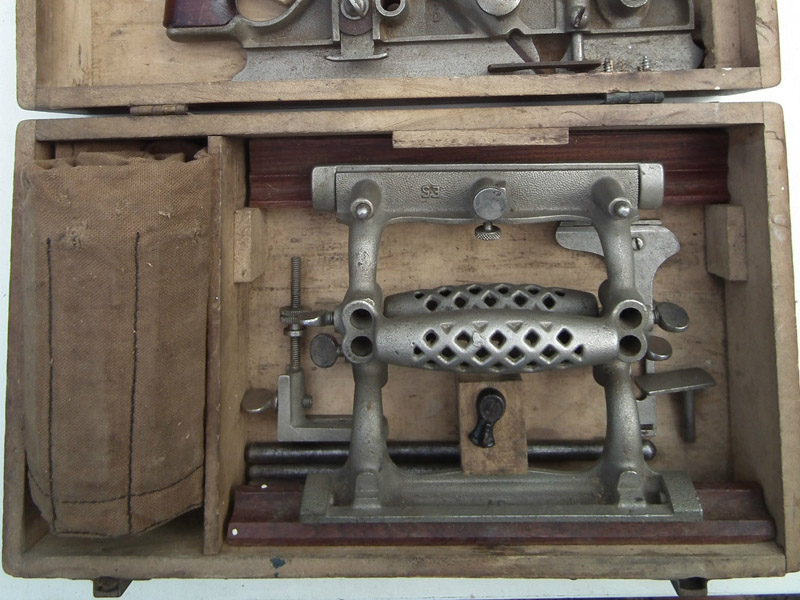

Nos. 1080 and 1085 Combination Planes are packed in handled boxes of stained hard wood, which may be used conveniently by a carpenter as a case for the tool. The fixtures are so arranged that the parts of the Plane are held firmly in position in the box, but may be removed easily as required.

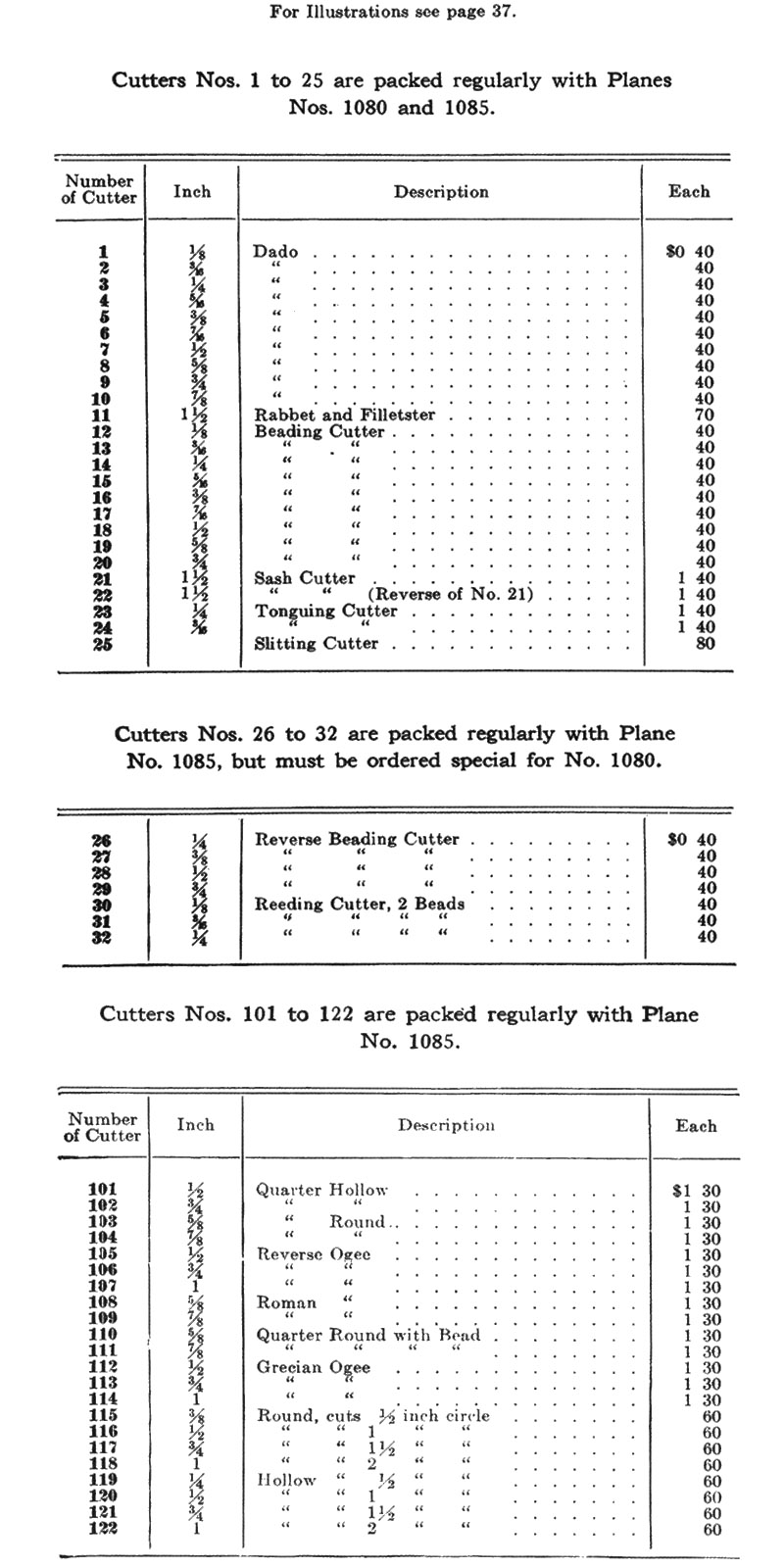

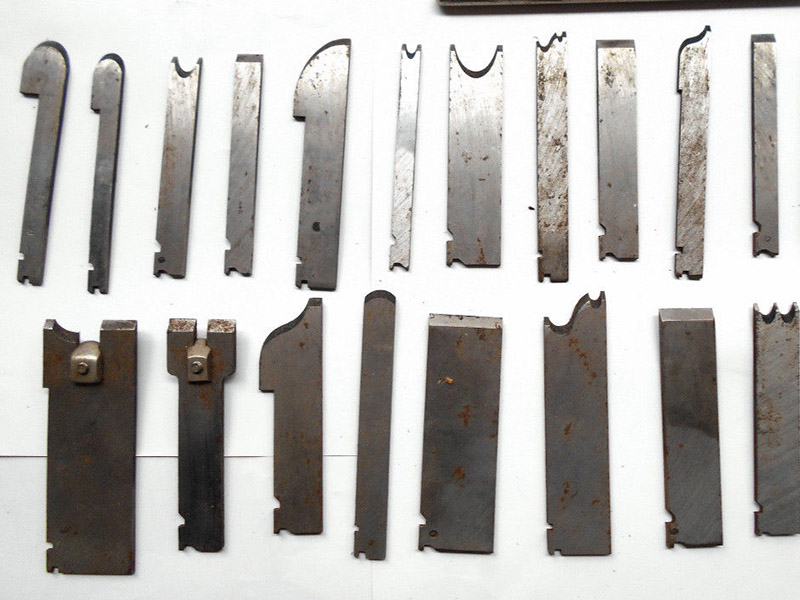

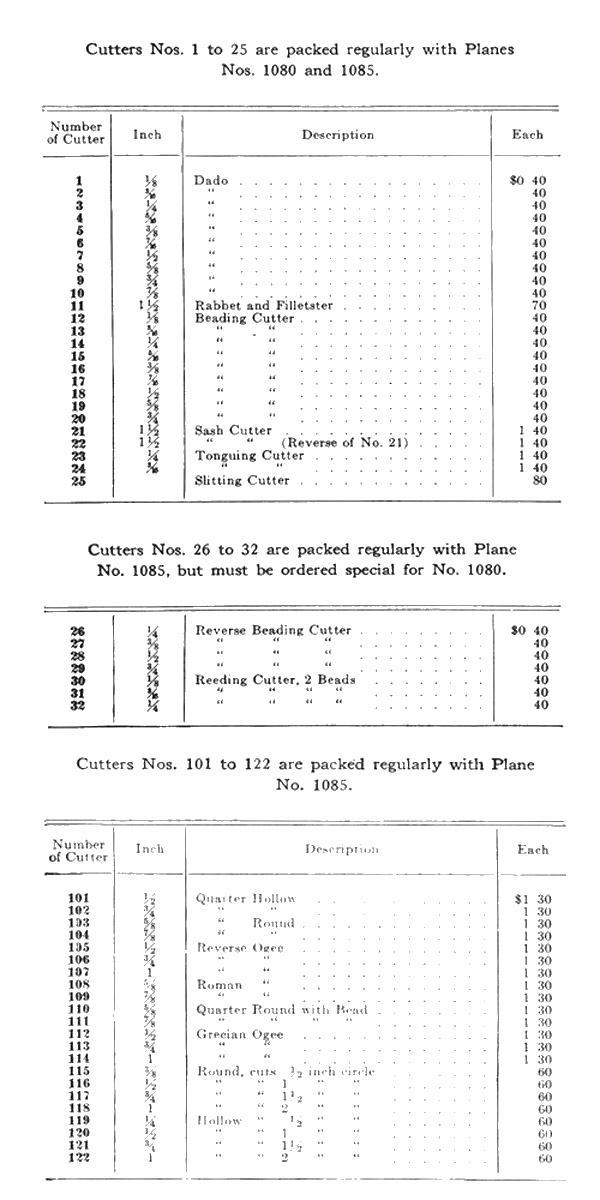

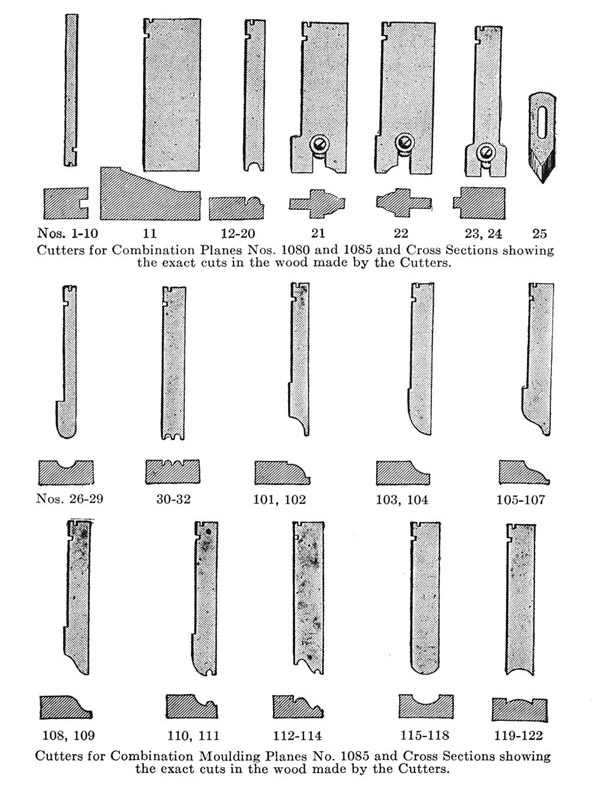

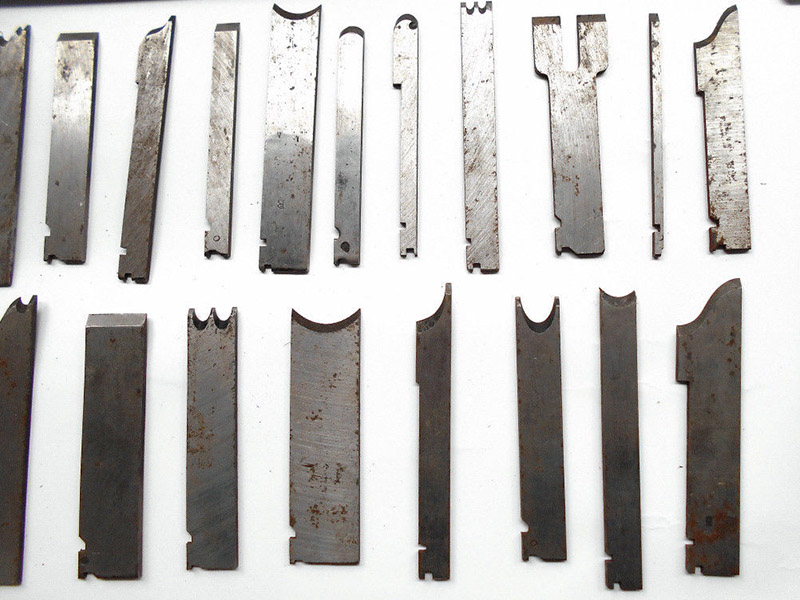

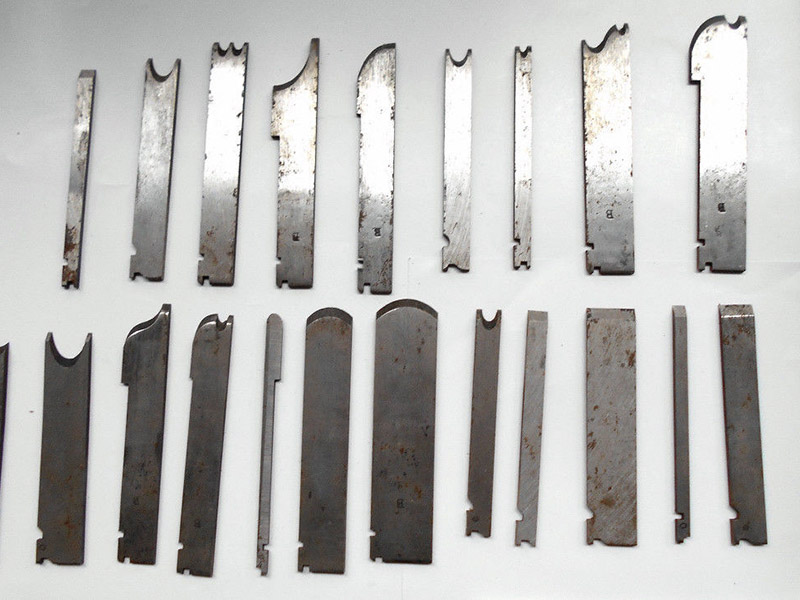

Cutters for Sargent Combination Planes.
Blanks for Cutters and special Cutters for Combination Planes Nos. 1080 and 1085, suitable for various types of work, and not included in the foregoing, will be furnished to order at a reasonable price. A drawing with full description and measurements of Cutter is required where a special Cutter is ordered.
Note: The above information has been reproduced from an original catalog listing.

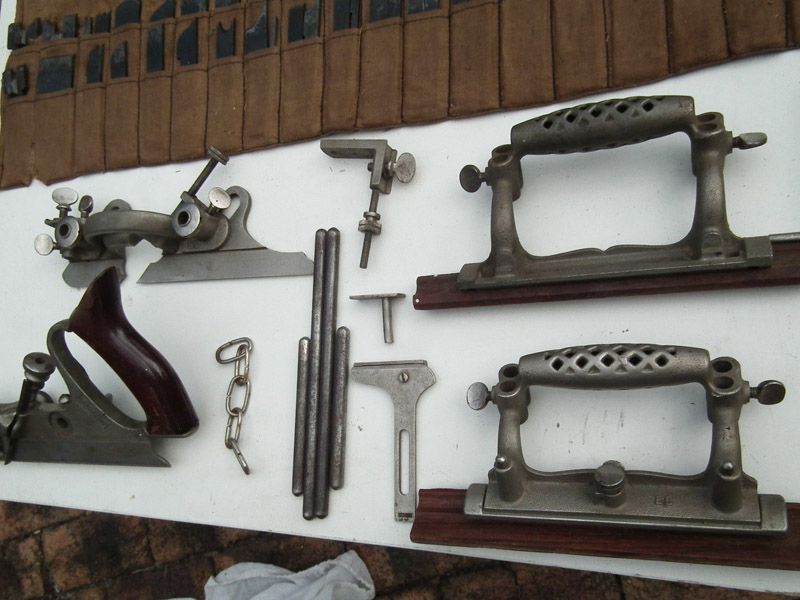

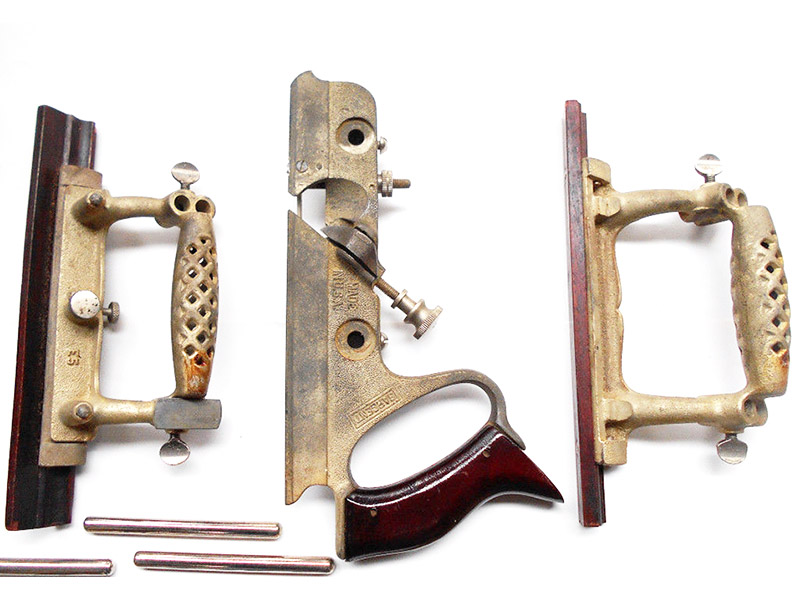

Specifications (Type 1):
| Plane Type: | Combination Plane |

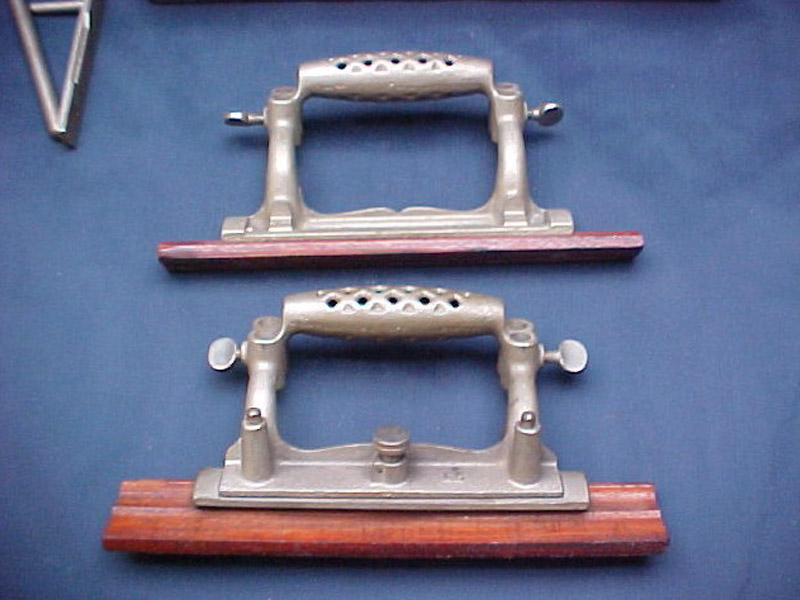

| Features: | Adjustable, with fences, skate & depth gauge. Wooden “Suitcase” style case |
| Manufactured: | From 1916 to 1941 |
| Patents: | January 4, 1916 (cutter adjustment) (Herbert G. Collins) |
| Length: | 10¾ inches |
| Cutter Width: | 54 cutters & sizes, including: |
| 22 Moulding cutters | |
| 10 Plow & Dado cutters | |
| 9 Beading cutters | |
| 4 Fluting cutters | |
| 3 Reeding cutters | |
| 1 Rabbet & Filletster cutter | |
| 1 Sash cutter | |
| 2 Match cutters | |
| 1 Slitting cutter | |
| — All packed in a canvas case | |
| Construction: | Cast iron body, East India Mahogany handle & fence plate (1916 to 1924) |
| Cast iron body, Mahogany handle & fence plate (1925 to 1941) | |
| Finish: | Nickel Plated |
| Uses: | Special purpose combination plane |
Specifications (Type 2):
| Plane Type: | Combination Plane |
| Features: | Adjustable, with fences, skate & depth gauge. Wooden “Suitcase” style case |
| Manufactured: | From 1942 to 1944 |
| Patents: | January 4, 1916 (cutter adjustment) (Herbert G. Collins) |
| Length: | 10¾ inches |
| Cutter Width: | 53 cutters & sizes, including: |
| 22 Moulding cutters | |
| 10 Plow & Dado cutters | |
| 8 Beading cutters | |
| 4 Fluting cutters | |
| 3 Reeding cutters | |
| 1 Rabbet & Filletster cutter | |
| 2 Sash cutters | |
| 2 Match cutters | |
| 1 Slitting cutter | |
| — All packed in a canvas case | |
| Construction: | Cast iron body, Mahogany handle & fence plate |
| Finish: | Nickel Plated |
| Uses: | Special purpose combination plane |
Please check the Value Guide For Sargent Planes page for relative prices.
Additional Notes:

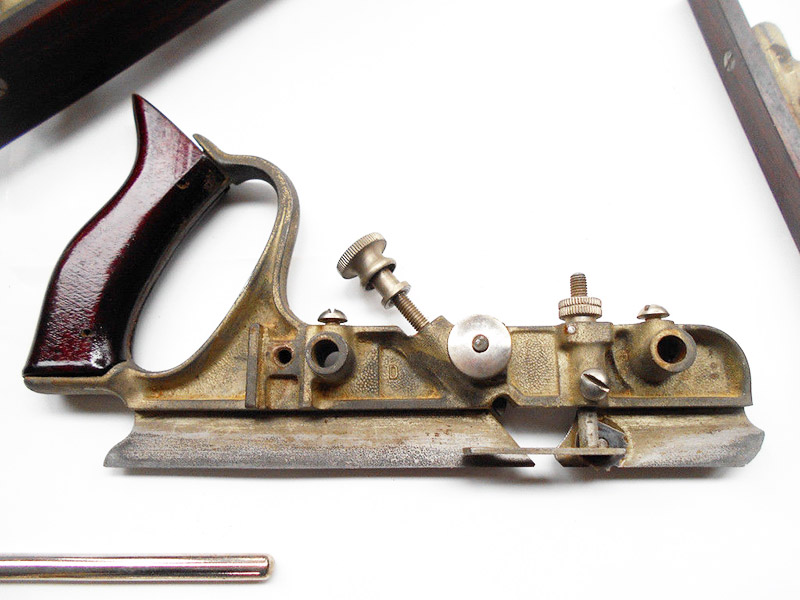

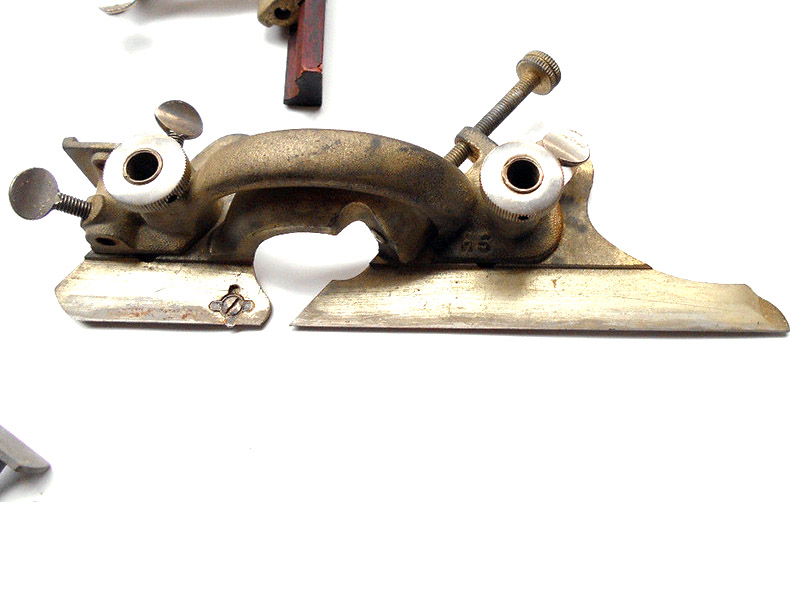

The Sargent No. 1085 combination plane was closely modeled on Stanley’s No. 55 combination plane. The main difference being in the way the cutters were placed in the adjusting wheel, using two notches to engage the supports in the screw nut. Sargent also used a suitcase style wooden case to hold the plane body, cutters and other parts.
