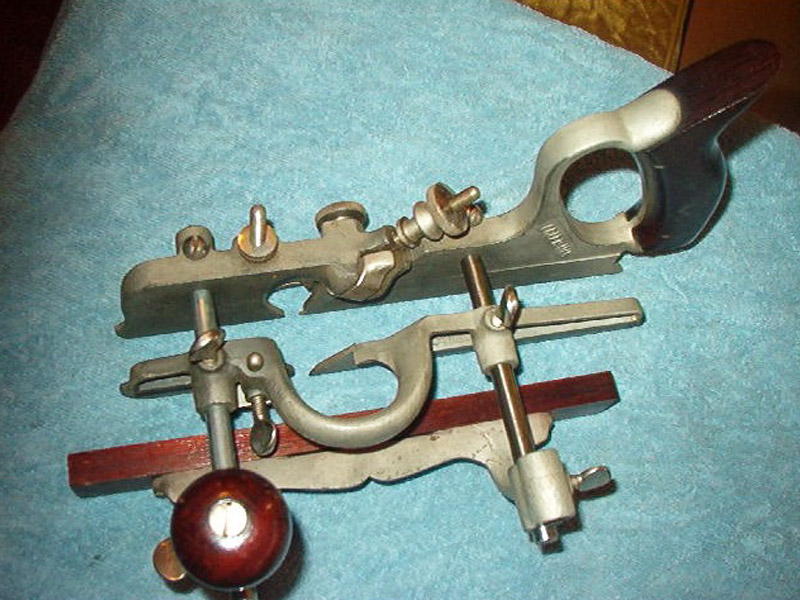

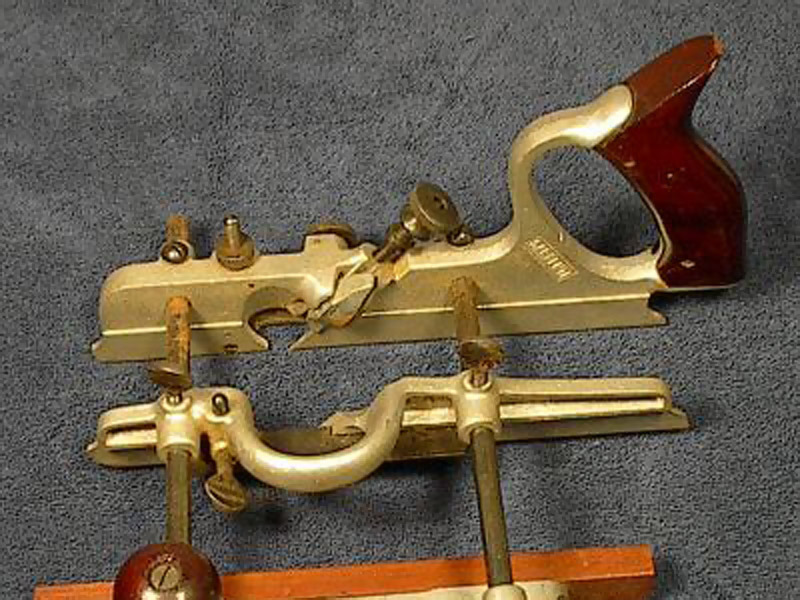

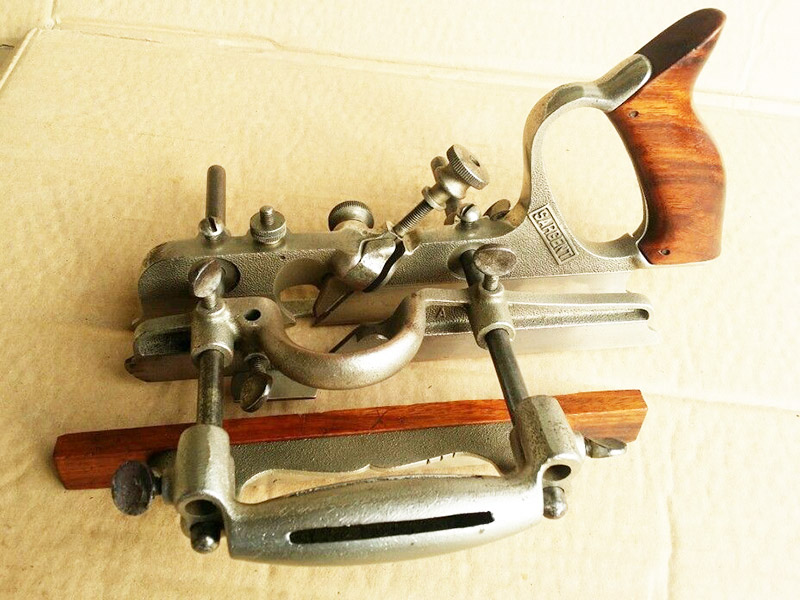

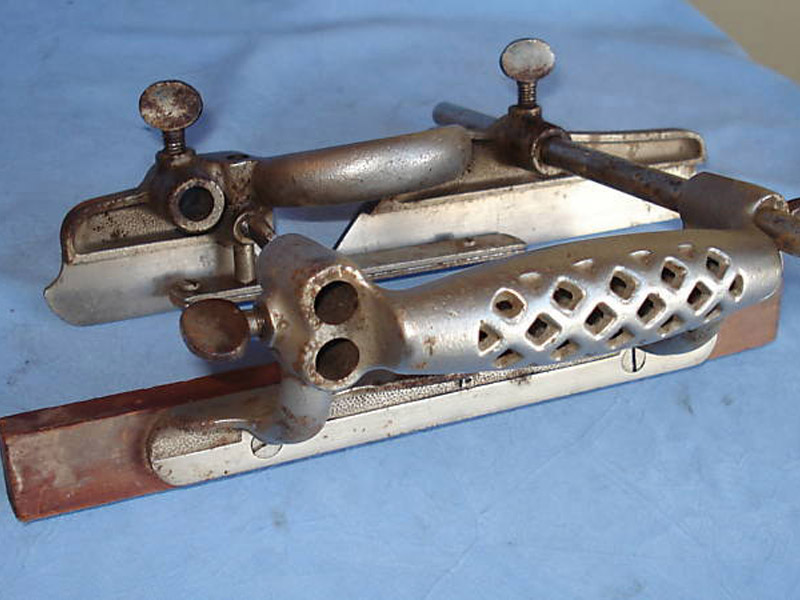

Sargent No. 1080 Combination Plane

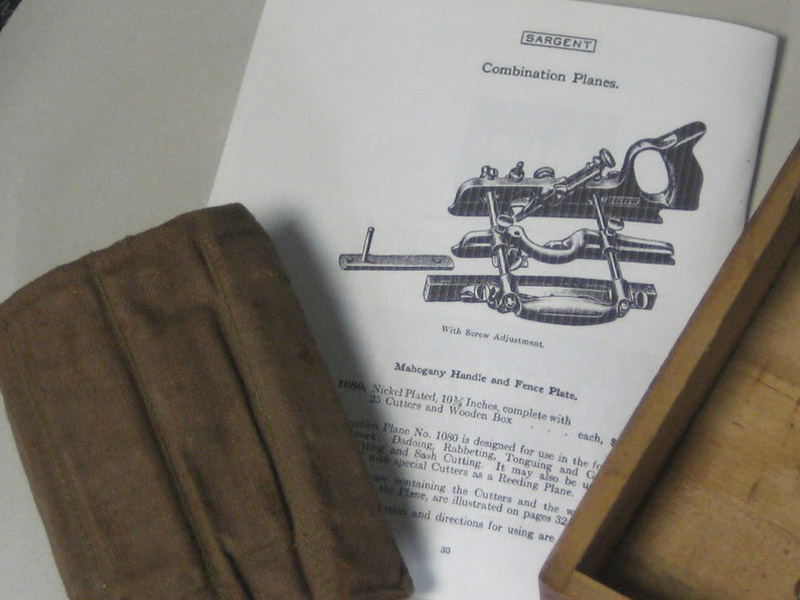

as illustrated in the Sargent Planes catalog of 1926.
Combination Planes.
With Screw Adjustment.
Mahogany Handle and Fence Plate.
No. 1080, Nickel Plated, 10¾ Inches, complete with 25 Cutters and Wooden Box, . .
. . . . . . . . . . . . . . . . . . . each, $17 50
Combination Plane No. 1080 is designed for use in the following types of work: Dadoing, Rabbeting, Tonguing and Grooving, Beading, Slitting and Sash Cutting. It may also be used as a Filletster and with special Cutters as a Reeding Plane.
The canvas case containing the Cutters and the wooden box used for carrying the Plane, are illustrated on pages 32 and 33.
A detailed description and directions for using are packed with each Plane.

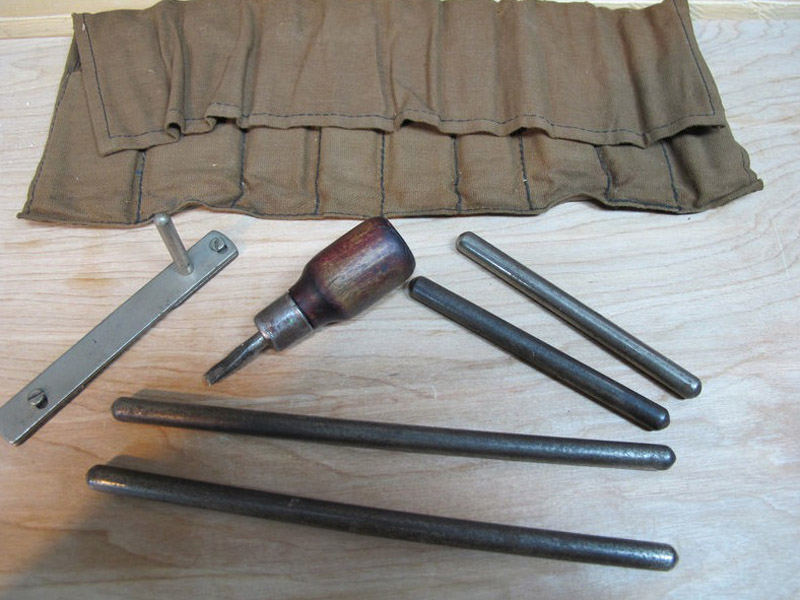

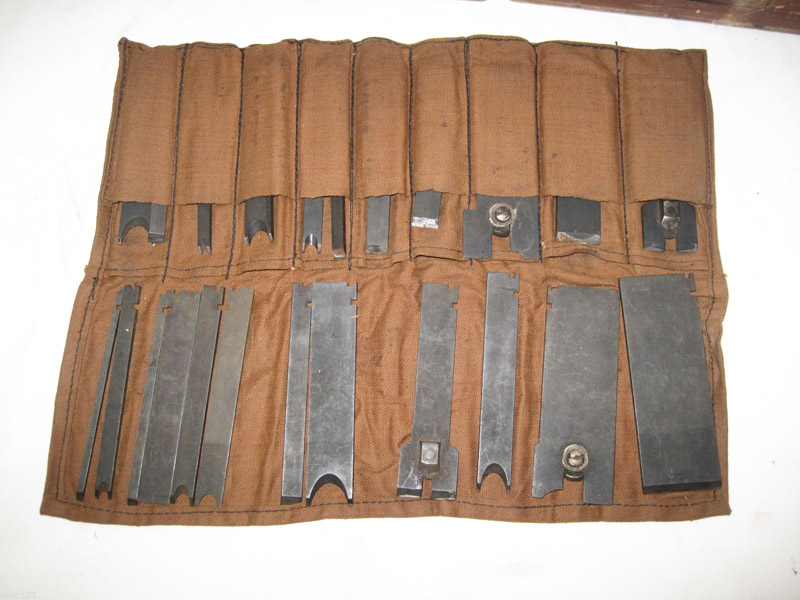

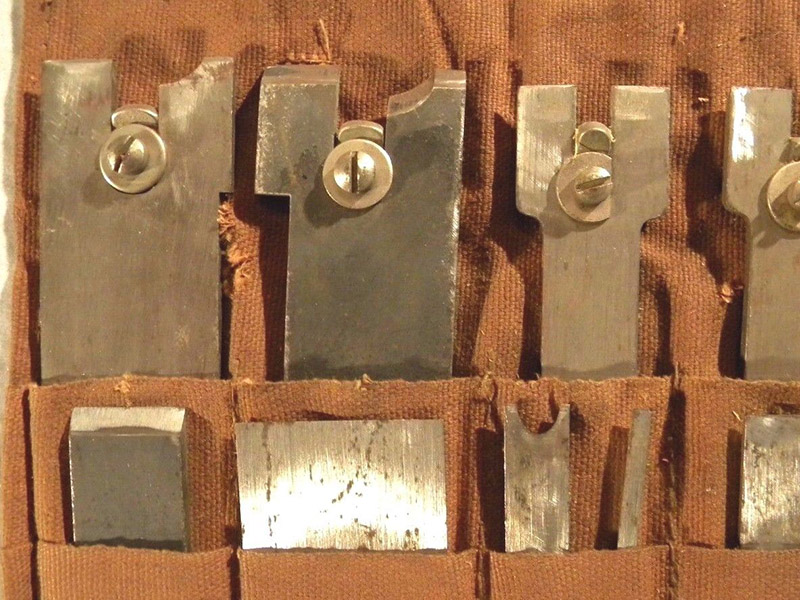

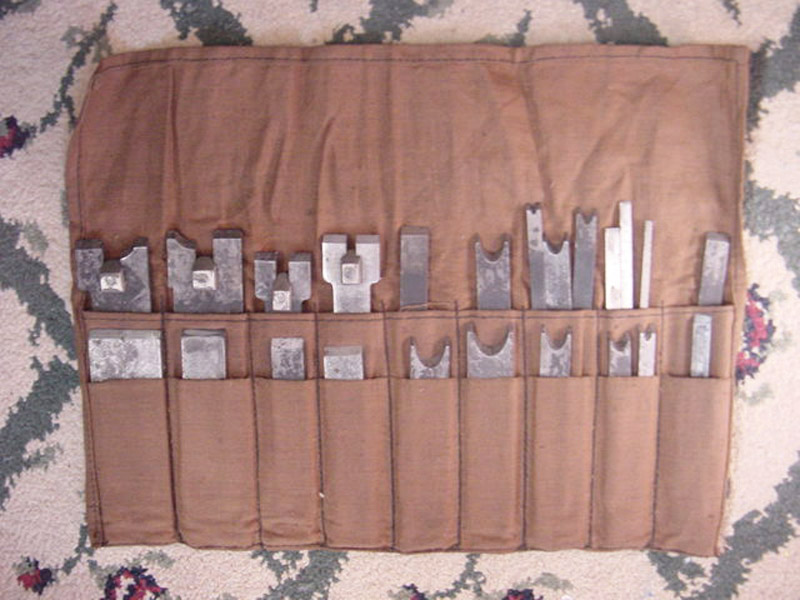

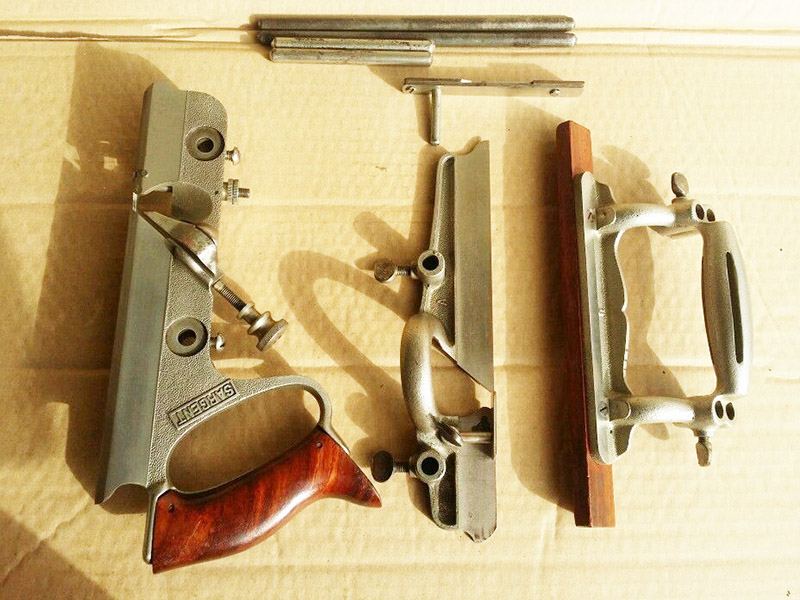

Cutters and Rods for No. 1080 Plane in canvas case.

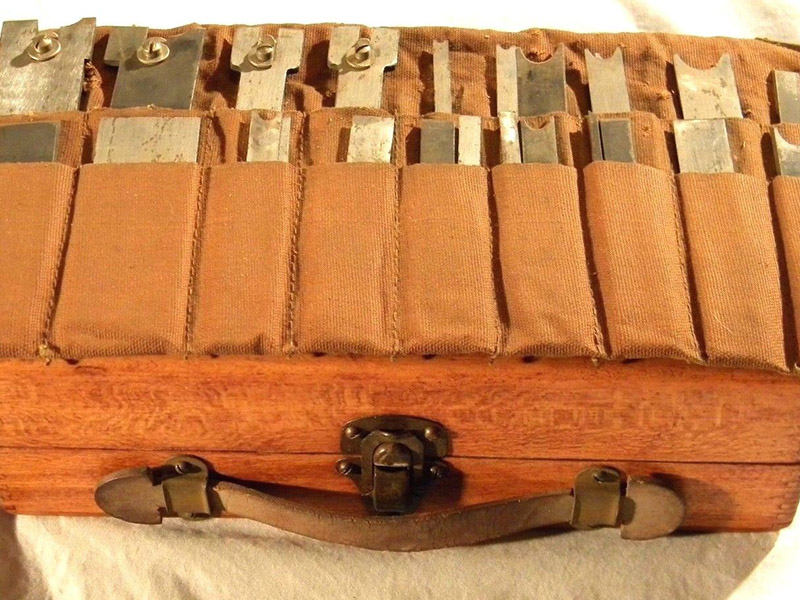

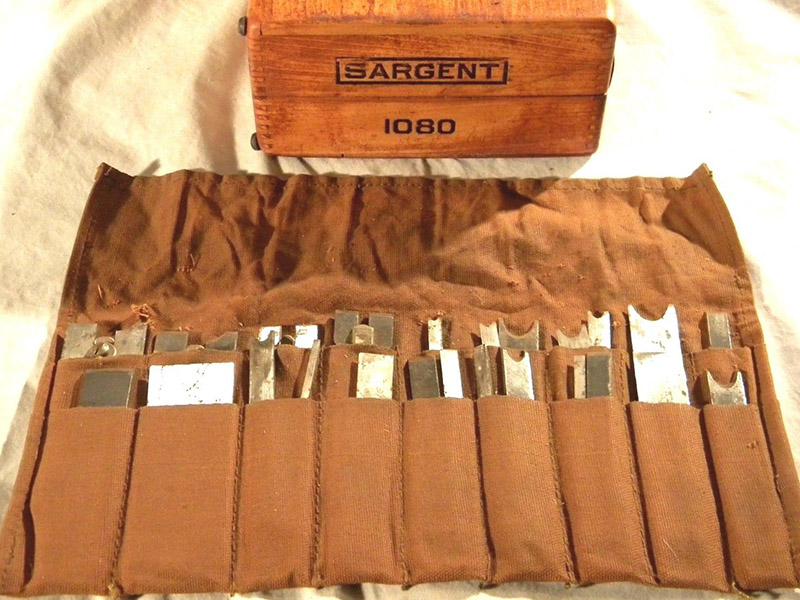

The No. 1080 is packed regularly with 25 different Cutters. These are packed in a canvas case arranged with a series of pockets so that each Cutter may be taken out and replaced without confusion. The flap is folded over the Cutters to protect them before the case is rolled up.

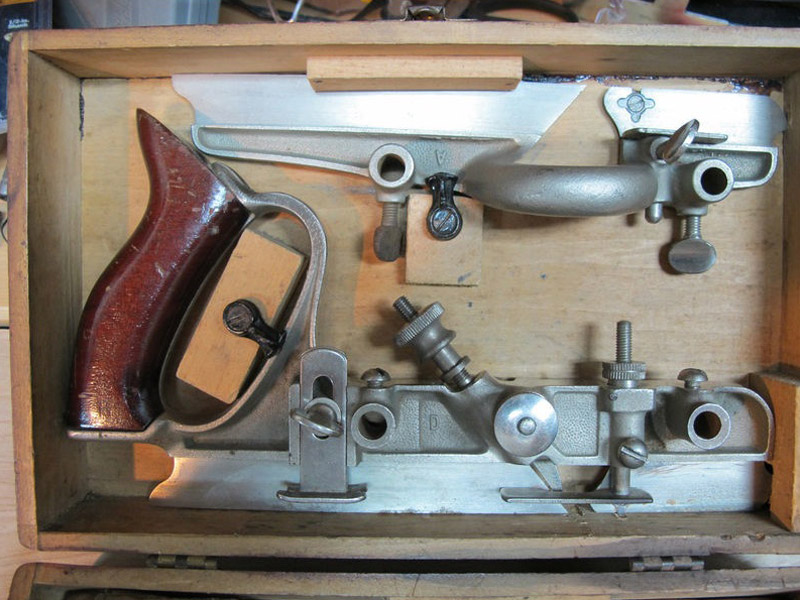

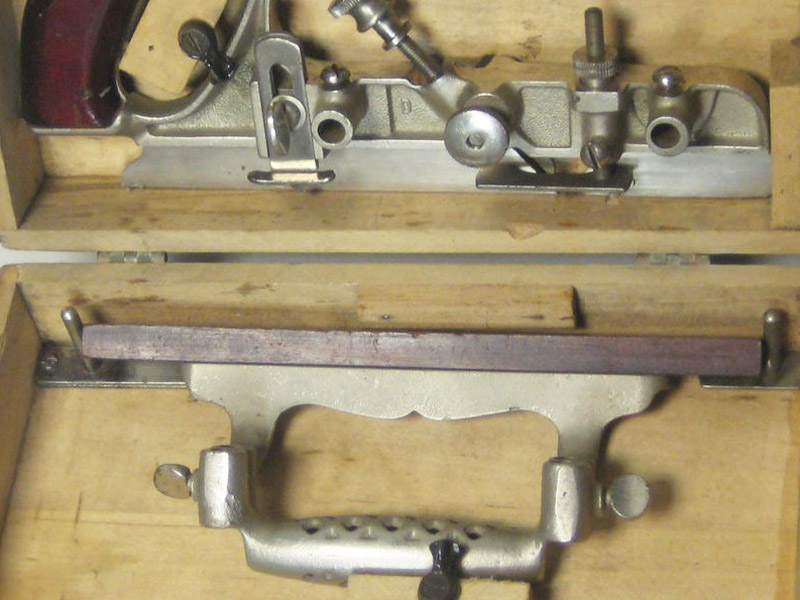

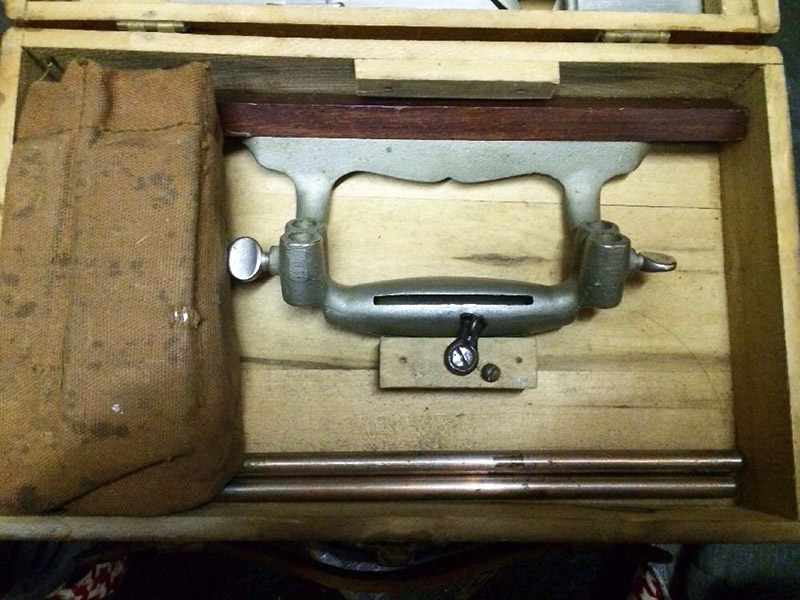

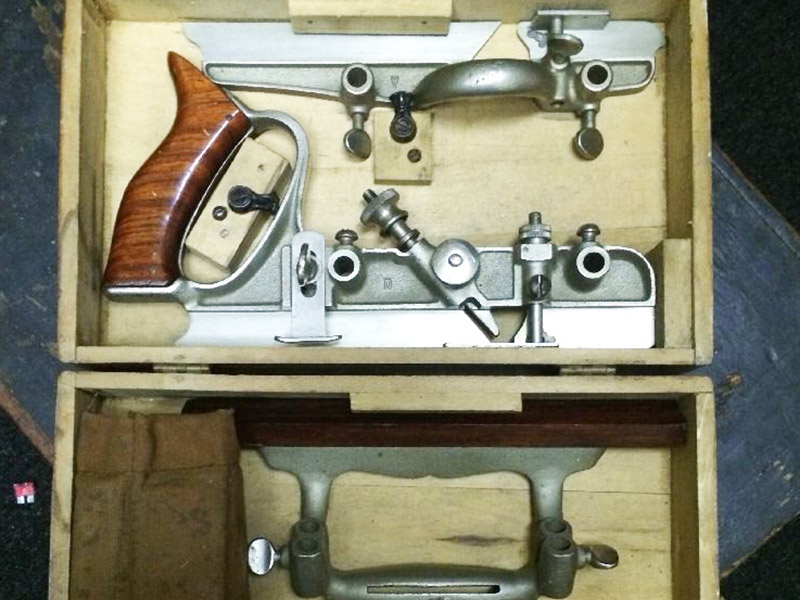

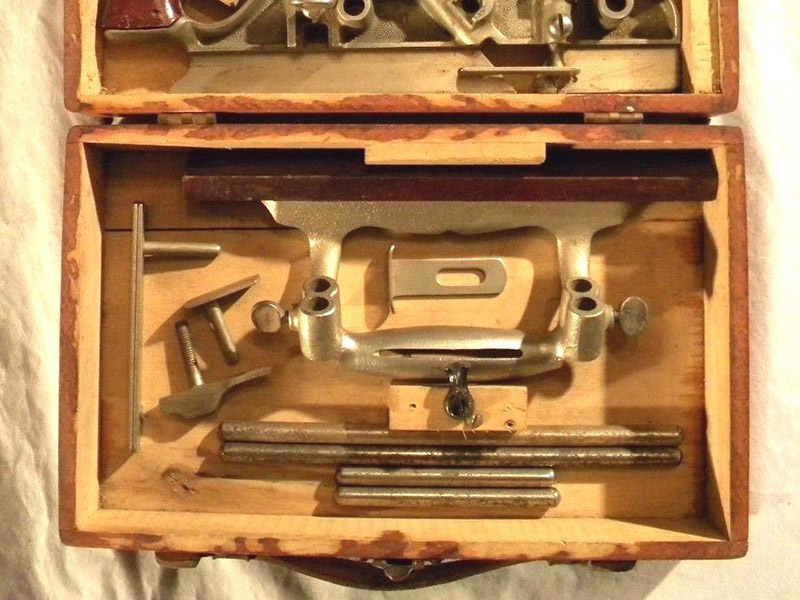

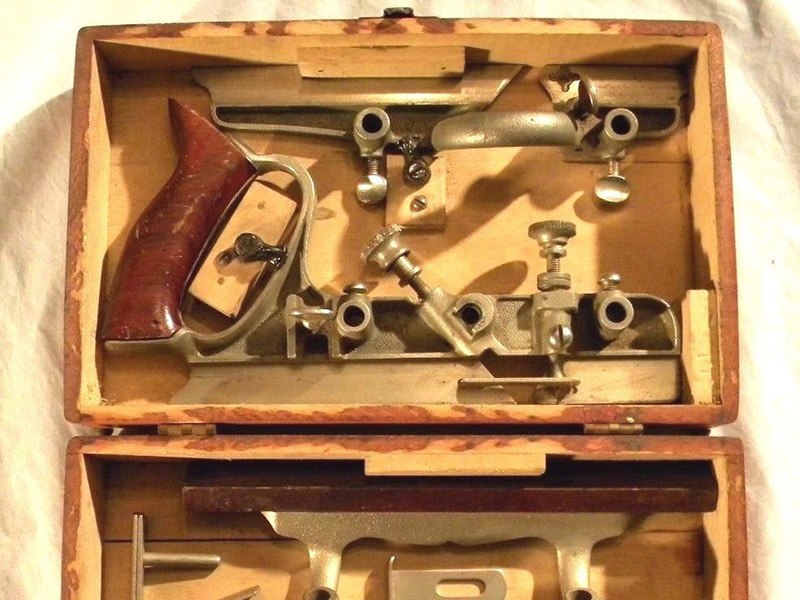

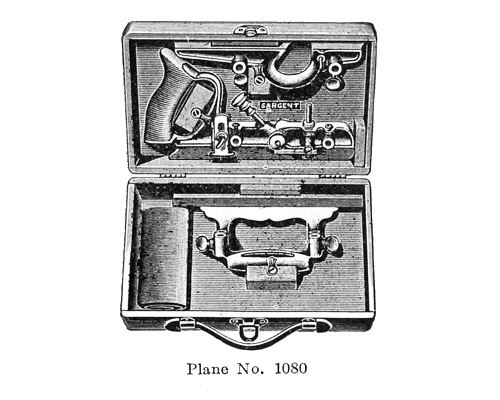

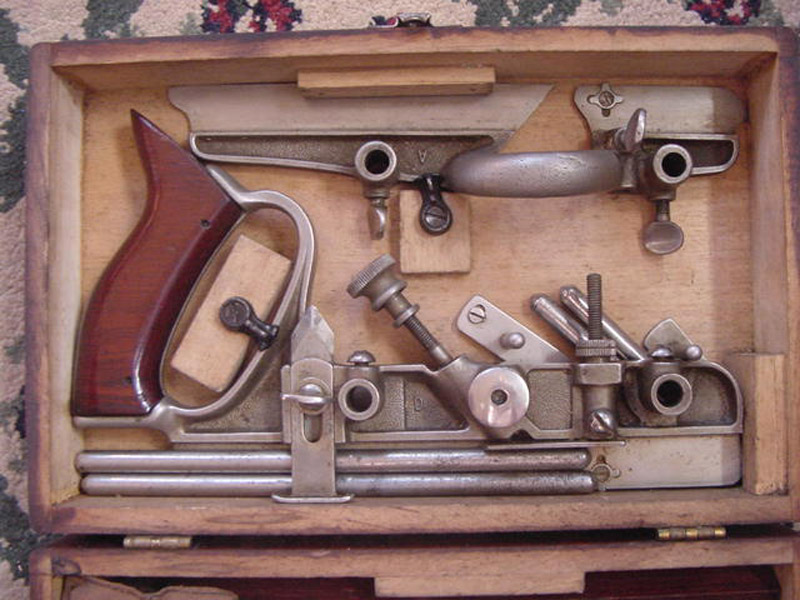

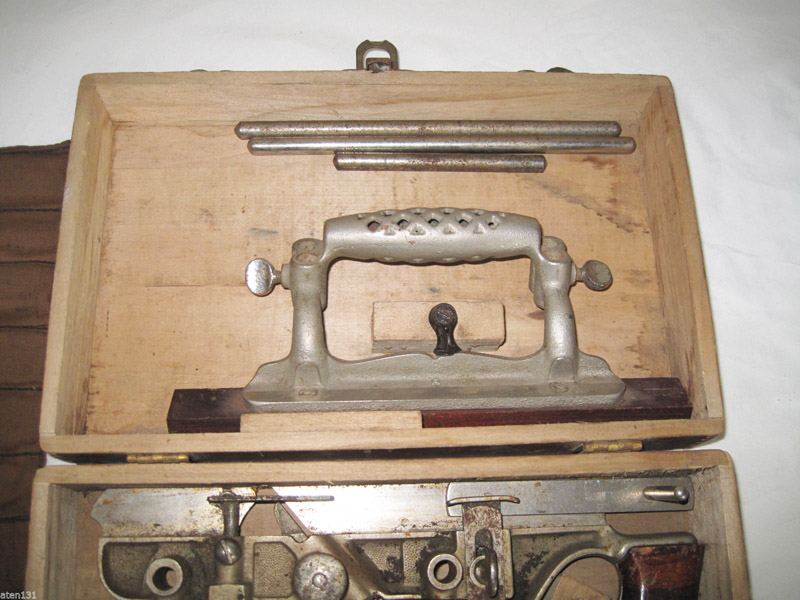

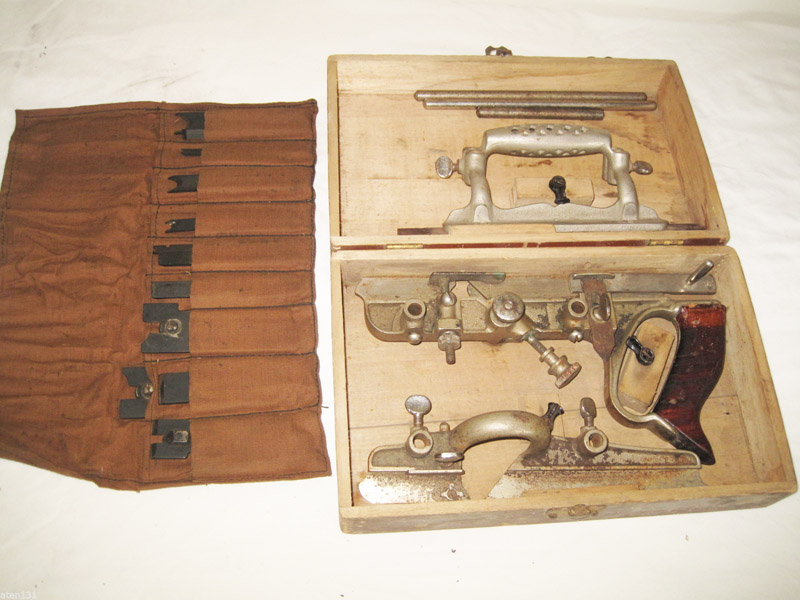

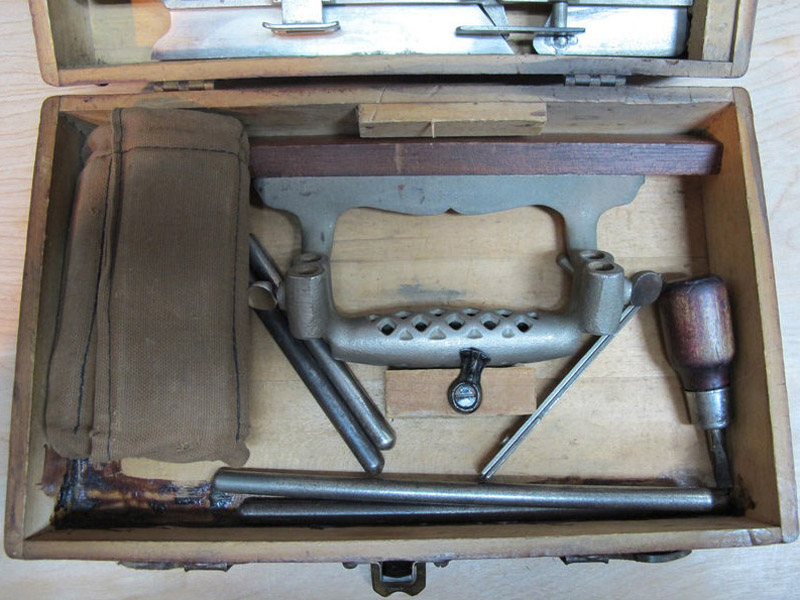

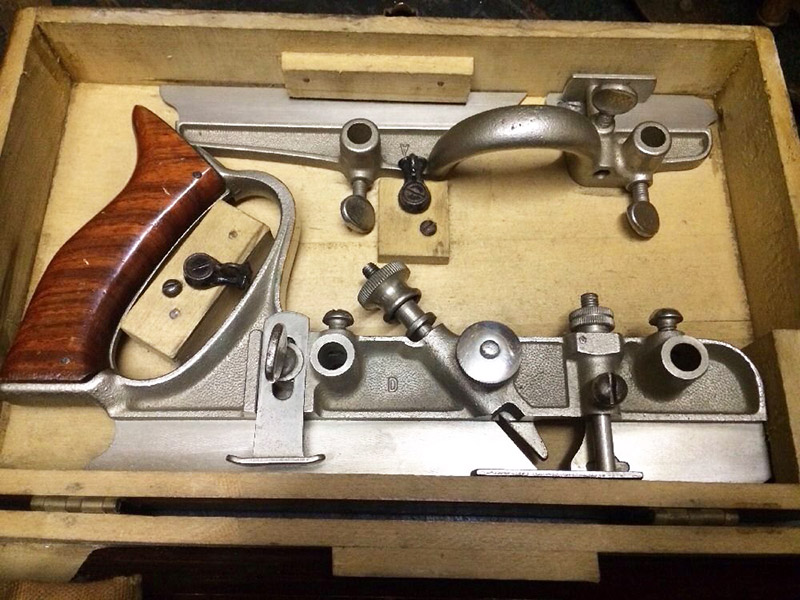

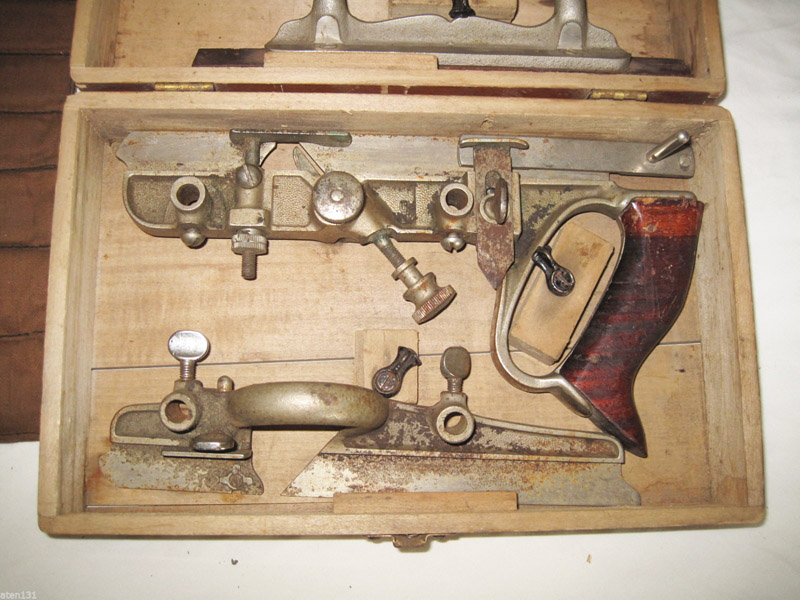

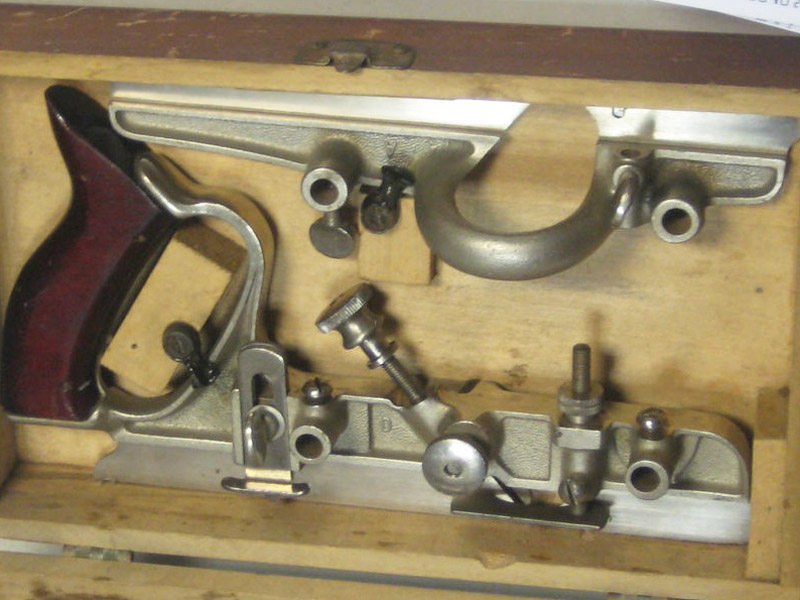

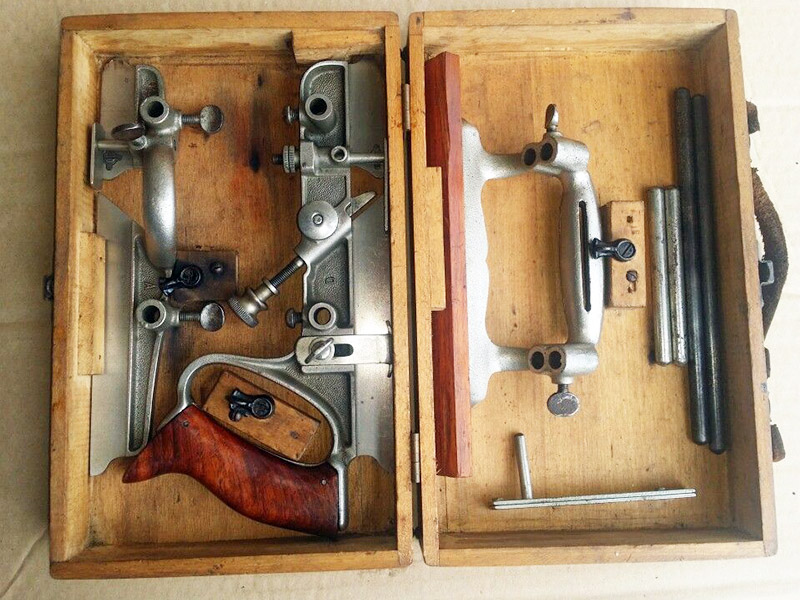

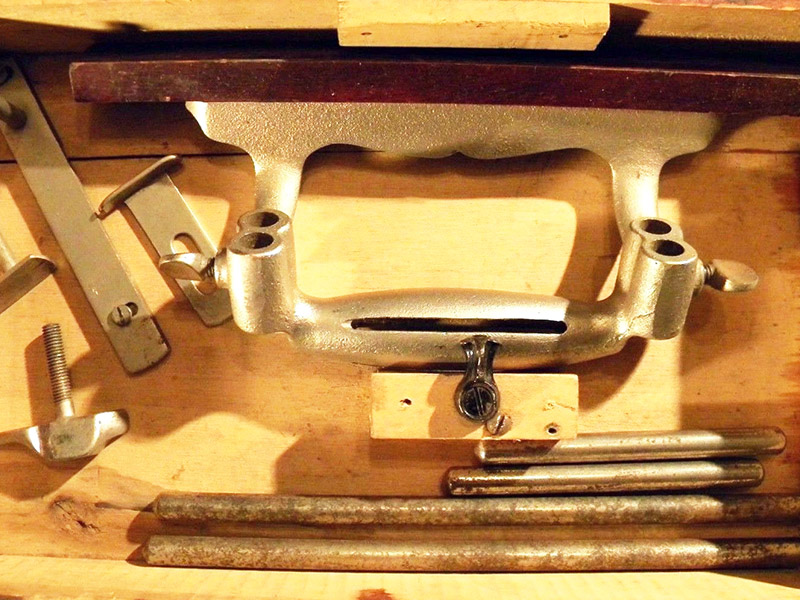

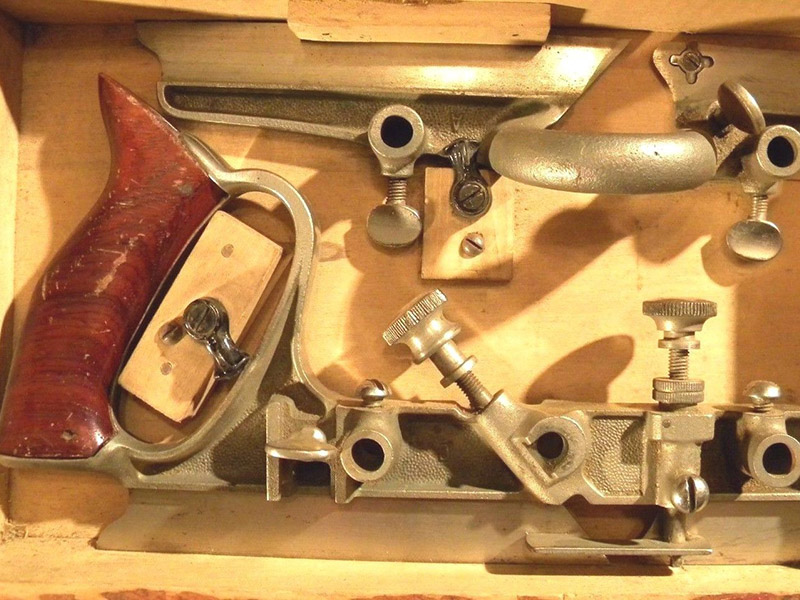

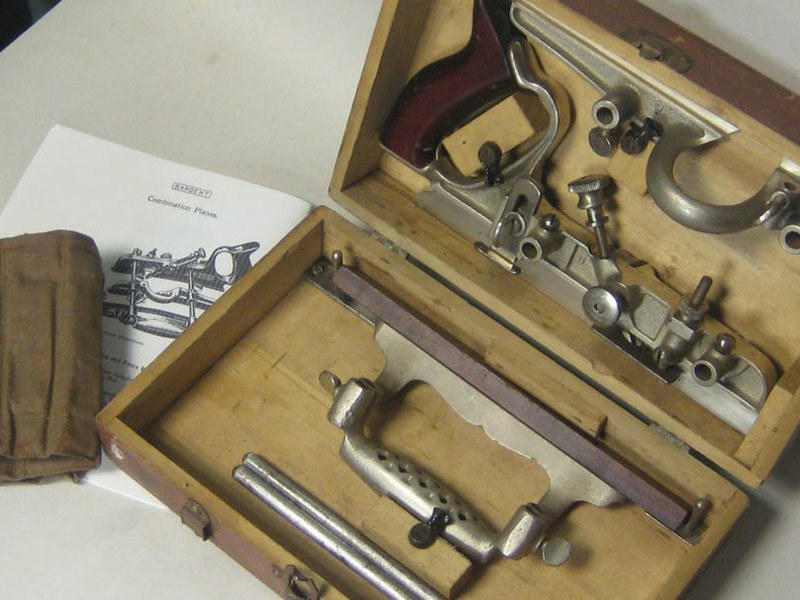

Showing the wooden boxes open and the Planes in place.

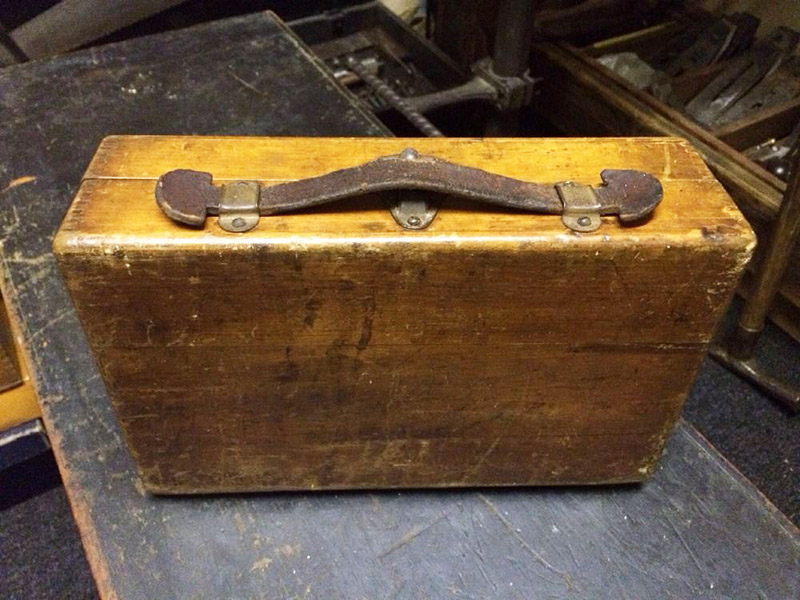

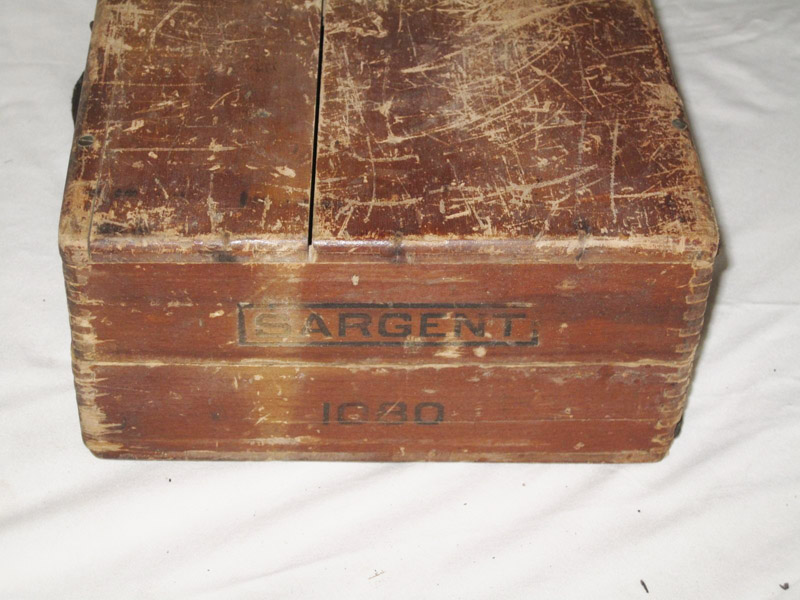

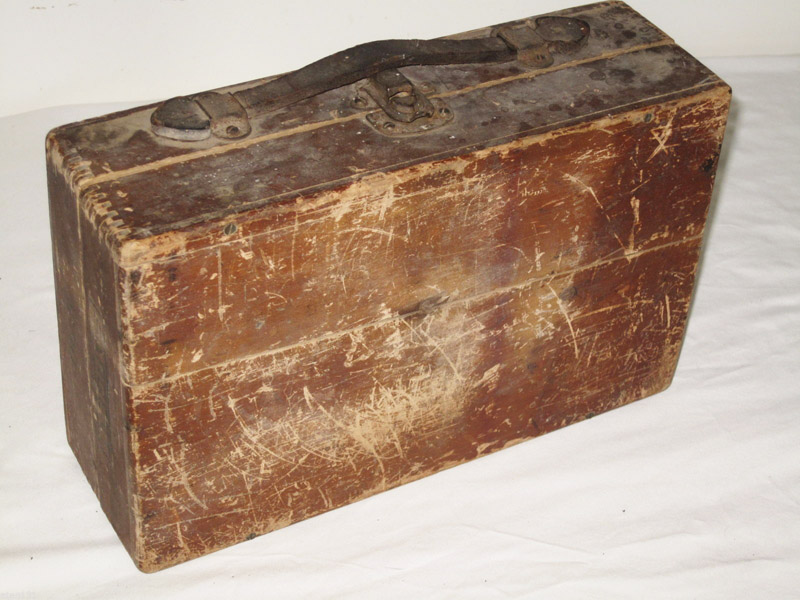

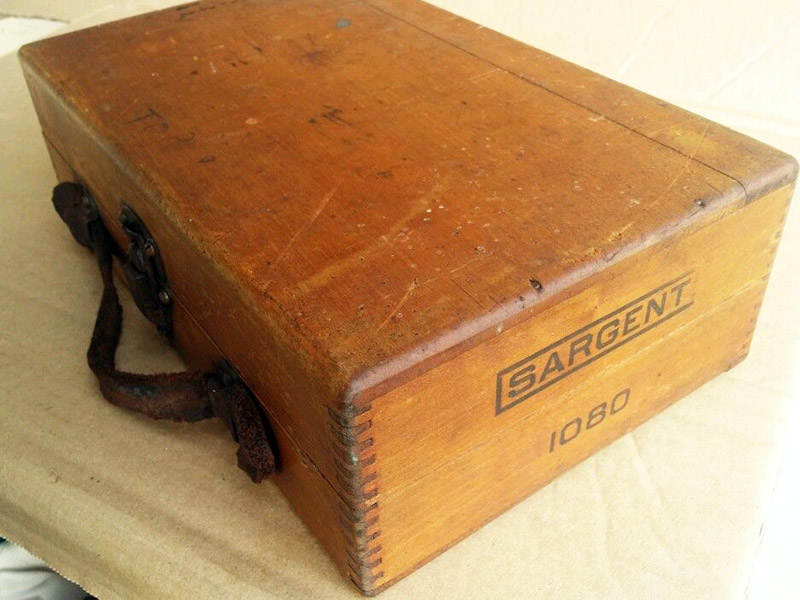

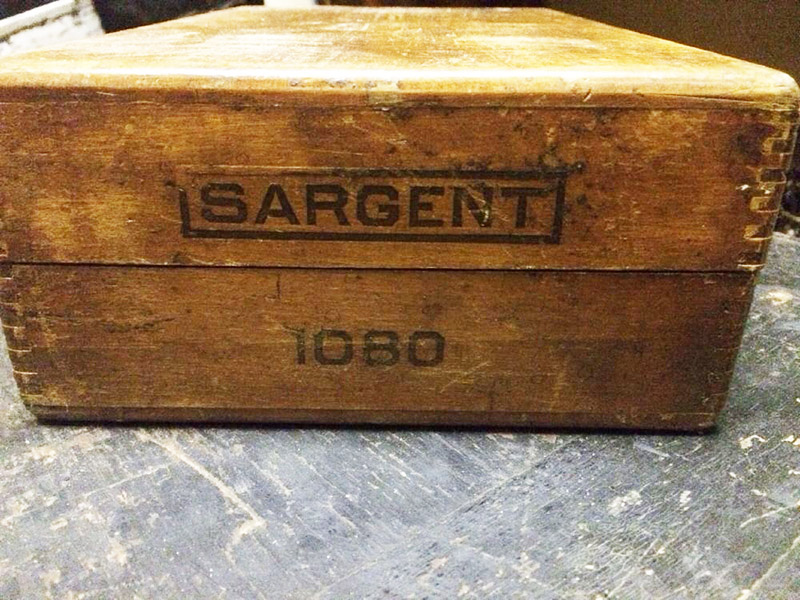

Nos. 1080 and 1085 Combination Planes are packed in handled boxes of stained hard wood, which may be used conveniently by a carpenter as a case for the tool. The fixtures are so arranged that the parts of the Plane are held firmly in position in the box, but may be removed easily as required.

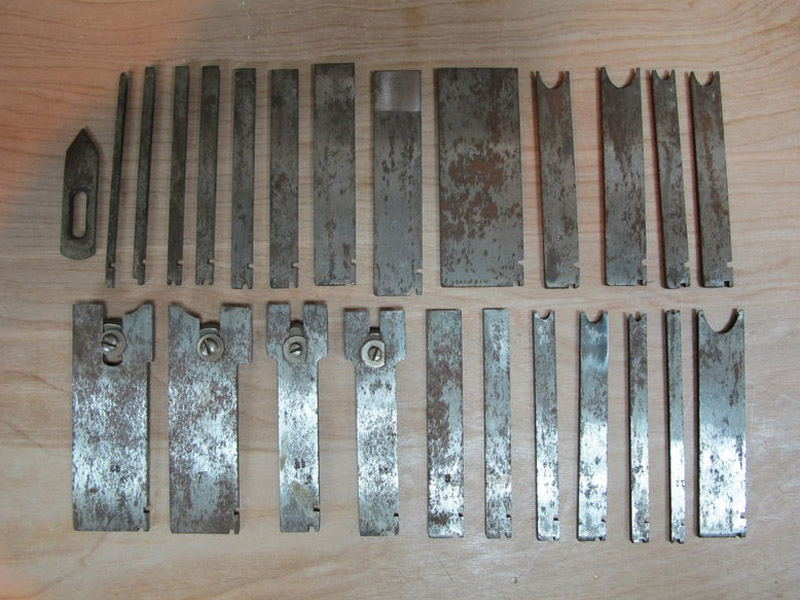

Cutters for Sargent Combination Planes.
Blanks for Cutters and special Cutters for Combination Planes Nos. 1080 and 1085, suitable for various types of work, and not included in the foregoing, will be furnished to order at a reasonable price. A drawing with full description and measurements of Cutter is required where a special Cutter is ordered.
Note: The above information has been reproduced from an original catalog listing.
Specifications (Type 1):
| Plane Type: | Combination Plane |
| Features: | Adjustable, with fence, skate & depth gauge. Wooden “Suitcase” style case |
| Manufactured: | From 1916 to 1941 |
| Patents: | January 4, 1916 (cutter adjustment) (Herbert G. Collins) |
| Length: | 10¾ inches |
| Cutter Width: | 25 cutters & sizes, including: |
| 10 Plow & Dado cutters | |
| 9 Beading cutters | |
| 1 Rabbet & Filletster cutter | |
| 2 Sash cutters | |
| 2 Match cutters | |
| 1 Slitting cutter | |
| — All packed in a canvas case | |
| Construction: | Cast iron body, East India Mahogany handle & fence plate (1916 to 1924) |
| Cast iron body, Mahogany handle & fence plate (1925 to 1941) | |
| Finish: | Nickel Plated |
| Uses: | Special purpose combination plane |
Specifications (Type 2):
| Plane Type: | Combination Plane |
| Features: | Adjustable, with fence, skate & depth gauge. Wooden “Suitcase” style case |
| Manufactured: | From 1942 to 1943 |
| Patents: | January 4, 1916 (cutter adjustment) (Herbert G. Collins) |
| Length: | 10¾ inches |
| Cutter Width: | 23 cutters & sizes, including: |
| 11 Plow & Dado cutters | |
| 7 Beading cutters | |
| 1 Rabbet & Filletster cutter | |
| 1 Sash cutters | |
| 2 Match cutters | |
| 1 Slitting cutter | |
| — All packed in a canvas case | |

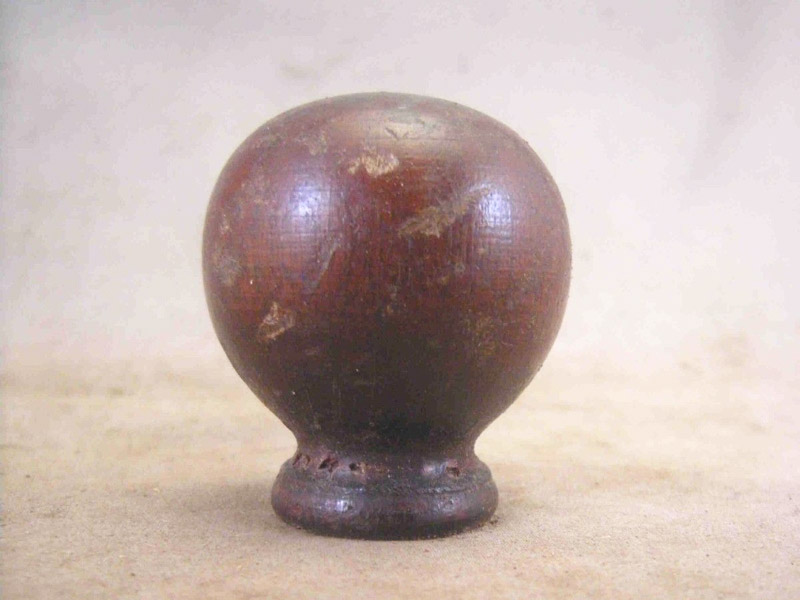

| Construction: | Cast iron body, Mahogany handle, knob & fence plate |
| Finish: | Nickel Plated |
| Uses: | Special purpose combination plane |
Specifications (Type 3):
See Sargent No. 1080 Combination Plane (Stanley Made) for details.
Please check the Value Guide For Sargent Planes page for relative prices.
Additional Notes:

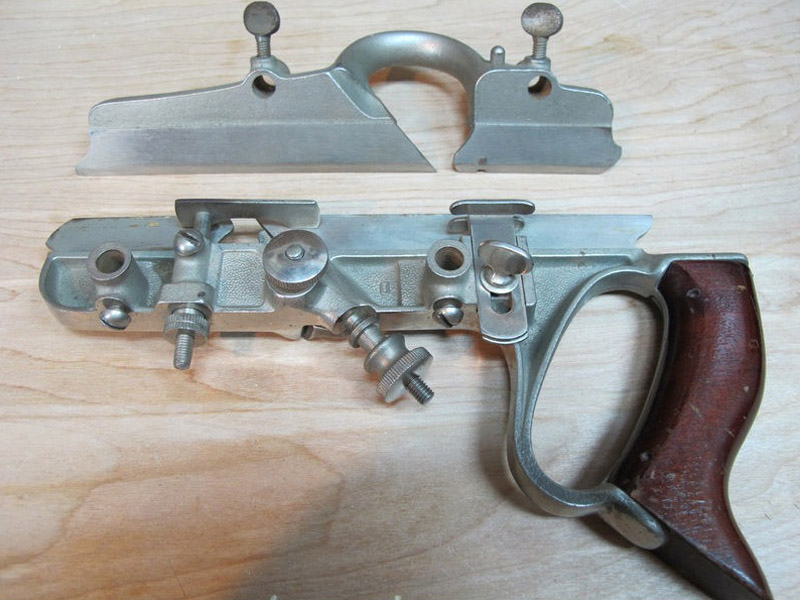

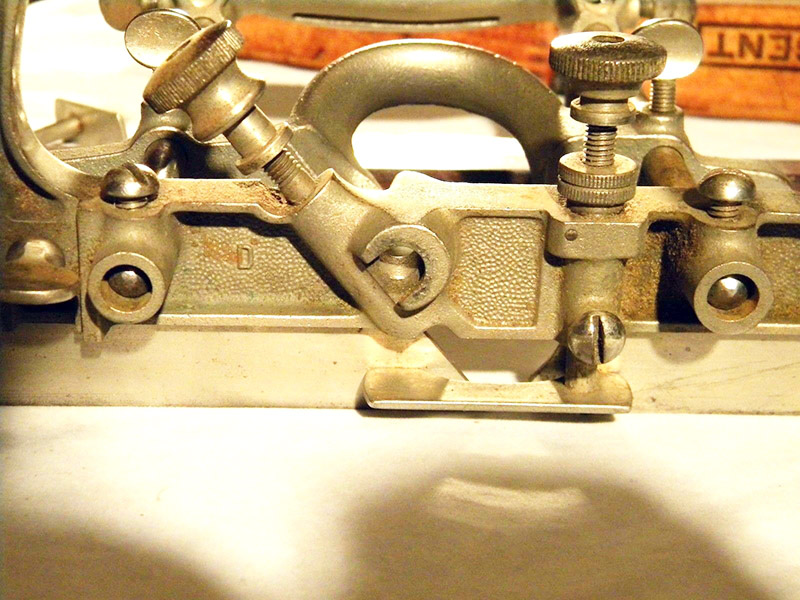

The Sargent No. 1080 combination plane was closely modeled on Stanley’s No. 45 combination plane. The main difference being in the way the cutters were placed in the adjusting wheel, using two notches to engage the supports in the screw nut. Sargent also used a suitcase style wooden case to hold the plane body, cutters and other parts.
