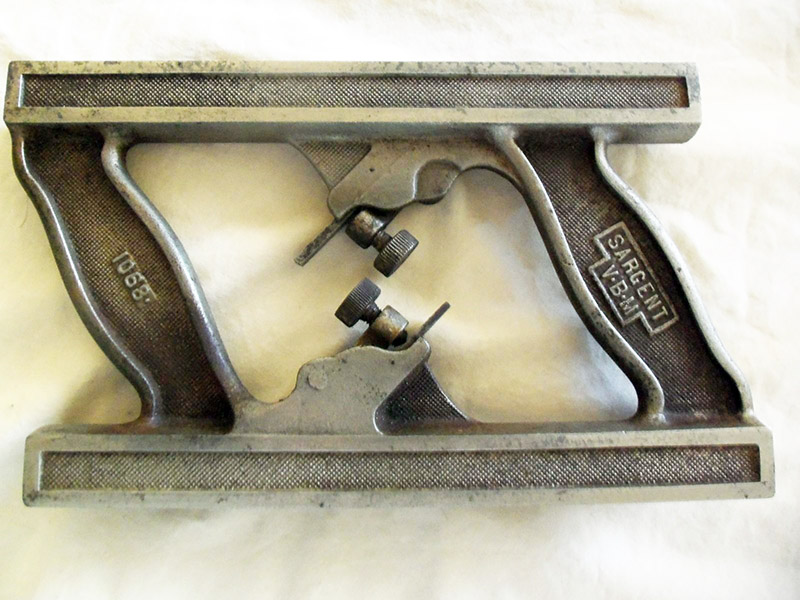

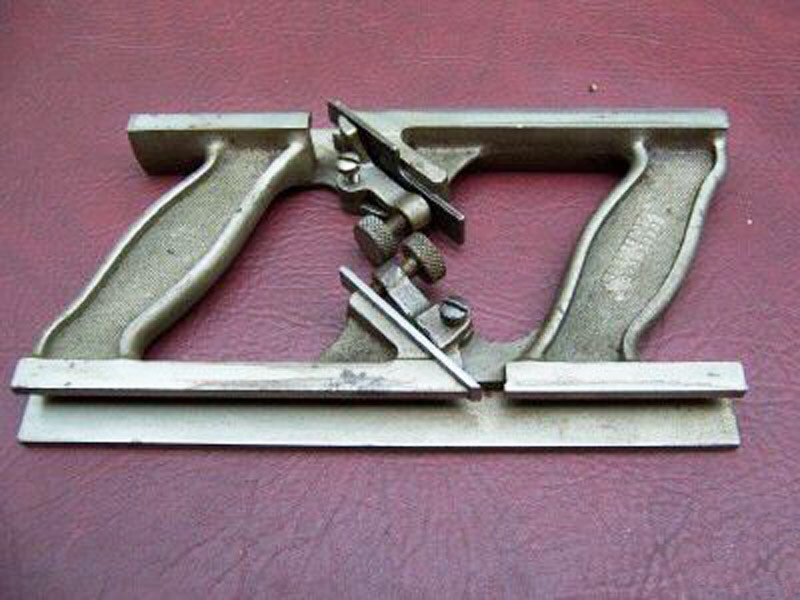

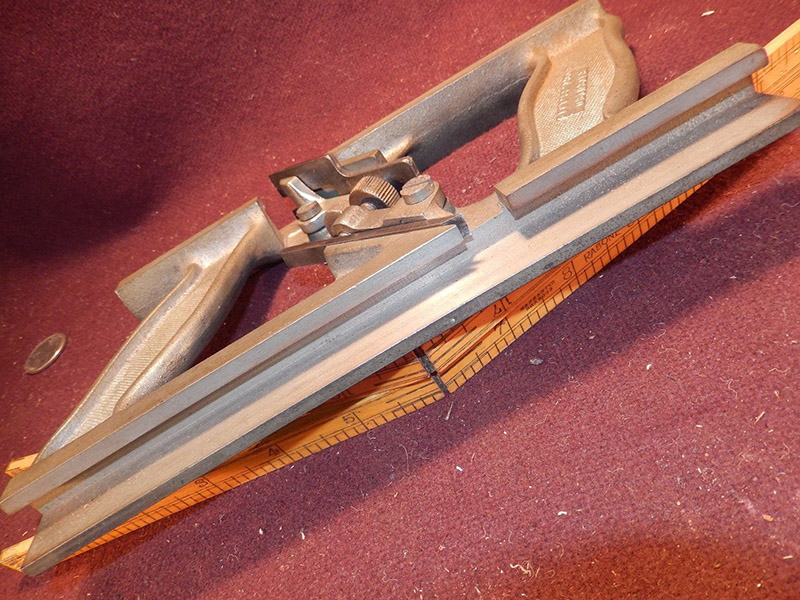

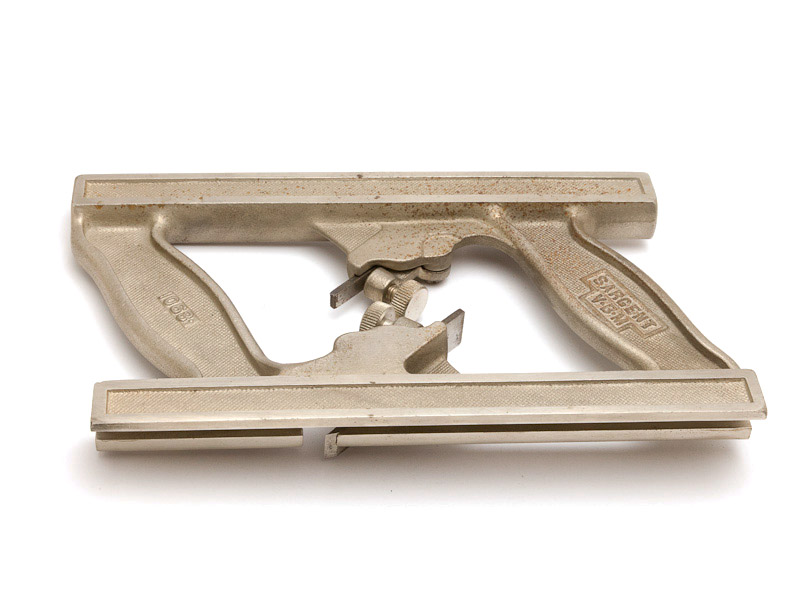

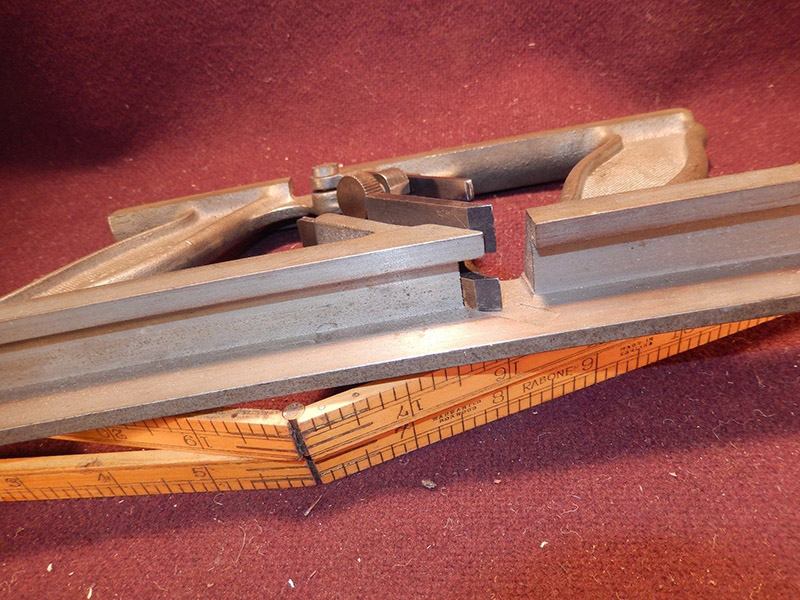

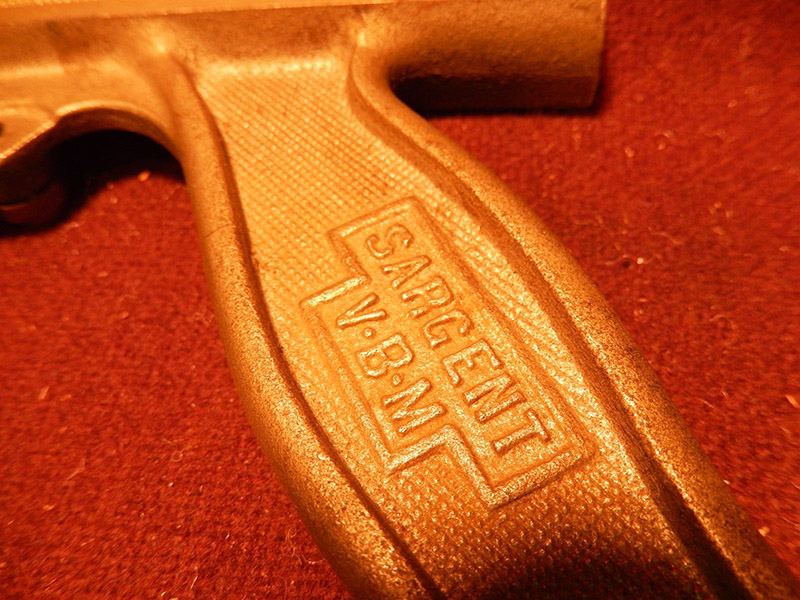

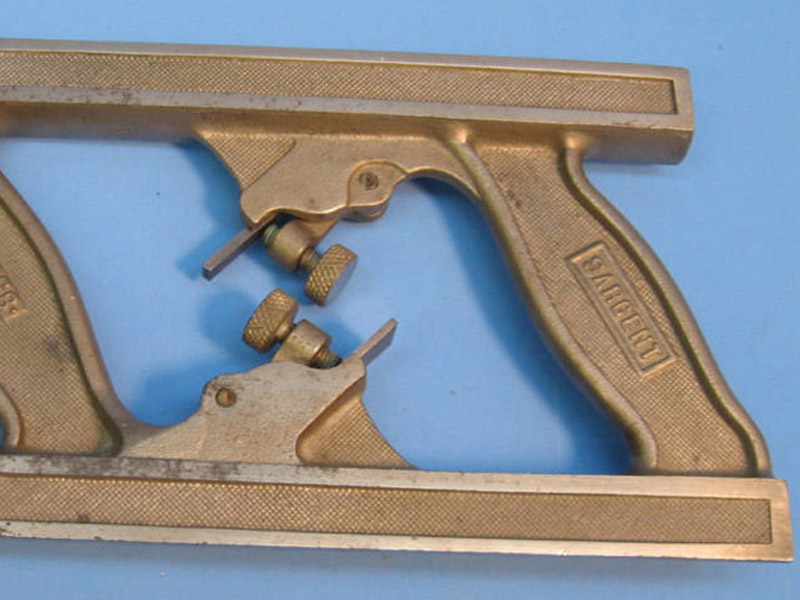

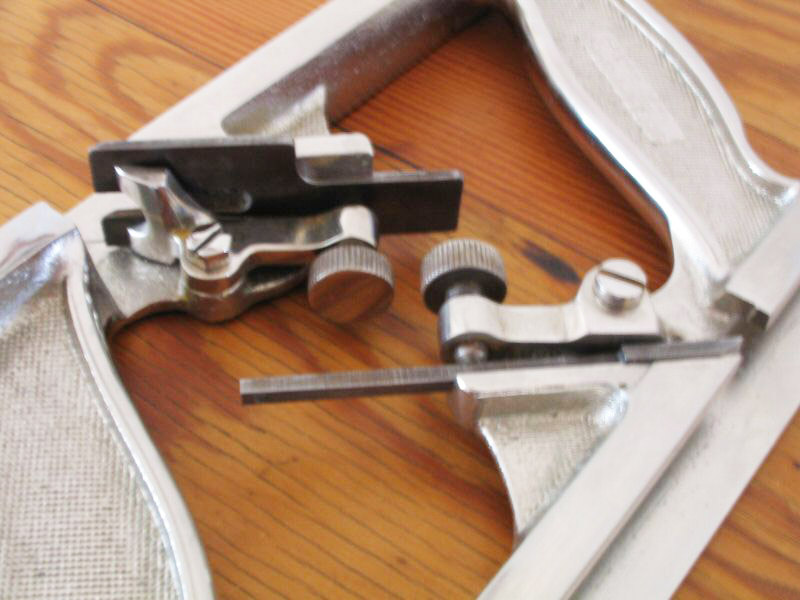

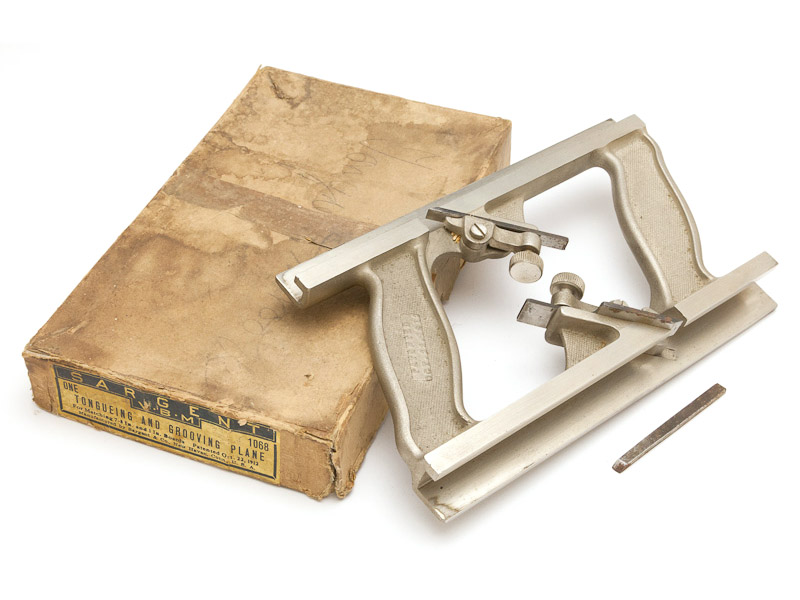

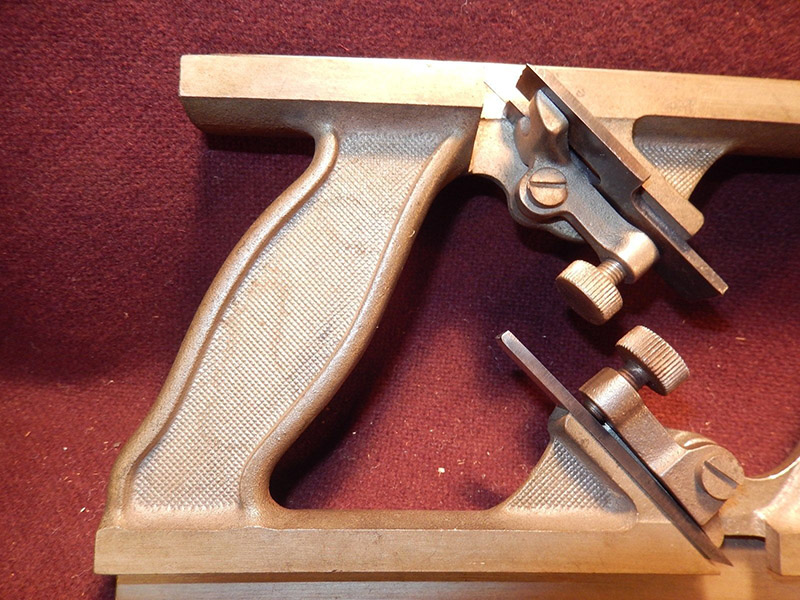

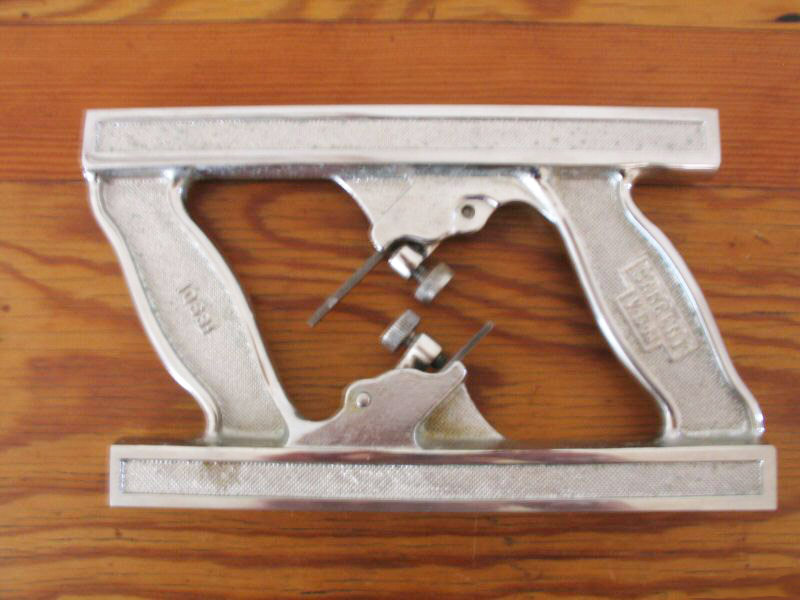

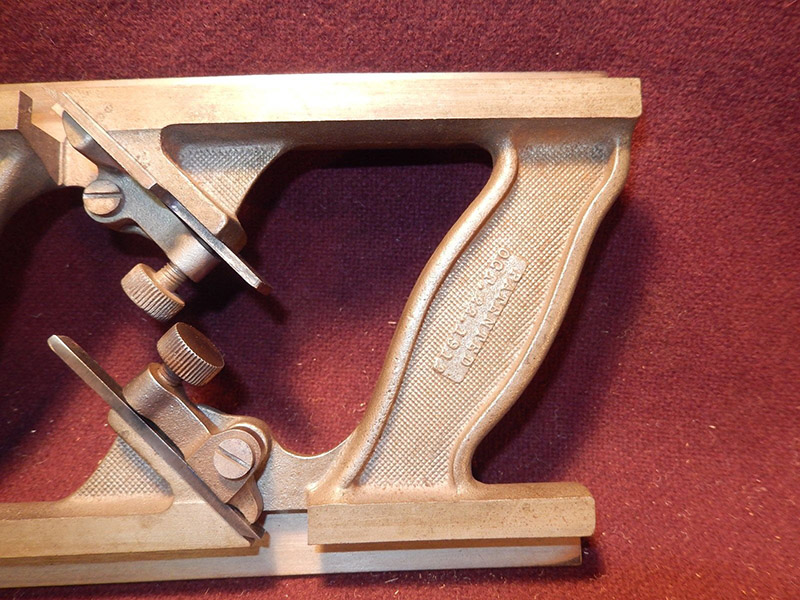

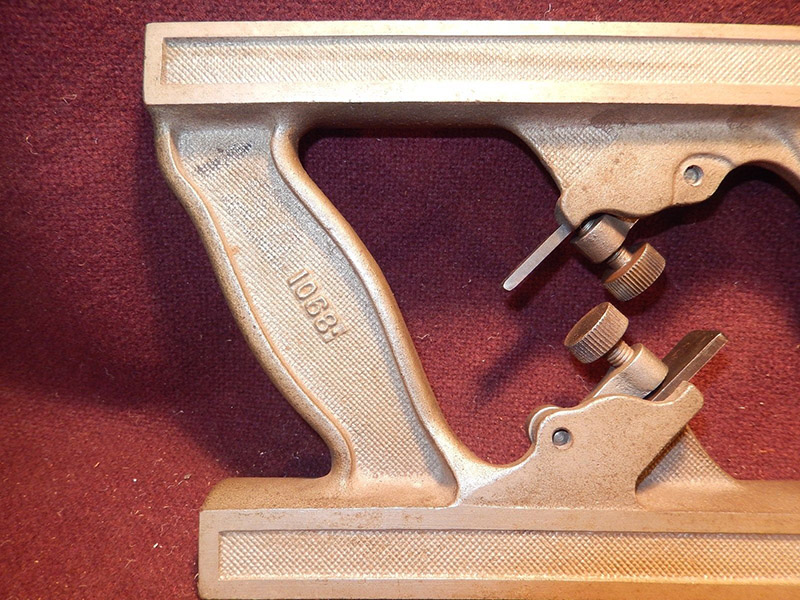

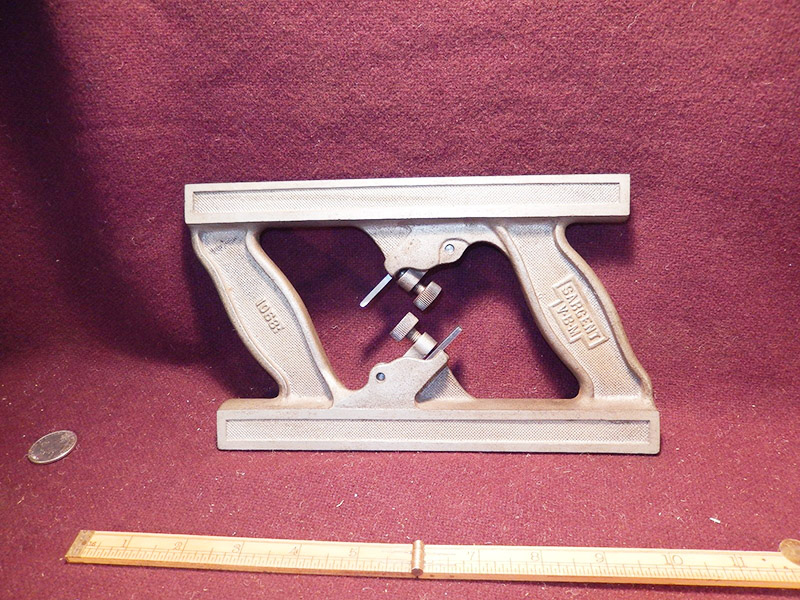

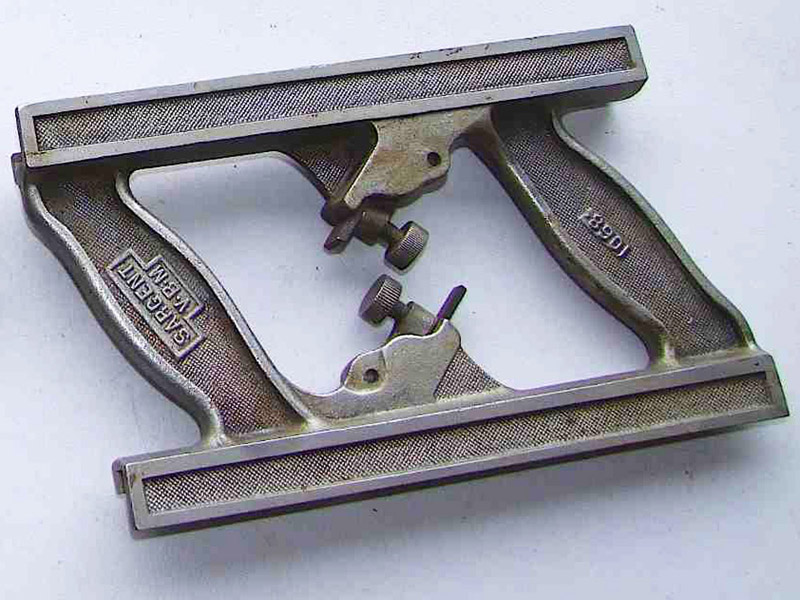

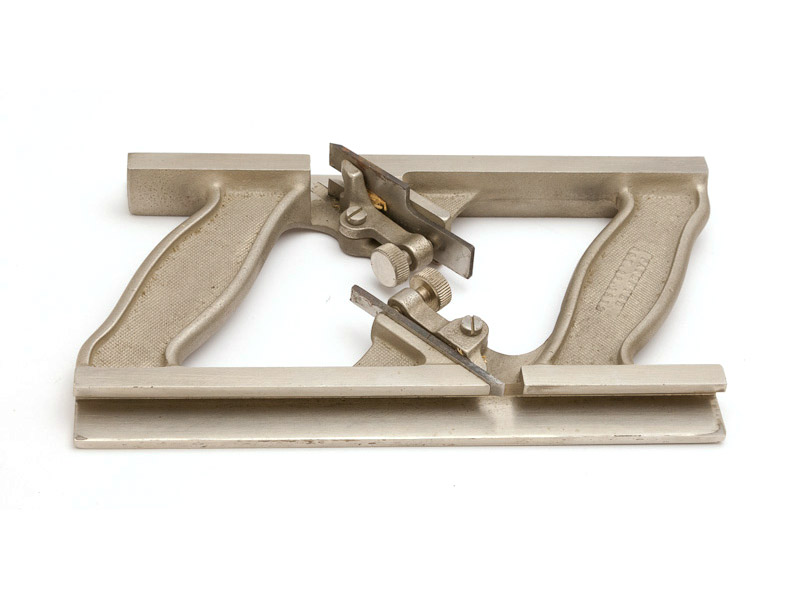

Sargent No. 1068 Double Side Matching Plane

Sargent No. 1068 Double Side Matching Plane
Sargent No. 1068 Double Side Matching Plane

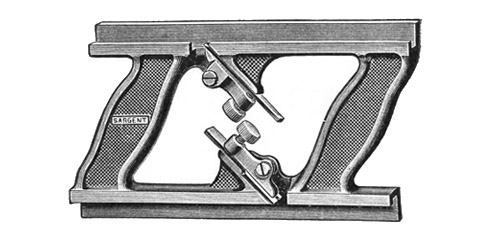

as illustrated in the Sargent Planes catalog of 1916.

Adjustable Double Side Matching Planes.

Patented October 22, 1912.

Reversible for Tonguing and Grooving.
Japanned Finish.

No. 1068, 8⅞ In., for Matching ⅞ In. Board      .     .     .     each, $4 15

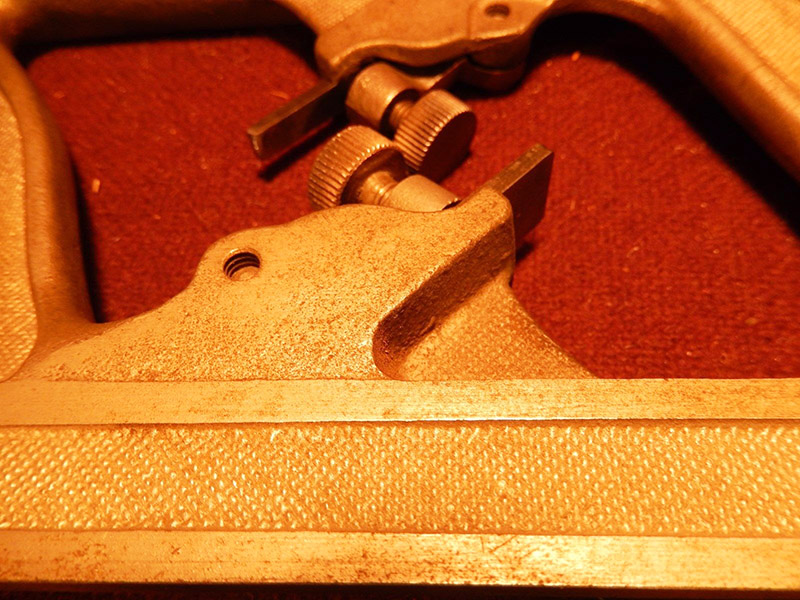

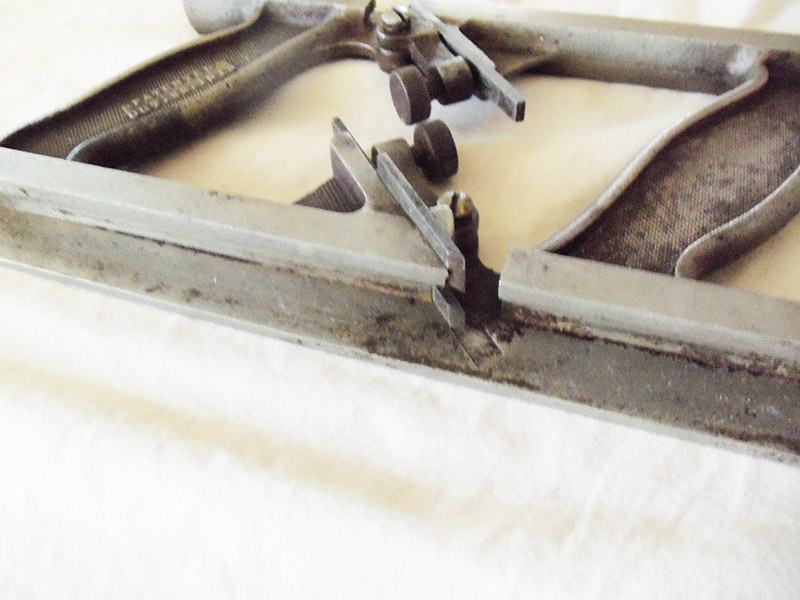

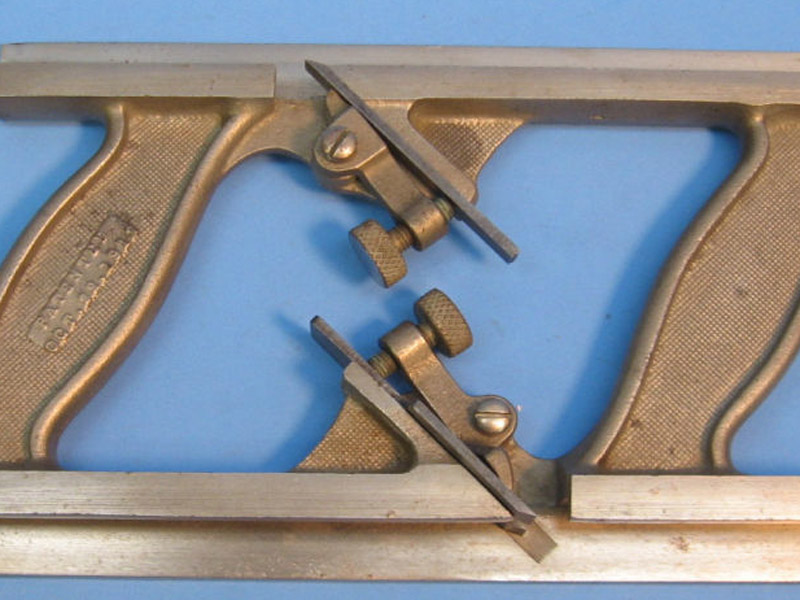

These Planes are reversible the tonguing and grooving, and are so arranged that by turning the Plane over, the same size cut may be made on both tonguing and grooving. The Plane is designed to take up very little room in the carpenter’s kit, having no unnecessary metal.


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Matching Plane
Features:Adjustable and reversible
Manufactured:From 1916 to 1943

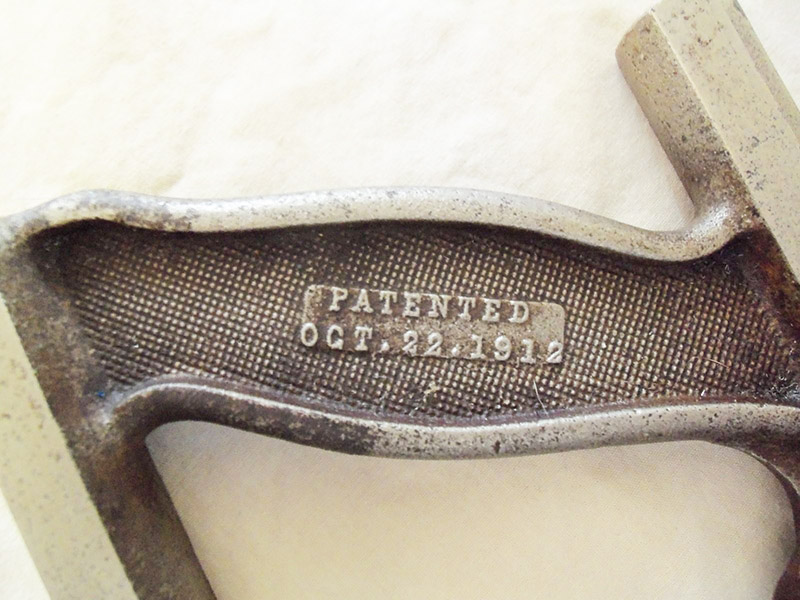

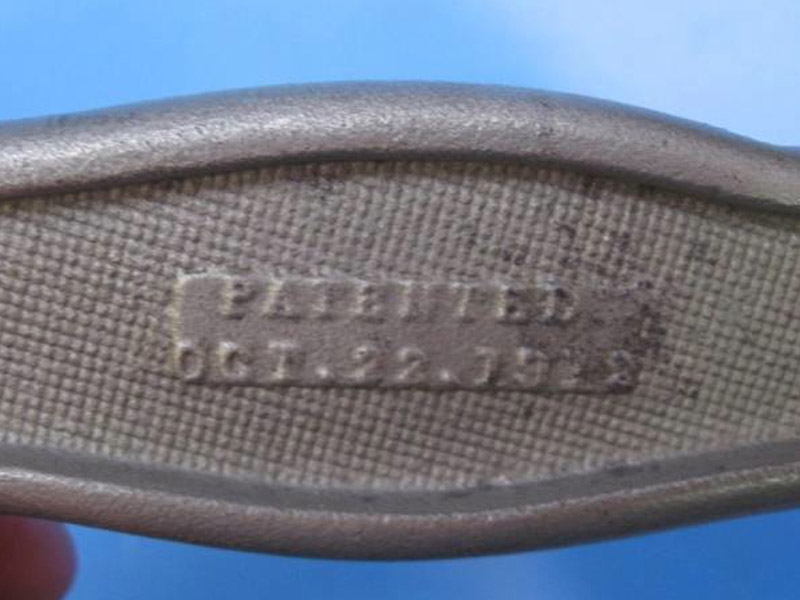

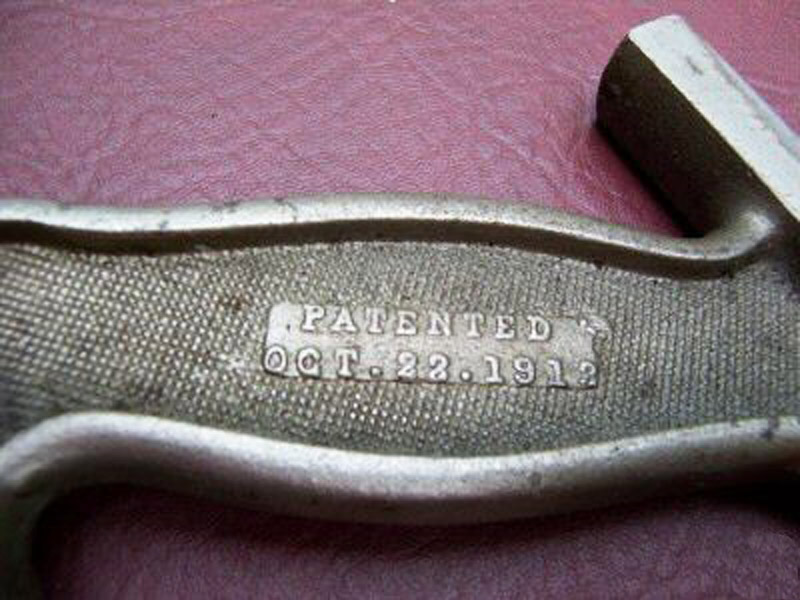

Patents:October 22, 1912 (design for plane) (Albert A. Page)
Length:8⅞ inches
Cutter Width:For matching ⅞ inch board
Construction:Cast iron body
Finish:Nickel Plated
Uses:Special purpose match plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

The design of the double-sided matching planes (Nos. 1066, 1067 & 1068) is unique to Sargent.

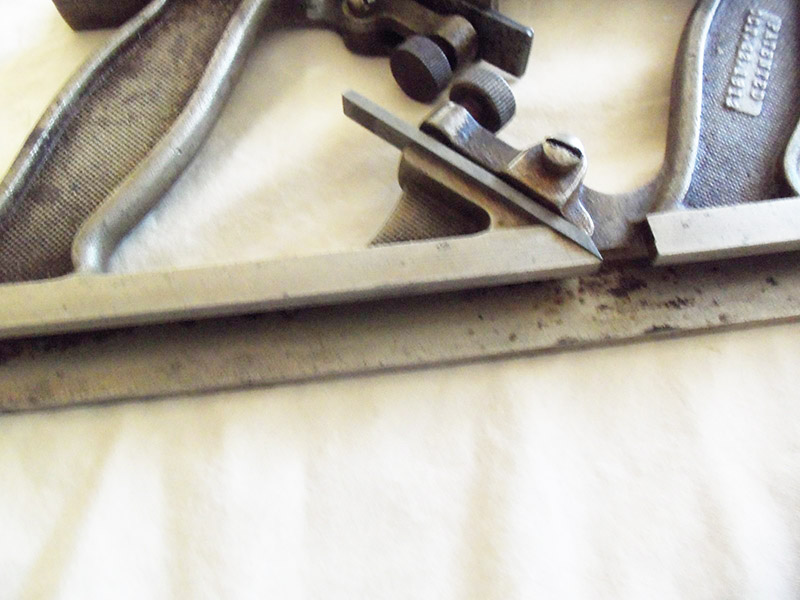

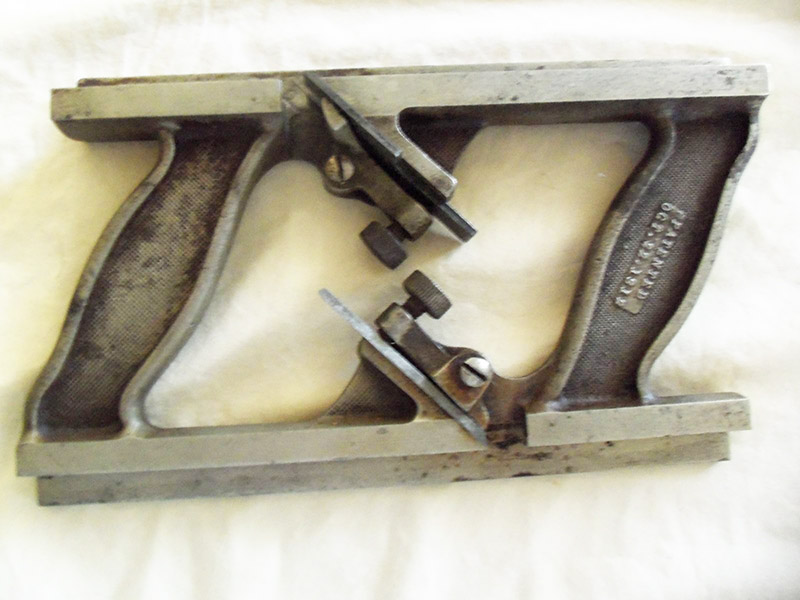

Although early catalogs stated “Japanned Finish”, almost all planes found are nickel plated. The nickel plating wears easily and is prone to flaking, possibly due to the particular electroplating process that Sargent was using at the time. With this in mind, finding examples of planes in pristine condition and without loss of plating is extremely rare.
