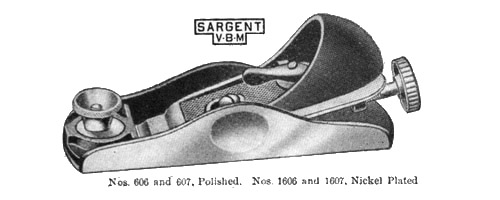

Sargent No. 1607 Low Angle Block Plane
as illustrated in the Sargent catalog of 1911.
Sargent V.B.M Adjustable Iron Planes.
Patented March 21, 1893, July 6, 1897 and April 24, 1906.
Low Angle Iron Block Planes.
Screw Adjustable and Adjustable Mouth.
Nickel Plated Trimmings
No. 1607, 7 Inches, 1⅝ Inch Cutter, . . . each, net $1 50
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Block Plane |
| Features: | Adjustable, with screw adjustment for cutter. Low angle & adjustable mouth |
| Manufactured: | From 1910 to 1918 |
| Patents: | March 21, 1893 (lateral adjustment) (Granville H. Wright) |
| April 24, 1906 (throat adjustment) (Henry B. Sargent) | |
| Length: | 7 inches |
| Cutter Width: | 1⅝ inches |
| Construction: | Cast iron |
| Finish: | Japanned. Nickel Plated Trimmings |
| Uses: | General purpose low-angle block plane |
Please check the Value Guide For Sargent Planes page for relative prices.
