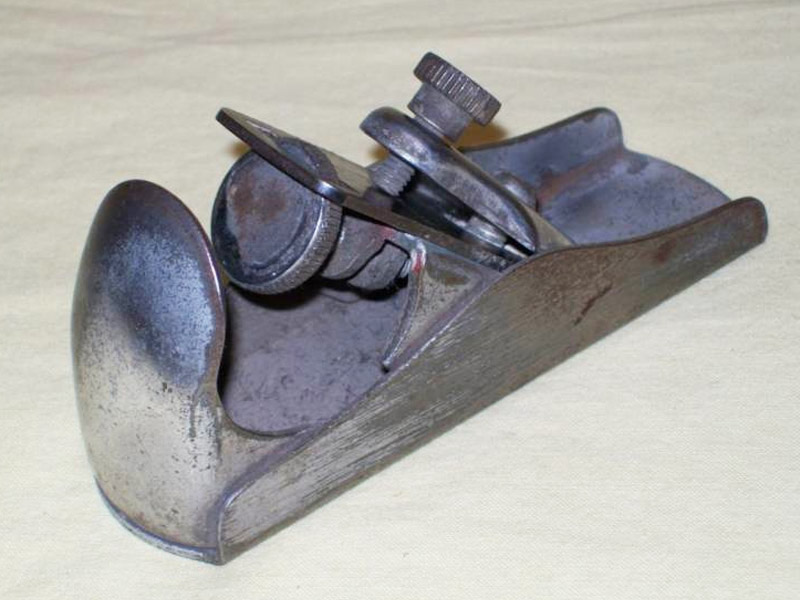

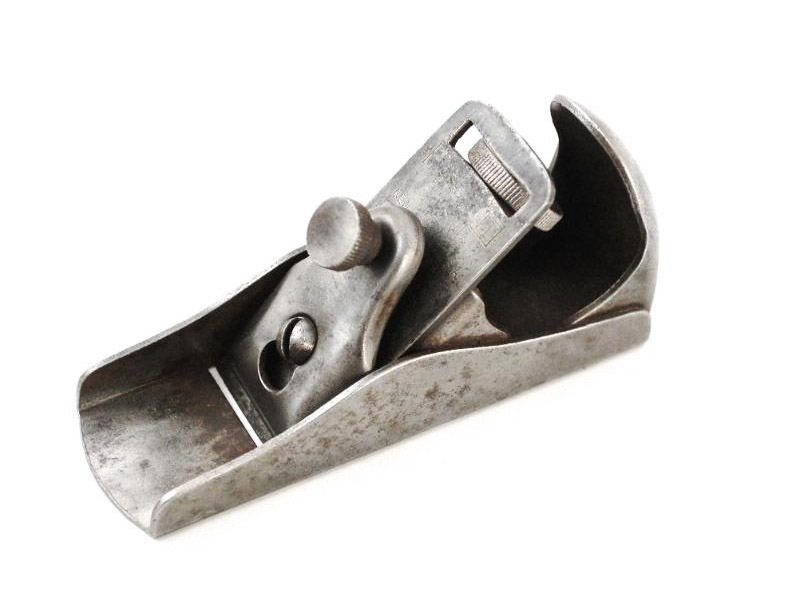

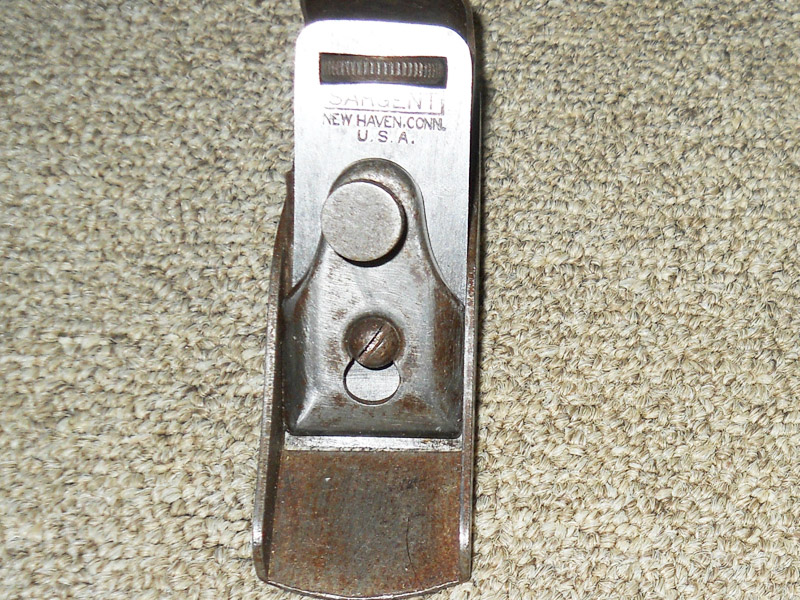

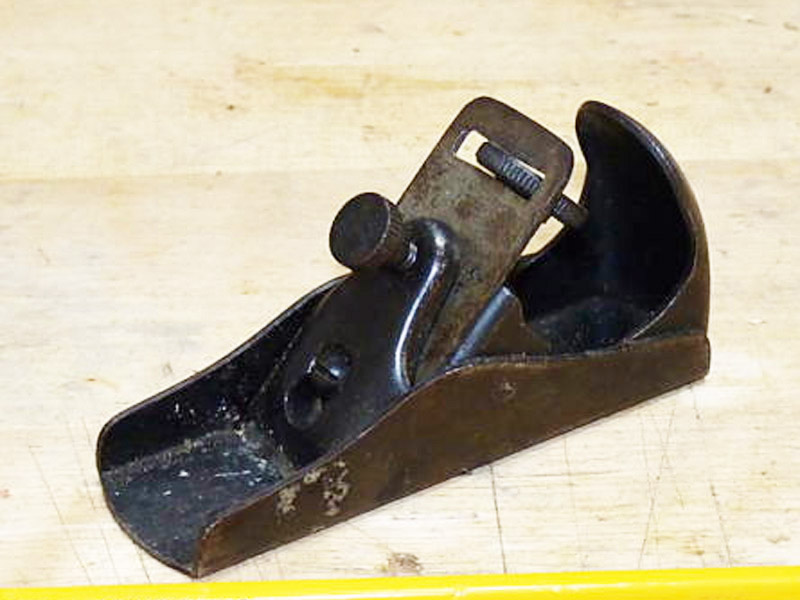

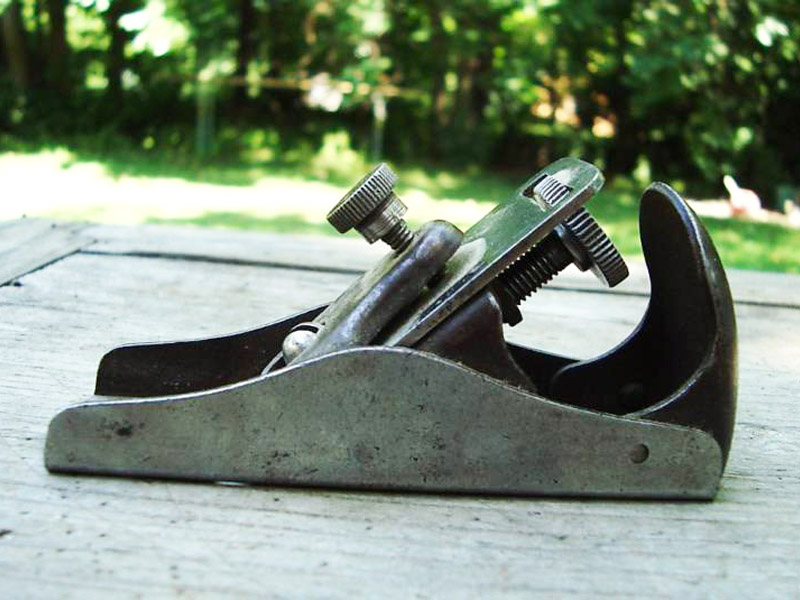

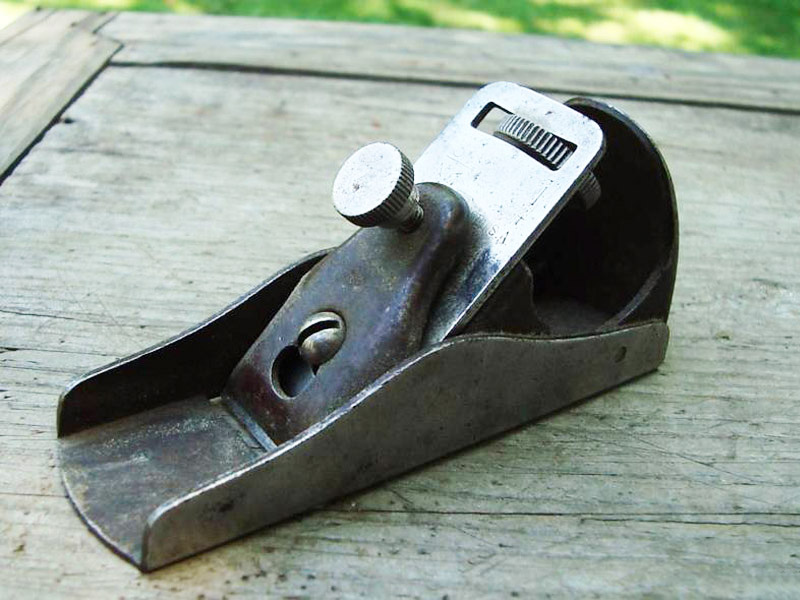

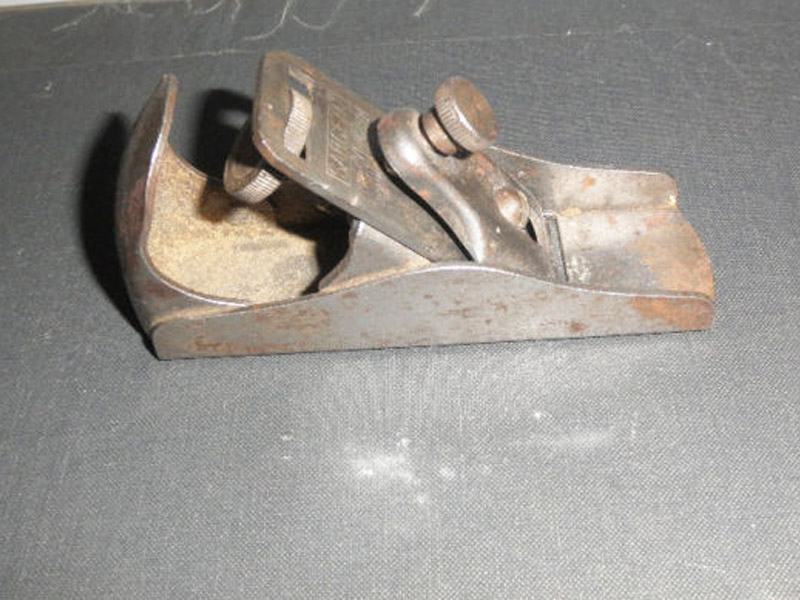

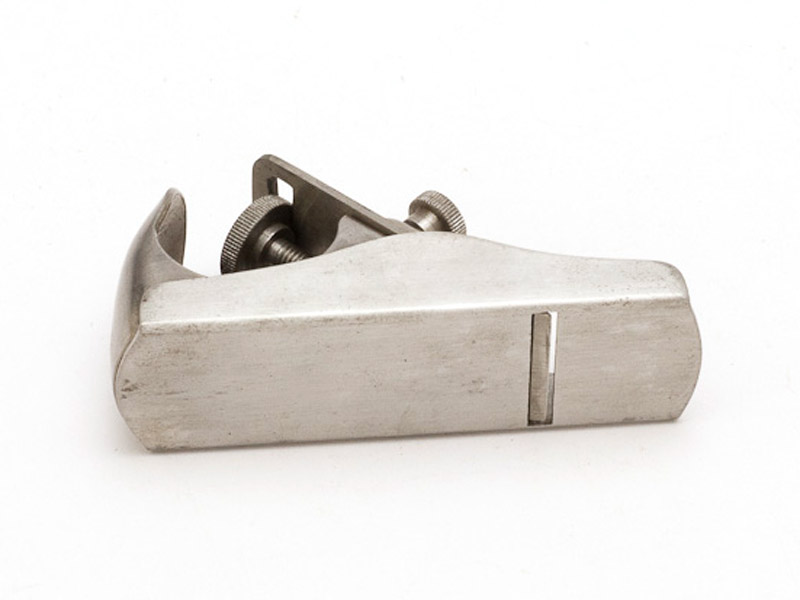

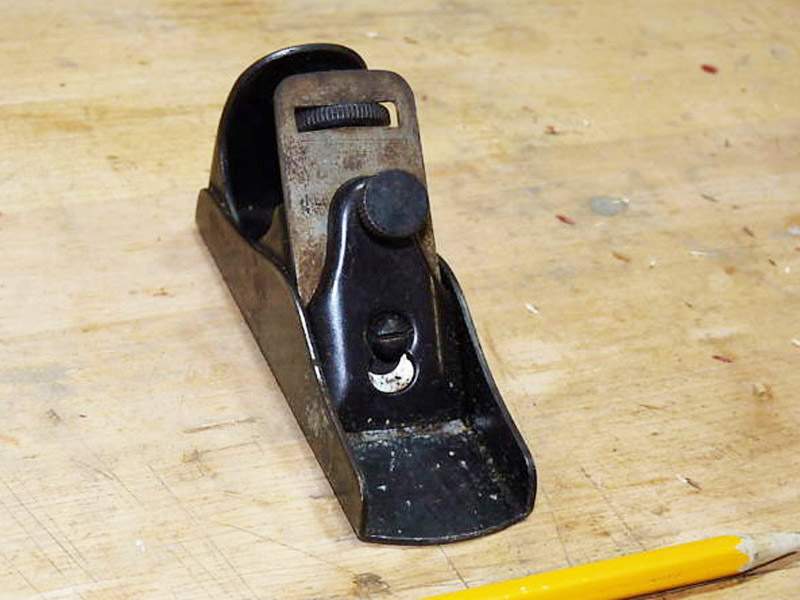

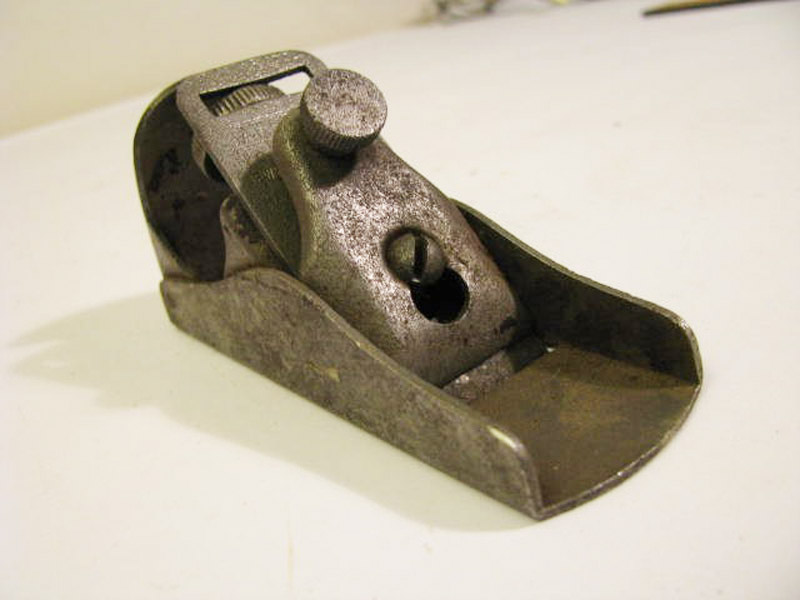

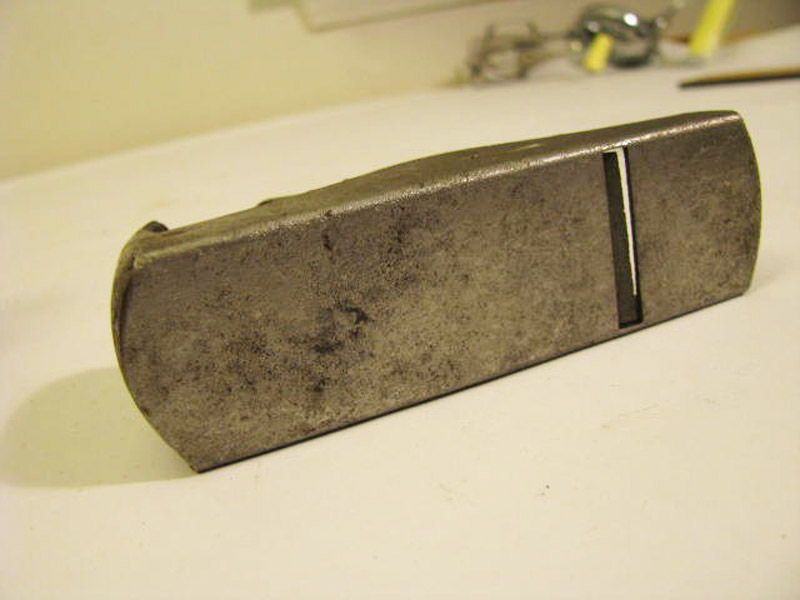

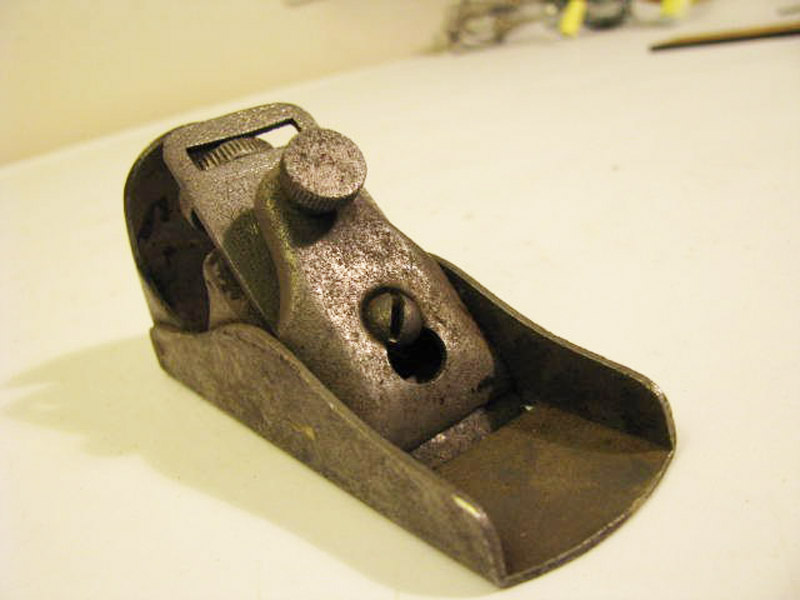

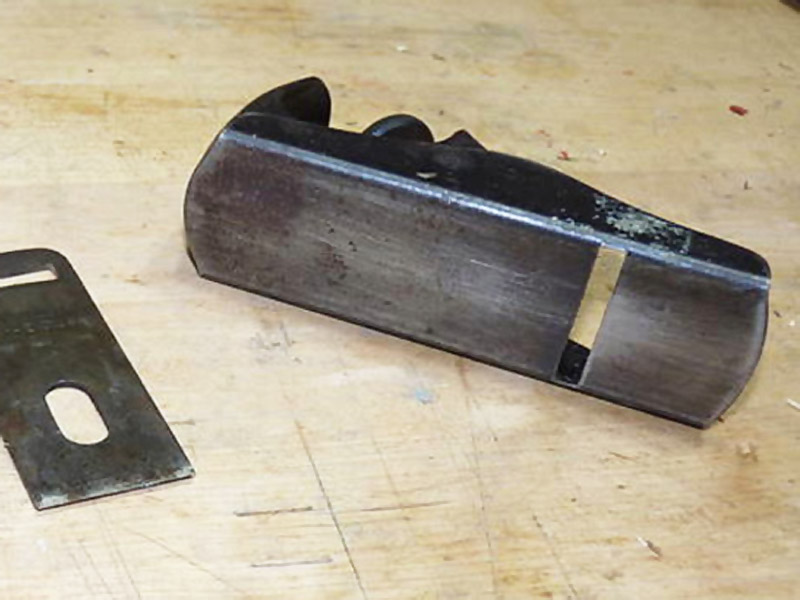

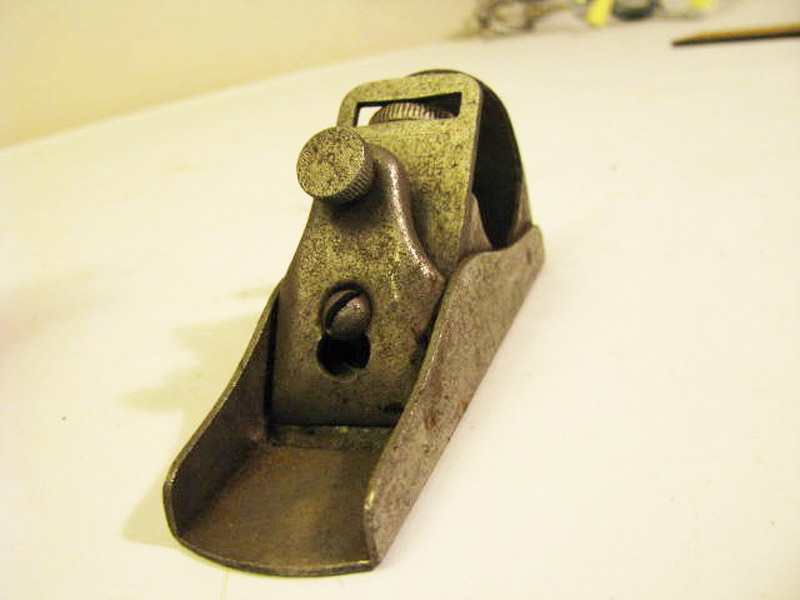

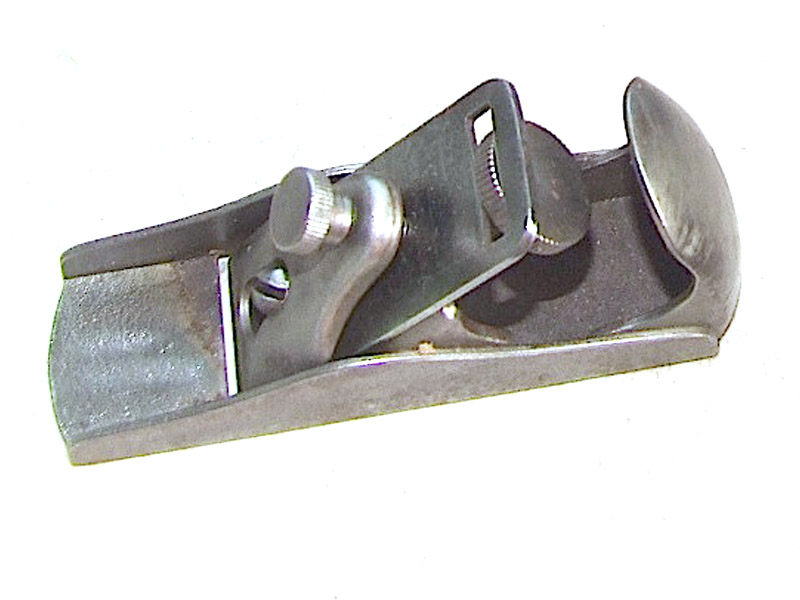

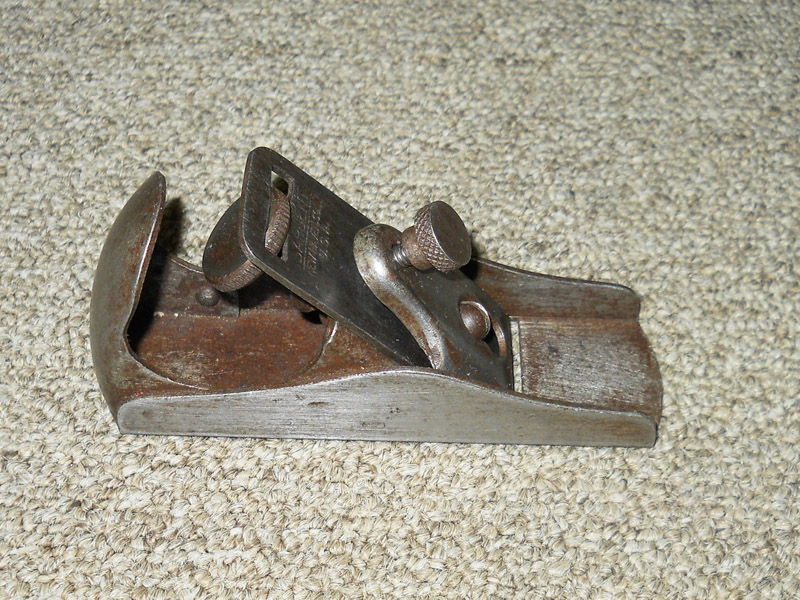

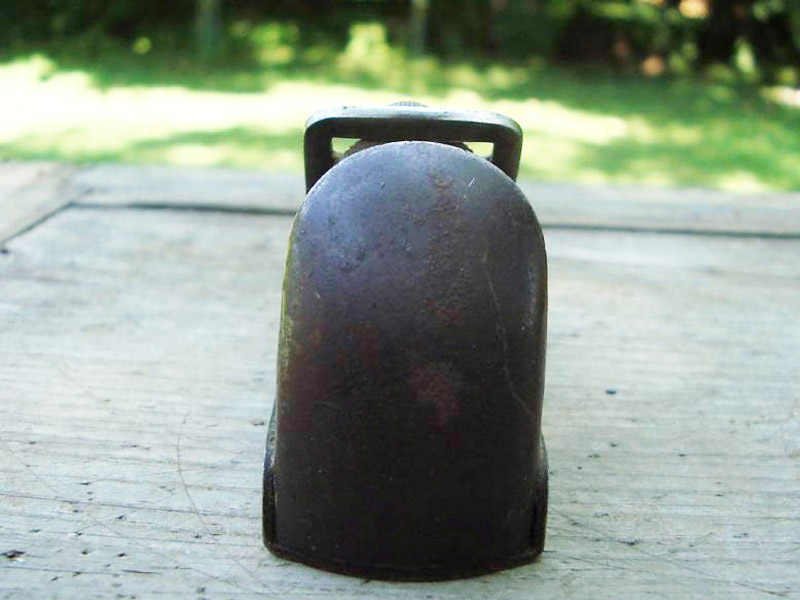

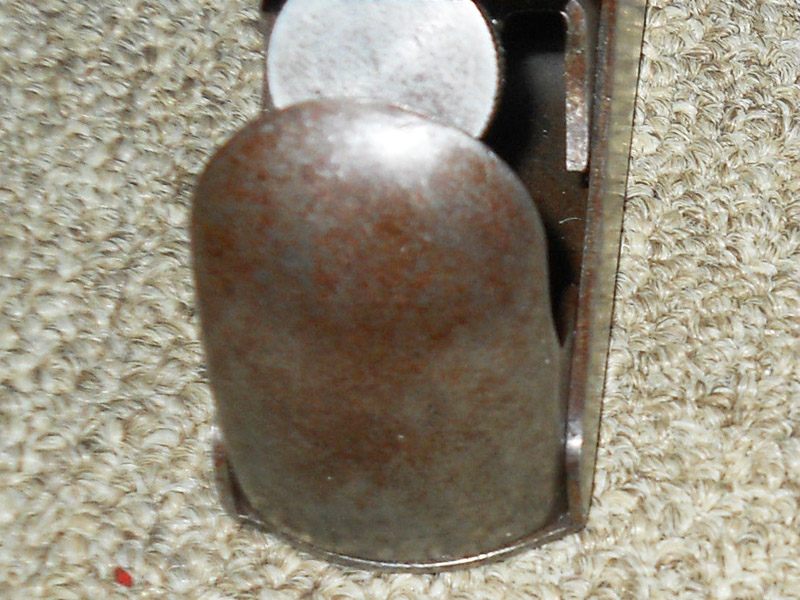

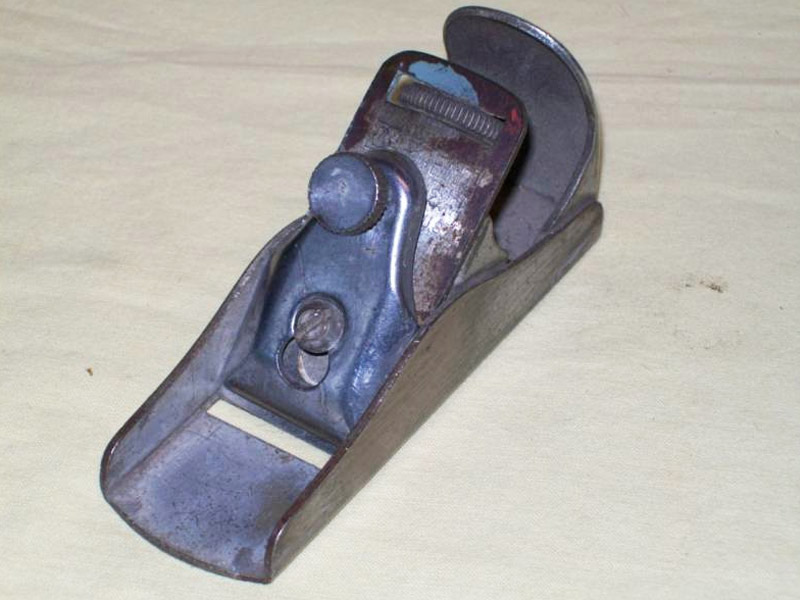

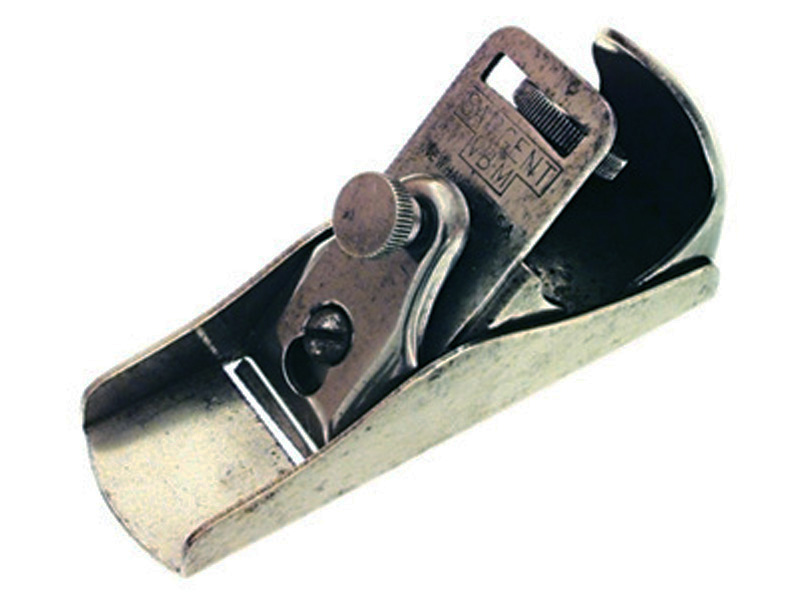

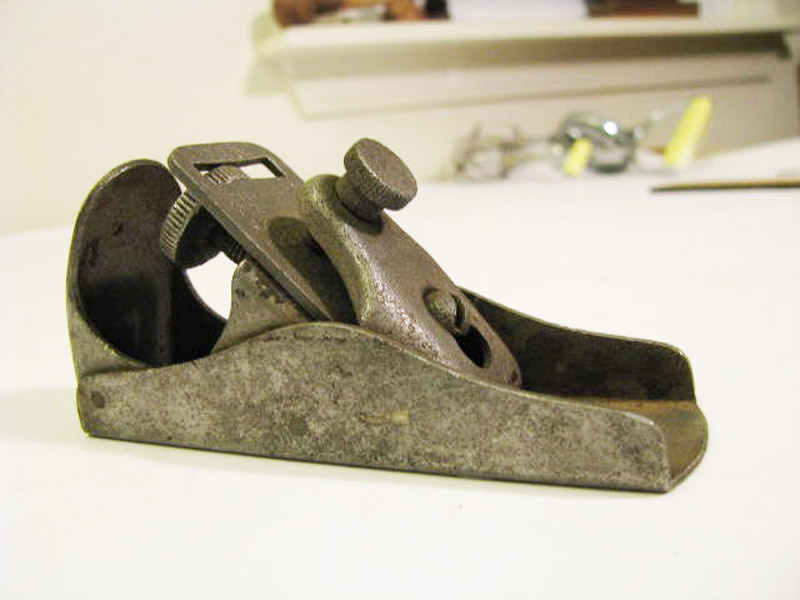

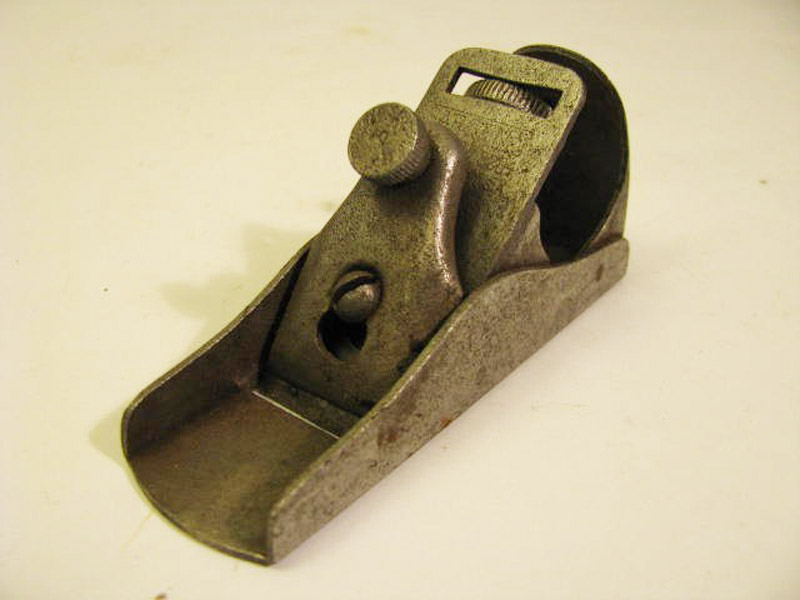

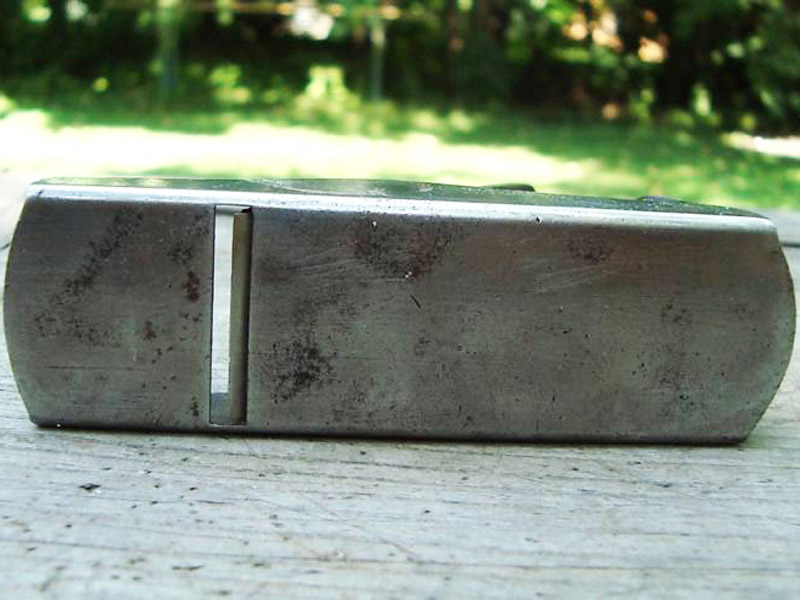

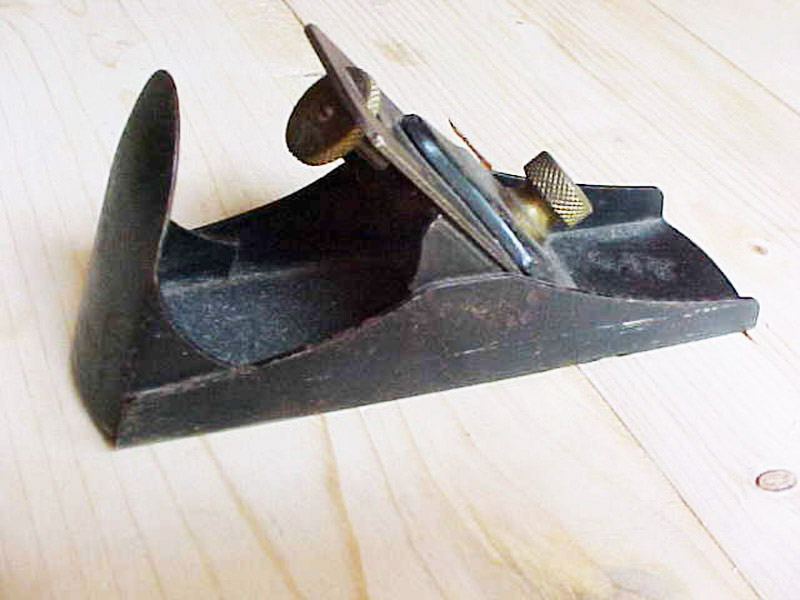

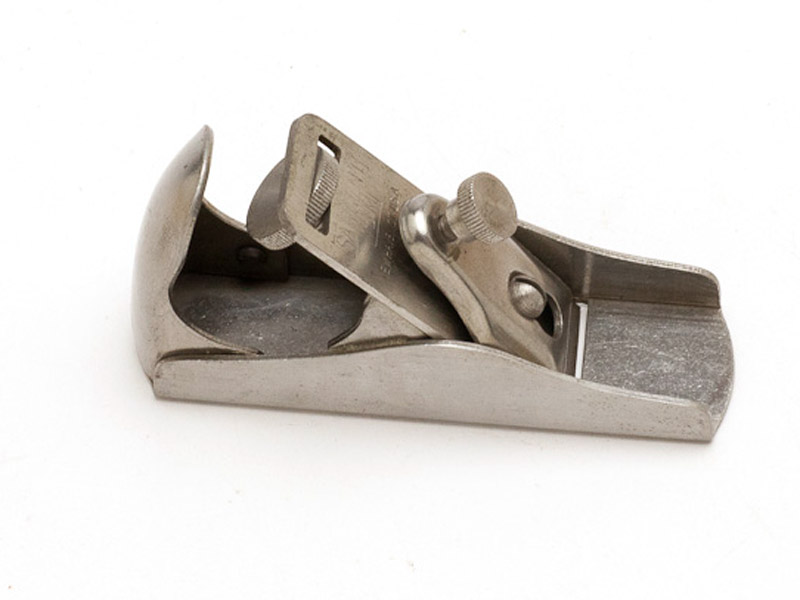

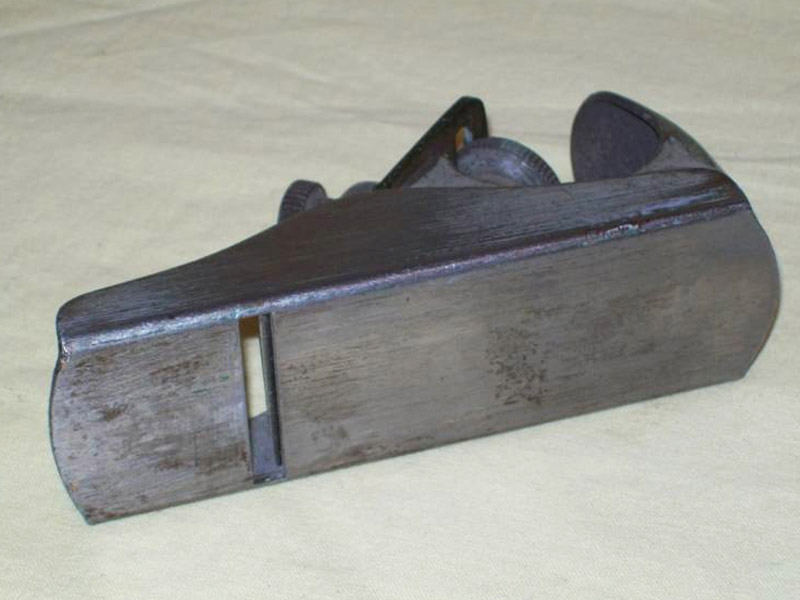

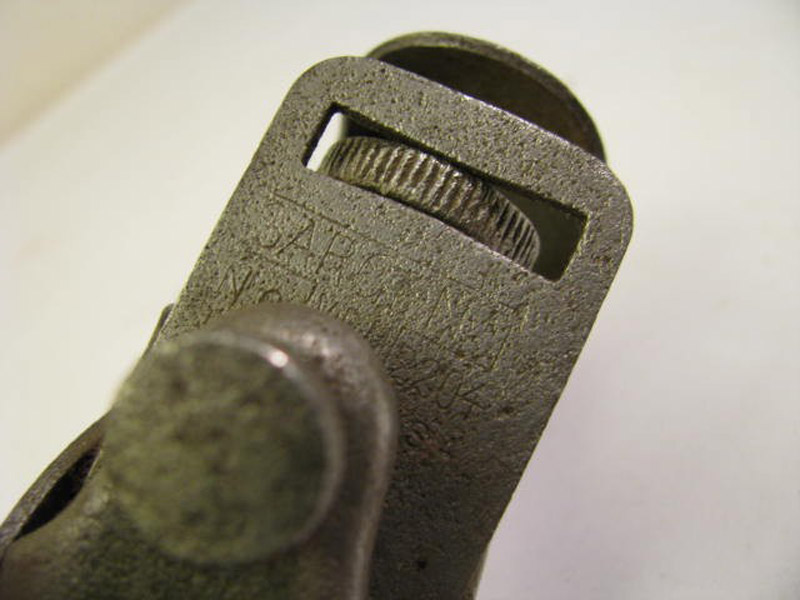

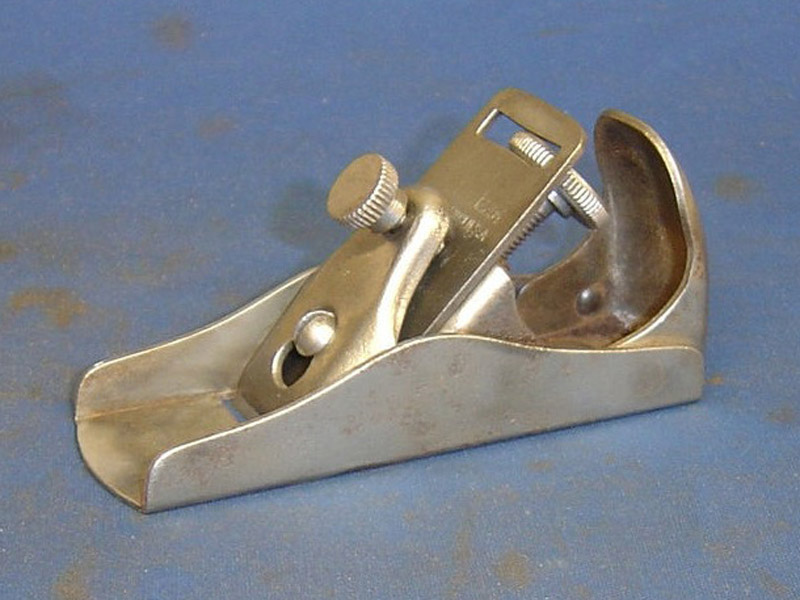

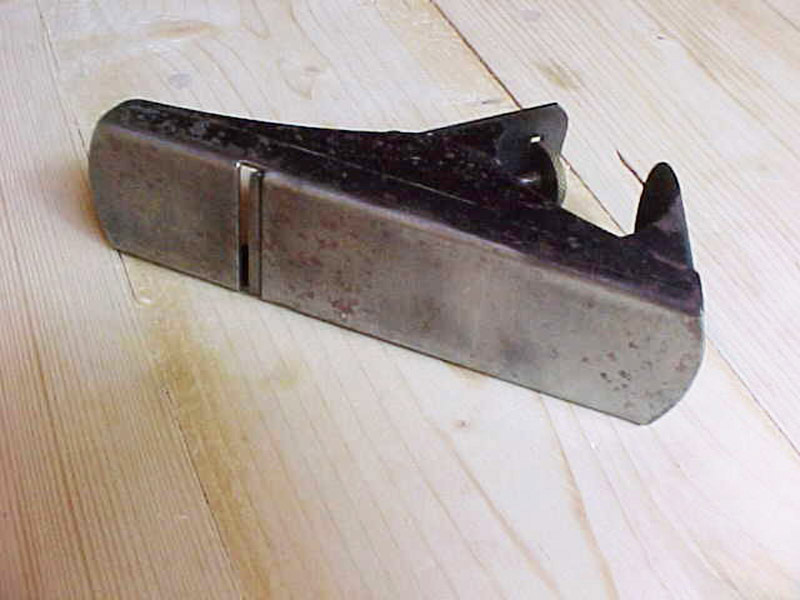

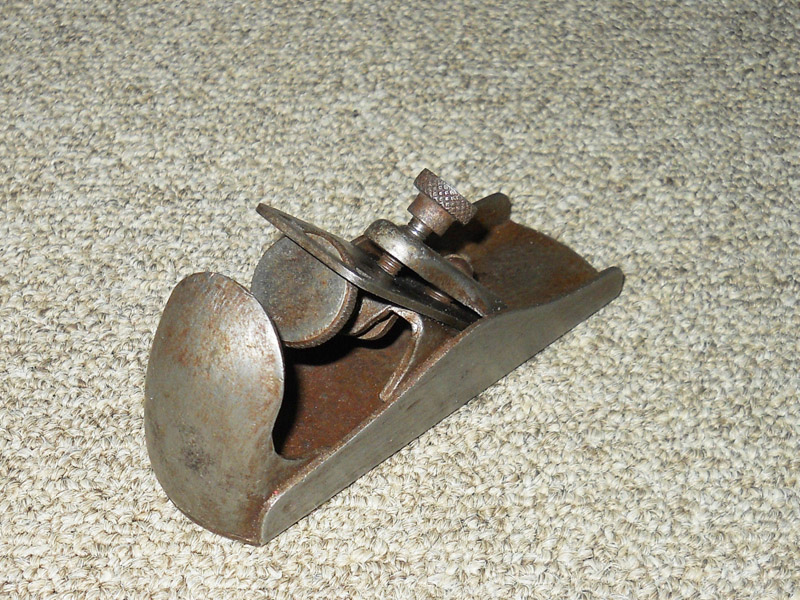

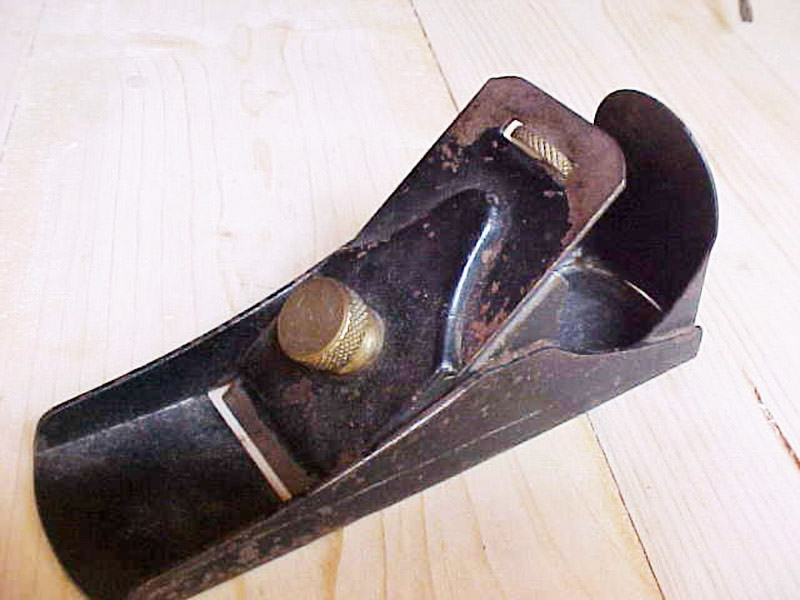

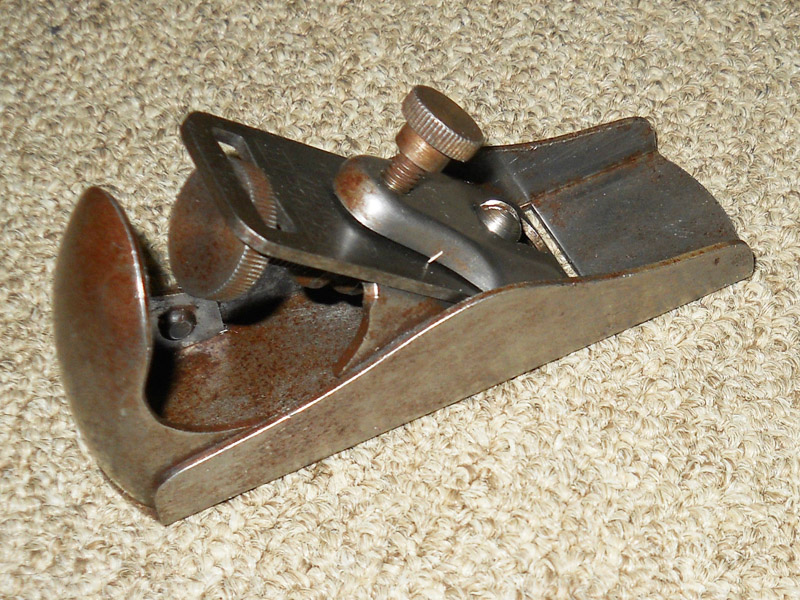

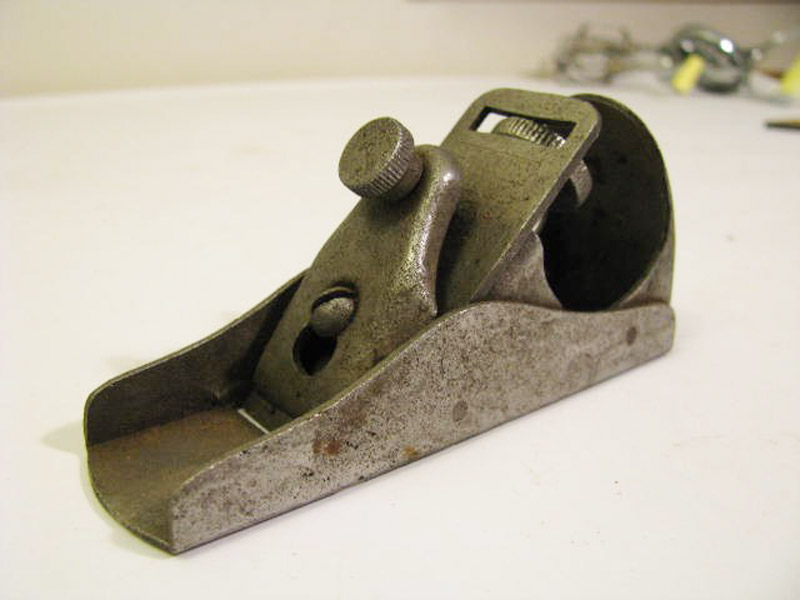

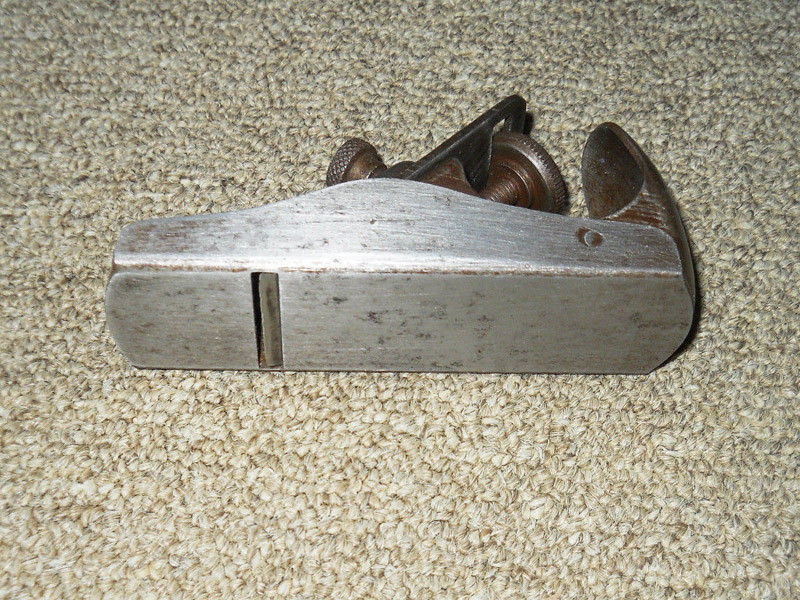

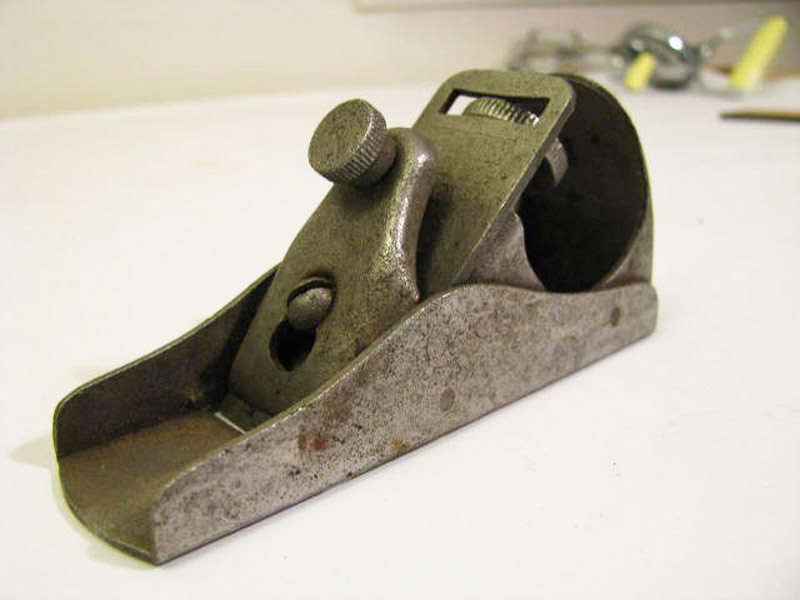

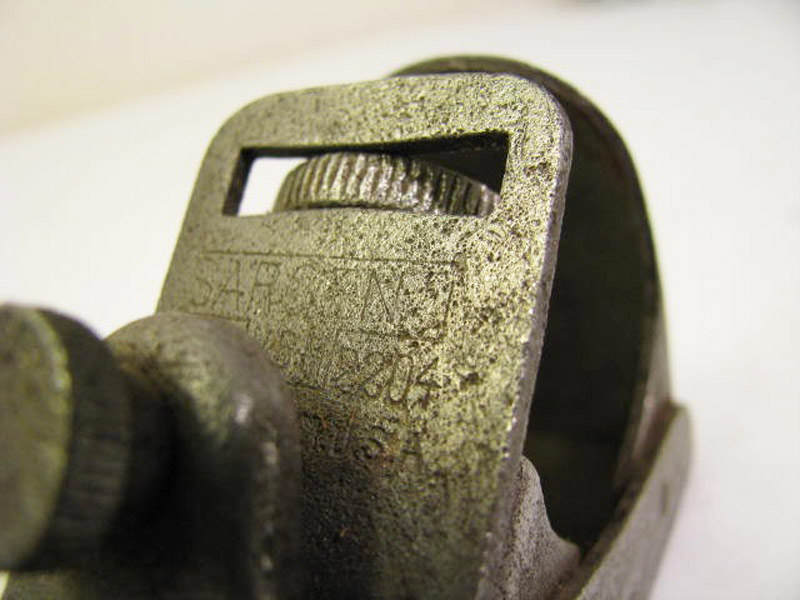

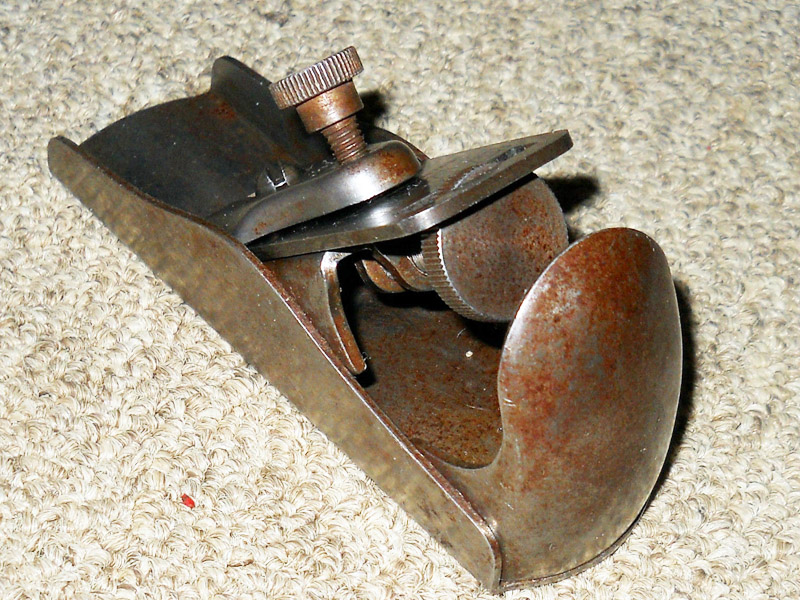

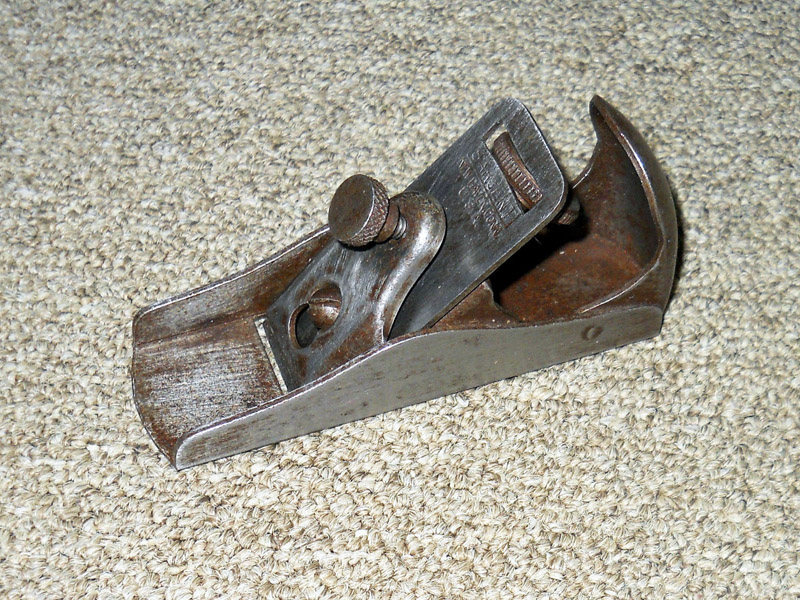

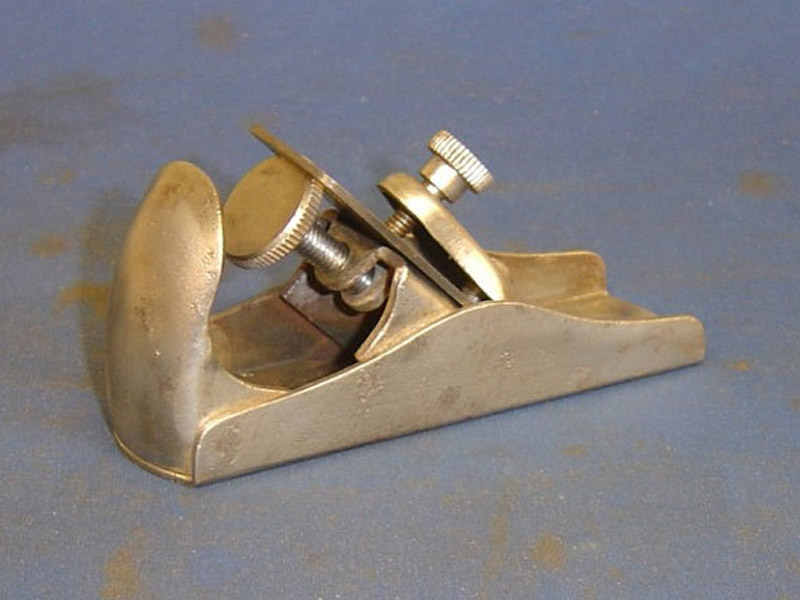

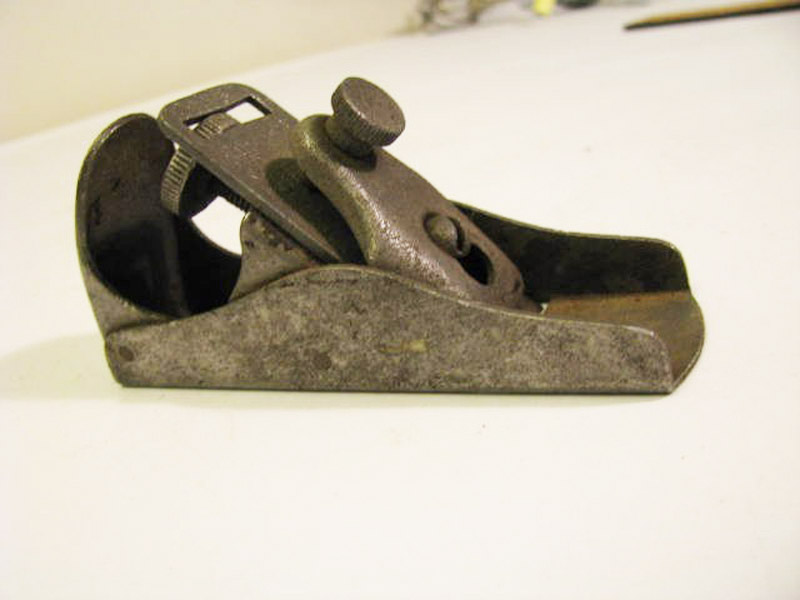

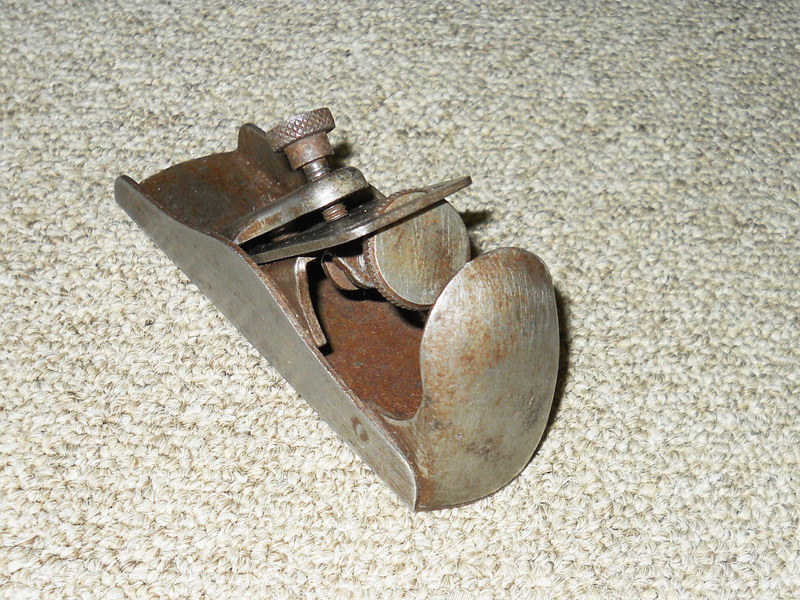

Sargent No. 2204 All-Steel Block Plane

Sargent No. 2204 All-Steel Block Plane
Sargent No. 2204 All-Steel Block Plane

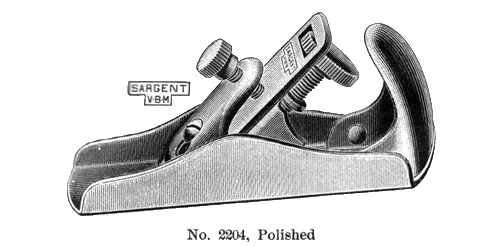

as illustrated in the 1912 update of the 1911 Sargent catalog.

Sargent V.B.M Adjustable All-Steel Planes.

Patented December 14, 1915 and January 23, 1917.

Light, Unbreakable, Indestructible.
These Planes are light, unbreakable and indestructible; owing to their shape and size they may be readily carried in the pocket of a carpenters apron; they are particularly desirable for use in work on scaffoldings etc. Number 2204 is especially suitable for pattern-makers’ use.

Substantial, Serviceable, Handy.

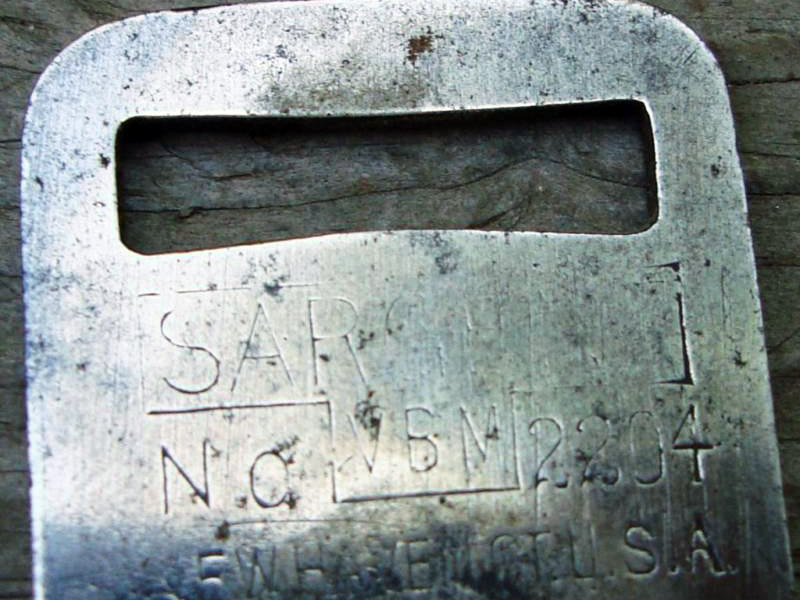

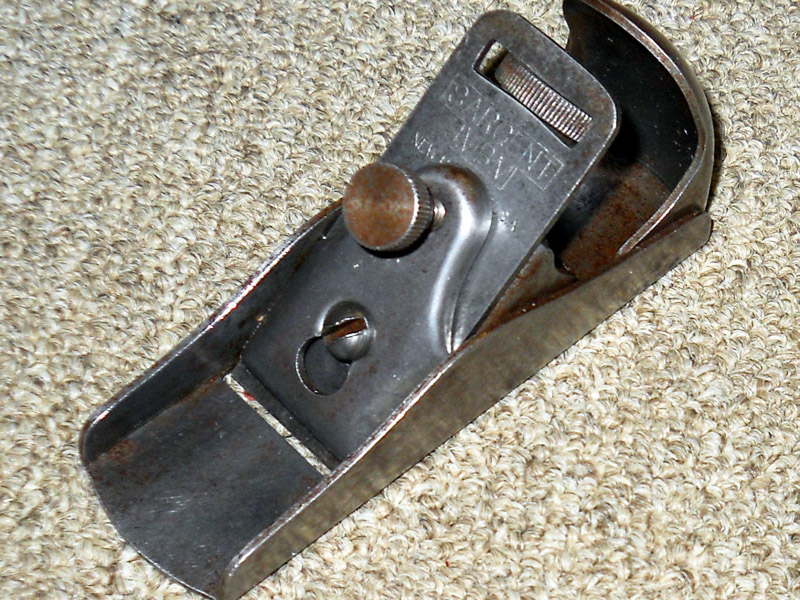

Mechanics will find them substantial, serviceable and handy; they are also particularly suitable for amateur work at home. The Sargent V.B.M stamp is an indication of their high grade and superior quality.

All-Steel Block Planes.

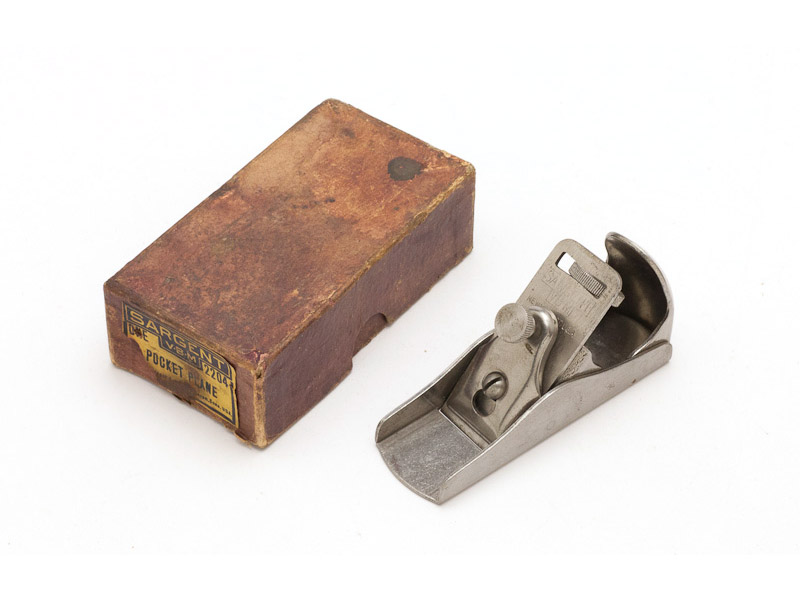

Pocket Planes.
Screw Adjustment.

Highly Polished

No. 2204, 4¼ Inches, 1⅛ Inch Cutter,      .     .     .     each, net $0 70

Powerful Clamp.

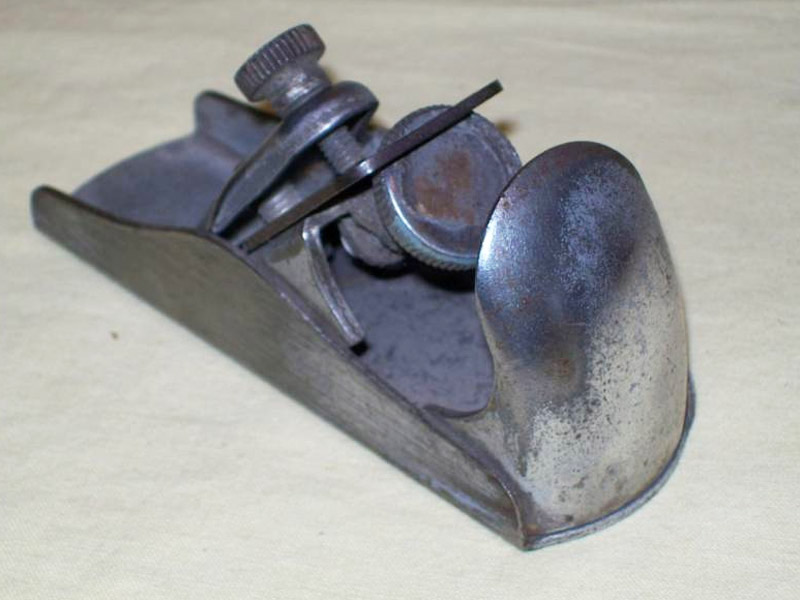

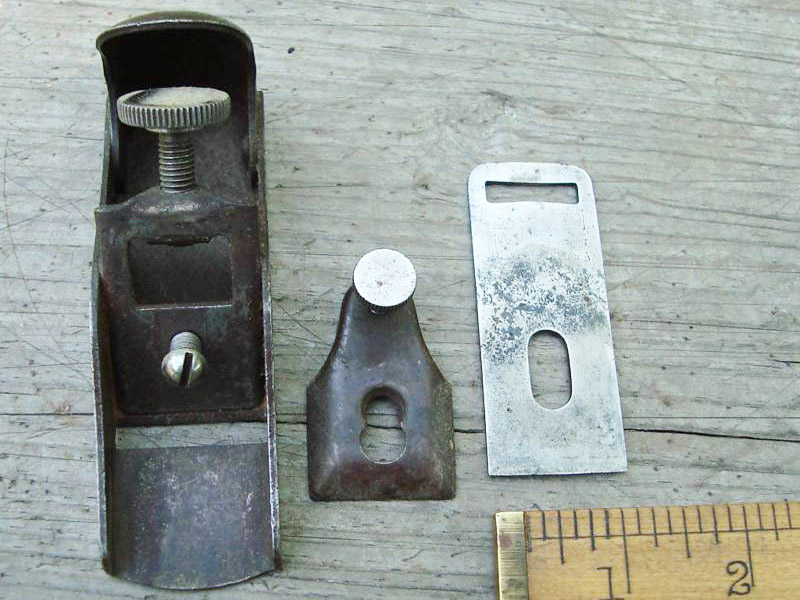

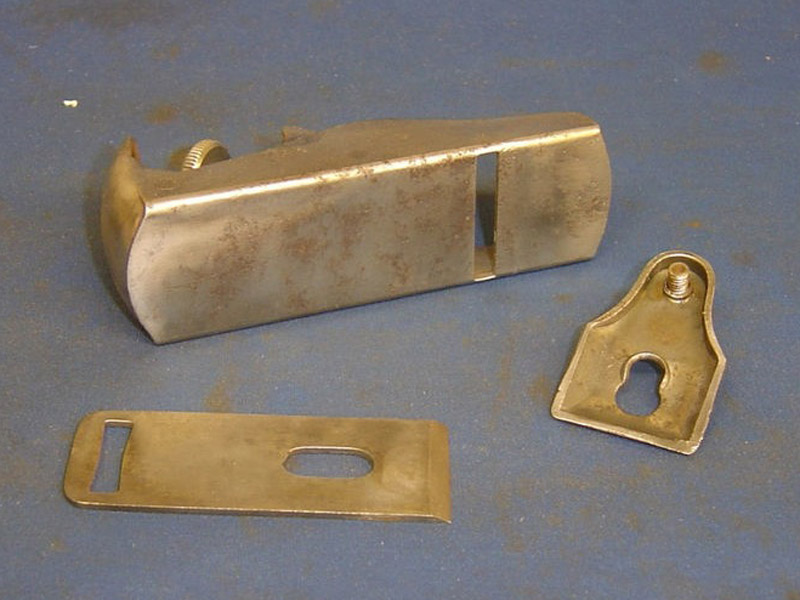

The clamp it especially powerful owing to the screw construction which takes the place of the cam generally used on Block Planes. This is indicated by the fact that is necessary to loosen the clamp screw before making the lateral or up and down adjustment.

Side Adjustment.
The side adjustment maybe made by moving the Cutter with the fingers.

Rapid Up and Down Adjustment.

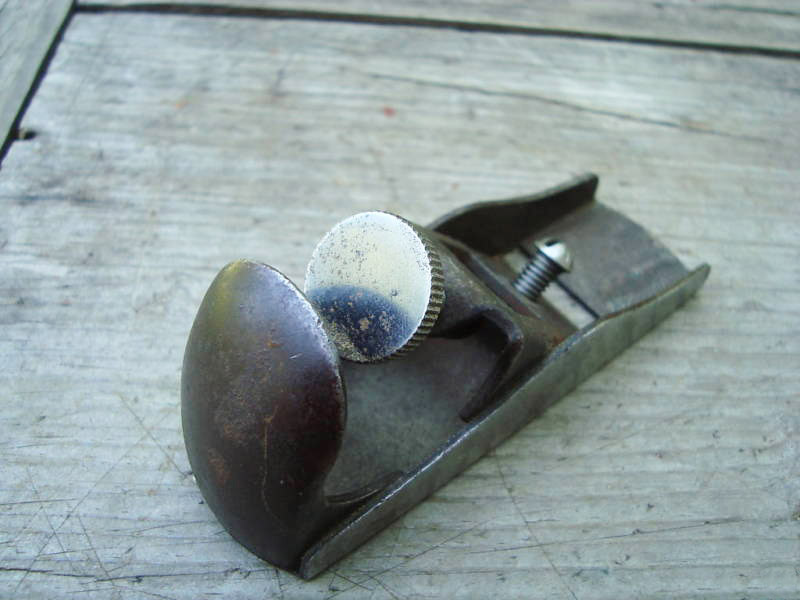

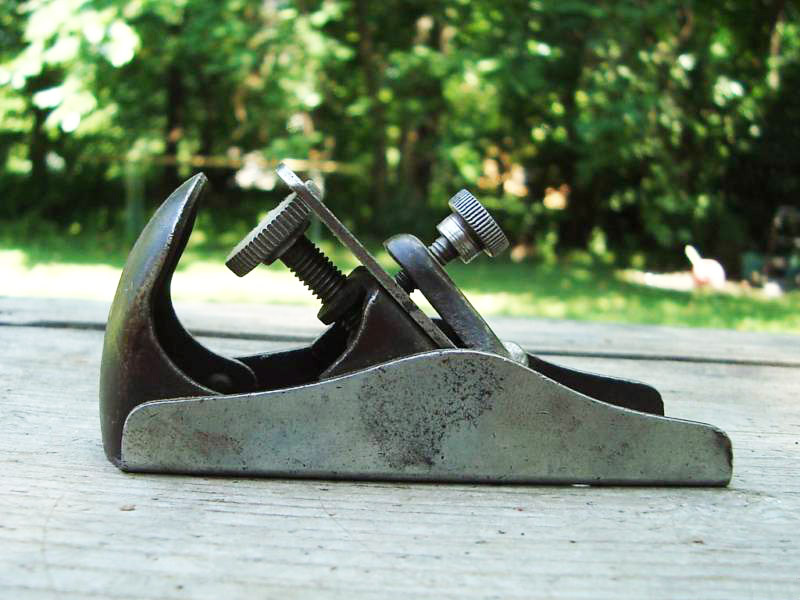

Rapid up and down adjustment obtained by the screw in the rear. On No. 5206 the head of this screw is made so as to serve as a handle.


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:All-Steel Block Plane
Features:Adjustable, All-Steel, Low Angle, with screw adjustment
Manufactured:From 1912 to 1943
Patents:January 23, 1917 (design of plane) (William E. Sparks)

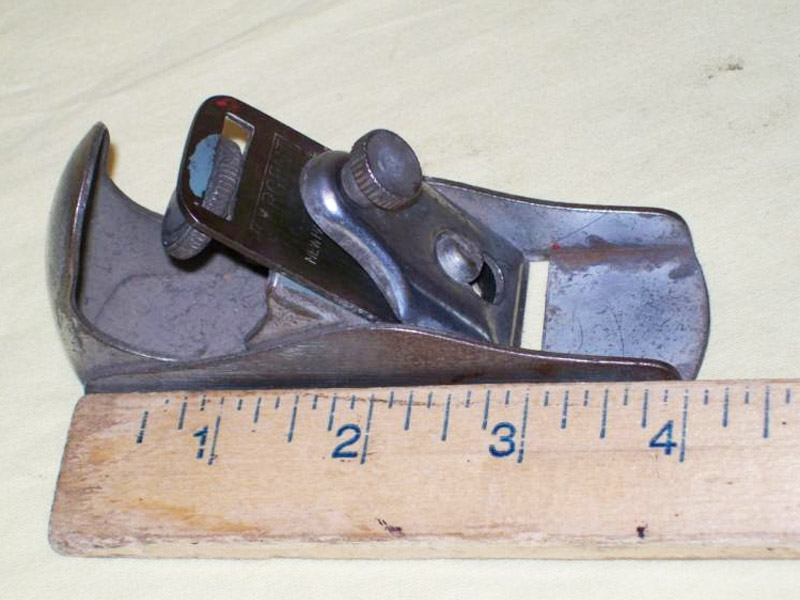

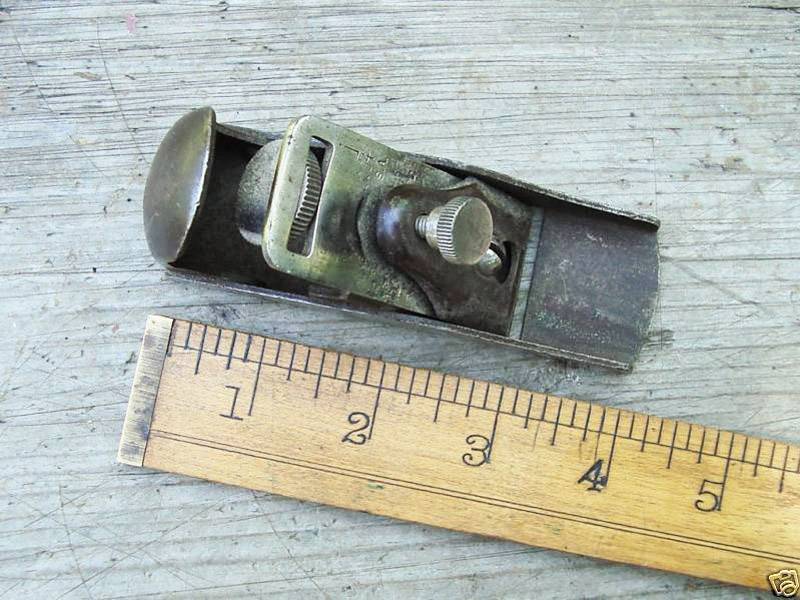

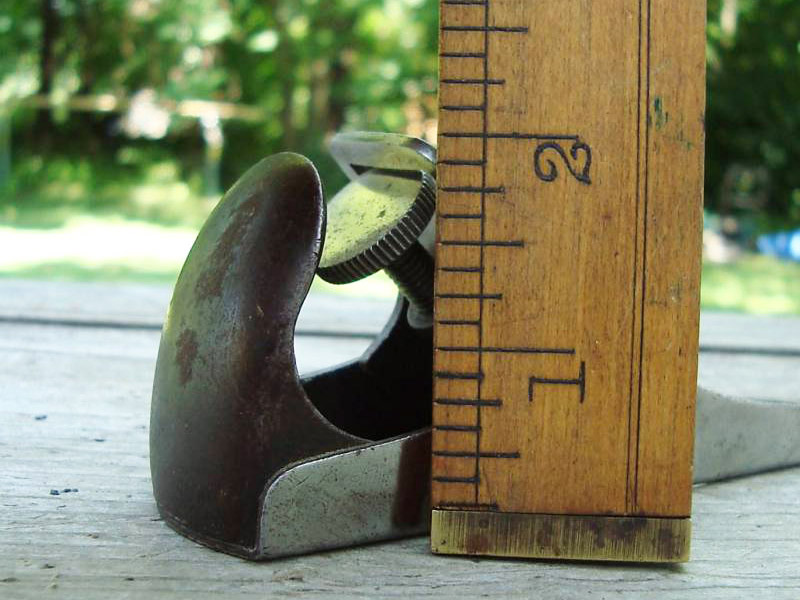

Length:4¼ inches
Cutter Width:1⅛ inches
Construction:Folded steel, spot welded
Finish:Highly Polished (1912 to 1941)
Cadmium Plated (1942 to 1943)
Uses:General purpose block plane

Please check the Value Guide For Sargent Planes page for relative prices.
