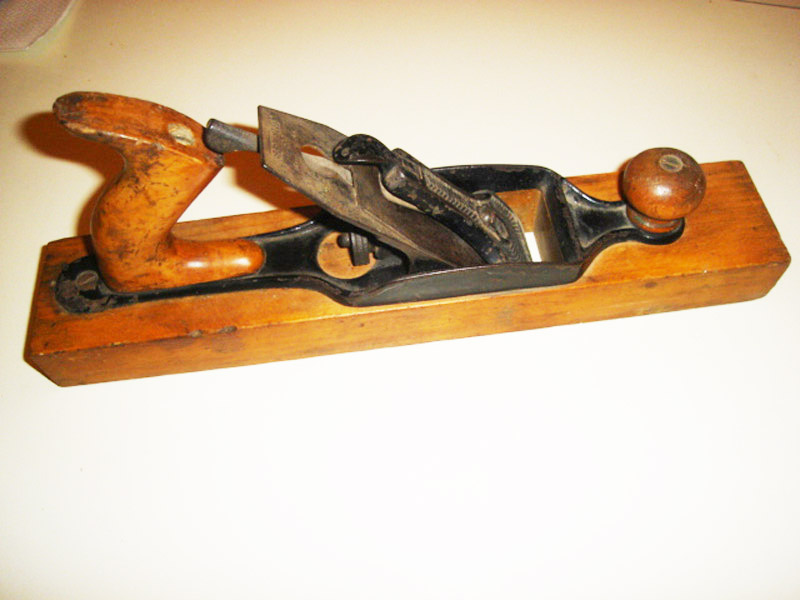

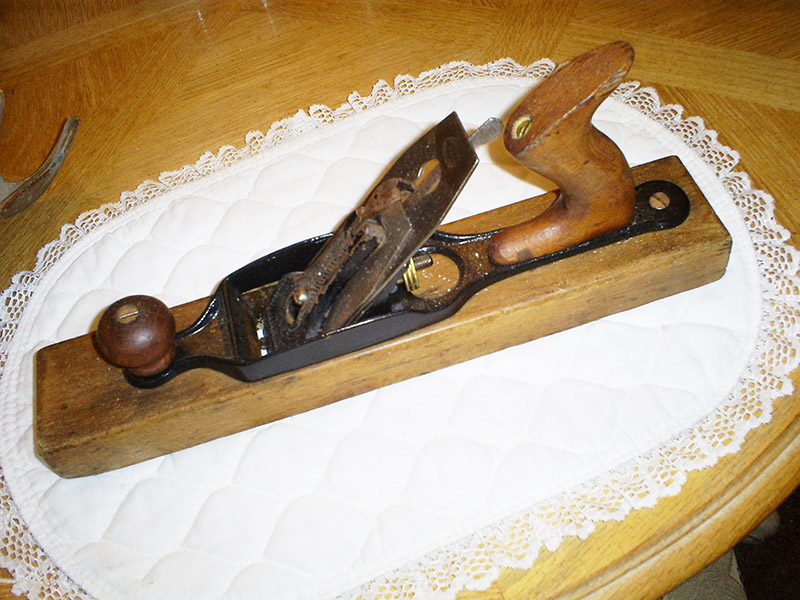

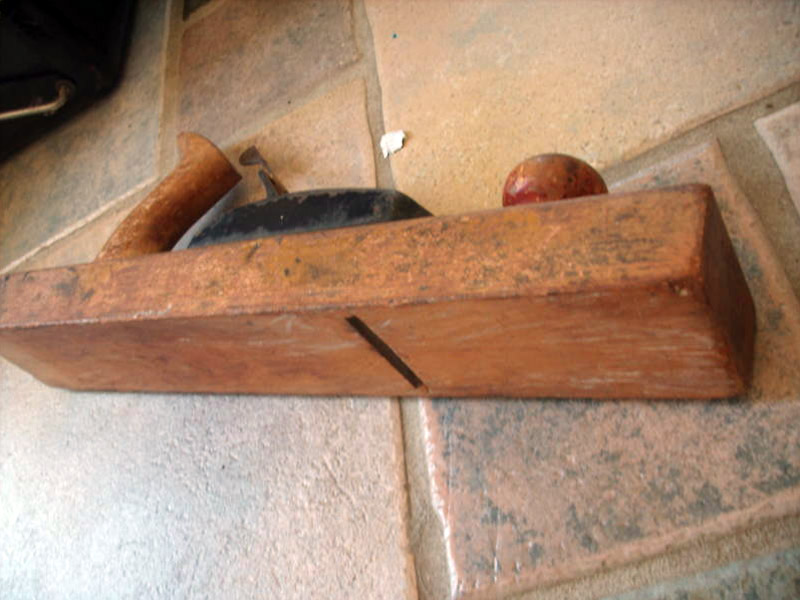

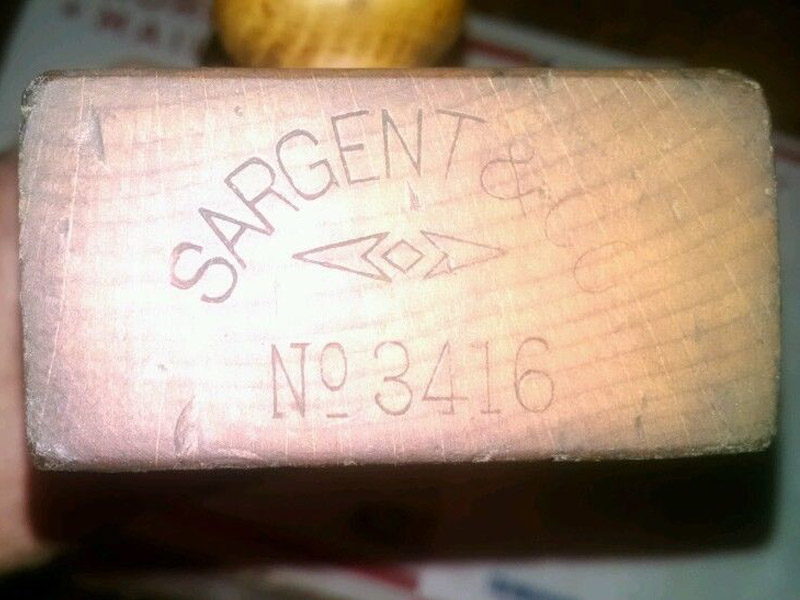

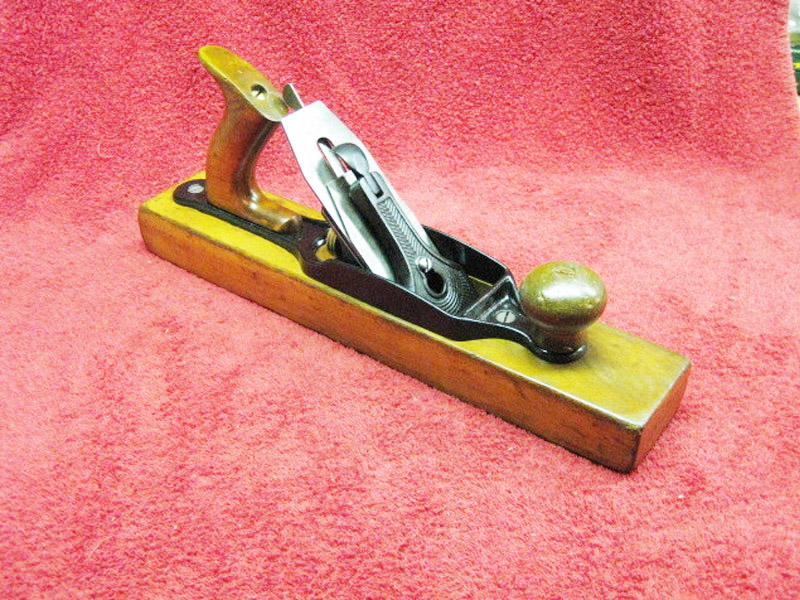

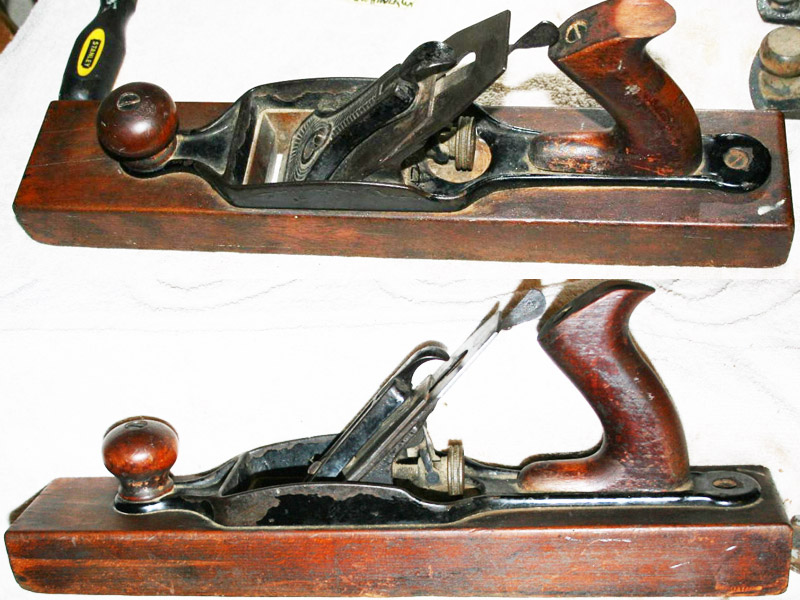

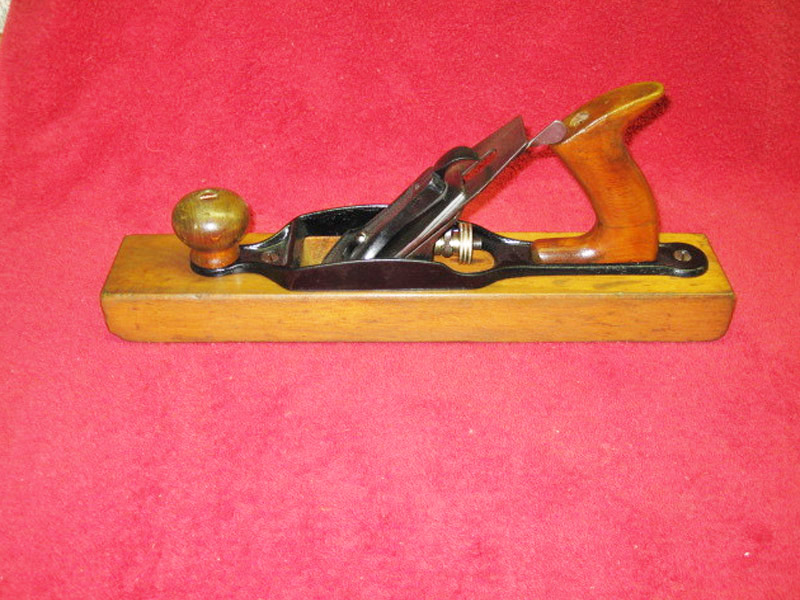

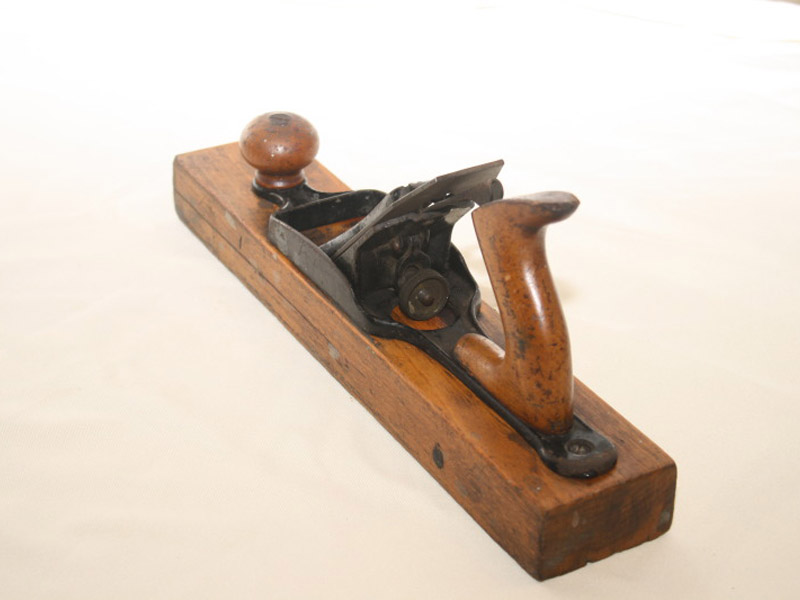

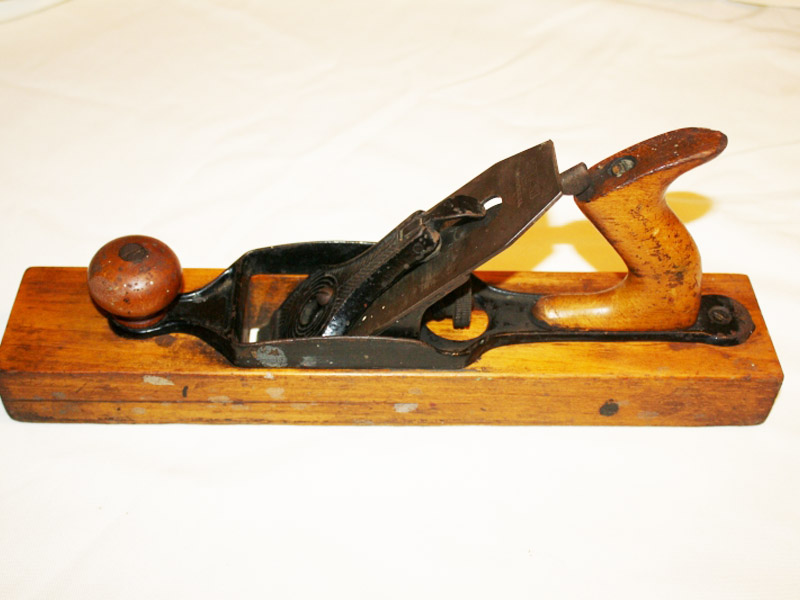

Sargent No. 3416 Wood-Bottom Jack Plane

Sargent No 3416 Wood-Bottom Jack Plane
Sargent No. 3416 Wood-Bottom Jack Plane

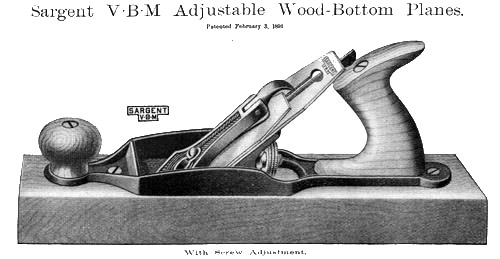

as illustrated in the Sargent catalog of 1911.

Sargent V.B.M Adjustable Wood-Bottom Planes.

Patented February 3, 1891.

With Screw Adjustment.
With Patent Side Adjustment for exact
adjusting of the Cutter with the face of the Plane.

No. 3416, Jack, 15 Inches, 2⅛ Inch Cutter,      .     .     .     each, net $1 80


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Jack Plane
Features:Adjustable, with screw adjustment for cutter. Wood bottom
Manufactured:From 1891 to 1918
Patents:February 3, 1891 (Horseshoe lateral adjustment) (Granville H. Wright)
February 3, 1891 (Second lateral adjustment) (Granville H. Wright)
Length:15 inches
Cutter Width:2⅛ inches

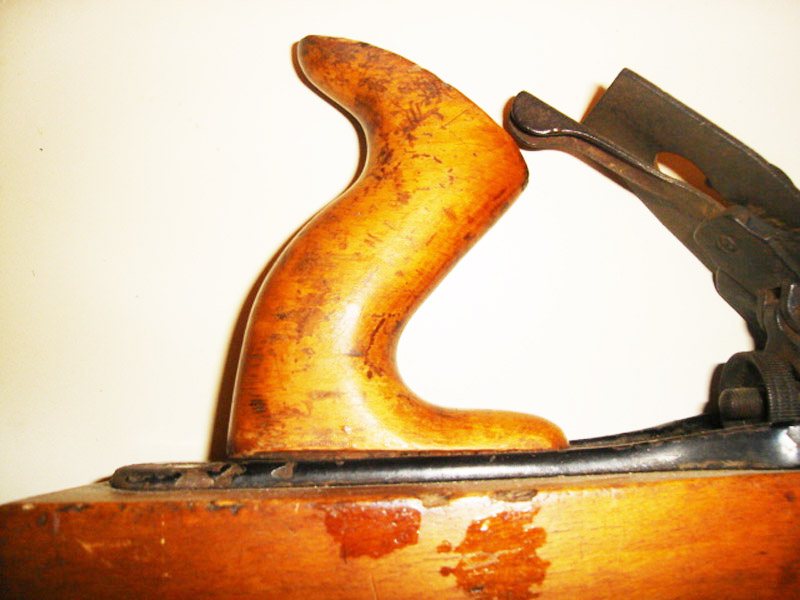

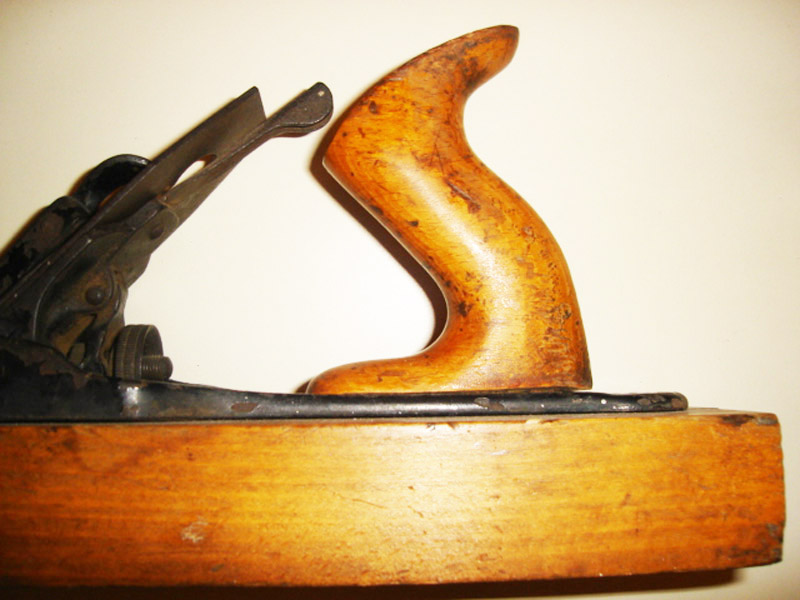

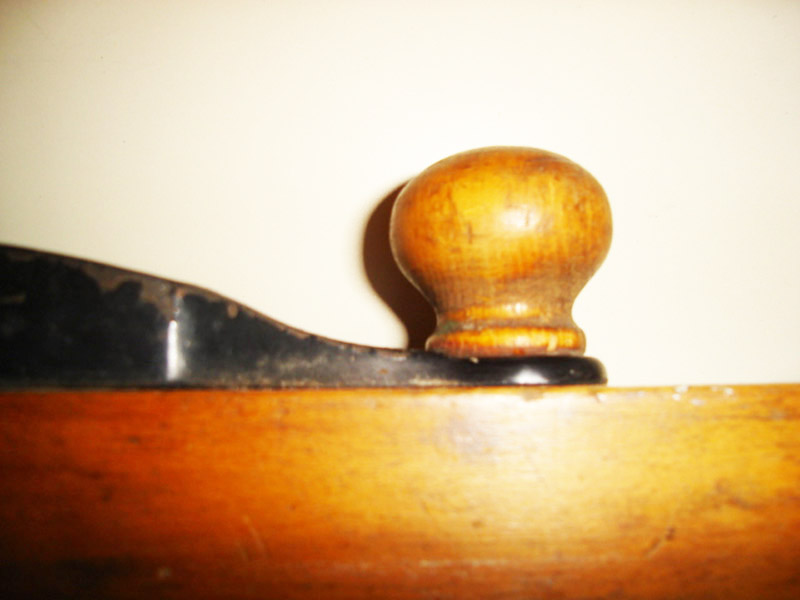

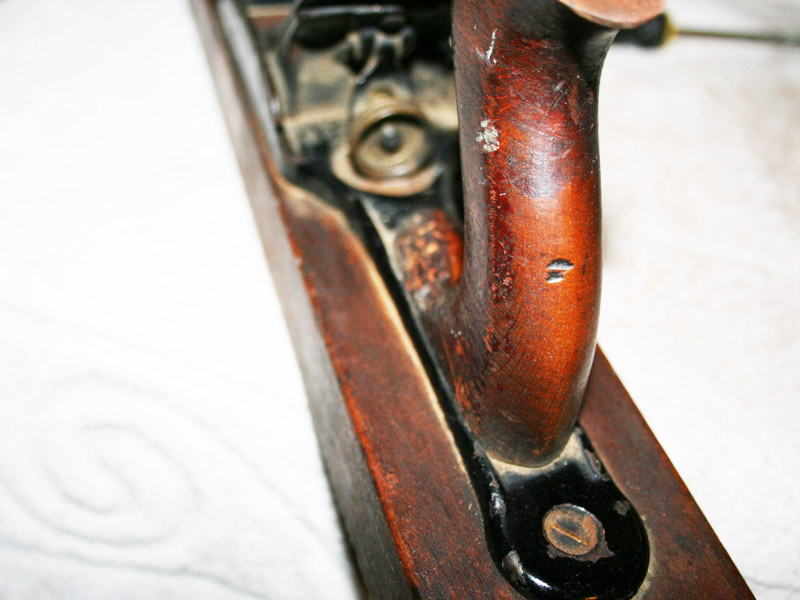

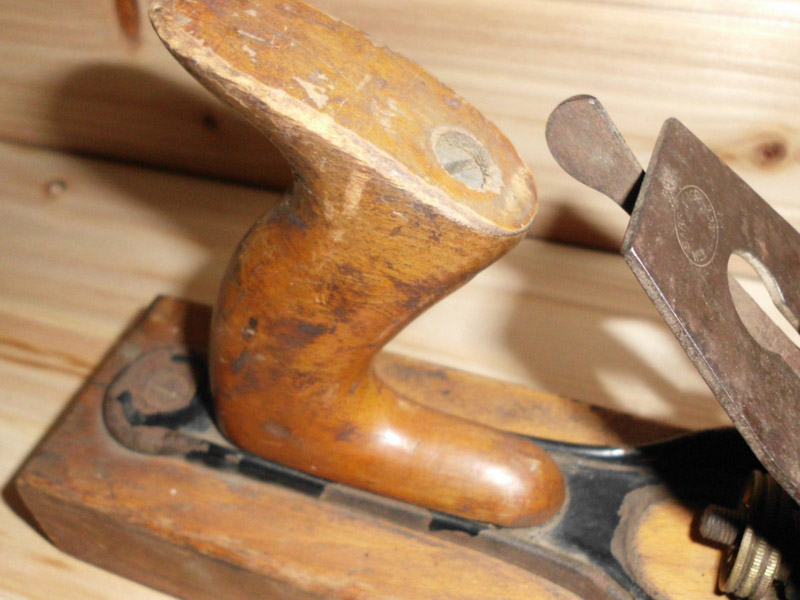

Construction:Cast iron top casting. Beech body, handle & knob
Finish:Japanned castings. Shellacked wooden parts
Type 11891 to 1901. See “Additional Notes” below
Uses:General purpose bench plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

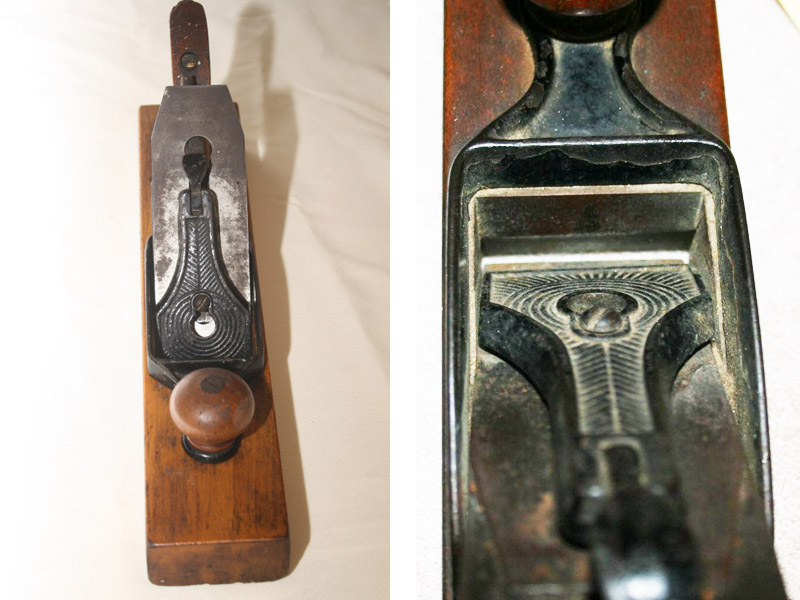

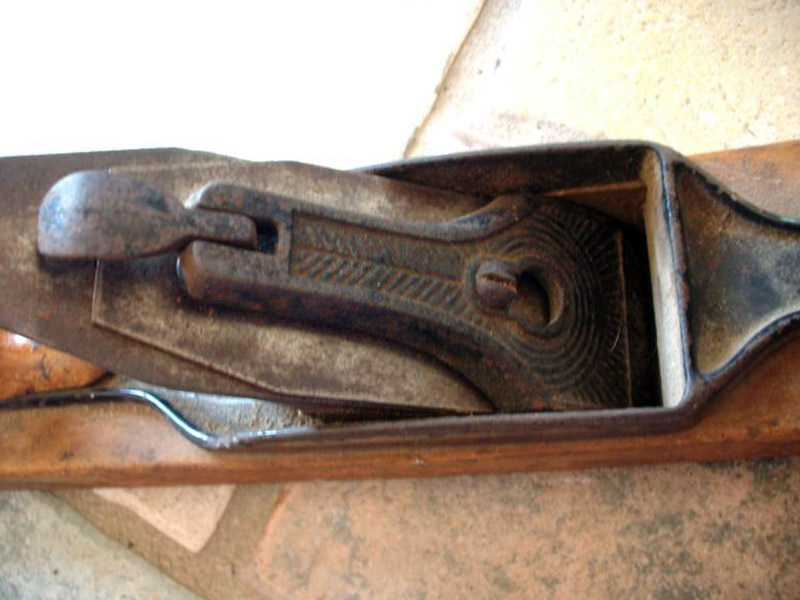

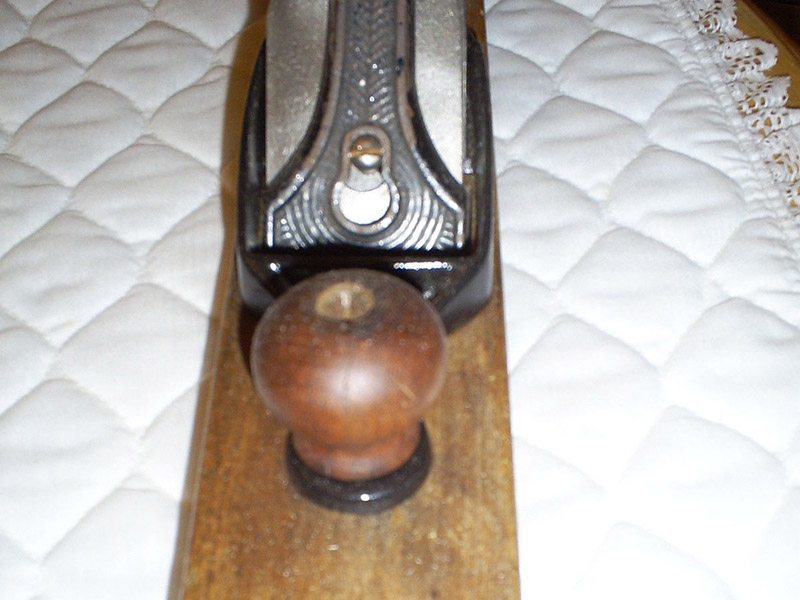

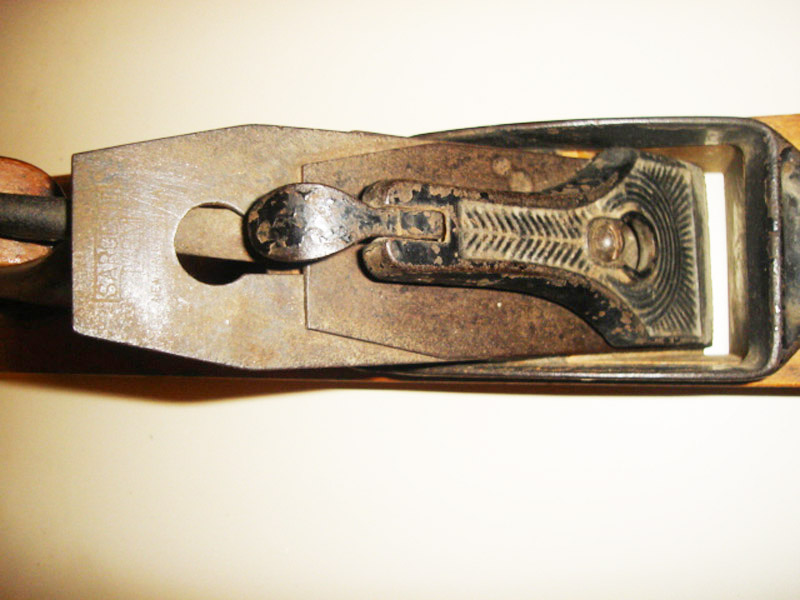

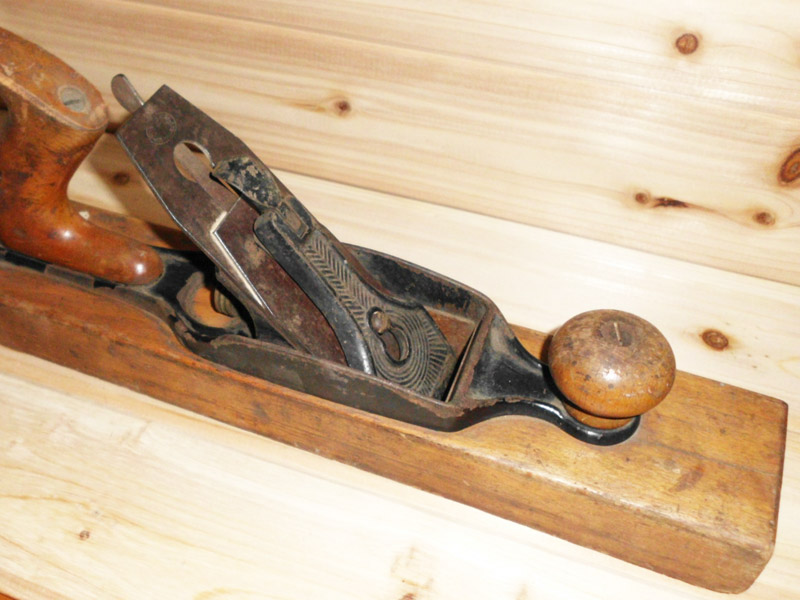

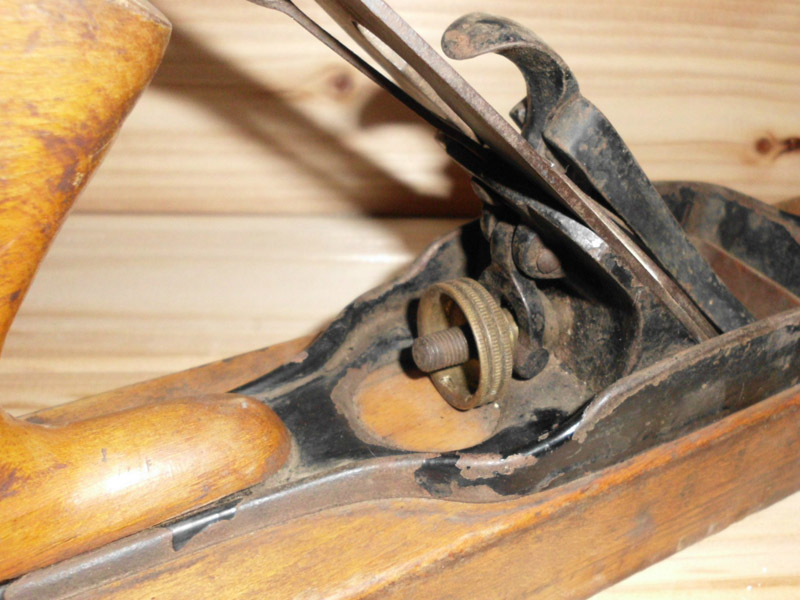

The #3000 series of transitional bench planes have either the first style Horseshoe shaped pivot lateral lever (Type 1) or the Second lateral riveted lever, depending on age. The lever caps feature a very distinctive arrow feather pattern.
