Sargent No. 5409 Smooth Plane

Sargent No 5409 Smooth Plane
Sargent No. 5000 Series Corrugated Iron Plane
as illustrated in a 1907 update to the 1901 Catalog.

Sargent’s Adjustable Iron Planes — Corrugated Bottoms.

PATENTED FEBRUARY 3, 1891.

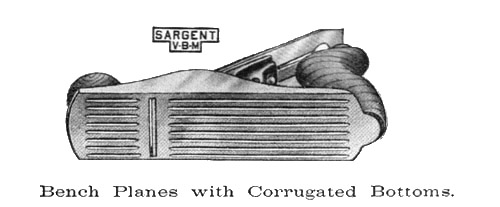

Bench Planes with Corrugated Bottoms.

Polished Trimmings, Rosewood Handle and Knob.
With Patent Side Adjustment for exact
adjusting of the Cutter with the face of the Plane.

No. 5409, Smooth, 9 Inches, 2 Inch Cutter,      .     .     .     each, net $3 25


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Smooth Plane
Features:Adjustable, with screw adjustment for cutter. Corrugated bottom
Manufactured:From 1907 to 1909
Patents:February 3, 1891 (Horseshoe lateral adjustment) (Granville H. Wright)
Length:9 inches
Cutter Width:2 inches
Construction:Cast iron body (thin body casting), Rosewood handle & knob
Finish:Japanned. Polished Trimmings
Uses:General purpose bench plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

This series of bench planes was short lived – lasting only three years before being “re-assigned” with new model numbers. They were essentially Series 400 planes with corrugated bottoms and were given the prefix of “5” to denote a different model number. This number was only a catalog number and it did not appear anywhere on the plane or cutter.

These planes have a thin body casting and a two-piece brass cutter adjustment nut with a steel insert. When first introduced into the Sargent range the No. 5000 series planes cost considerably more than their equivalent-sized No. 400 Series cousins.
