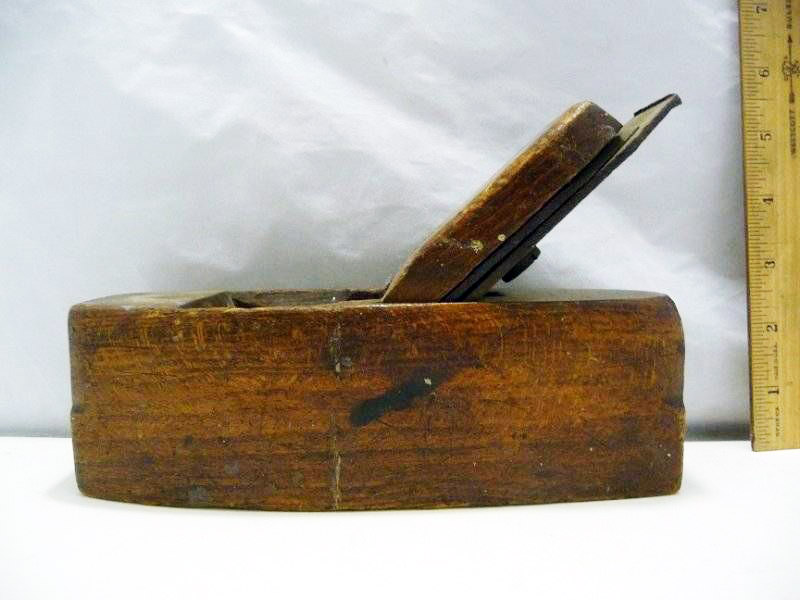

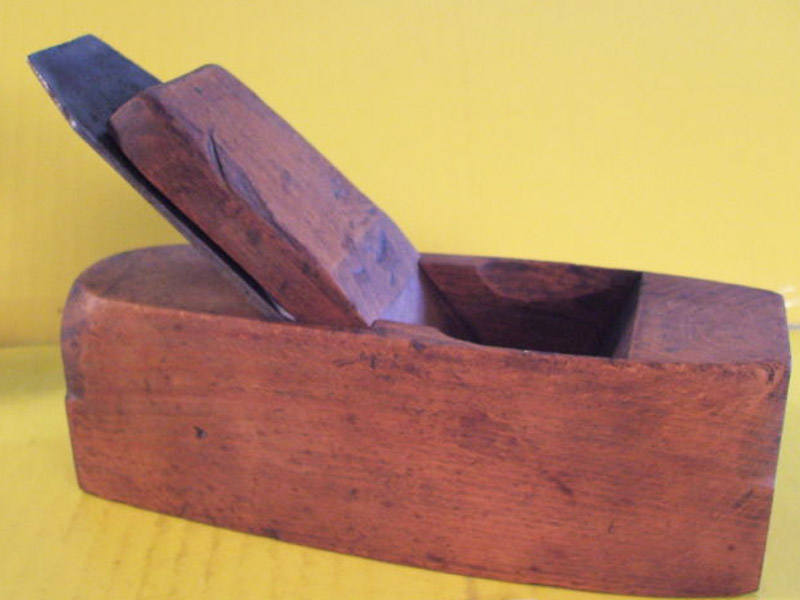

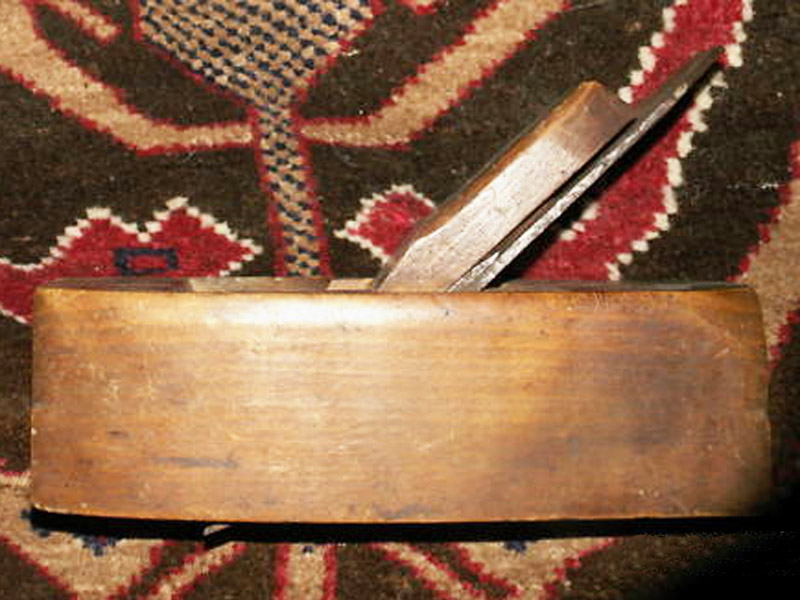

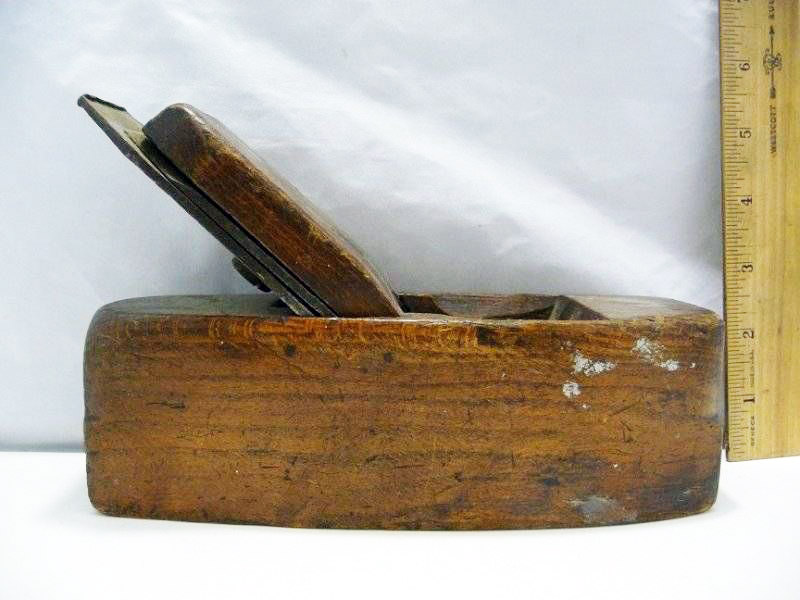

Sargent No. 612 “U. S.” Smooth Plane

Sargent No 612 U. S. Smooth Plane

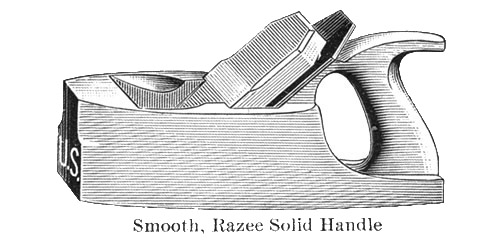

Sargent No. 612 “U. S.” Smooth Plane

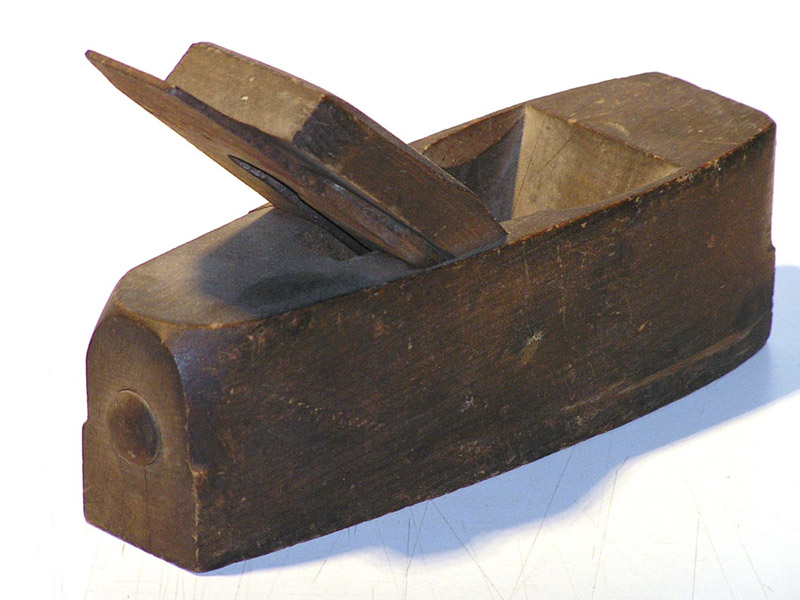

as illustrated in the Sargent catalog of 1911.

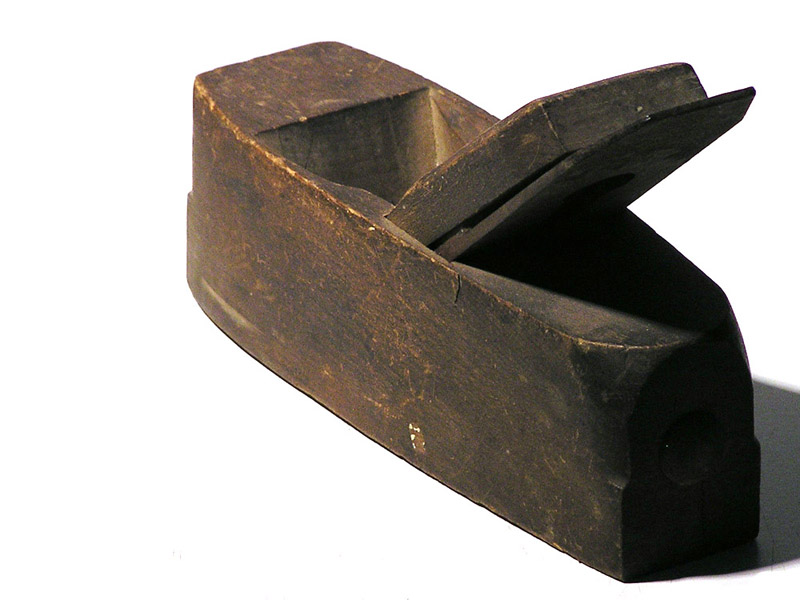

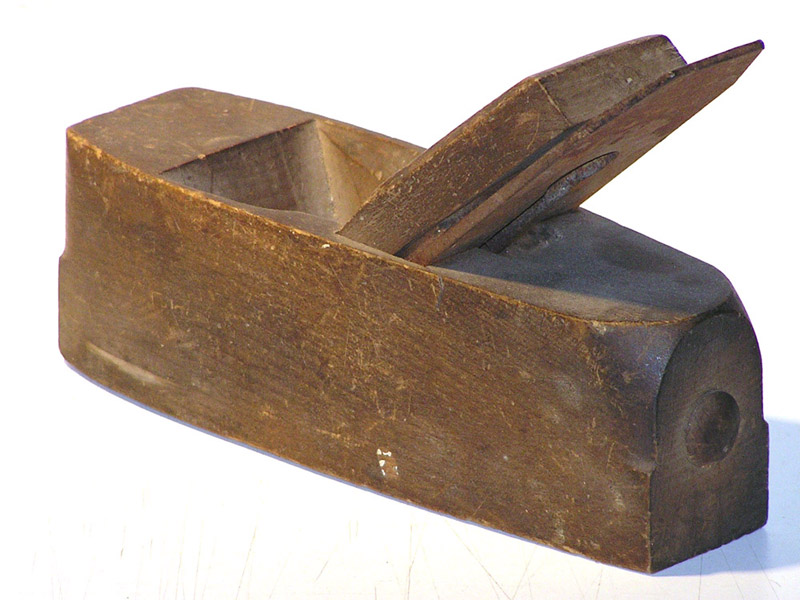

(Razee Model 612½ shown).

Sargent & Co.’s “U. S.” Bench Planes — Warranted.

No. 612, Smooth, Double Irons, 1¾, 1⅞, 2, 2⅛, 2¼ Inch Iron, Length 8 Inches    each $1 30


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Smooth Plane

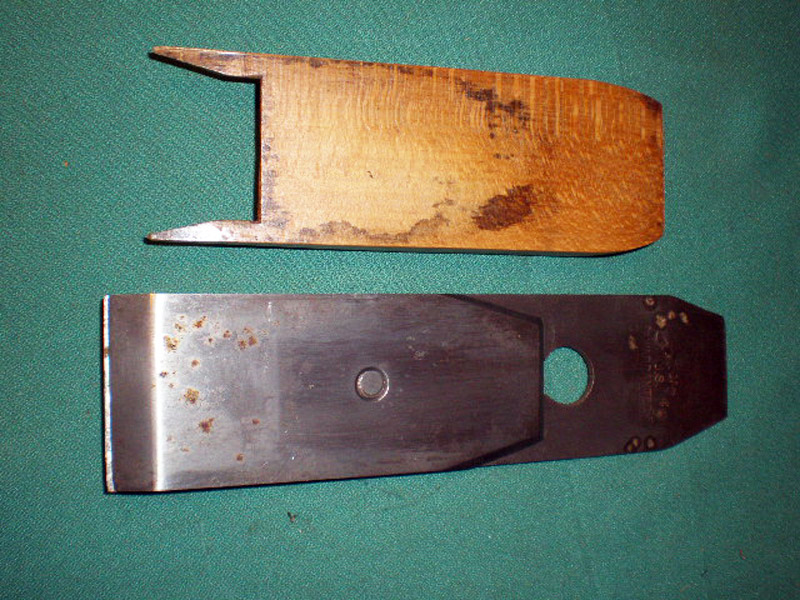

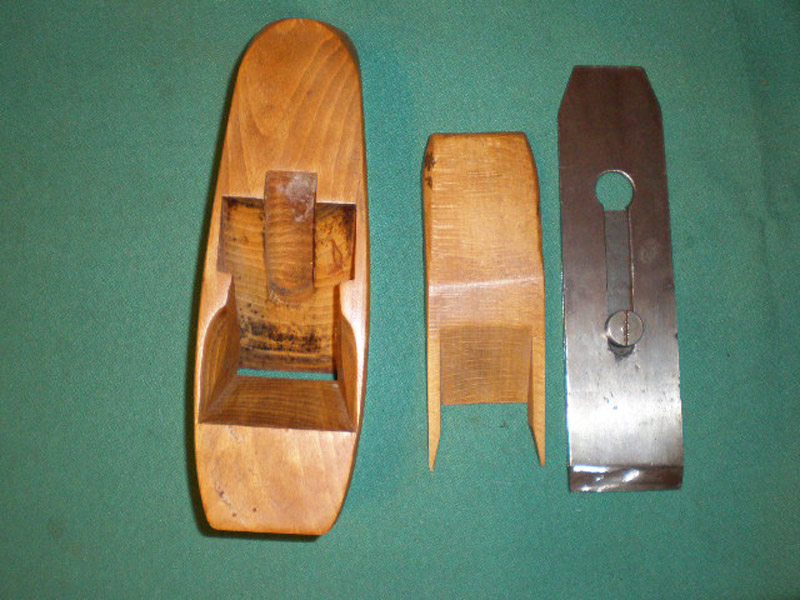

Features:Double irons
Manufactured:Mid 1880’s to mid 1920’s
Length:8 inches
Cutter Width:1¾, 1⅞, 2, 2⅛ or 2¼ inches
Construction:Beech
Finish:Either shellac, wax or no finish, depending on era.
Uses:General purpose bench plane

Additional Notes:

Most, if not all, wooden planes were made for Sargent by the Sandusky Tool Company of Sandusky, Ohio. The precise dating of the wooden planes sold by Sargent is not known.

For additional information, please check out the Comparative List Of Sargent Wooden Planes page to view model numbers with other manufacturers.

Please check the Value Guide For Sargent Planes page for relative prices.
