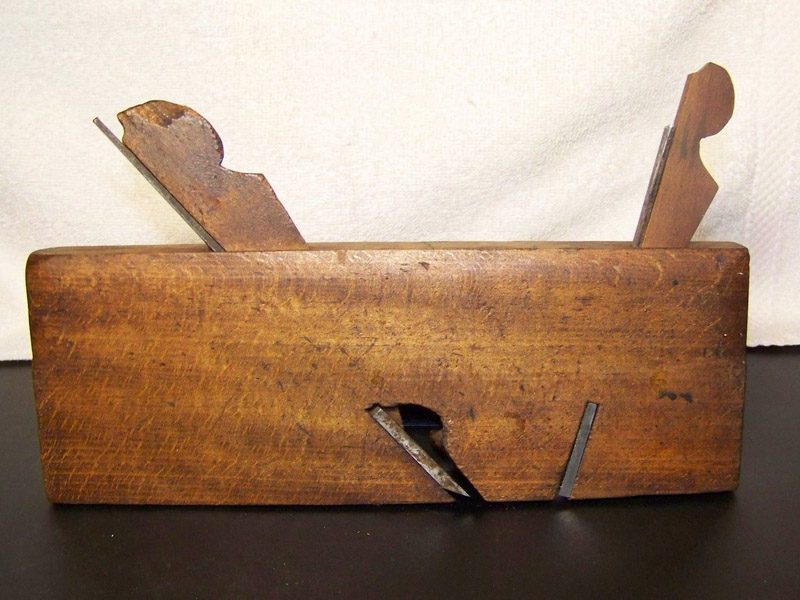

Sargent No. 638 “U. S.” Dado Plane

Sargent No 638 US Dado Plane

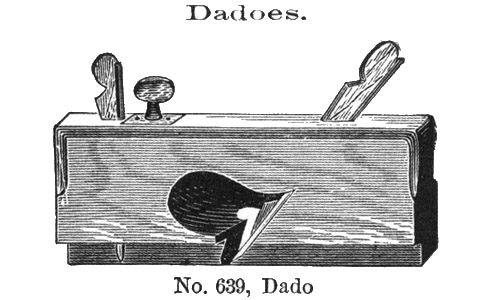

Sargent “U. S.” Dado Plane
as illustrated in the Sargent catalog of 1911.

“U. S.” Miscellaneous Planes.

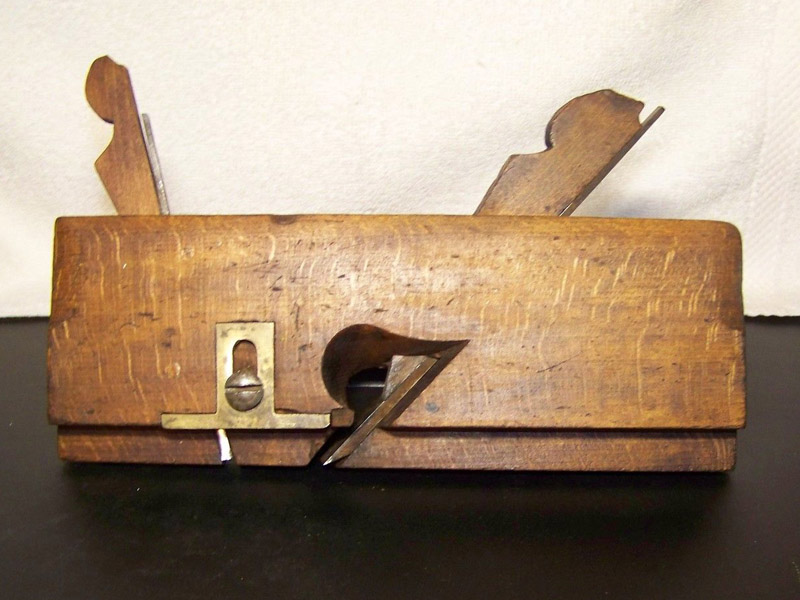

No. 638, Dado Plane, Brass Side Stop.

Inch3-161-45-163-81-25-83-47-81
Each$1 65$1 70$1 75$1 80$1 85$1 90$1 95$2 00$2 05


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Dado Plane
Features:Brass side stop
Manufactured:Mid 1880’s to mid 1920’s
Length:9½ inches
Cutter Width: inches
Construction:Beech
Finish:Either shellac, wax or no finish, depending on era.
Uses:General purpose dado plane

Additional Notes:

Most, if not all, wooden planes were made for Sargent by the Sandusky Tool Company of Sandusky, Ohio. The precise dating of the wooden planes sold by Sargent is not known.

For additional information, please check out the Comparative List Of Sargent Wooden Planes page to view model numbers with other manufacturers.

Please check the Value Guide For Sargent Planes page for relative prices.
