Sargent No. 707 “U. S.” Reverse Ogee Square Plane

Sargent No 707 US Reverse Ogee Plane

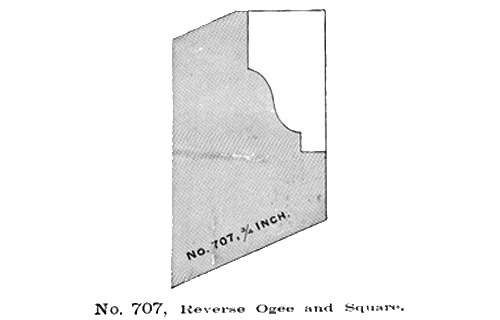

Cutting Profile Of The Sargent No. 704 US Reverse Ogee Plane
as illustrated in the Sargent catalog of 1911.

“U. S.” Moulding Planes.

No. 707, Reverse Ogee and Square.

Inch1-25-83-47-812
Each$1 15$1 20$1 25$1 30$1 35$1 45$1 50$1 60$1 65

Size given is the width of the tool works.


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Reverse Ogee Plane
Manufactured:Mid 1880’s to mid 1920’s
Length:9½ inches
Cutter Width:Various (see above)
Construction:Beech
Finish:Either shellac, wax or no finish, depending on era.
Uses:General purpose moulding plane

Additional Notes:

Most, if not all, wooden planes were made for Sargent by the Sandusky Tool Company of Sandusky, Ohio. The precise dating of the wooden planes sold by Sargent is not known.

For additional information, please check out the Comparative List Of Sargent Wooden Planes page to view model numbers with other manufacturers.

Please check the Value Guide For Sargent Planes page for relative prices.
