Sargent No. 717½ “U. S.” Quarter Round Casing Plane

Sargent No 717-1/2 US Quarter Round Plane

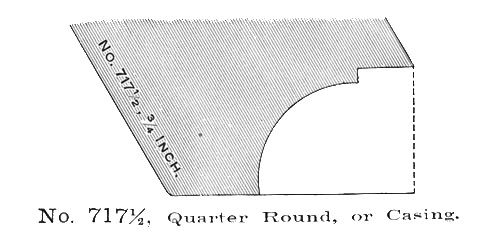

Cutting Profile Of The Sargent No. 717½ US Quarter Round Plane
as illustrated in the Sargent catalog of 1911.

“U. S.” Moulding Planes.

No. 717½, Quarter Round, or Casing.

Inch3-81-25-83-47-81
Each$0 75$0 80$0 85$0 95$1 00$1 05$1 15

Size given is the width of the tool works.


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Quarter Round Plane
Manufactured:Mid 1880’s to mid 1920’s
Length:9½ inches
Cutter Width:Various (see above)
Construction:Beech
Finish:Either shellac, wax or no finish, depending on era.
Uses:General purpose moulding plane

Additional Notes:

Most, if not all, wooden planes were made for Sargent by the Sandusky Tool Company of Sandusky, Ohio. The precise dating of the wooden planes sold by Sargent is not known.

For additional information, please check out the Comparative List Of Sargent Wooden Planes page to view model numbers with other manufacturers.

Please check the Value Guide For Sargent Planes page for relative prices.
