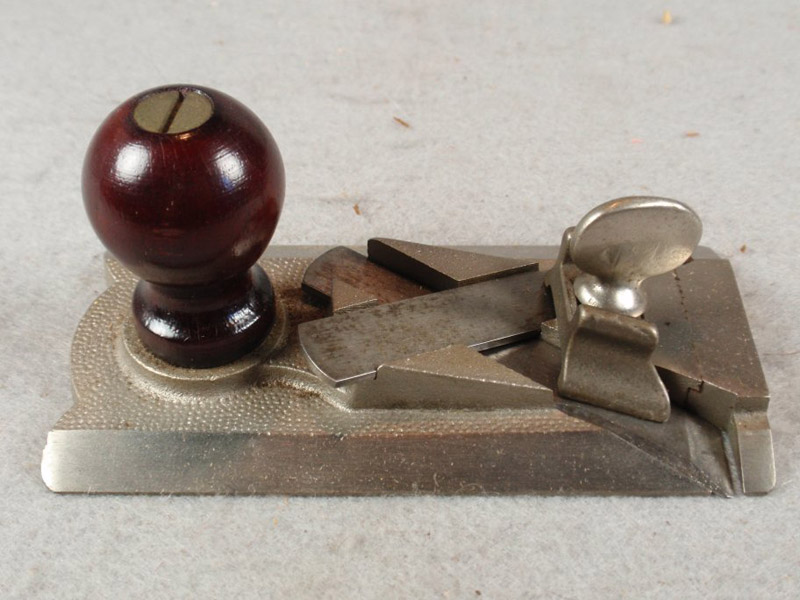

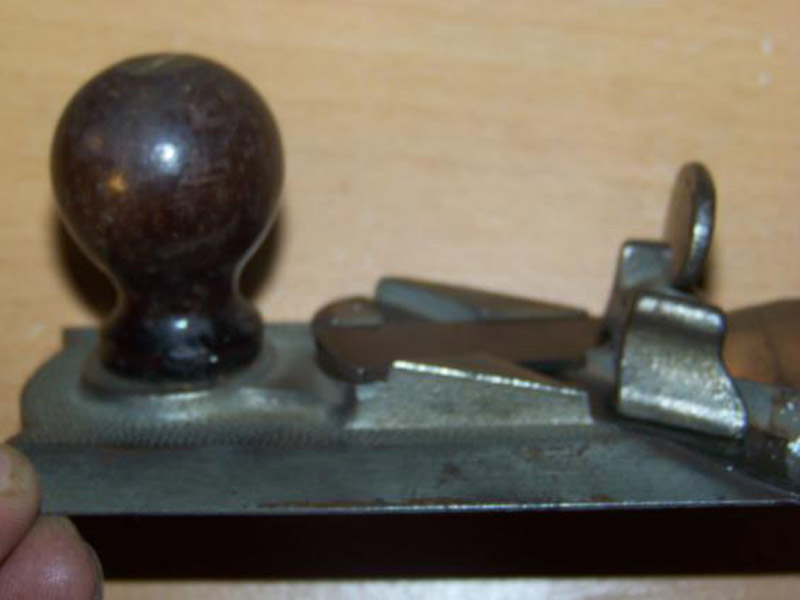

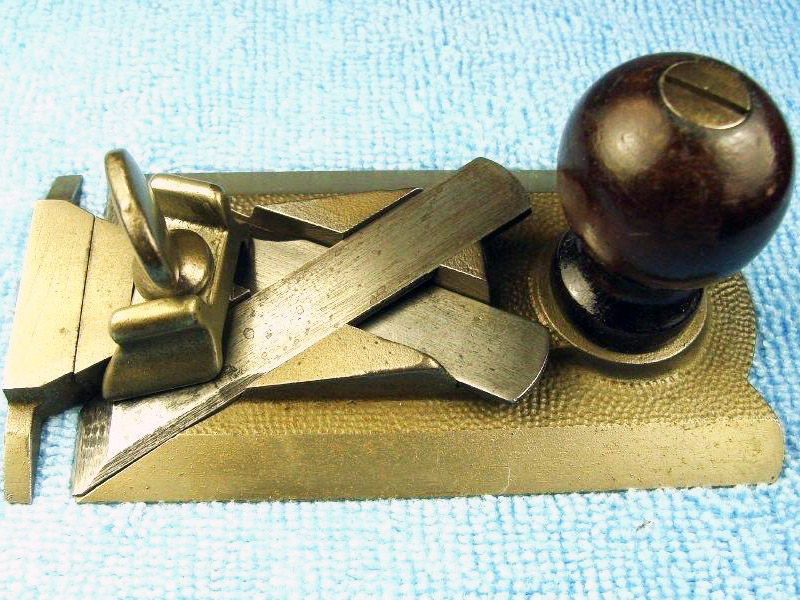

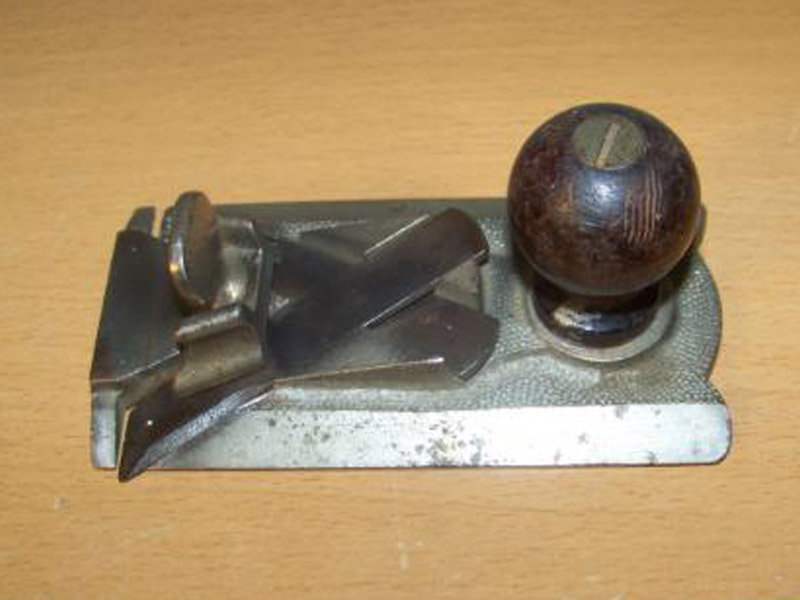

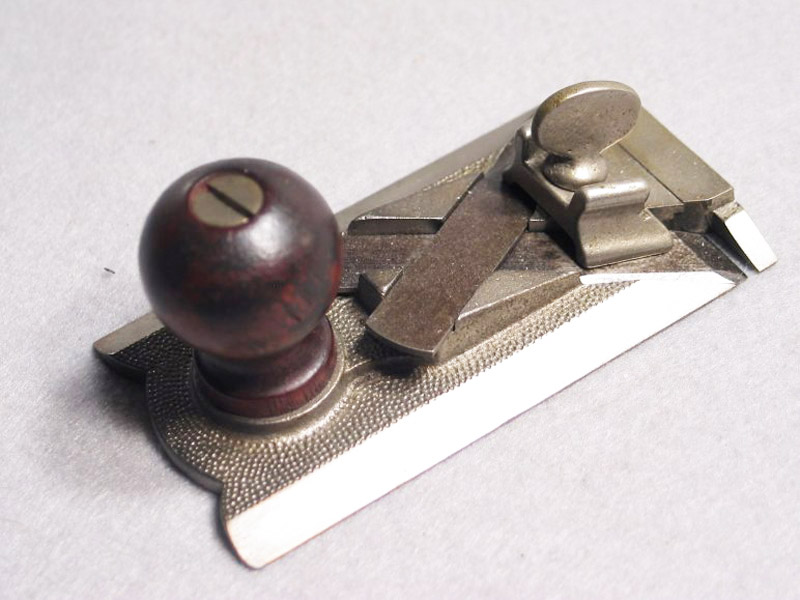

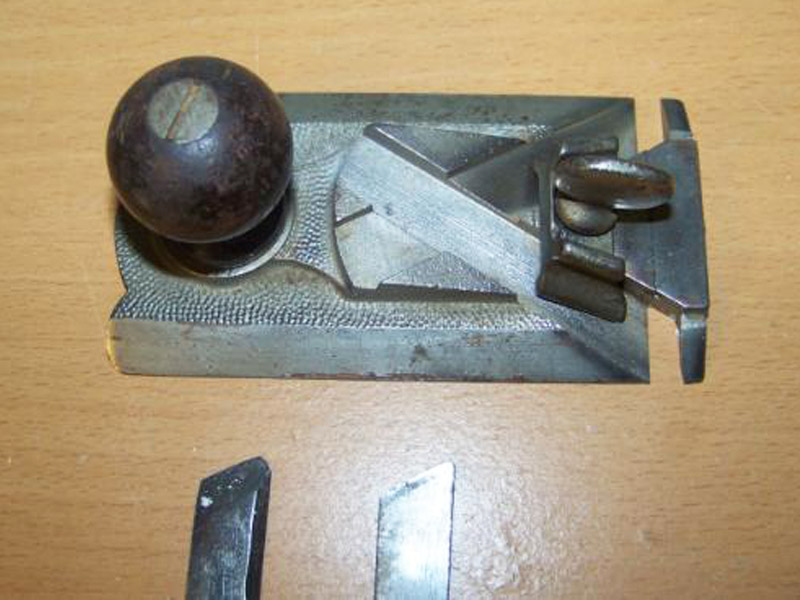

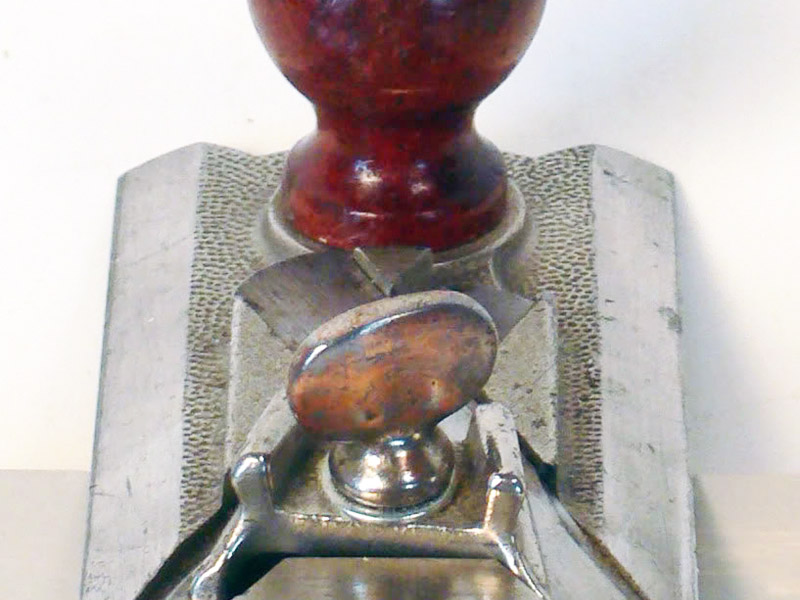

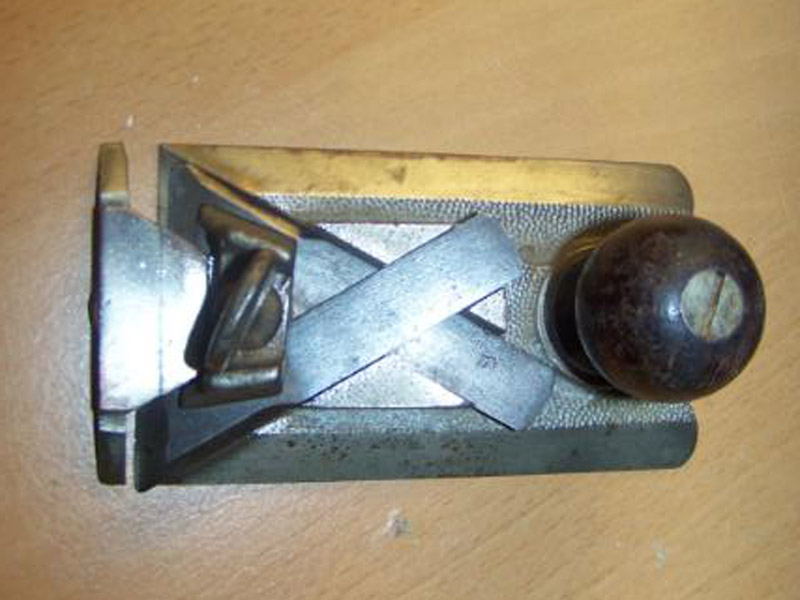

Sargent No. 81 Side Rabbet Plane

Sargent No. 81 Side Rabbet Plane
Sargent No. 81 Side Rabbet Plane

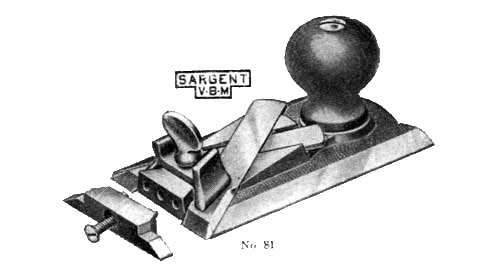

as illustrated in the 1912 update of the 1911 Sargent catalog.

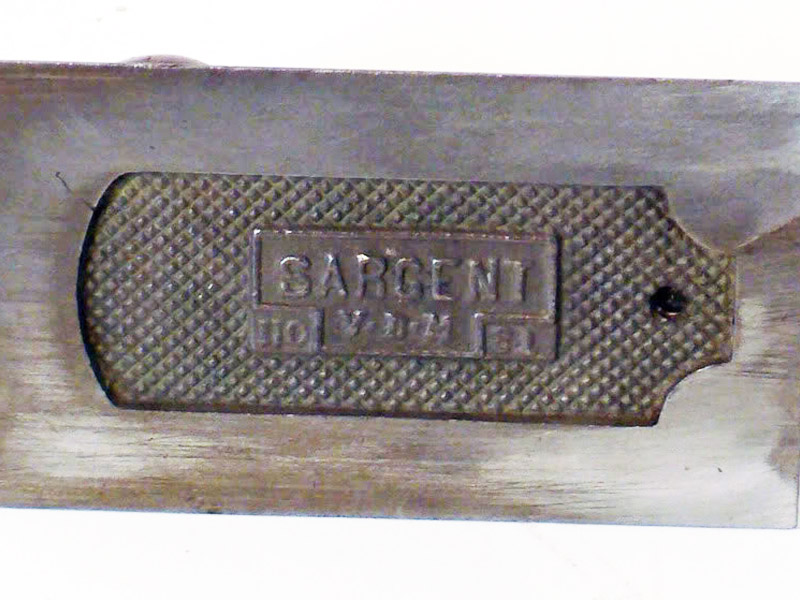

Sargent V.B.M Adjustable Iron Planes

Side Rabbet Planes

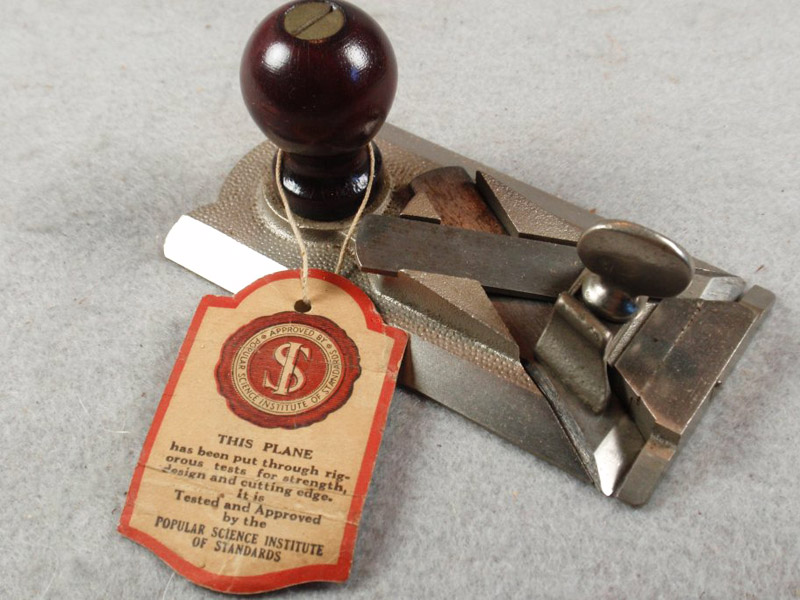

Nickel-Plated. East India Mahogany Knob.

No. 81, 4¼ Inches, Two ½ Inch Cutters,      .     .     .     .     .     each, $1 90

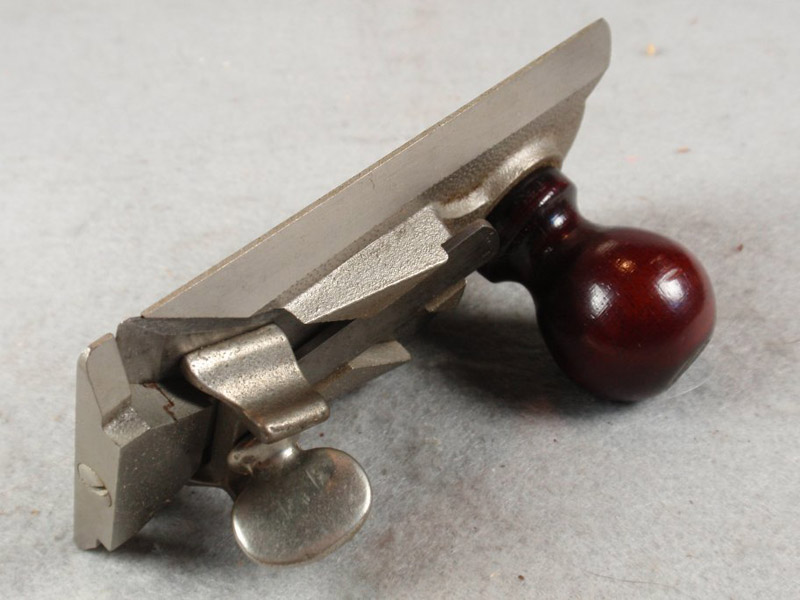

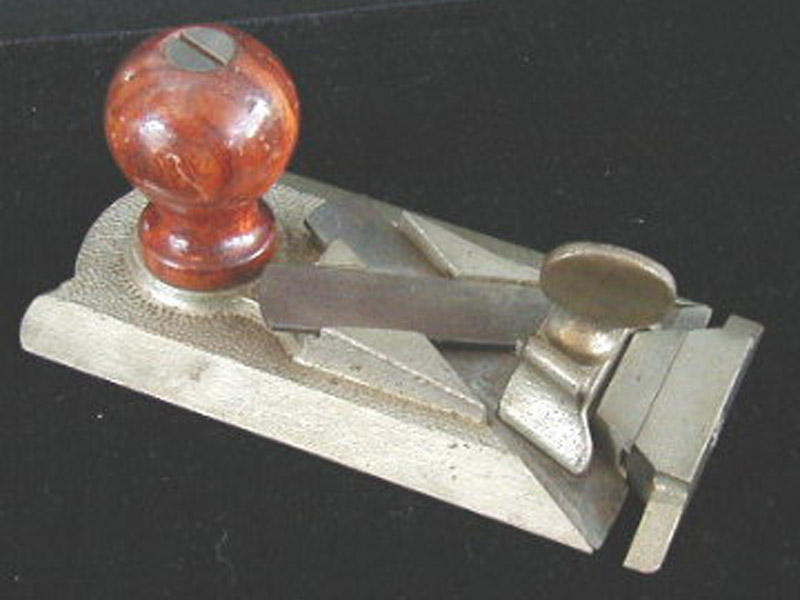

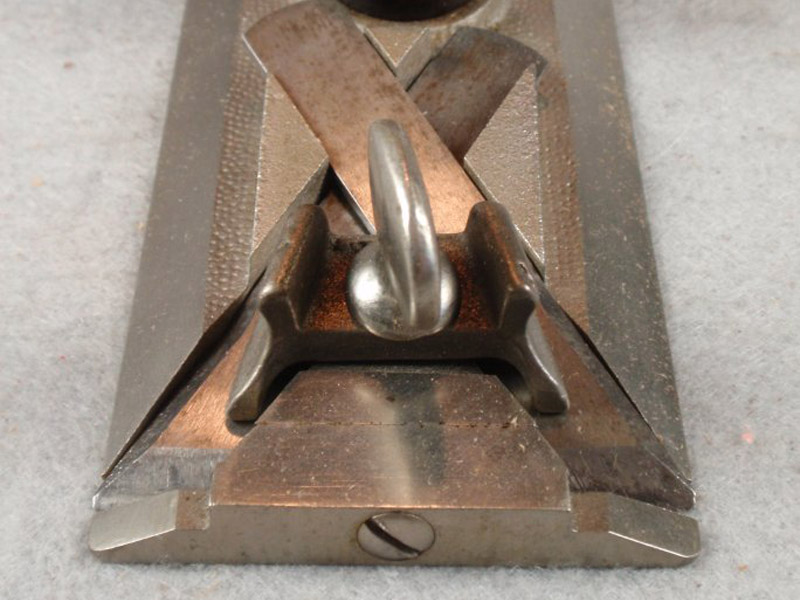

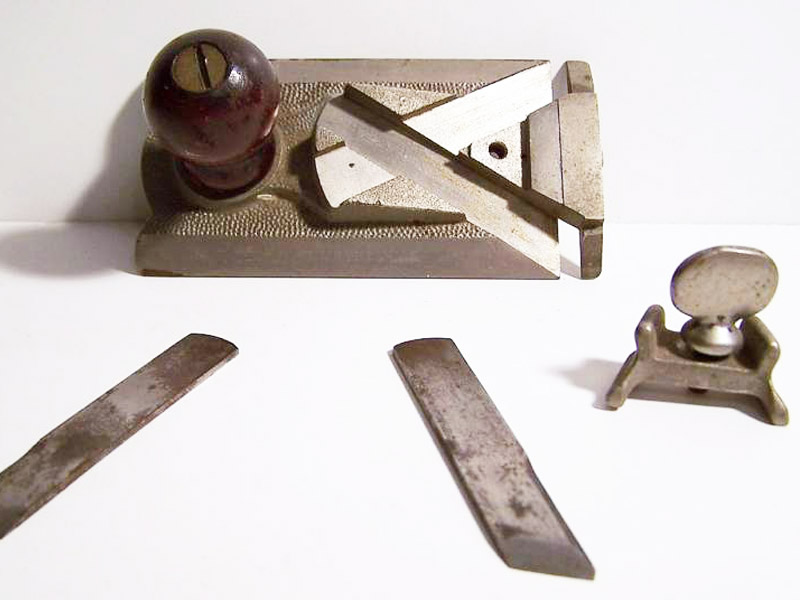

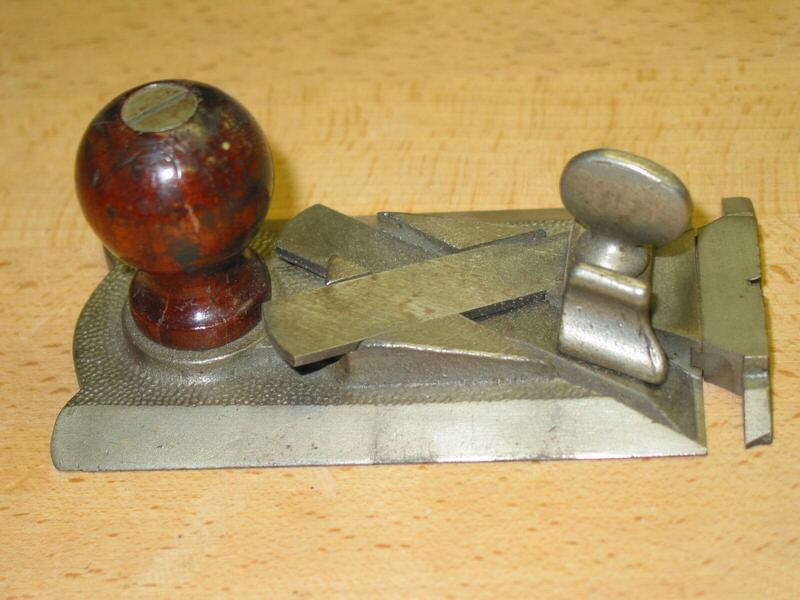

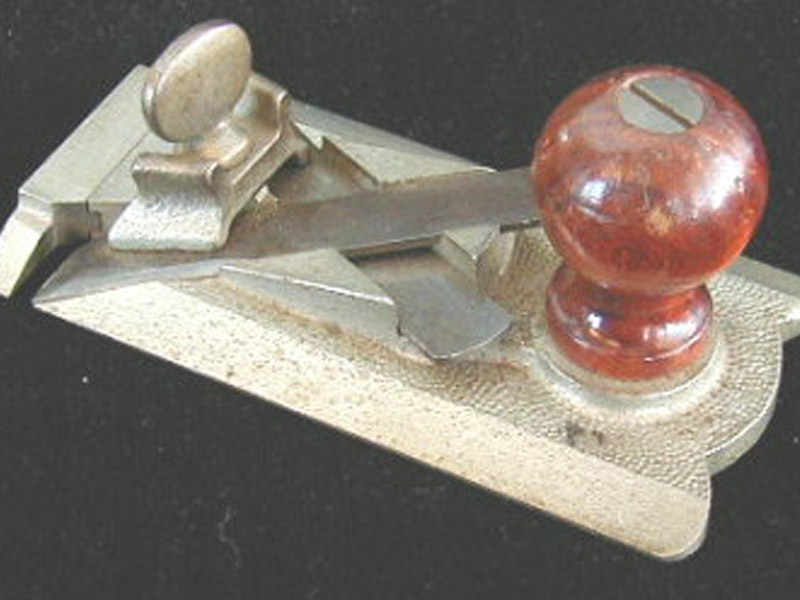

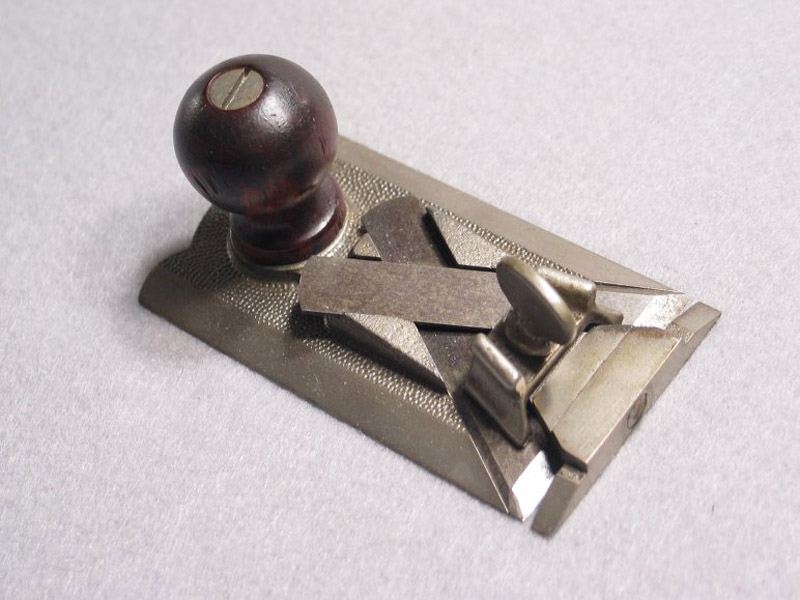

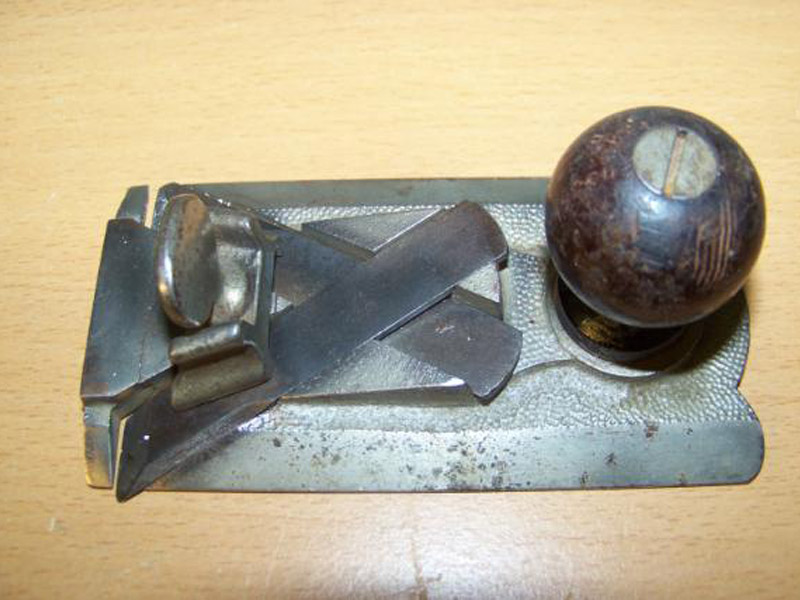

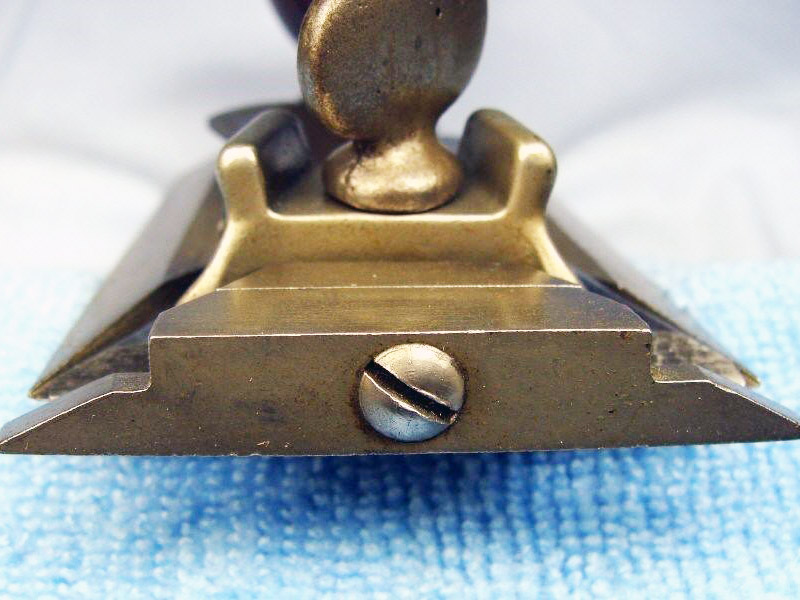

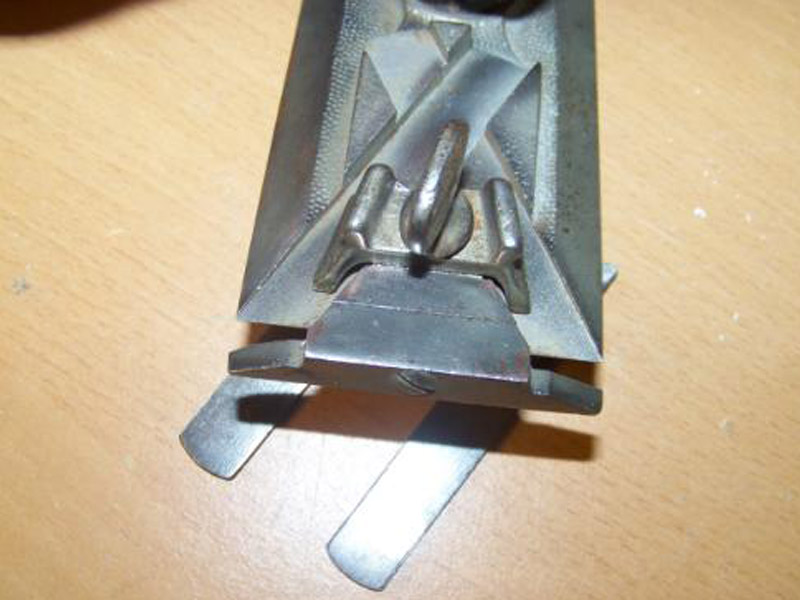

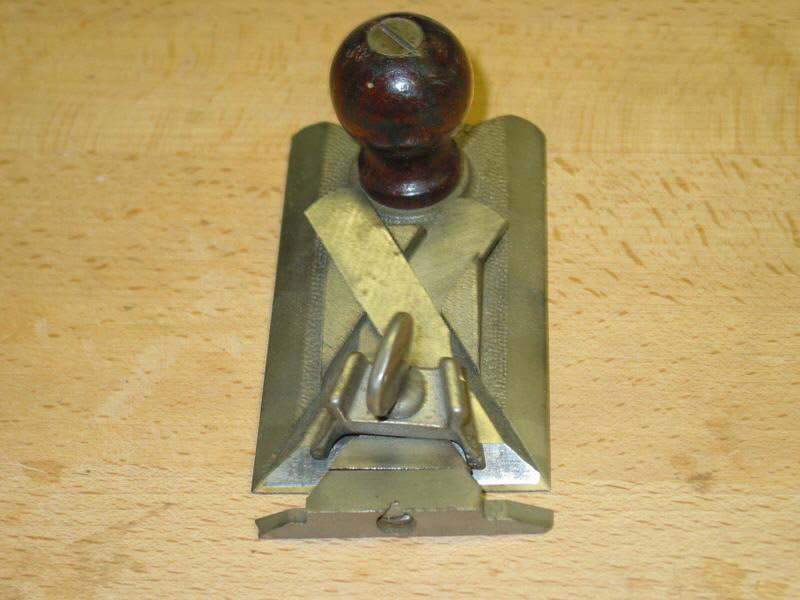

This is a combined right and left hand adjustable Rabbet Plane. It is a useful tool or side rabbeting and for trimming mouldings, dadoes and grooves of all kinds. By removing the mouthpiece the carpenter can work close to corners.


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Side Rabbet Plane

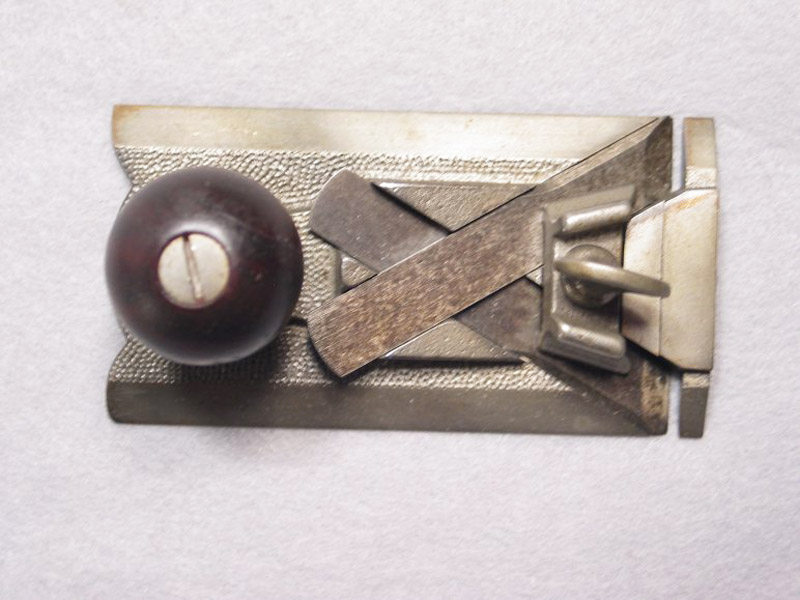

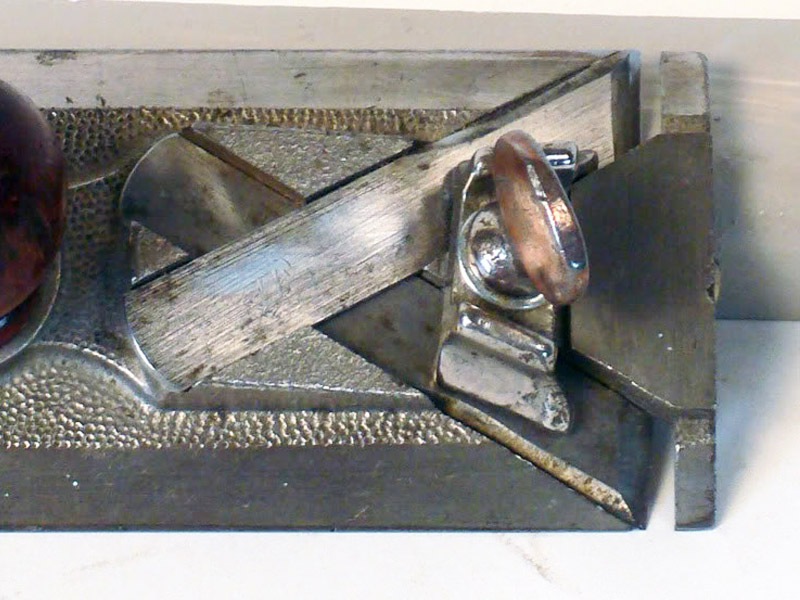

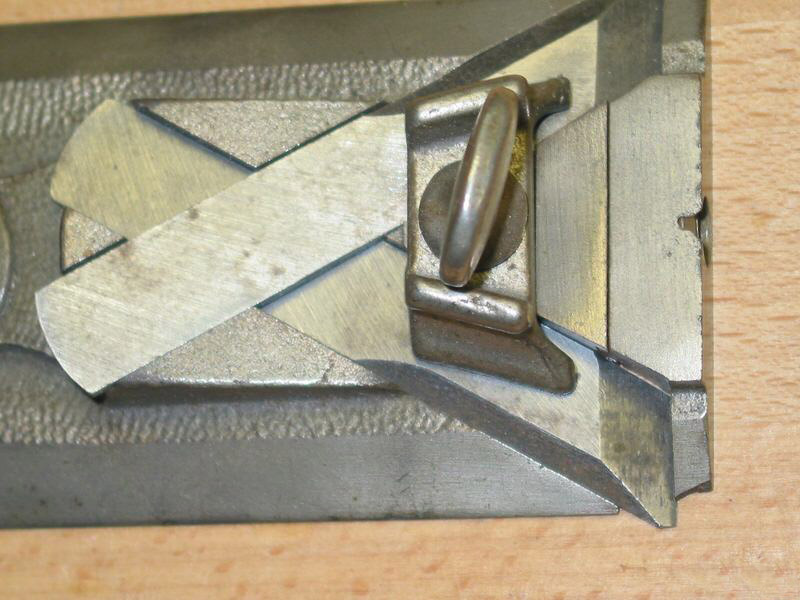

Features:Right and left hand cutters
Manufactured:From 1912 to 1943

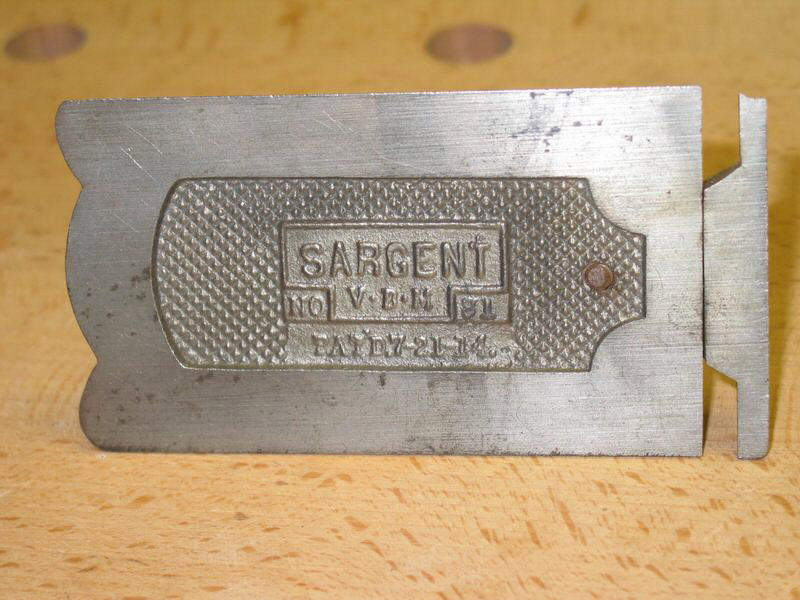

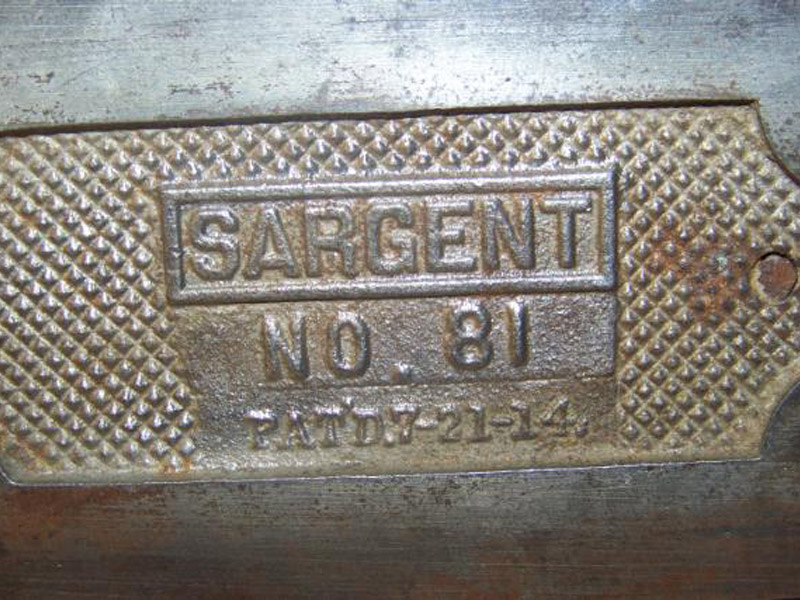

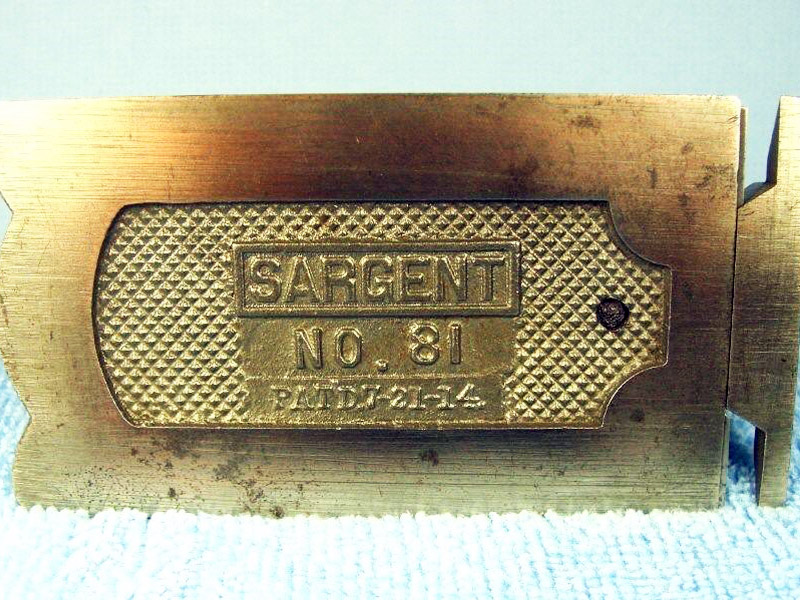

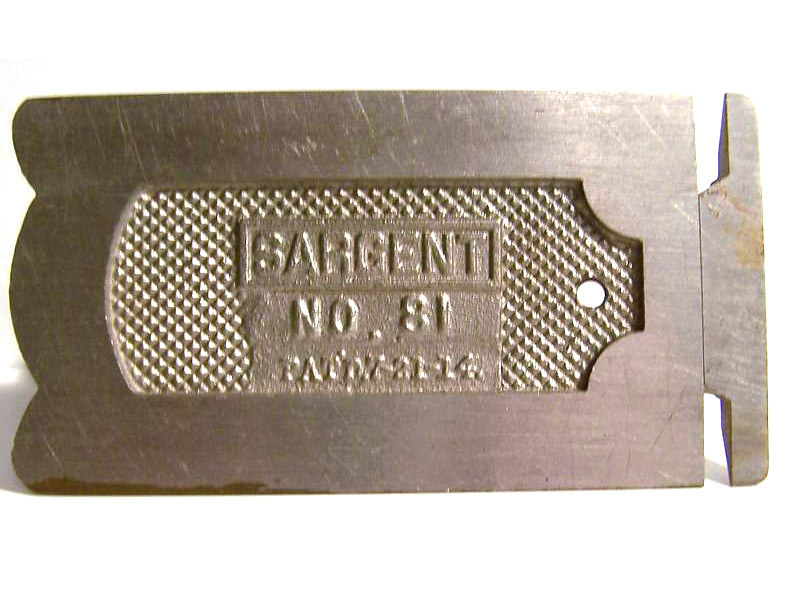

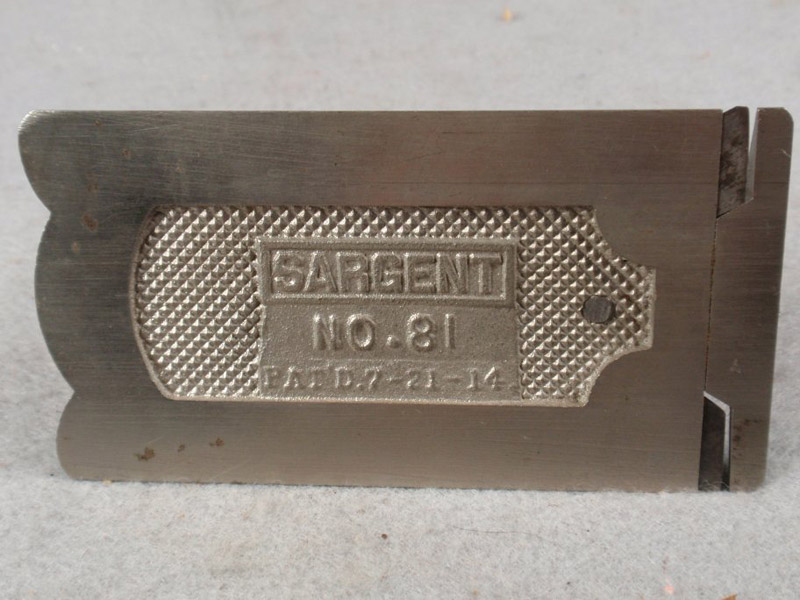

Patents:July 21, 1914 (design of double cutters) (William E. Sparks)
Length:4¼ inches

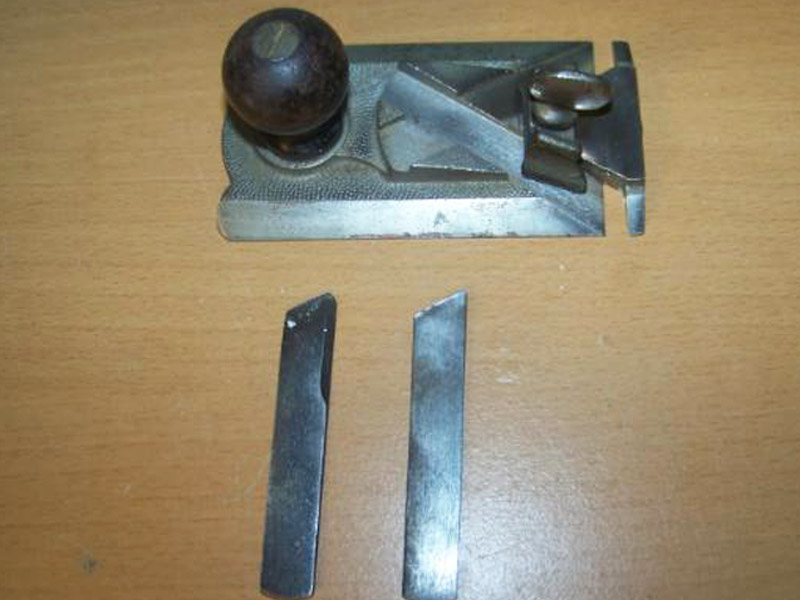

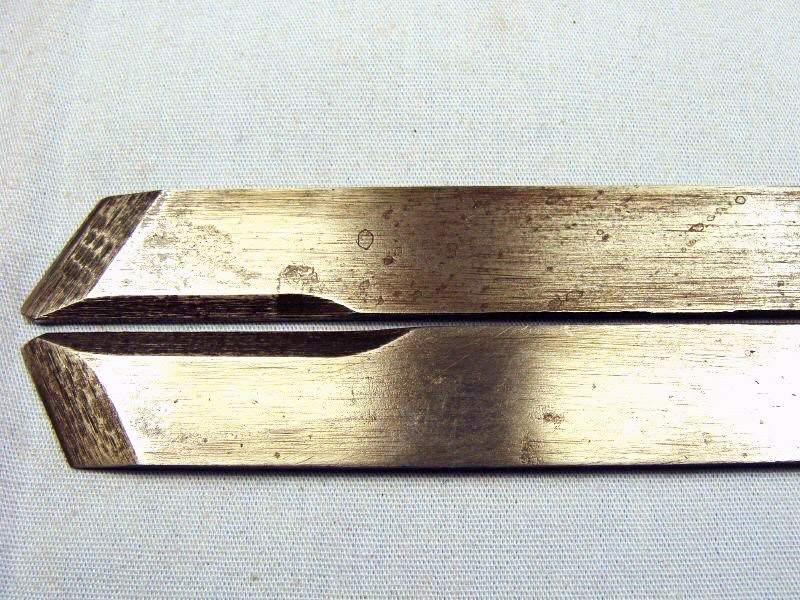

Cutter Width:½ inches (Two cutters included)

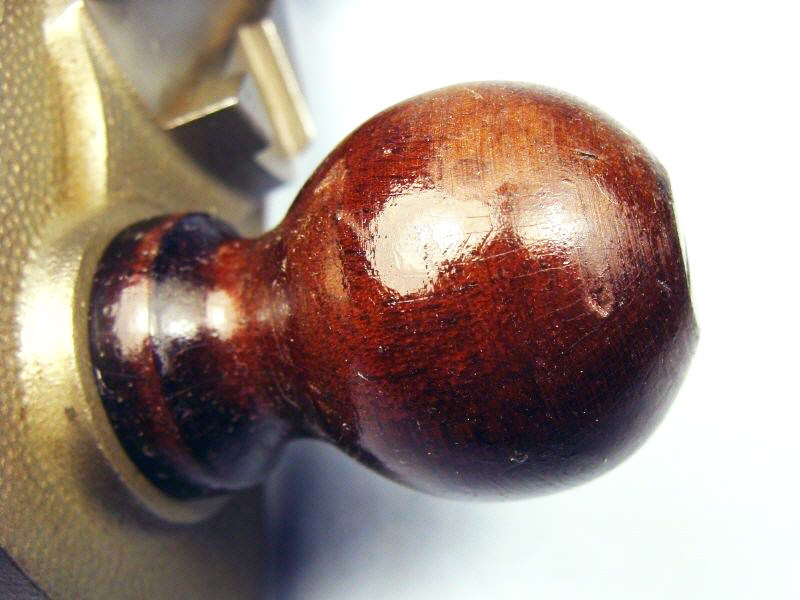

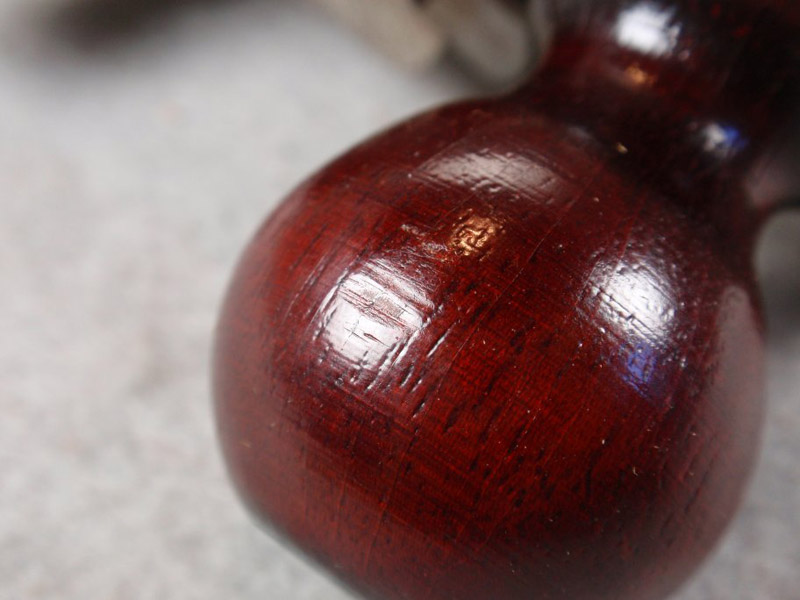

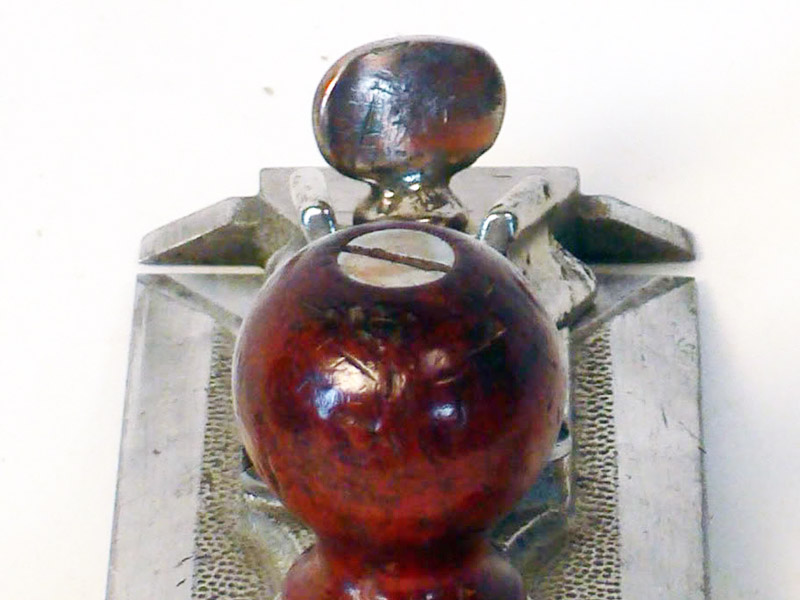

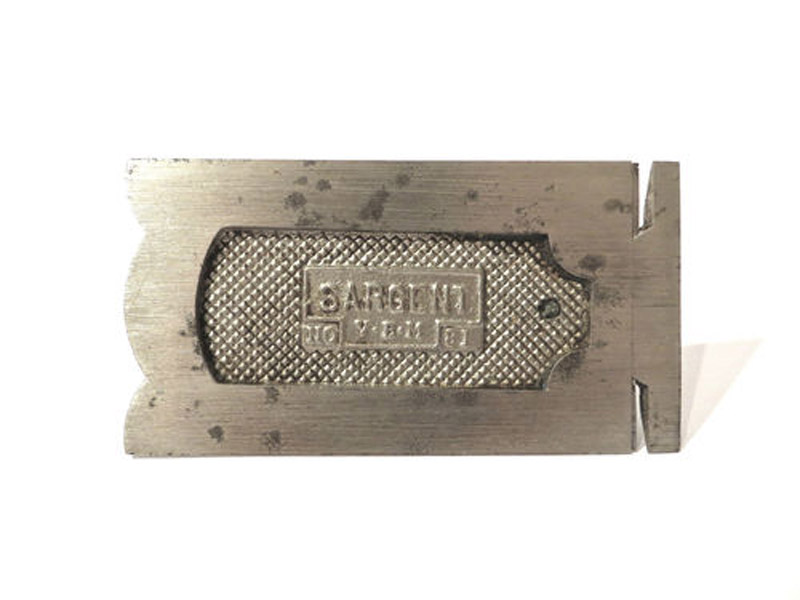

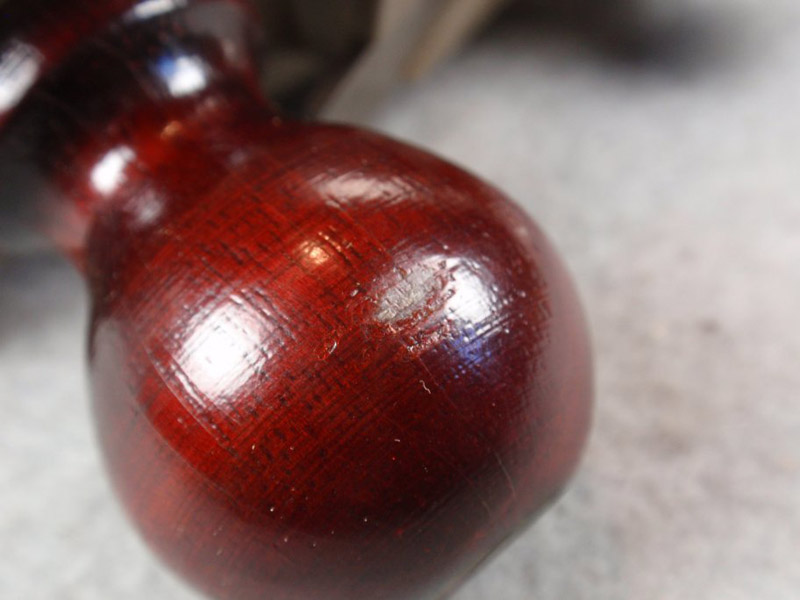

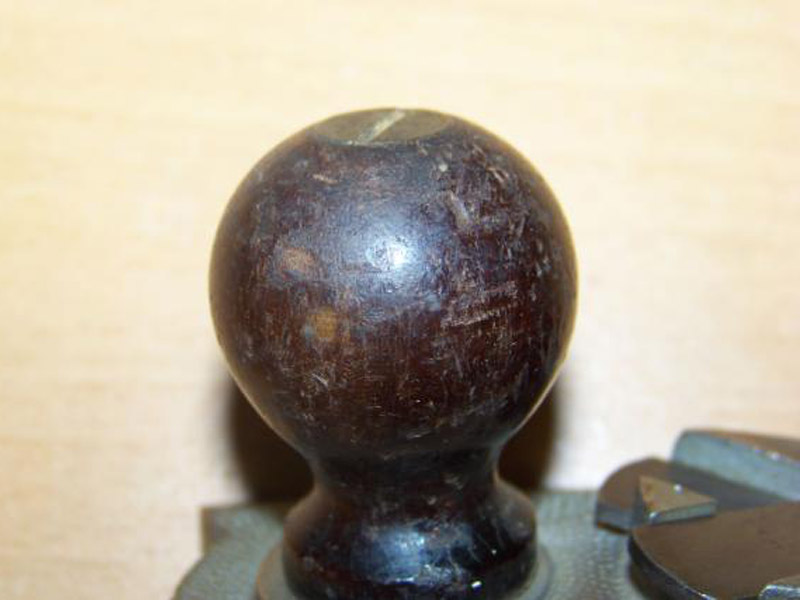

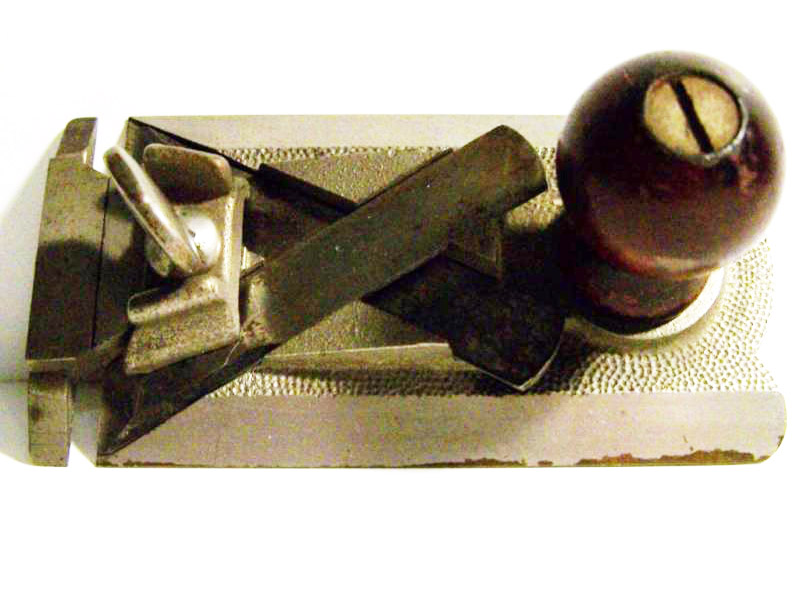

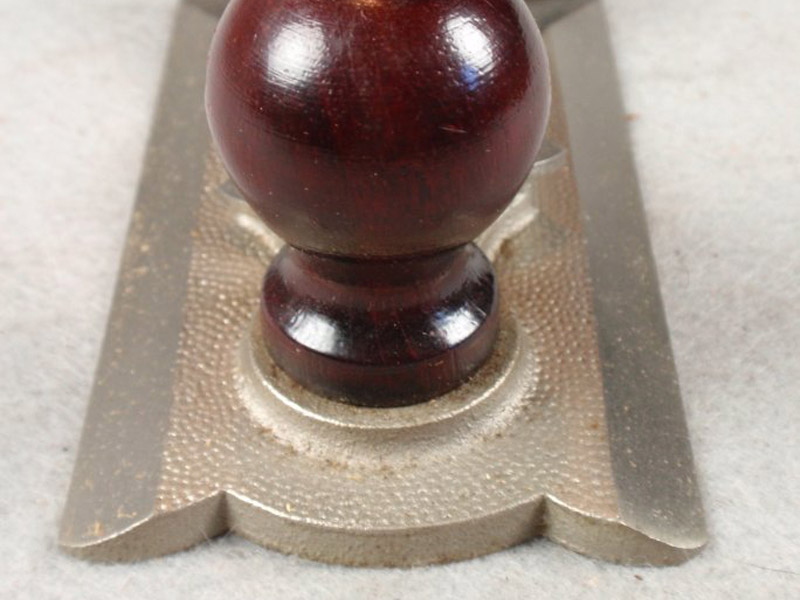

Construction:Cast iron body, East India Mahogany knob (1912 to 1924)
Cast iron body, Mahogany knob (1925 to 1943)
Finish:Nickel plated
Uses:Special purpose side rabbet plane

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

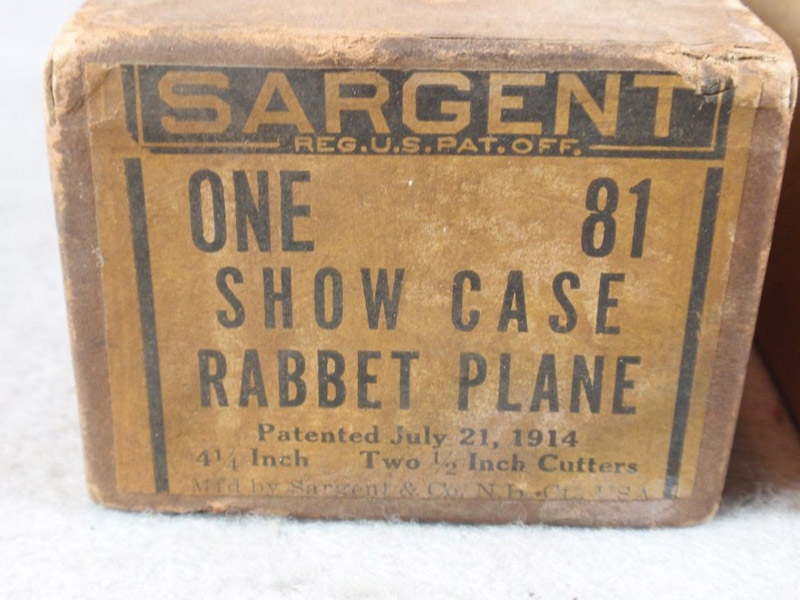

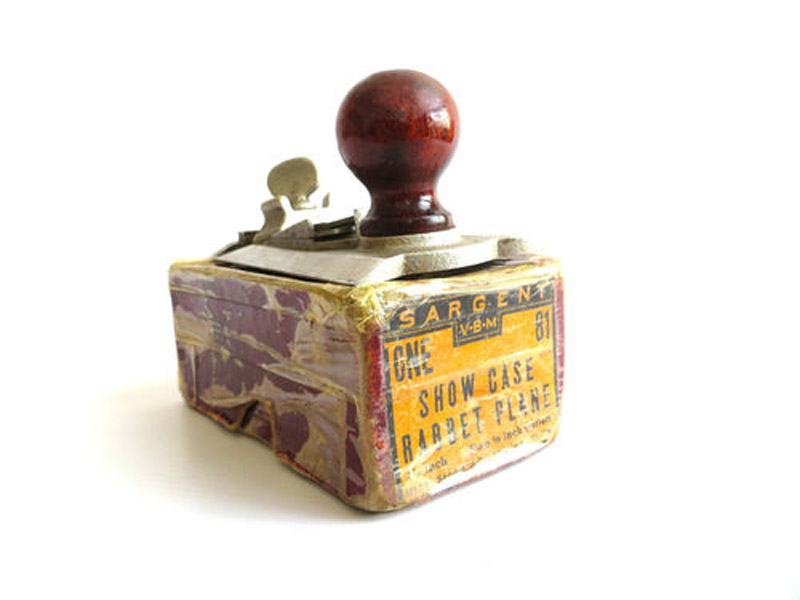

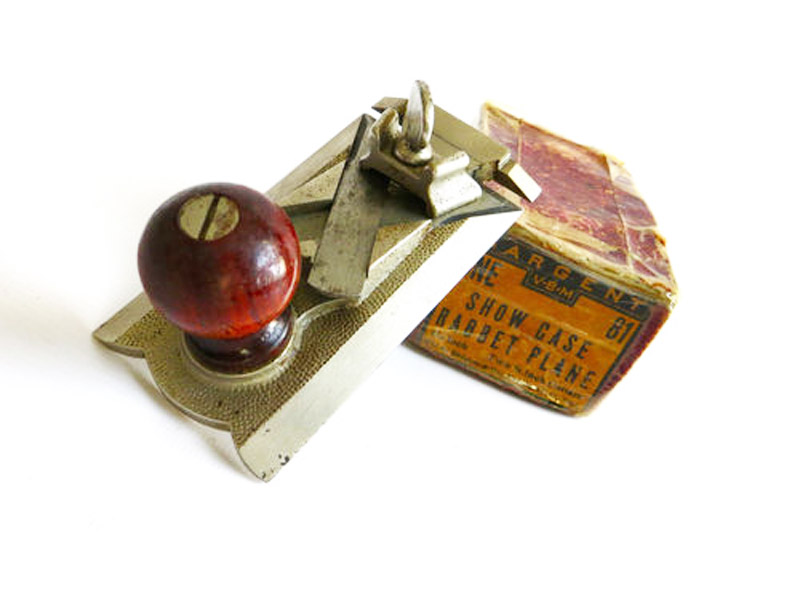

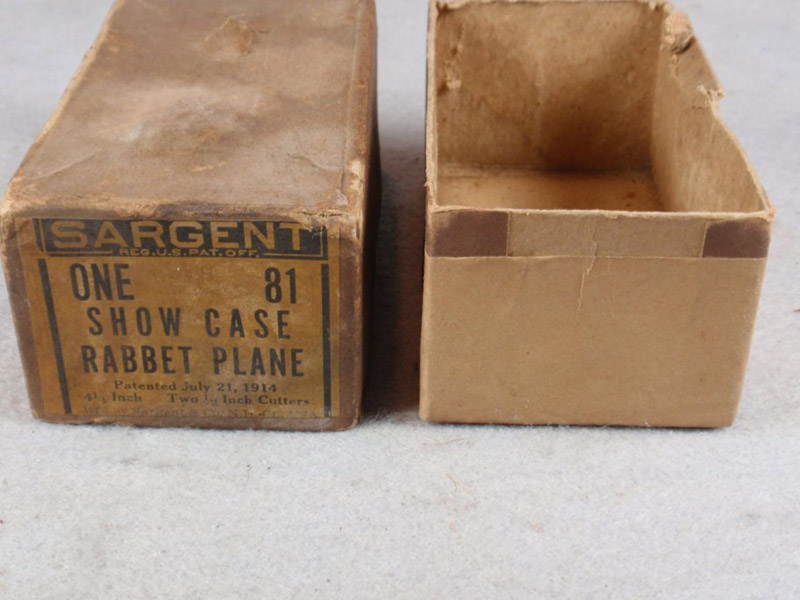

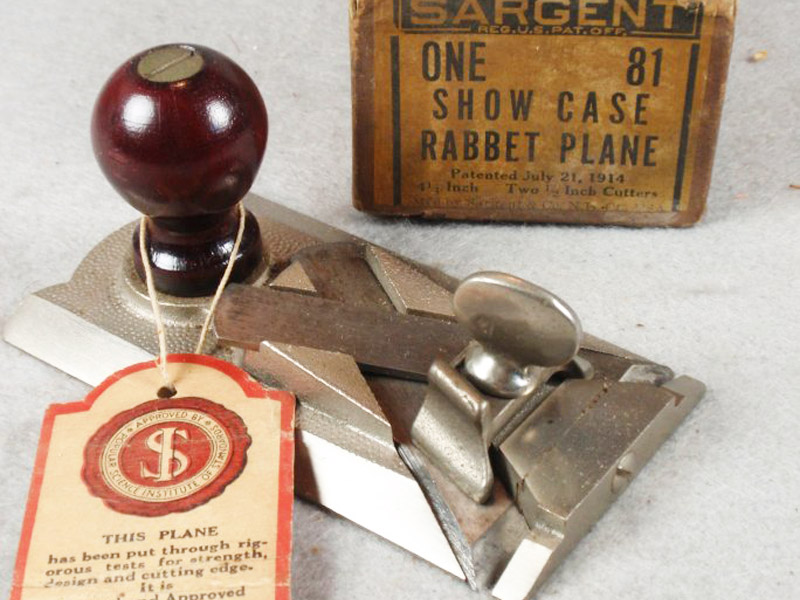

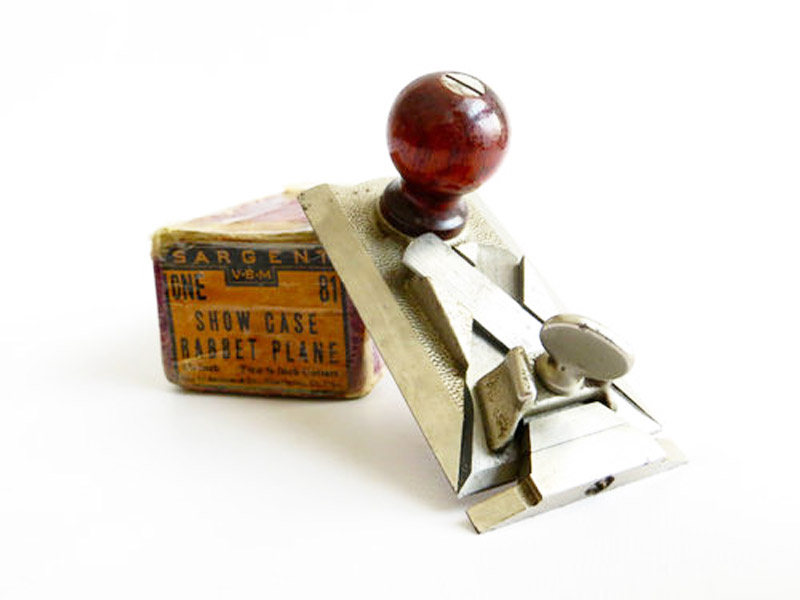

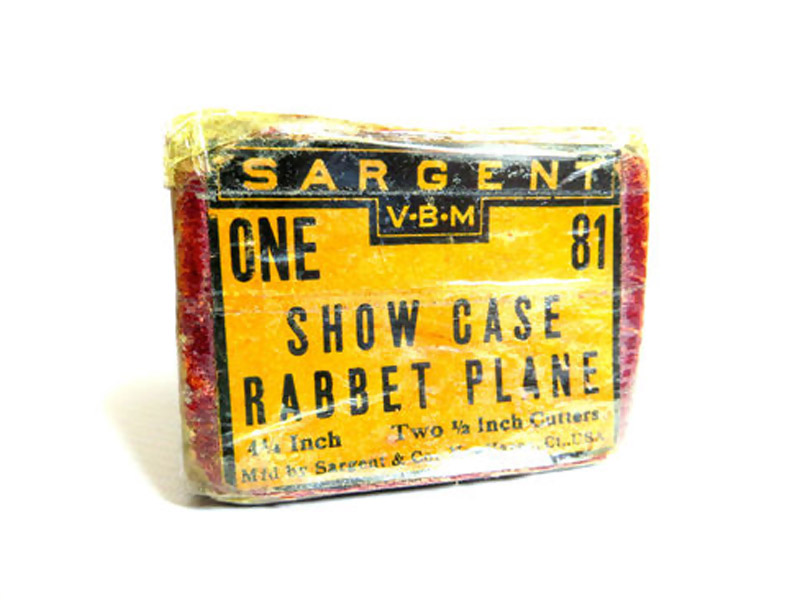

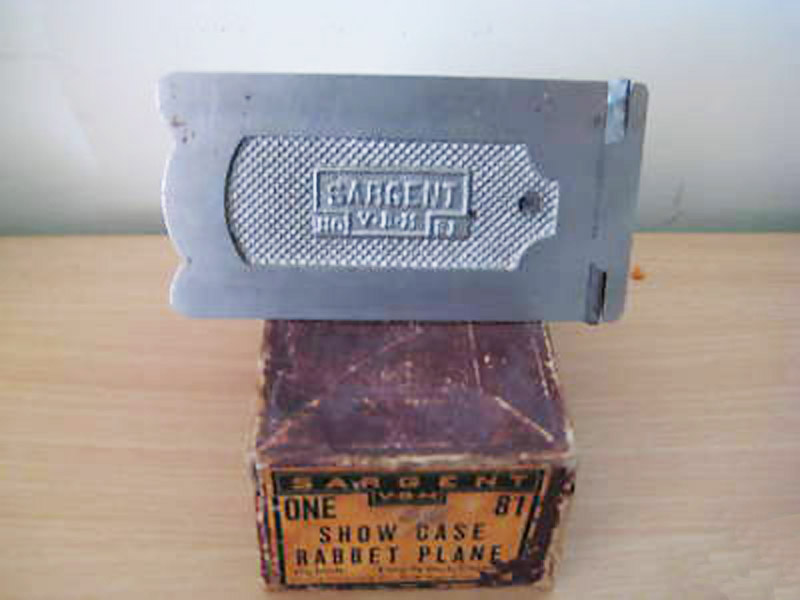

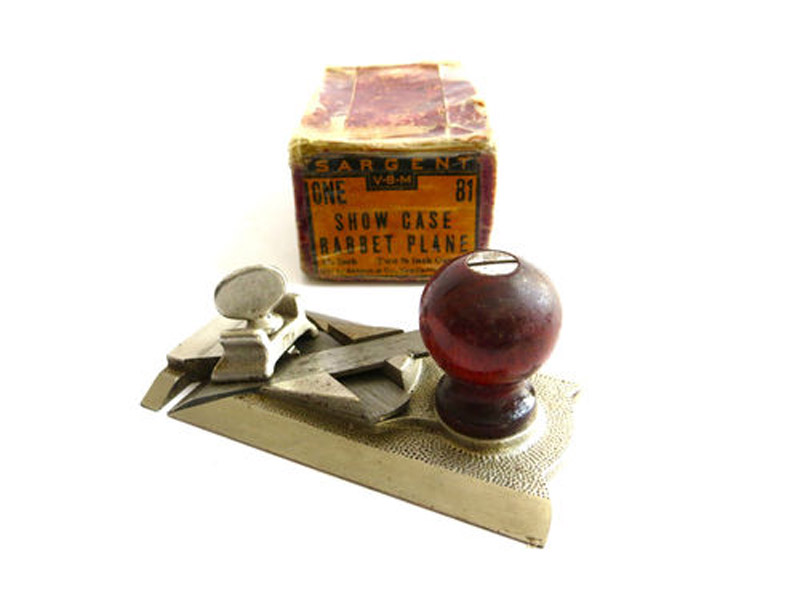

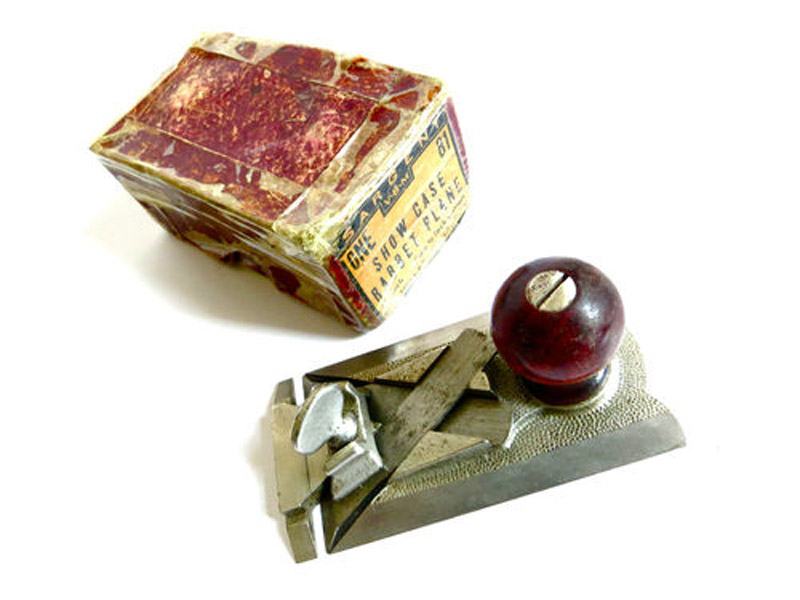

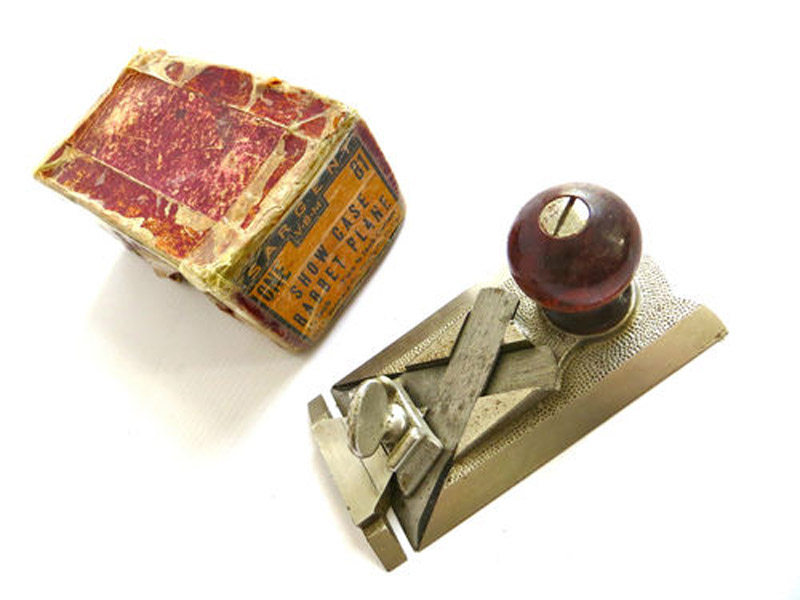

Referred to as a “Show Case Rabbet Plane” in the 1942 catalog.
