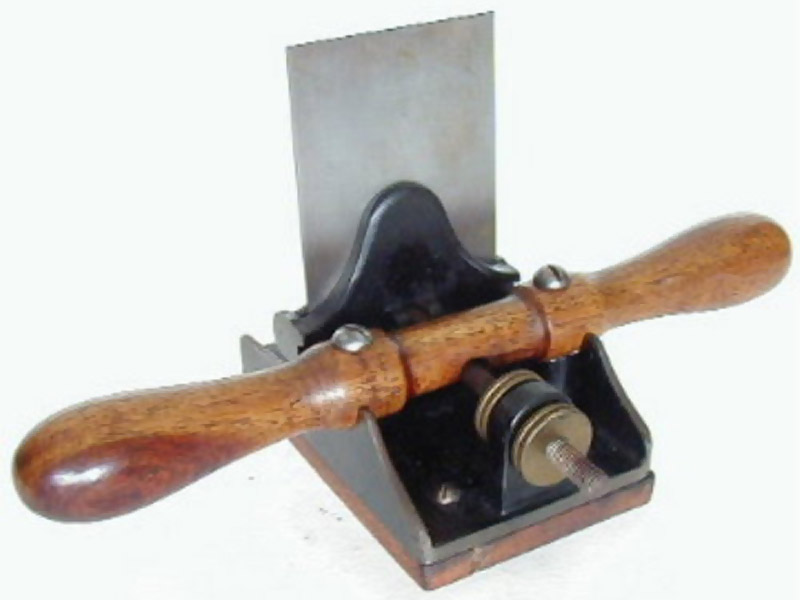

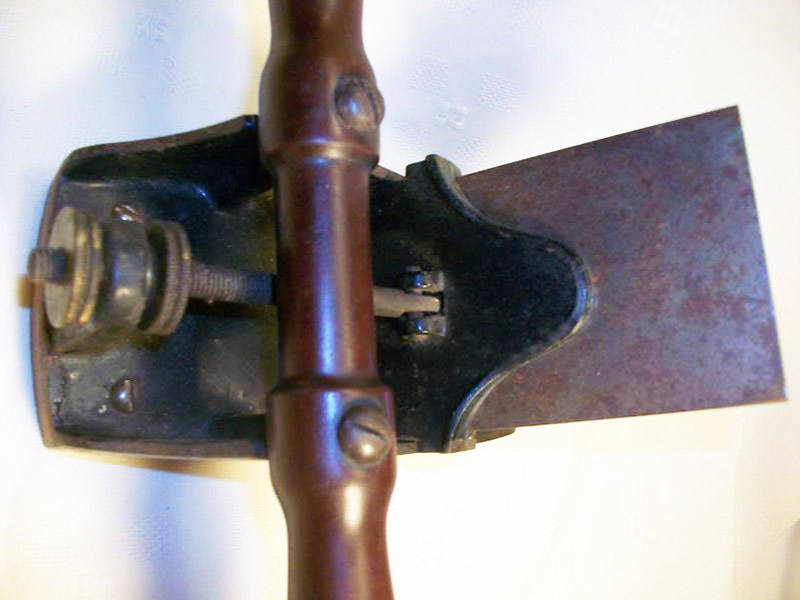

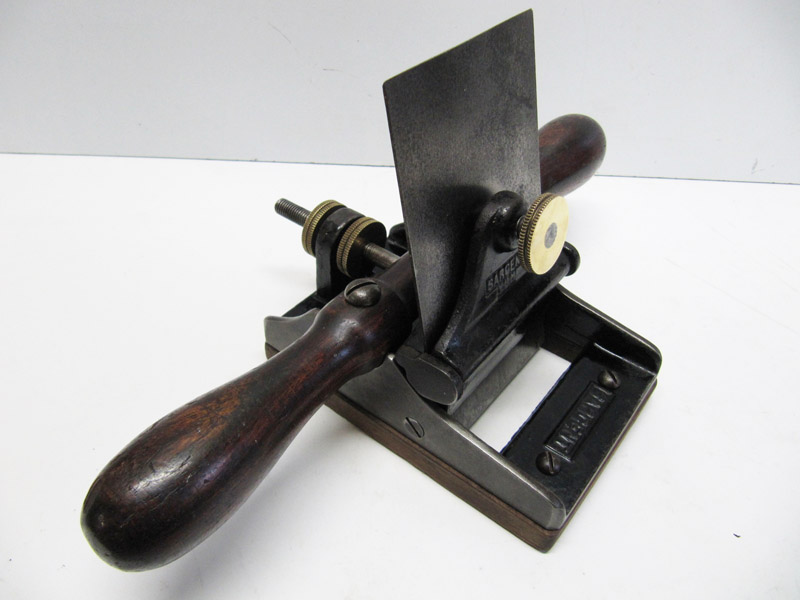

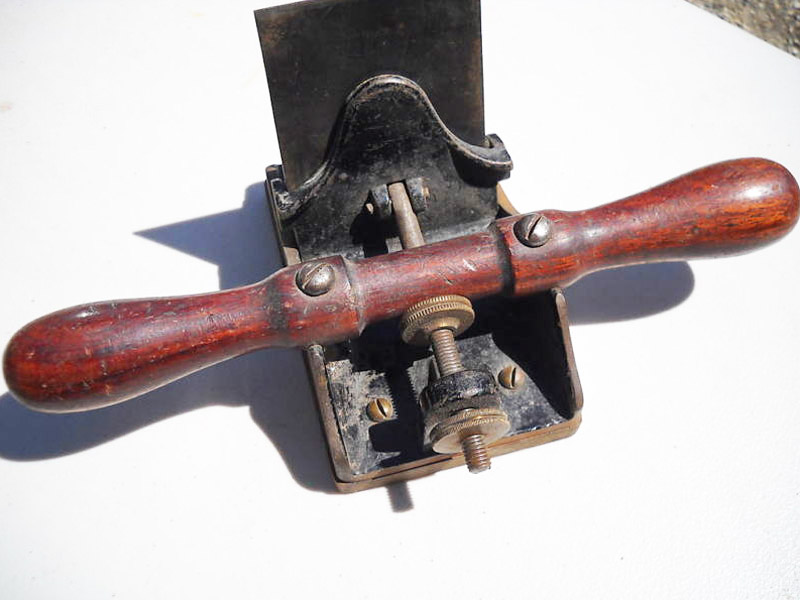

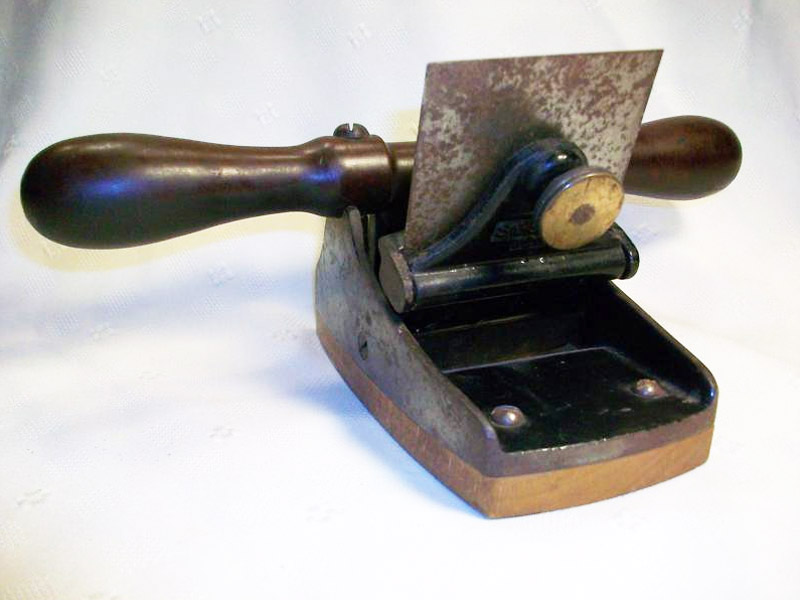

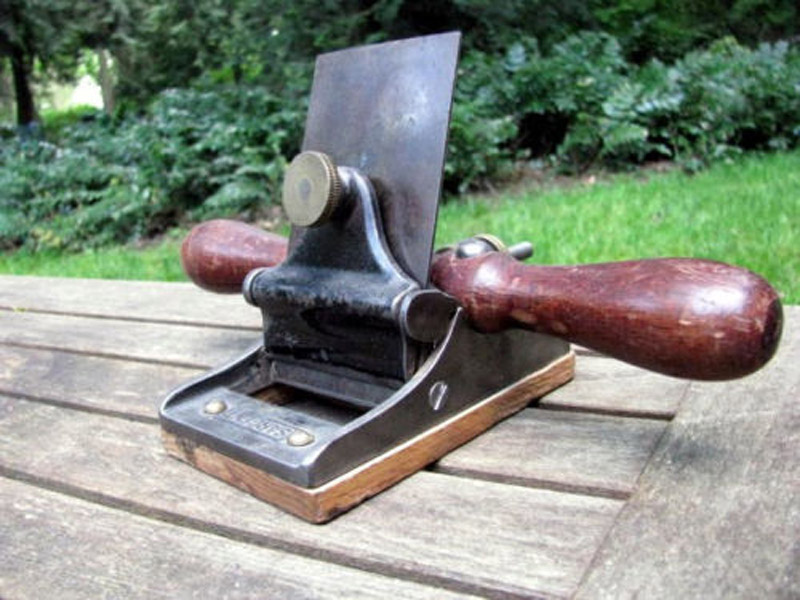

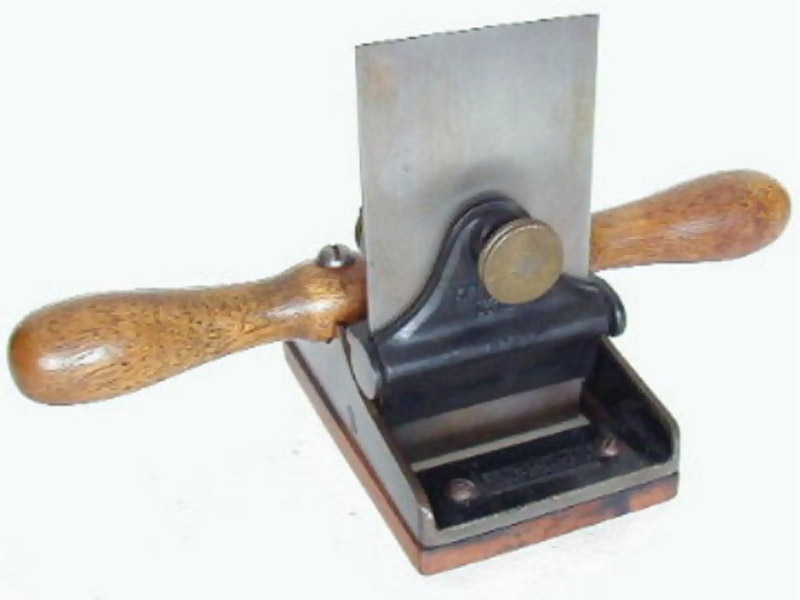

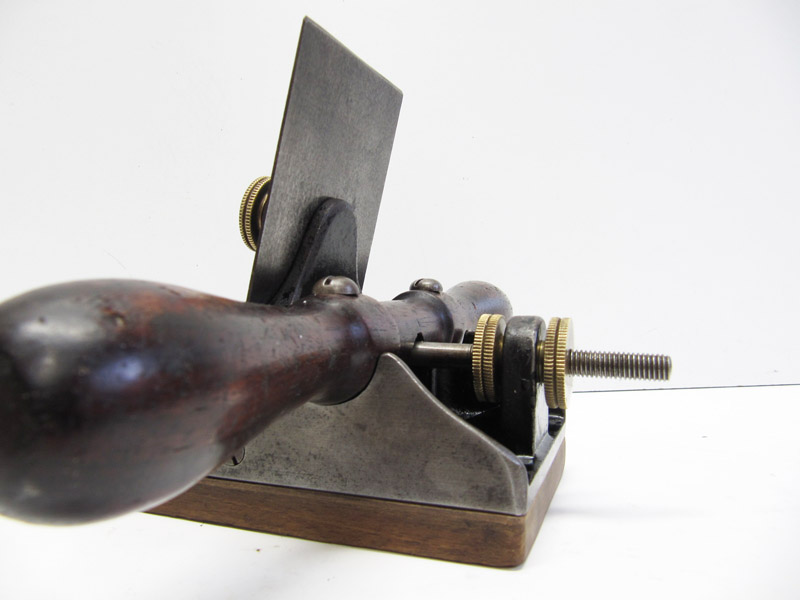

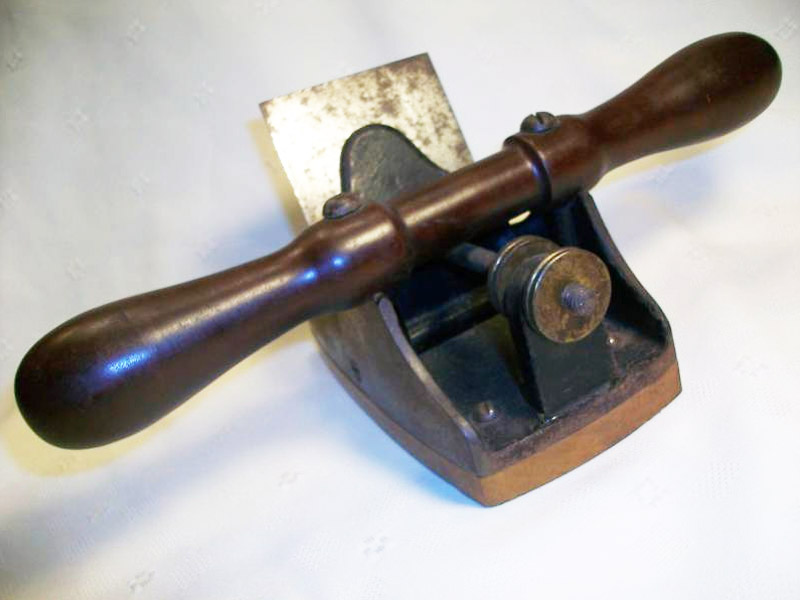

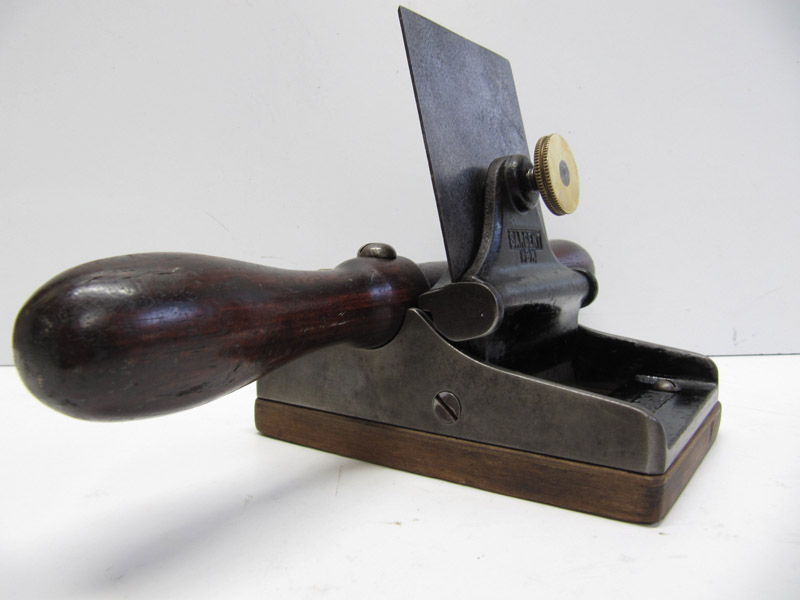

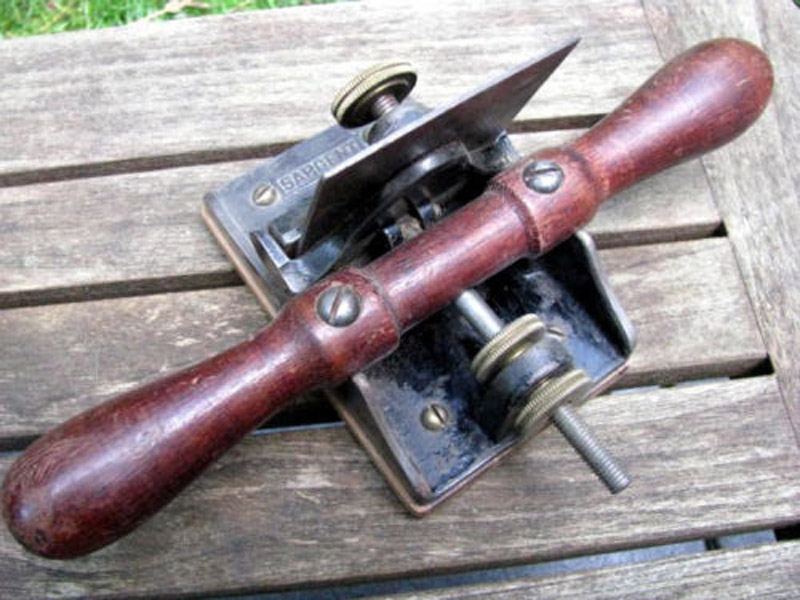

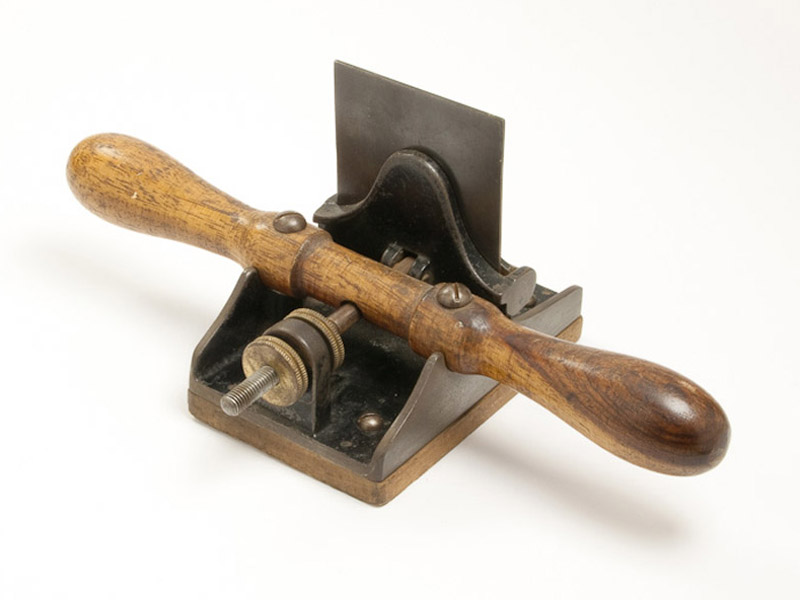

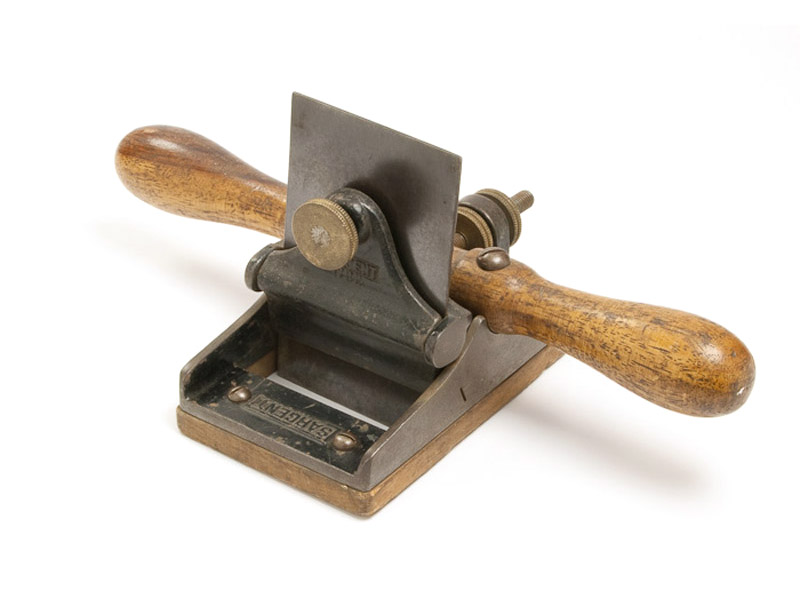

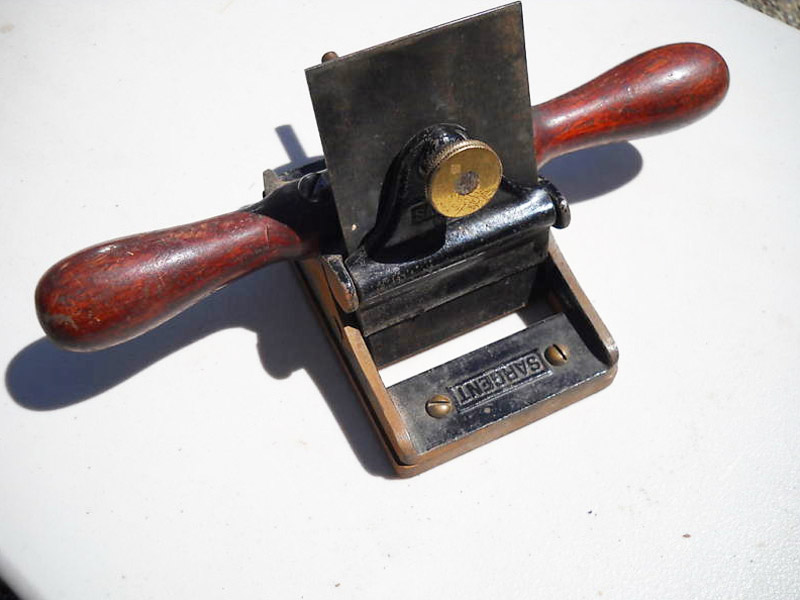

Sargent No. 44 Scraper Plane

Sargent No 44 Scraper Plane
Sargent No. 44 Scraper Plane

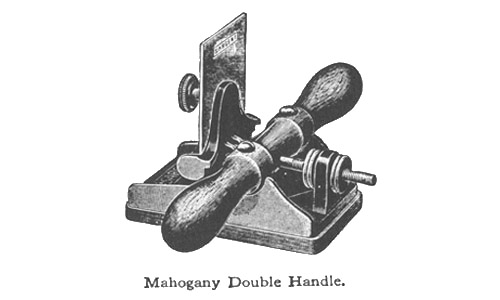

as illustrated in the Sargent catalog of June, 1926.

Adjustable Iron Scraper Planes

Mahogany Double Handle

No. 44, Polished Trimmings, Wood Face, 3 Inch Cutter     .     .     .     each, $5 75

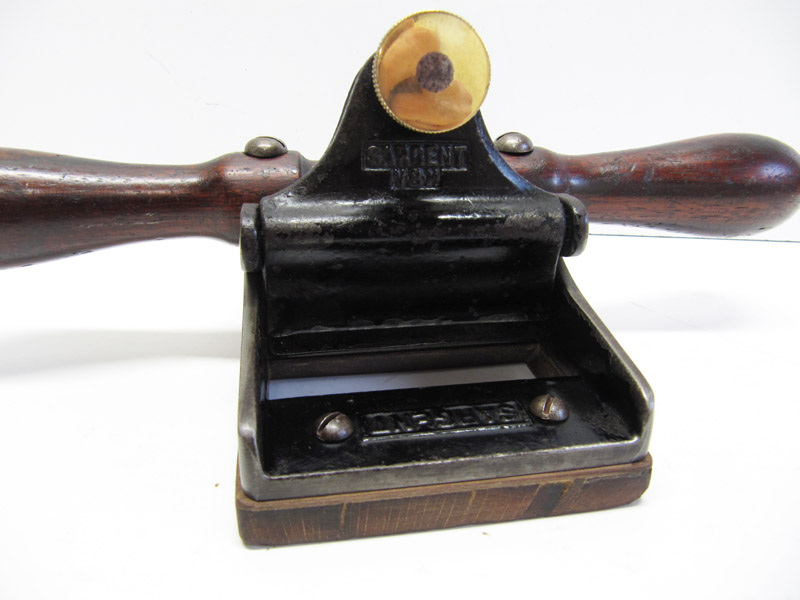

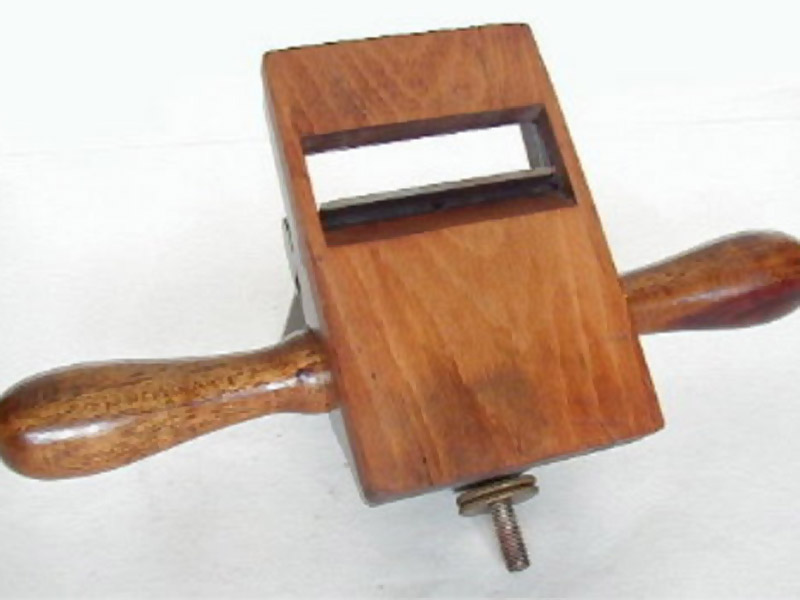

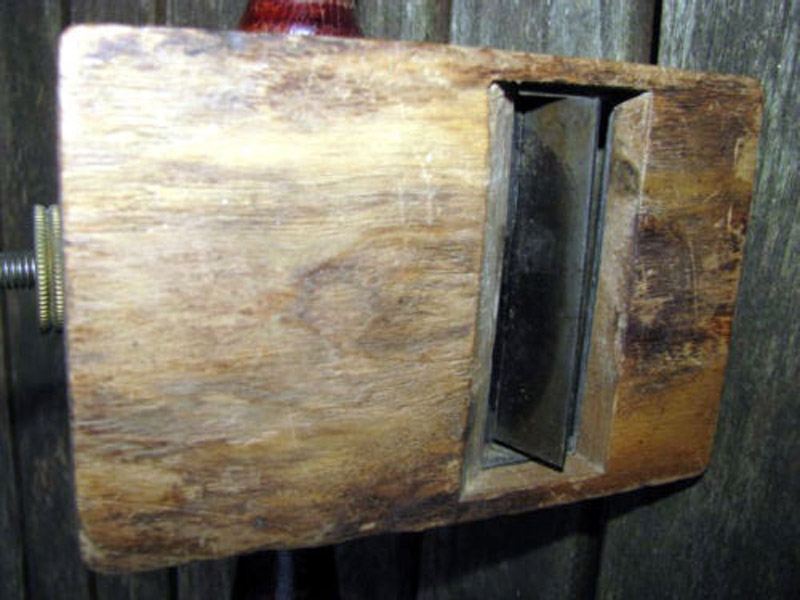

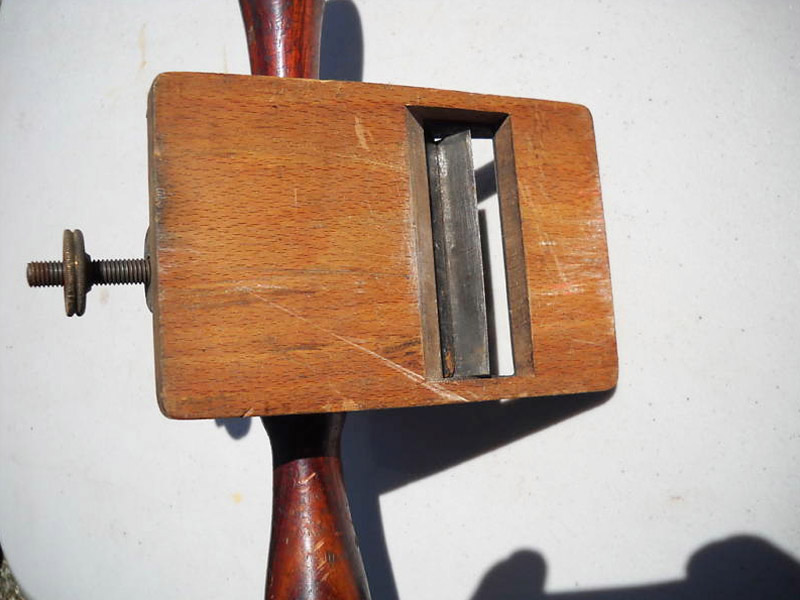

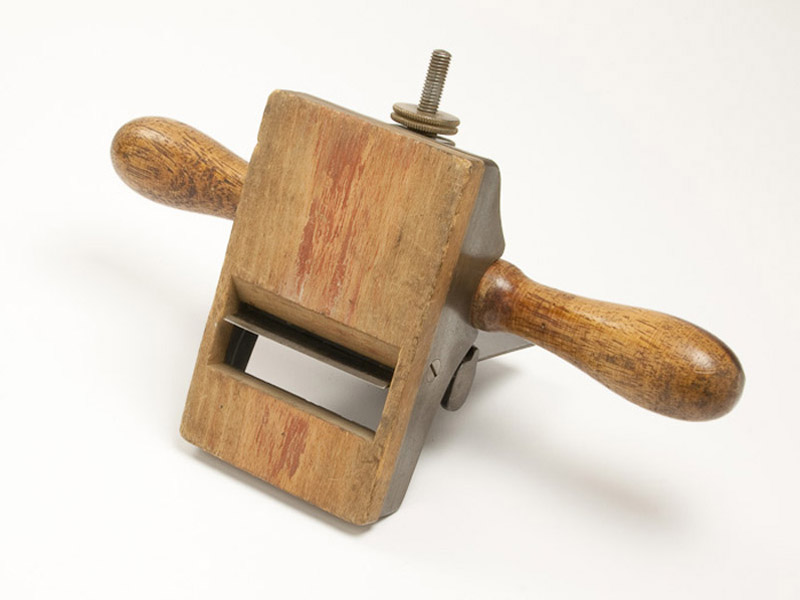

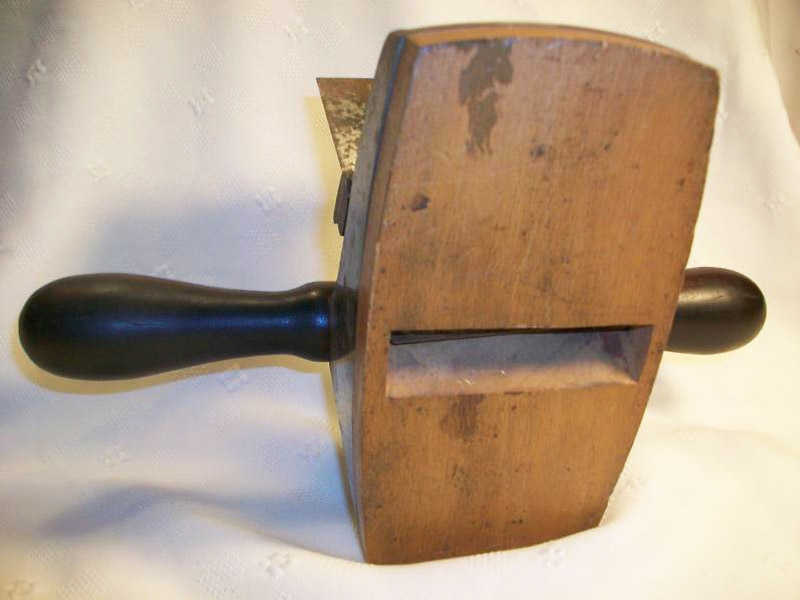

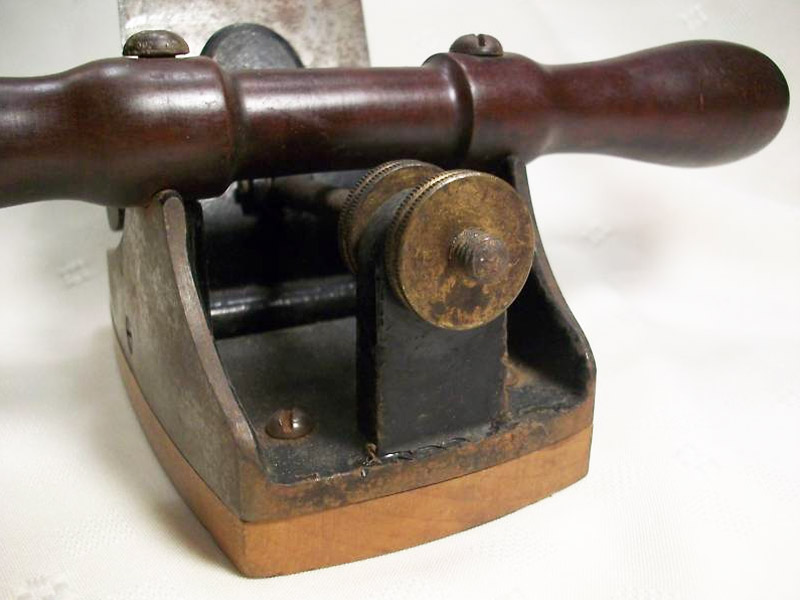

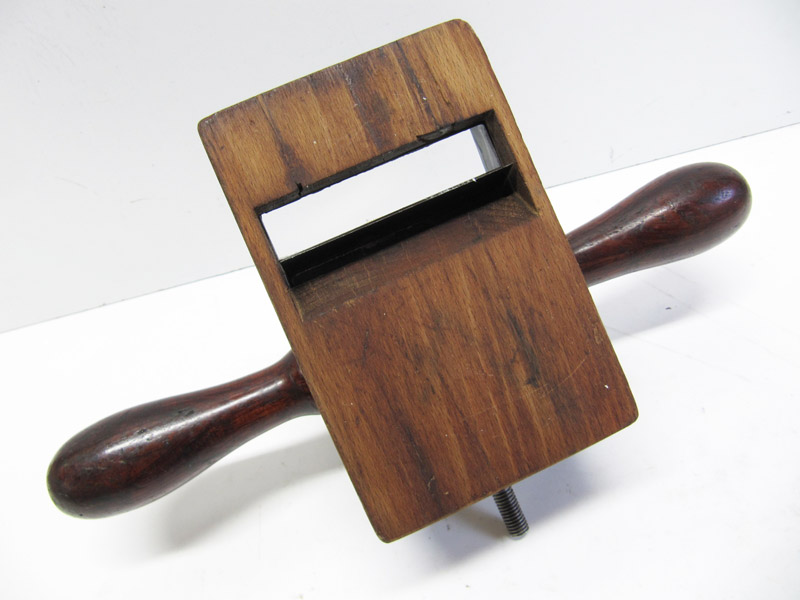

This plane is similar to No. 43 but it has a wide mouth and is designed especially for use as a Floor Scraper. It has a wood bottom which is held in position by four brass screws and the handle is set lower than the handle on No. 43, enabling the user to exert greater force and weight.

Extra Cutters for the above Planes, 3 Inch     .     .     .     .     .     .    each, $0 40

Wood Bottoms for the above Planes     .     .     .     .     .     .     .     .      ”       50


Note: The above information has been reproduced from an original catalog listing.


Specifications:

Plane Type:Floor Scraper Plane

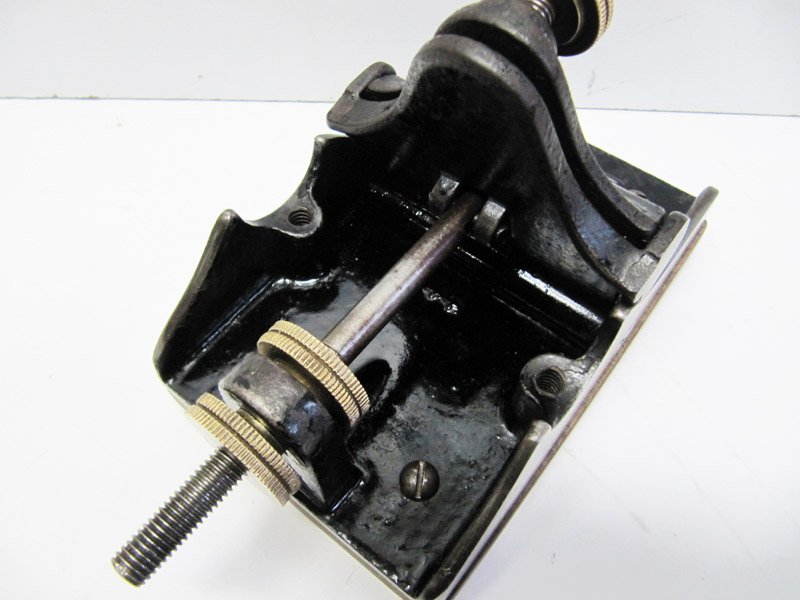

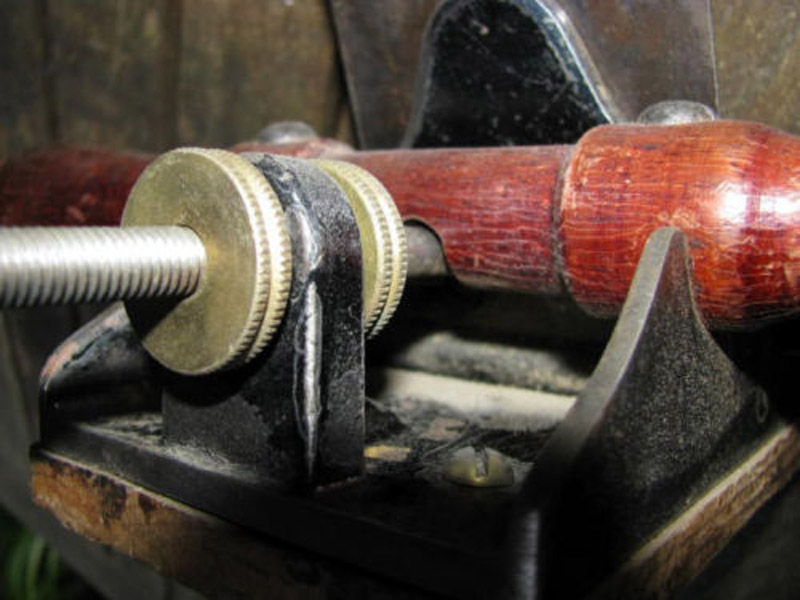

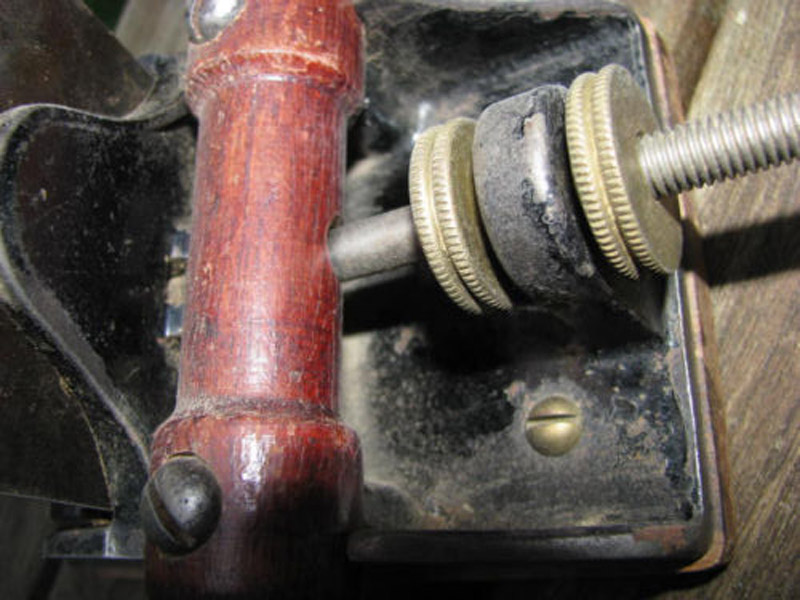

Features:Adjustable, with screw adjustment for cutter and wood sole plate. Extra wide mouth
Manufactured:From 1922 to 1943
Length:6¼ inches
Cutter Width:3 inches

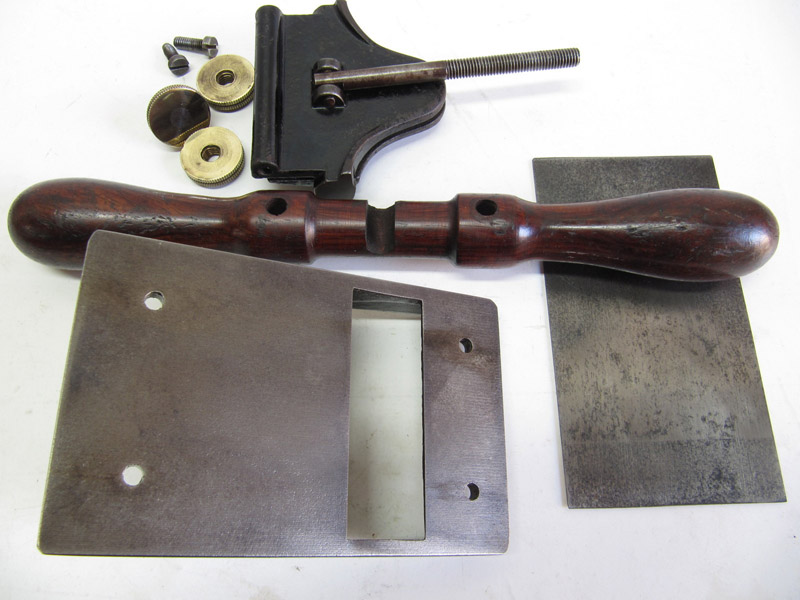

Construction:Cast Iron, Mahogany Double Handle and Beech Sole Plate
Finish:Japanned, Polished Trimmings
Uses:General purpose floor scraping

Please check the Value Guide For Sargent Planes page for relative prices.


Additional Notes:

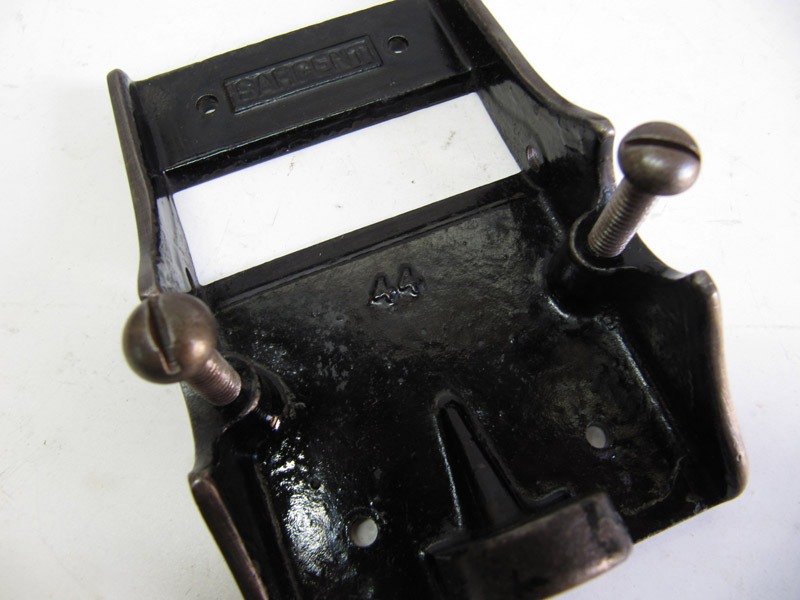

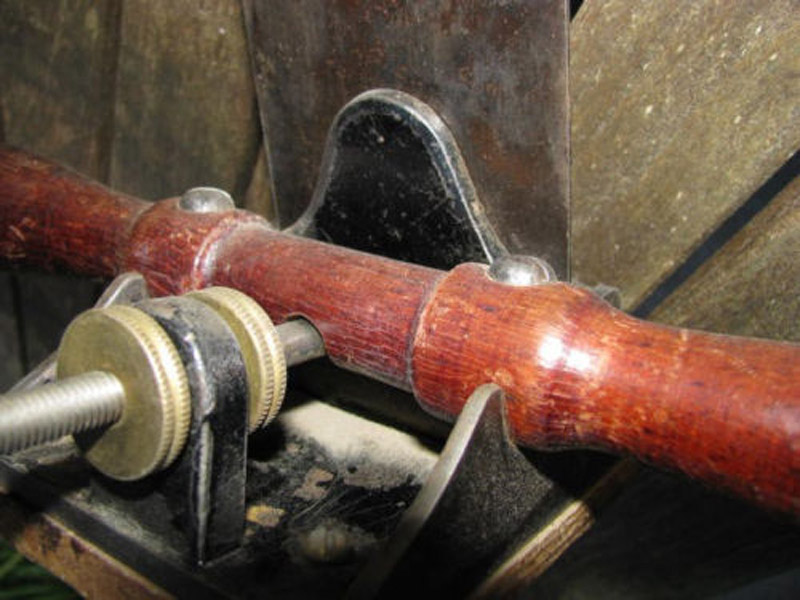

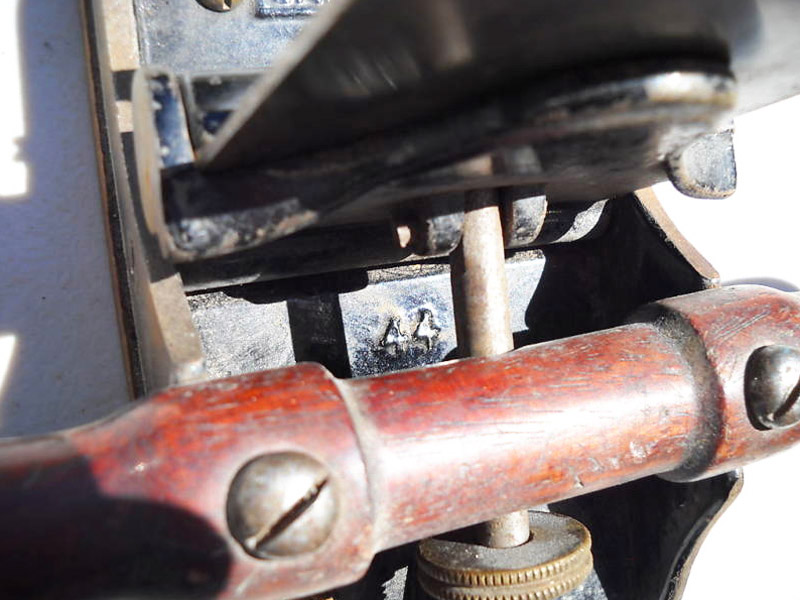

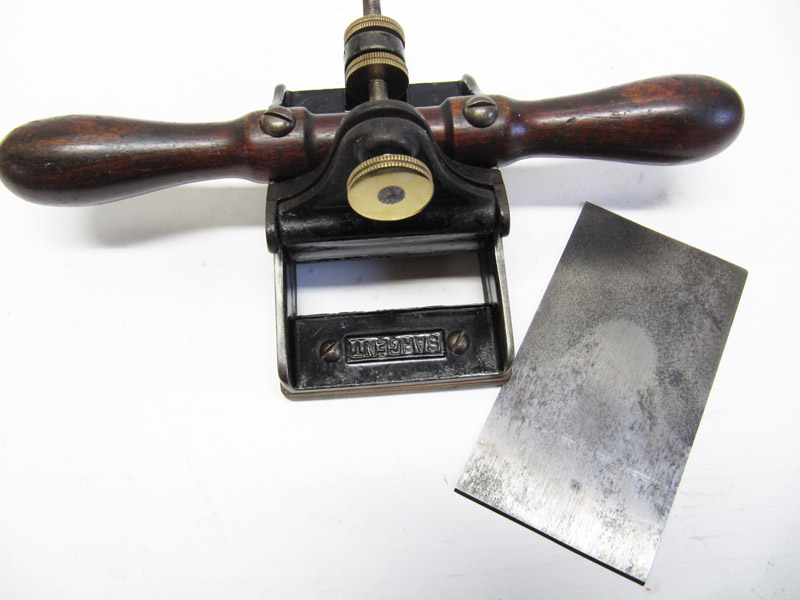

The No. 44 Scraper Plane came with an East India Mahogany Double Handle from 1922 to 1924 and then was replaced by a Mahogany Double Handle from 1925 to 1943. As stated above the No. 44 had an enlarged mouth and the sides of the body were lowered so as to allow for more pressure to be applied to the cutter. The No. 44 scraper cutter is stamped with the plane number on it.
