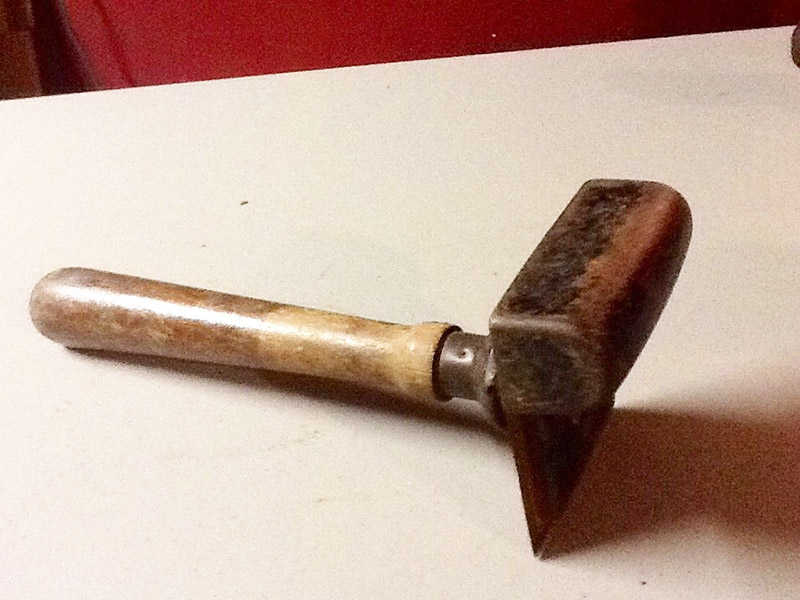

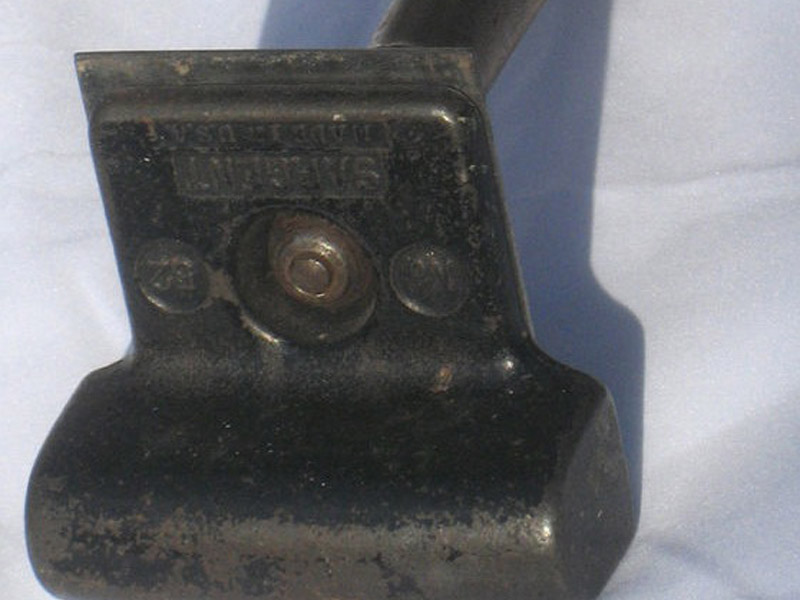

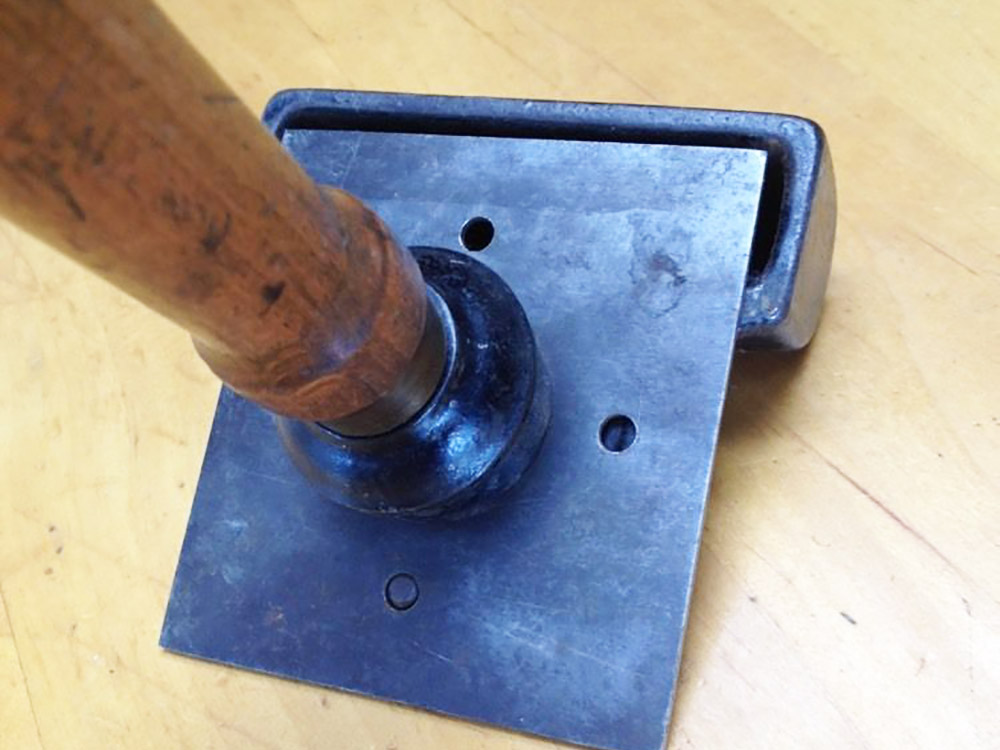

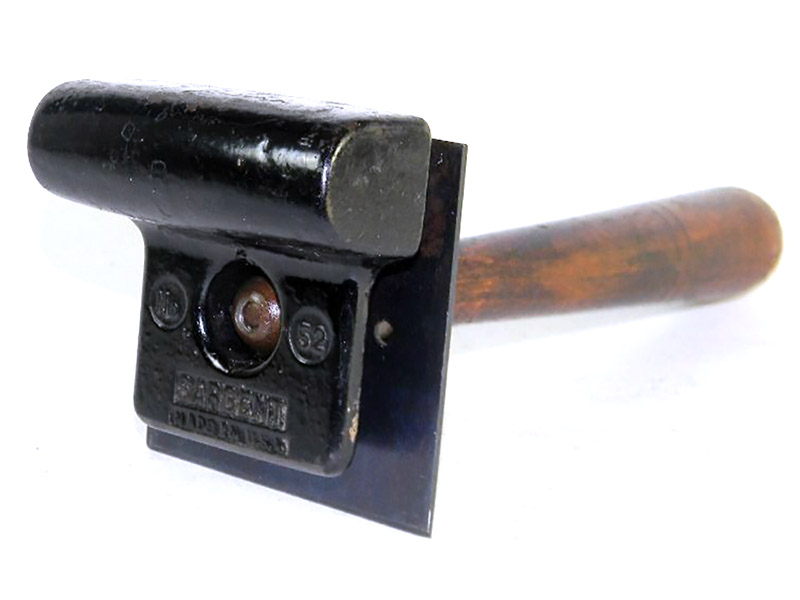

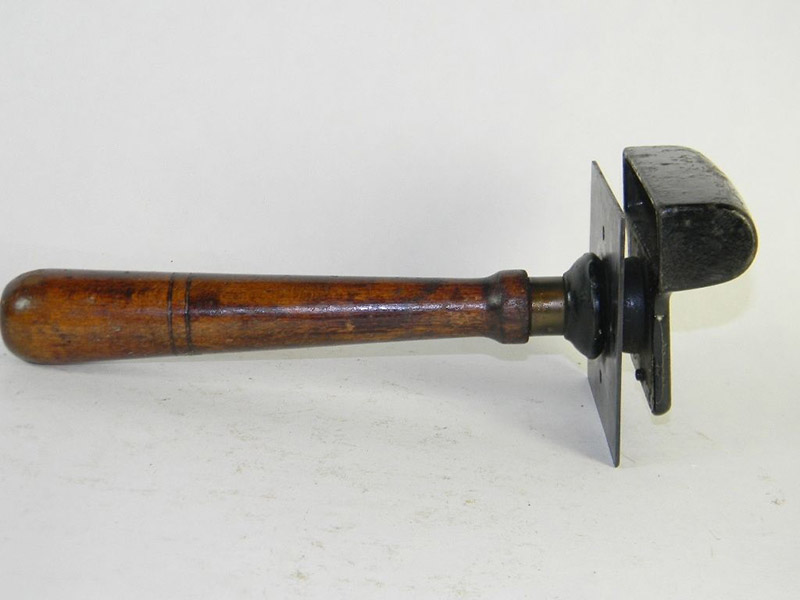

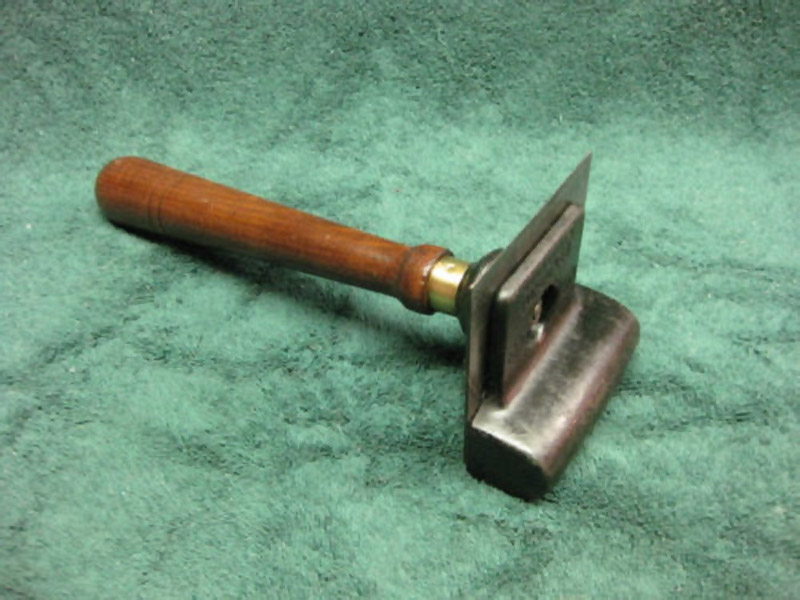

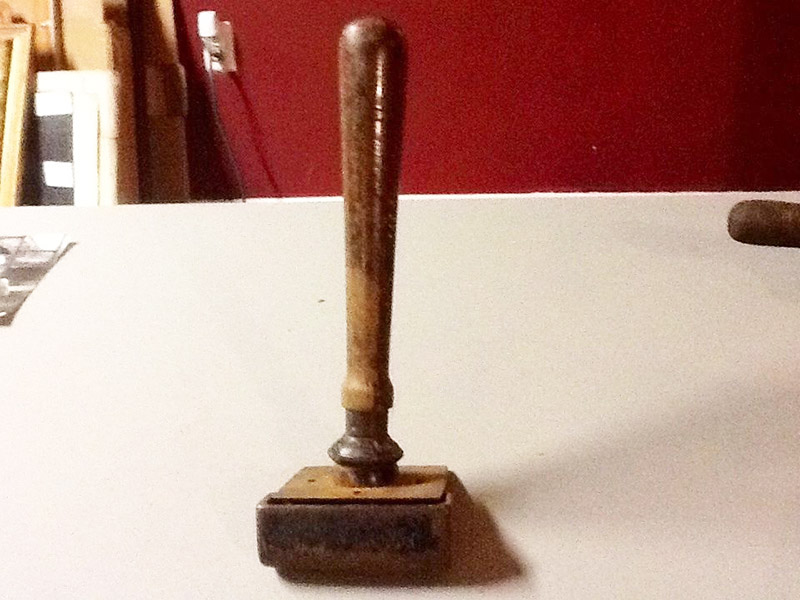

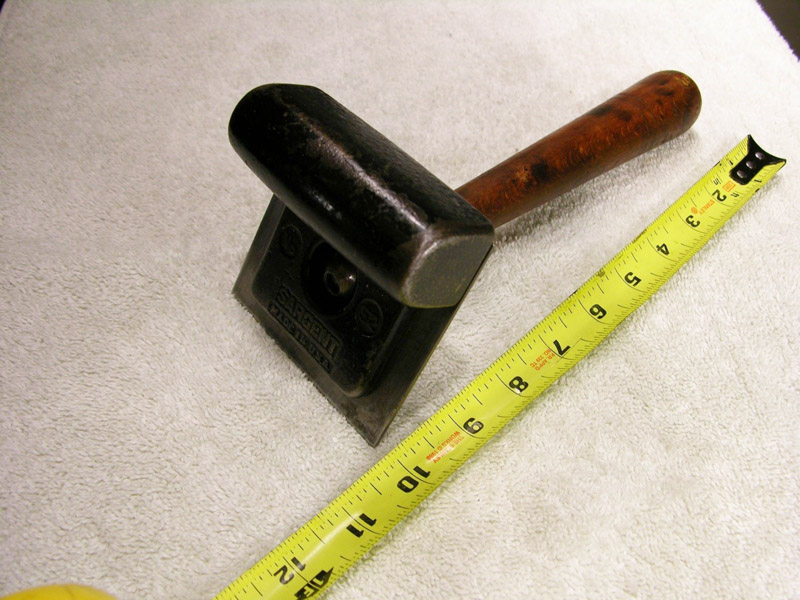

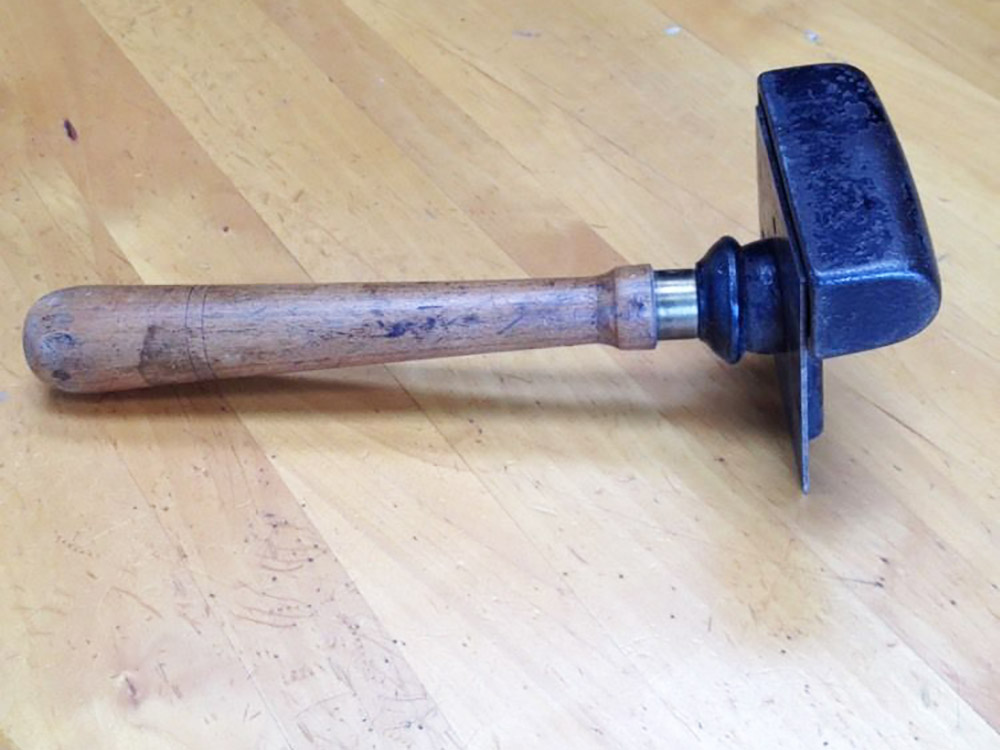

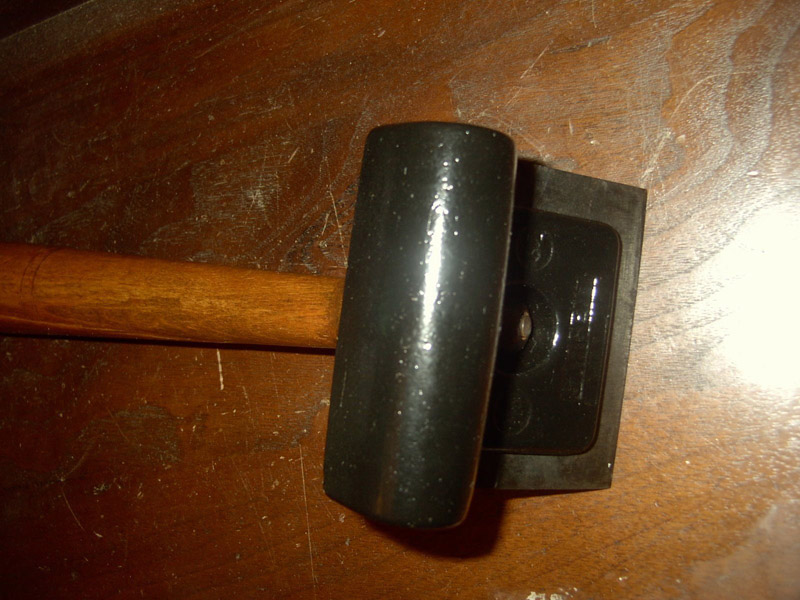

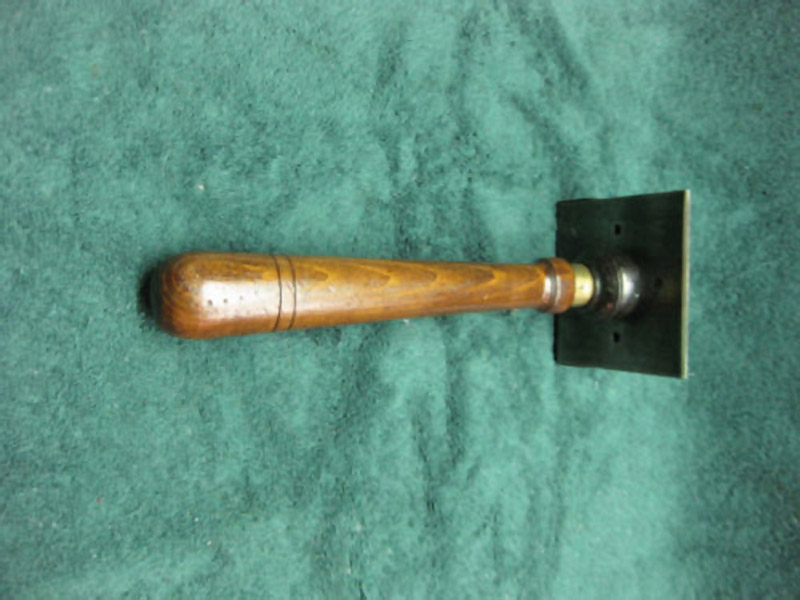

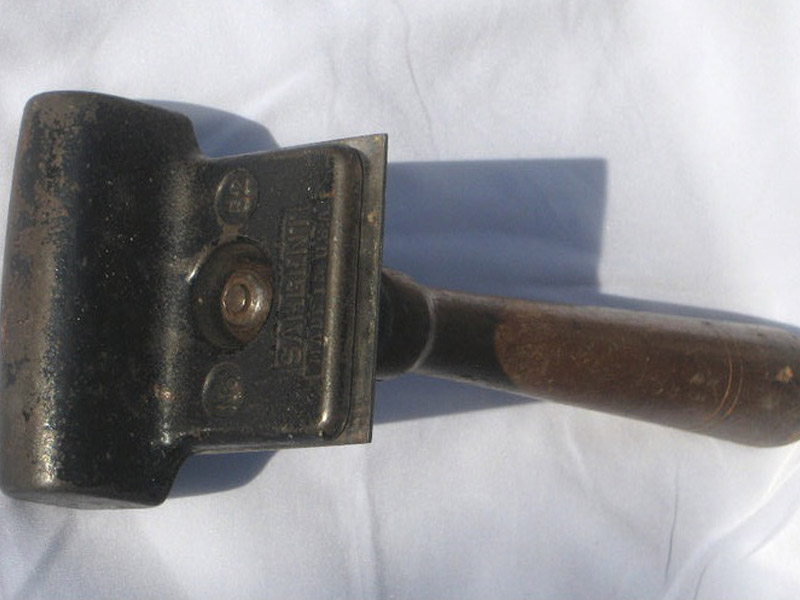

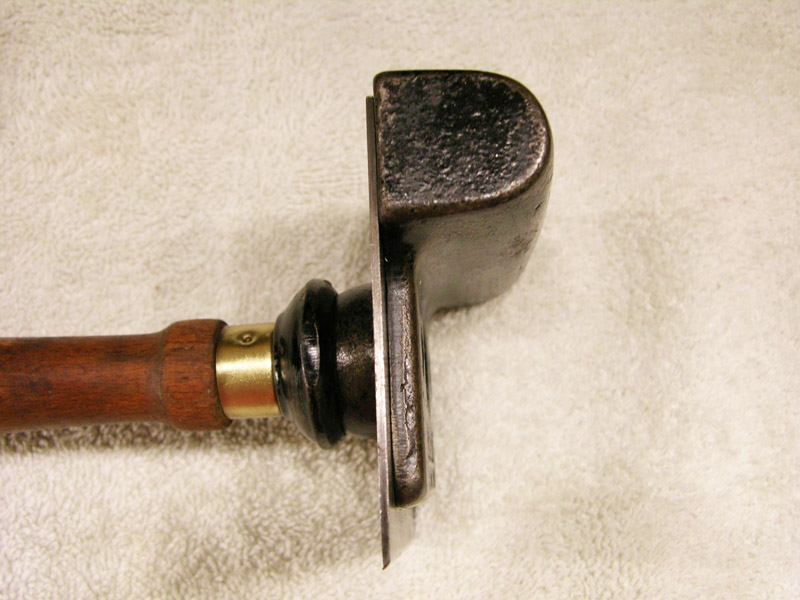

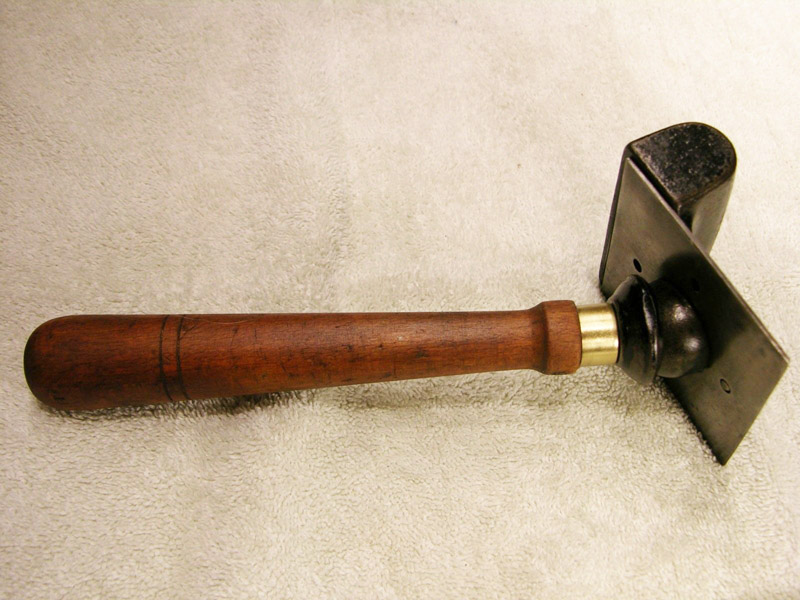

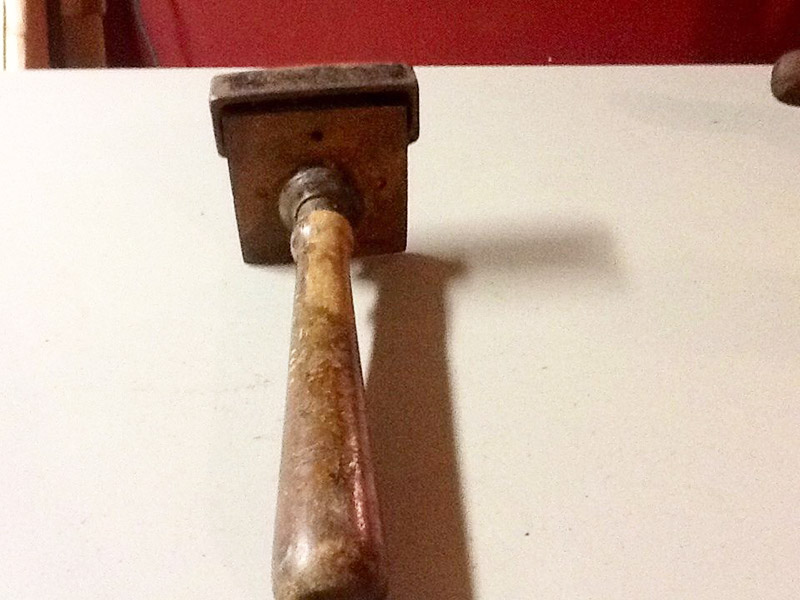

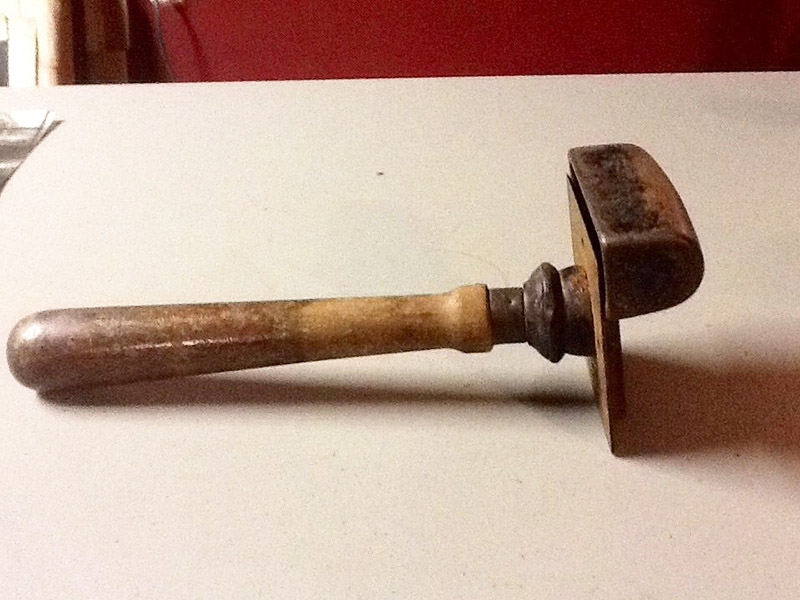

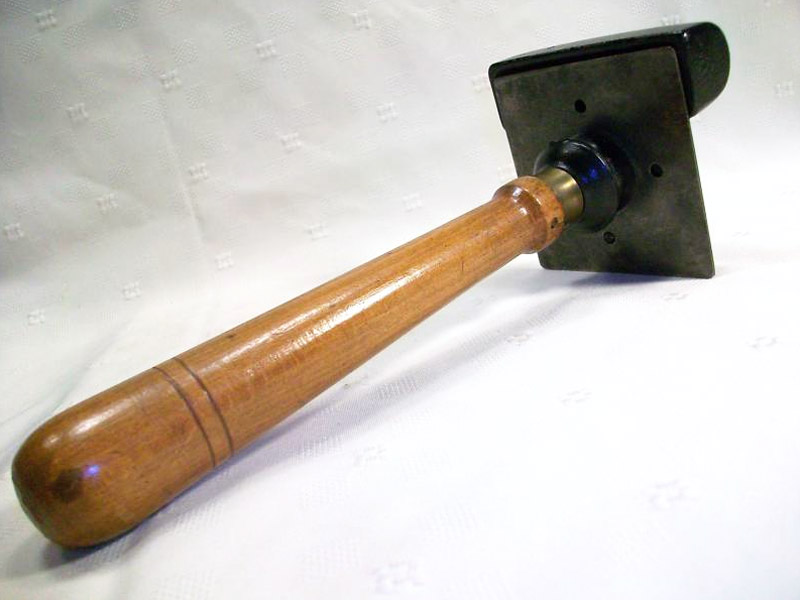

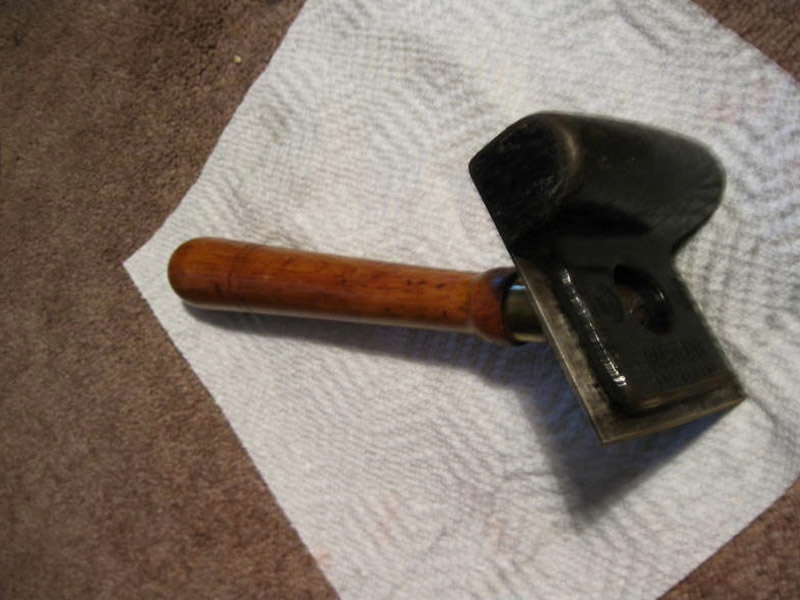

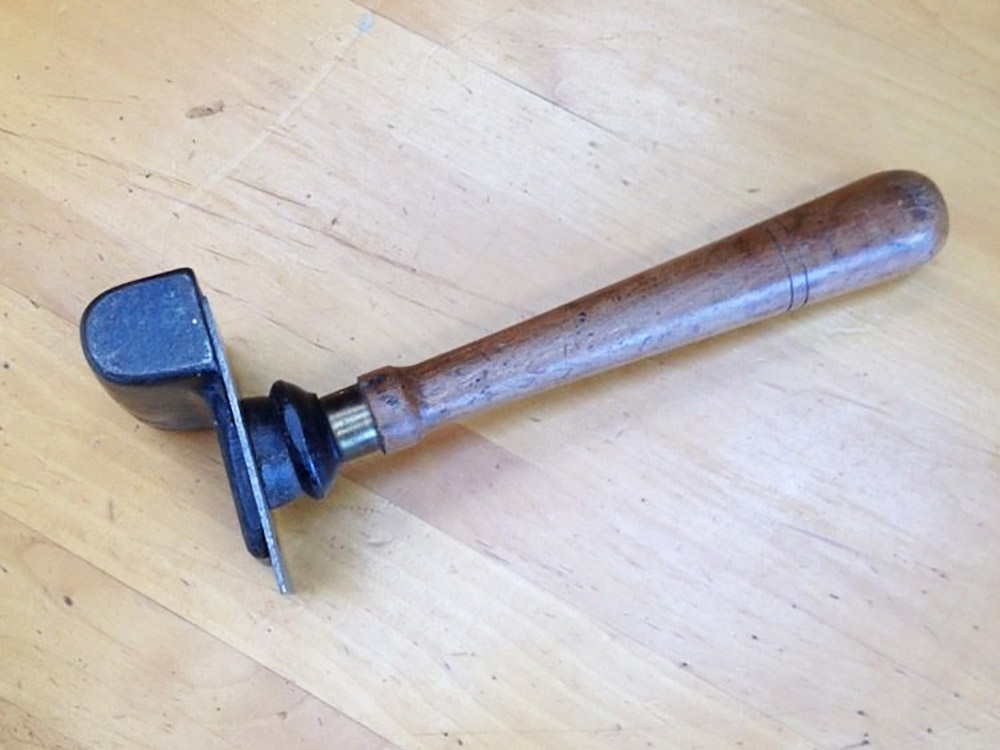

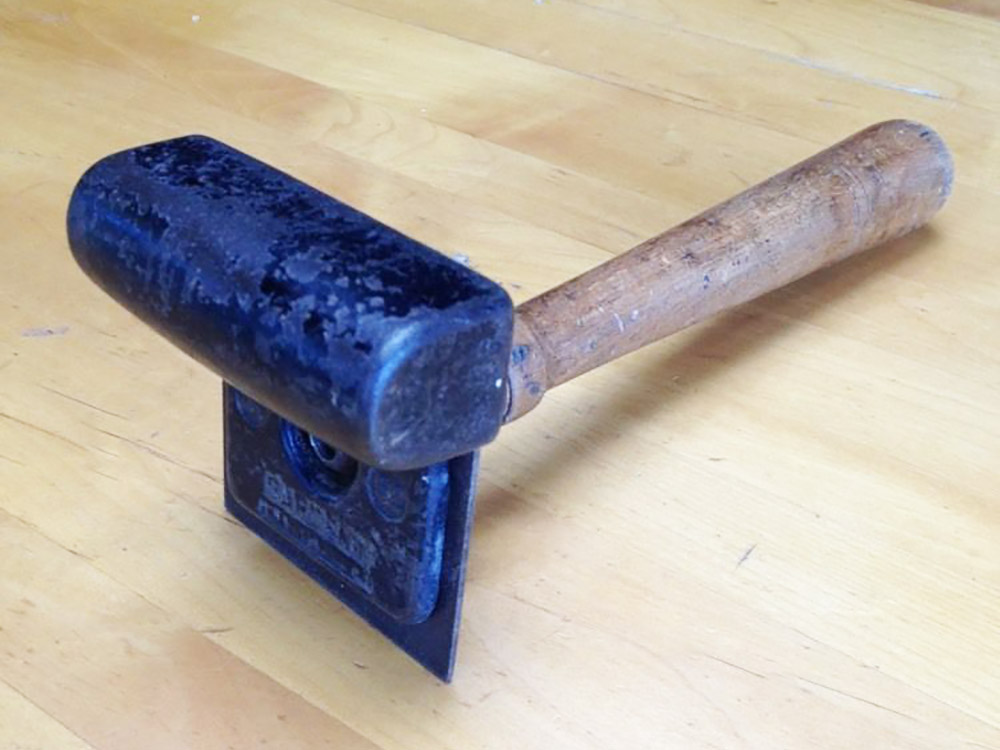

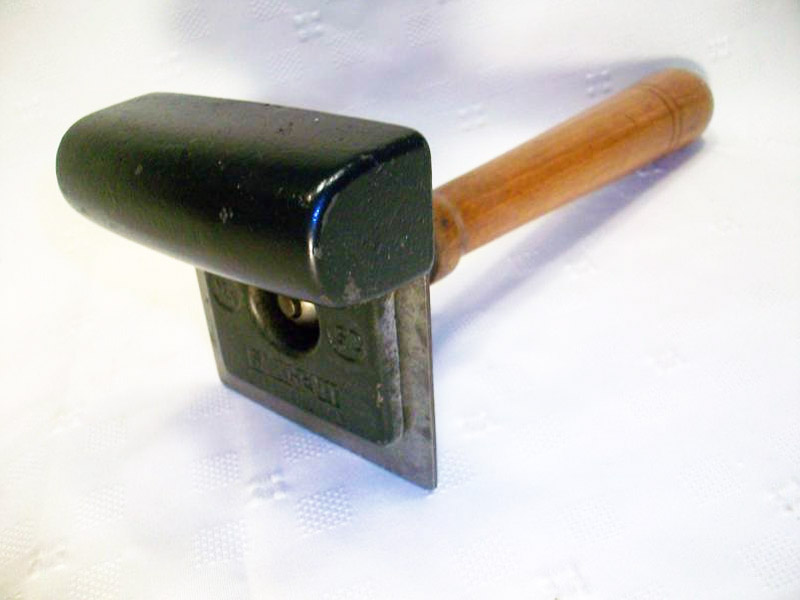

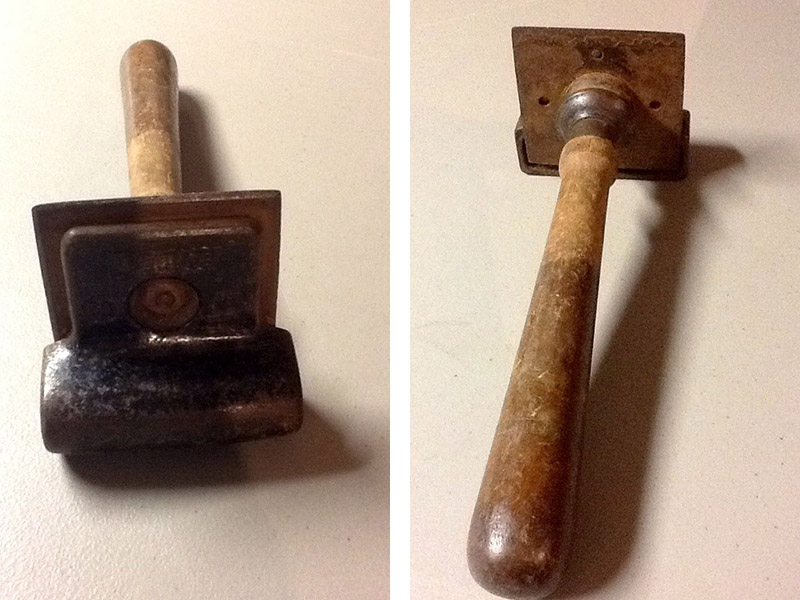

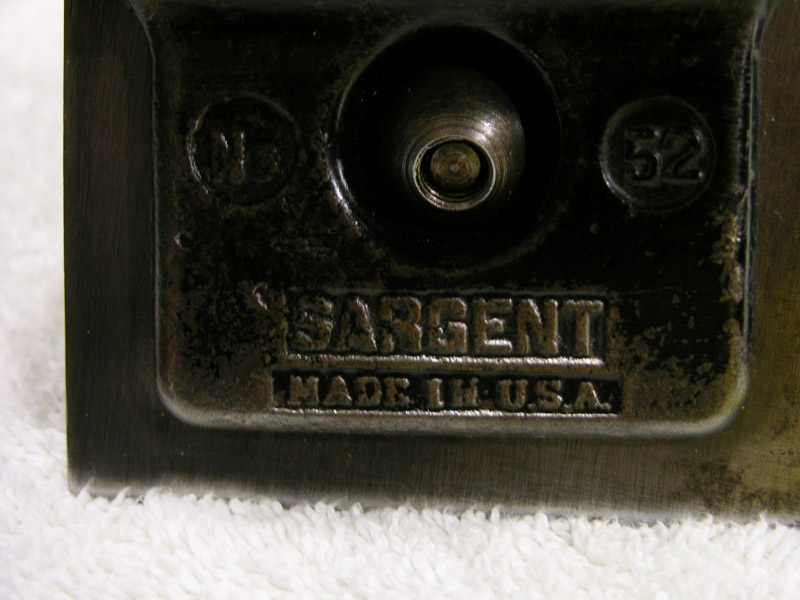

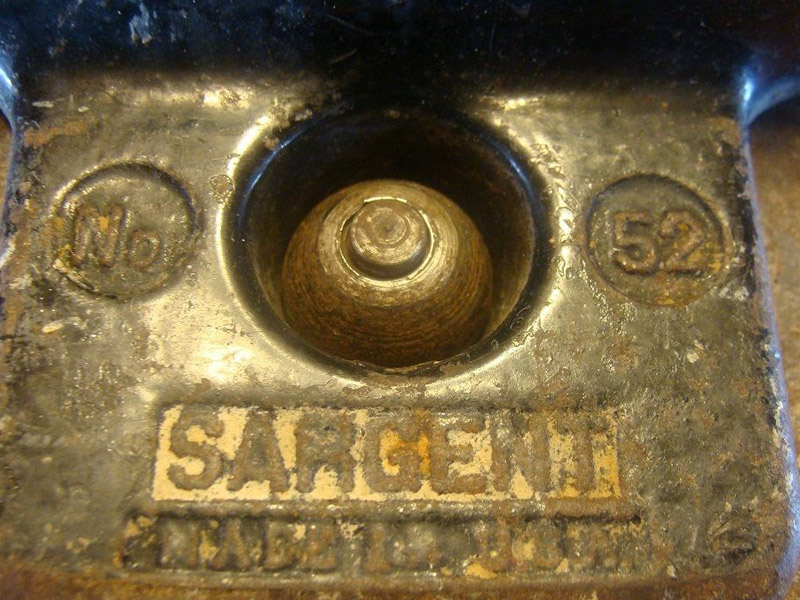

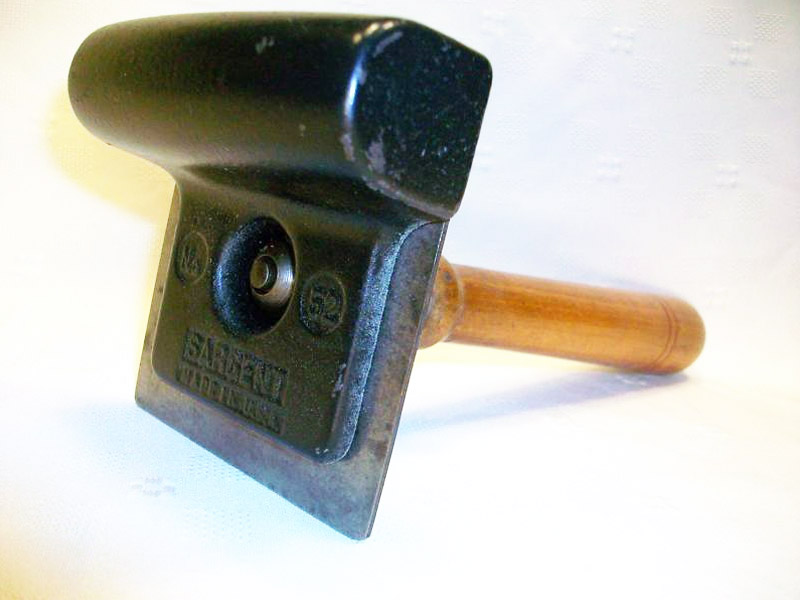

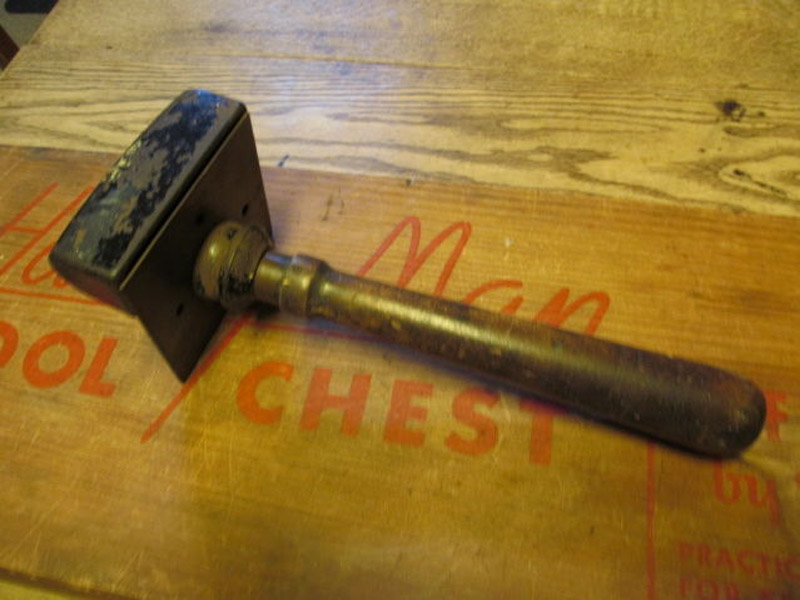

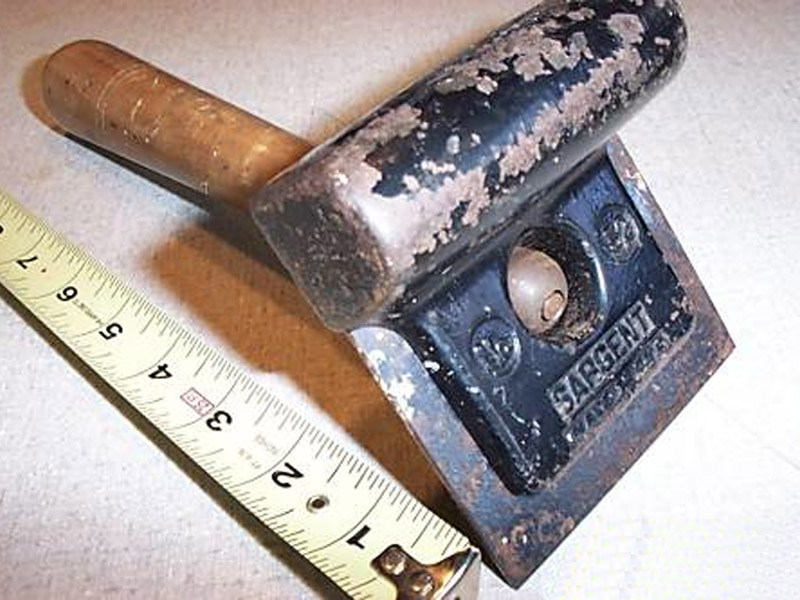

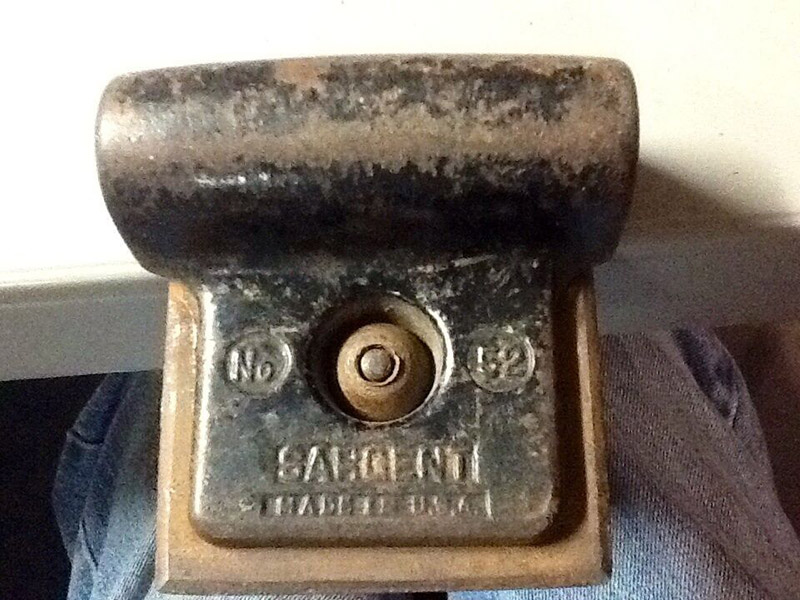

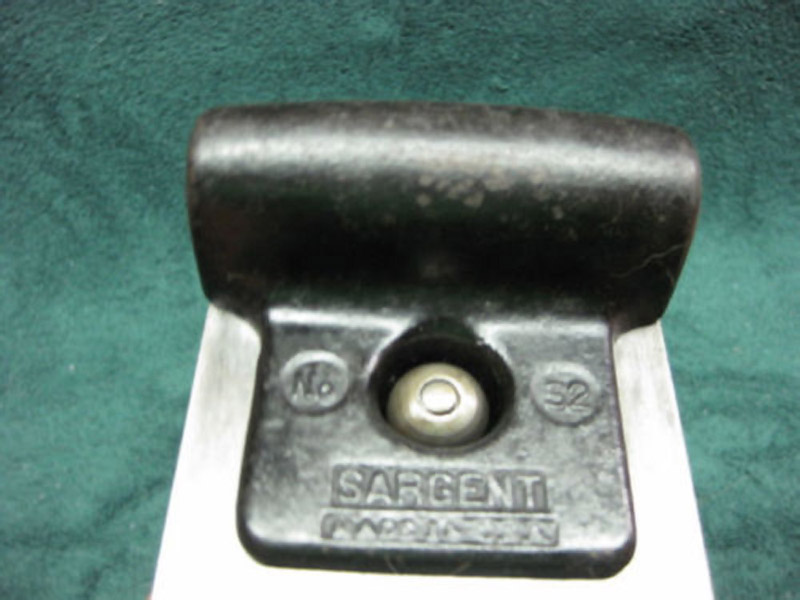

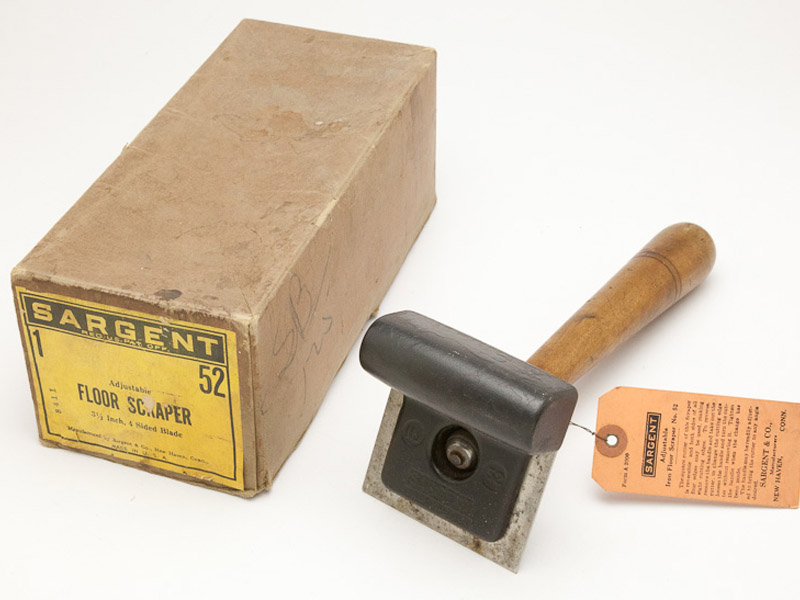

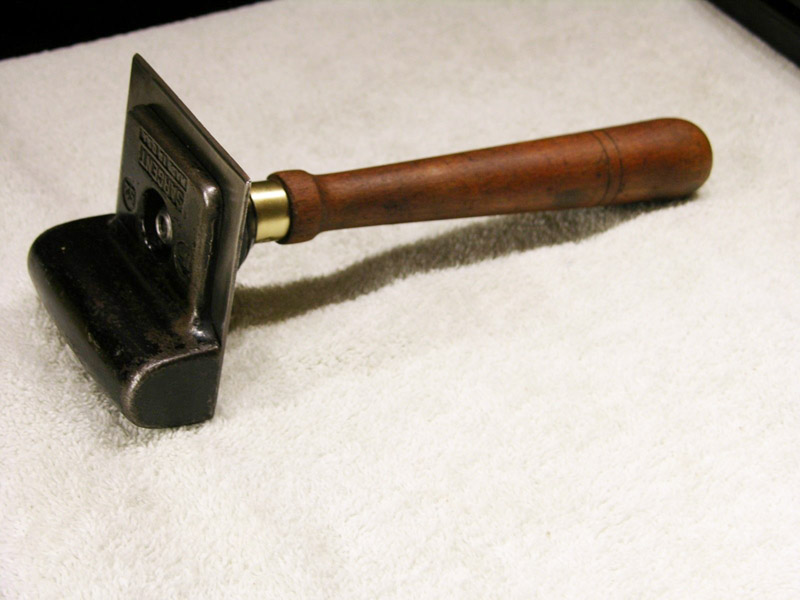

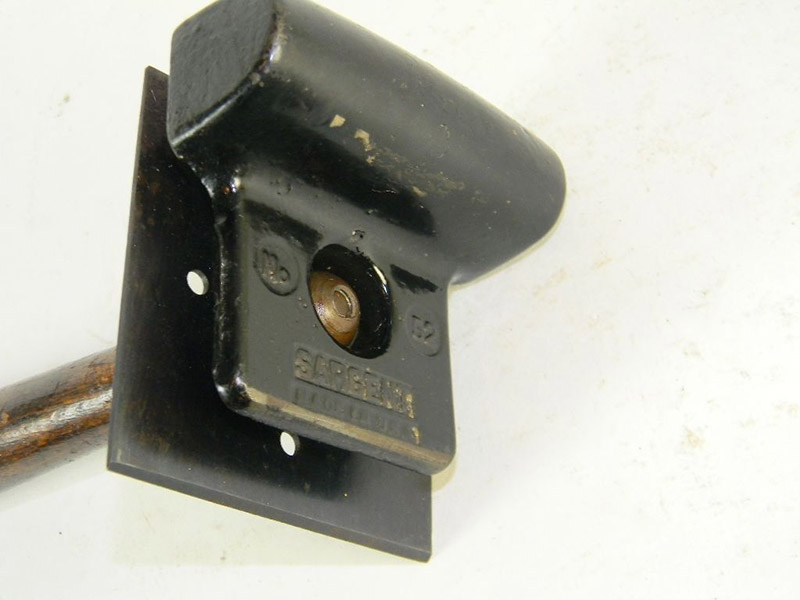

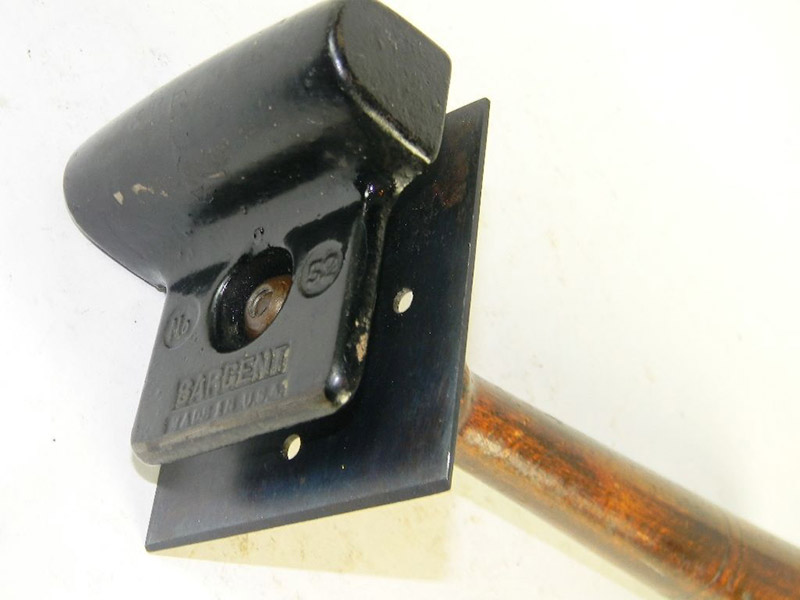

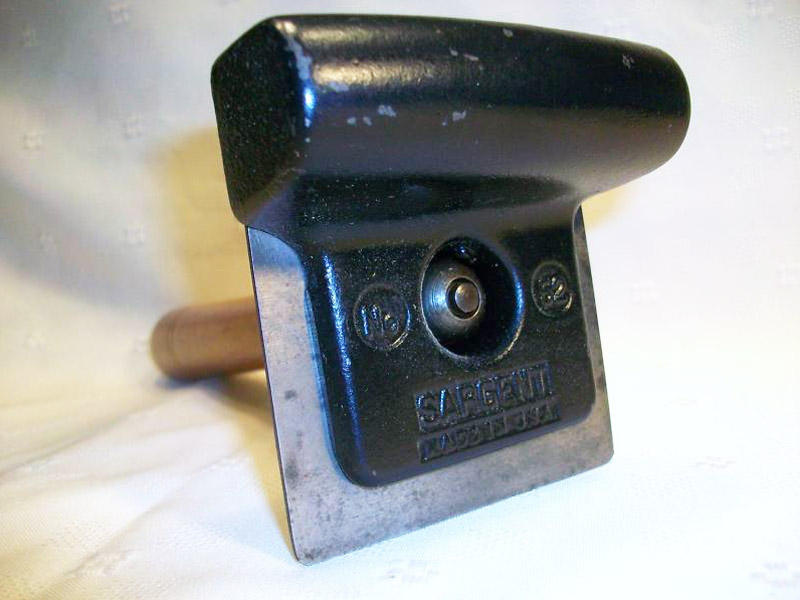

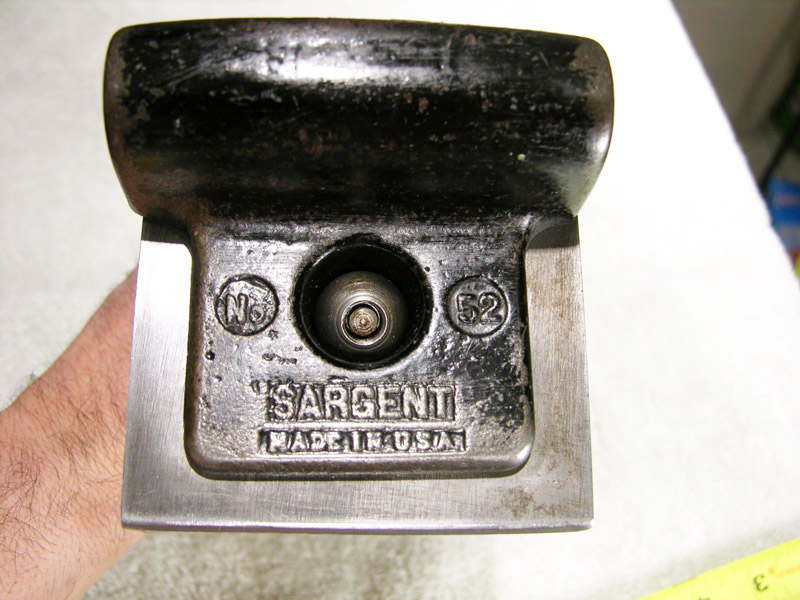

Sargent No. 52 Adjustable Scraper

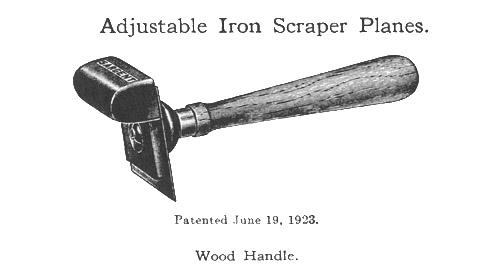

as illustrated in the Sargent catalog of June, 1926.
Patented June 19, 1923

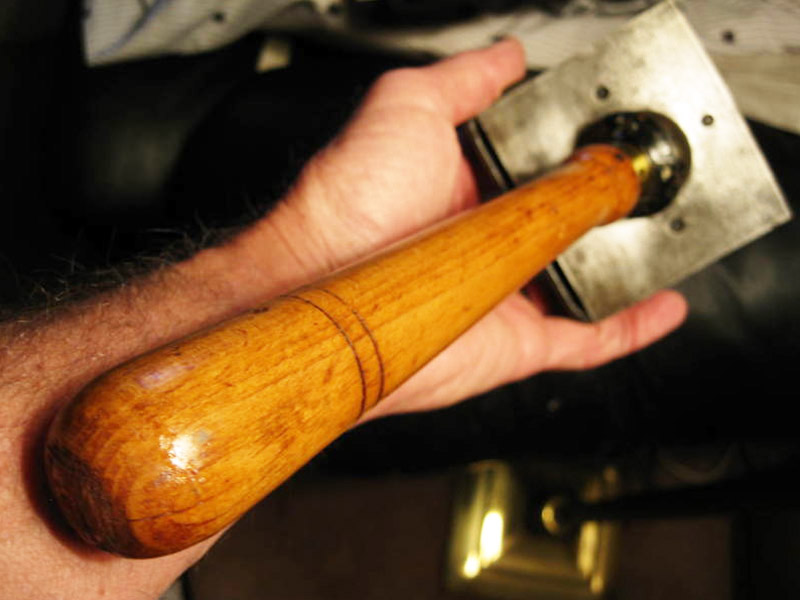

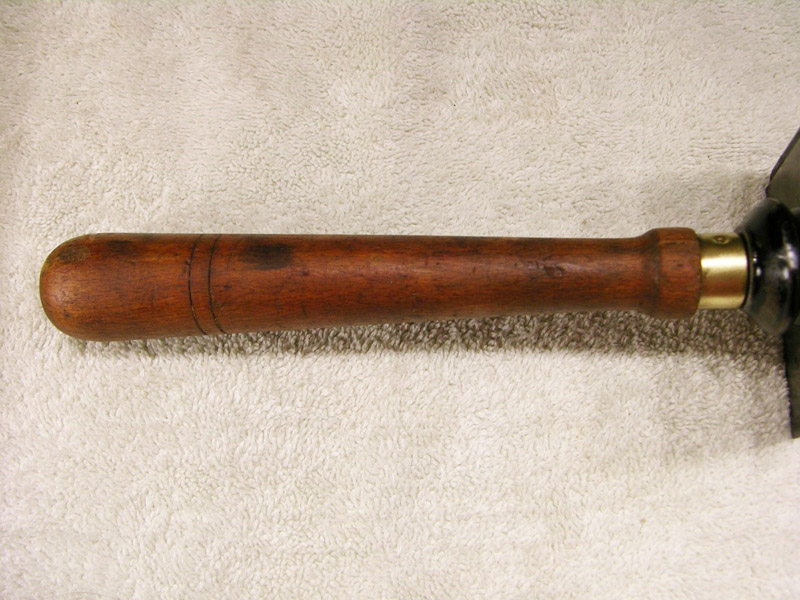

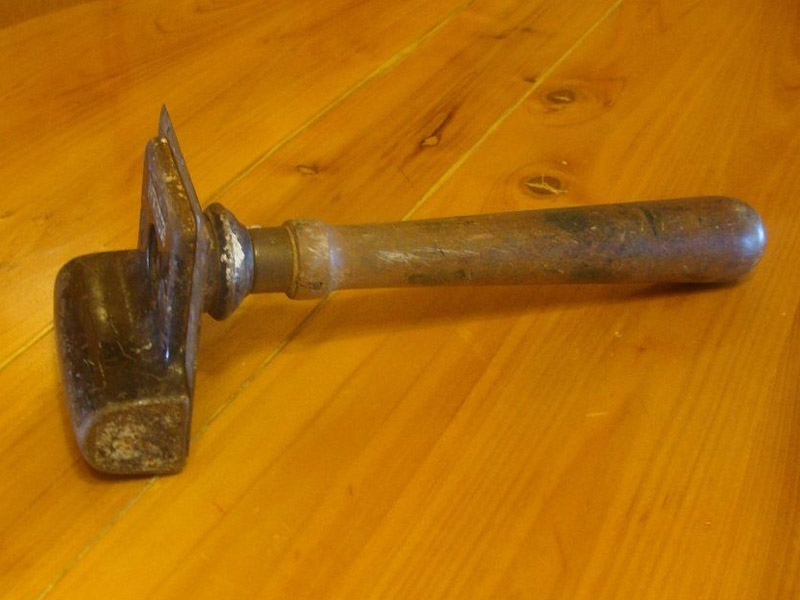

Wood Handle

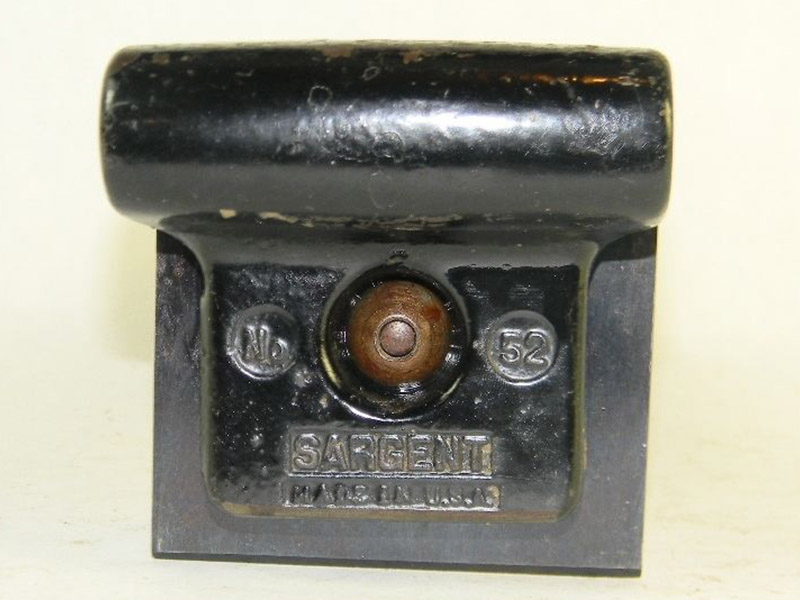

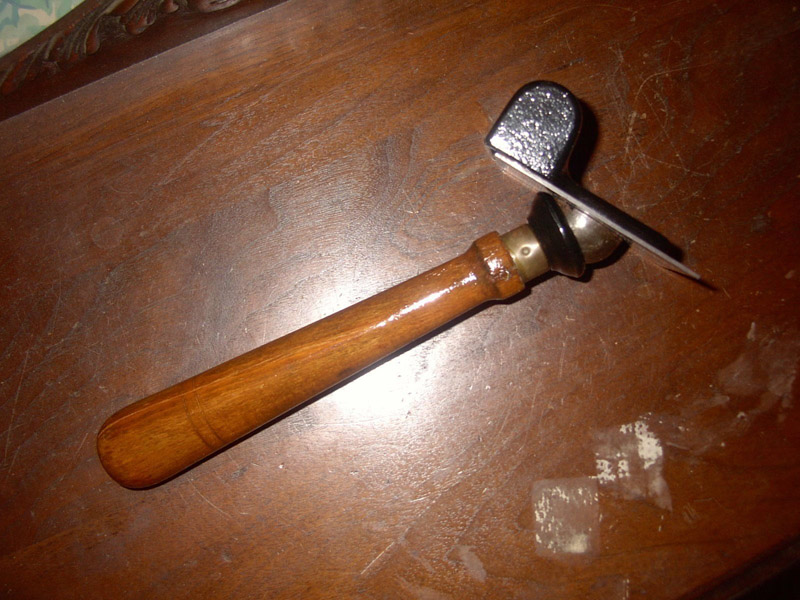

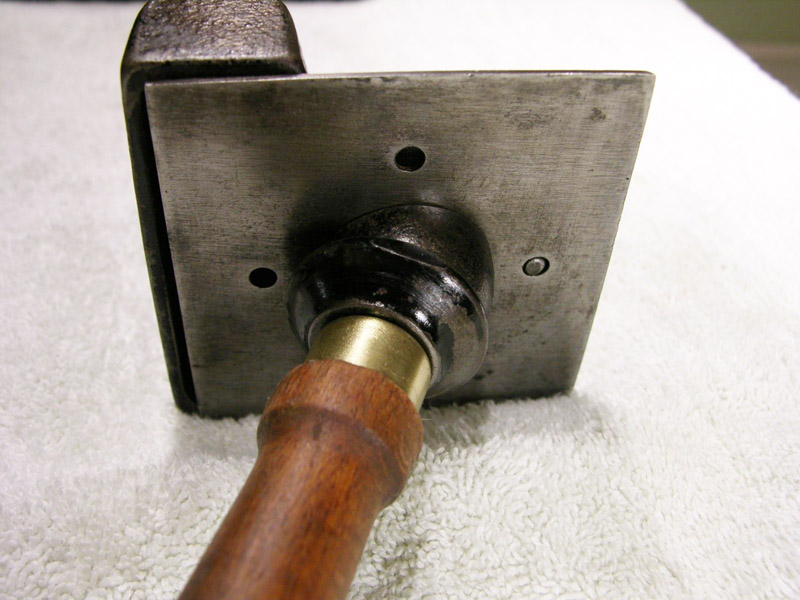

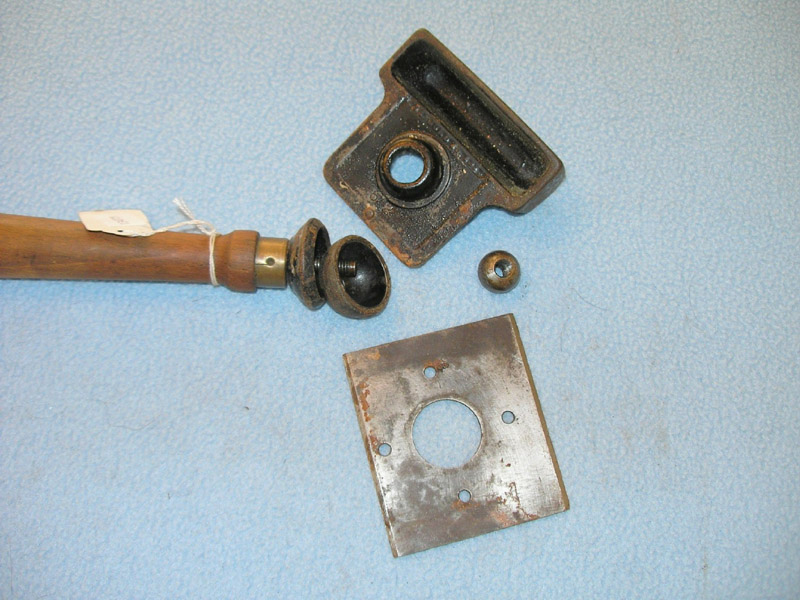

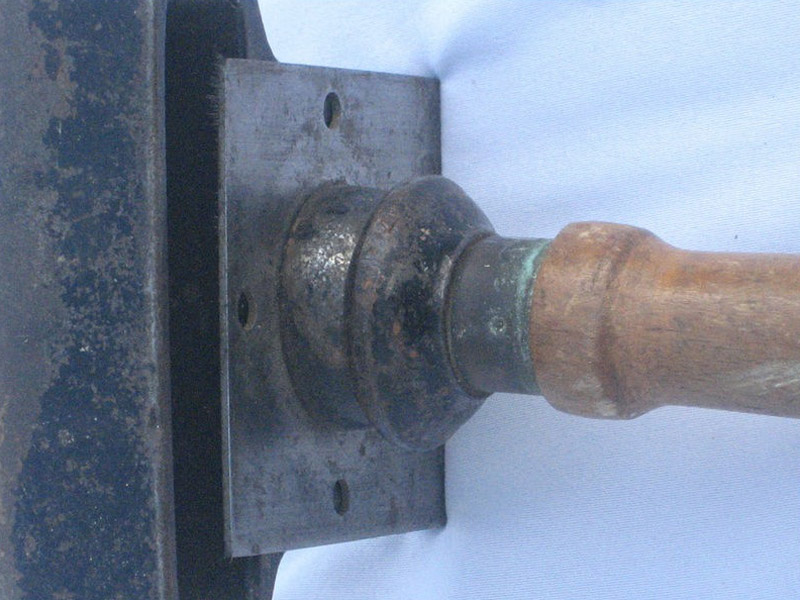

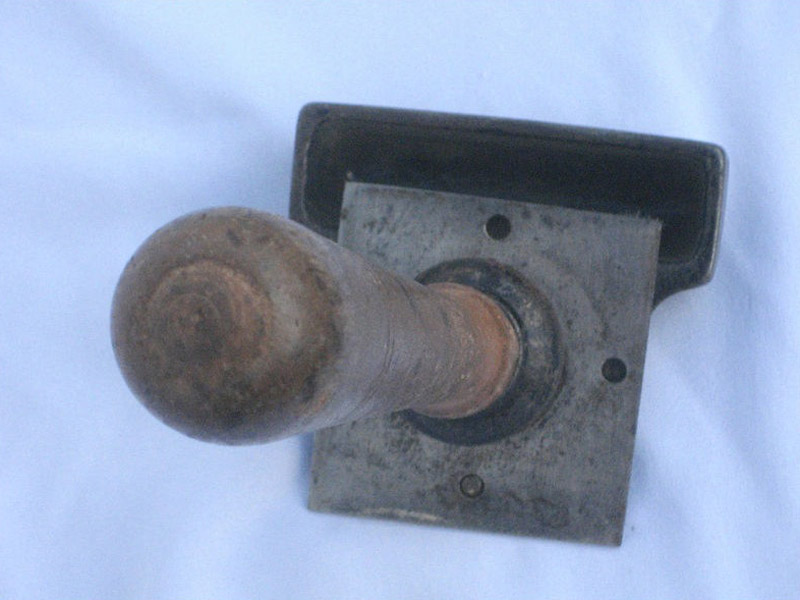

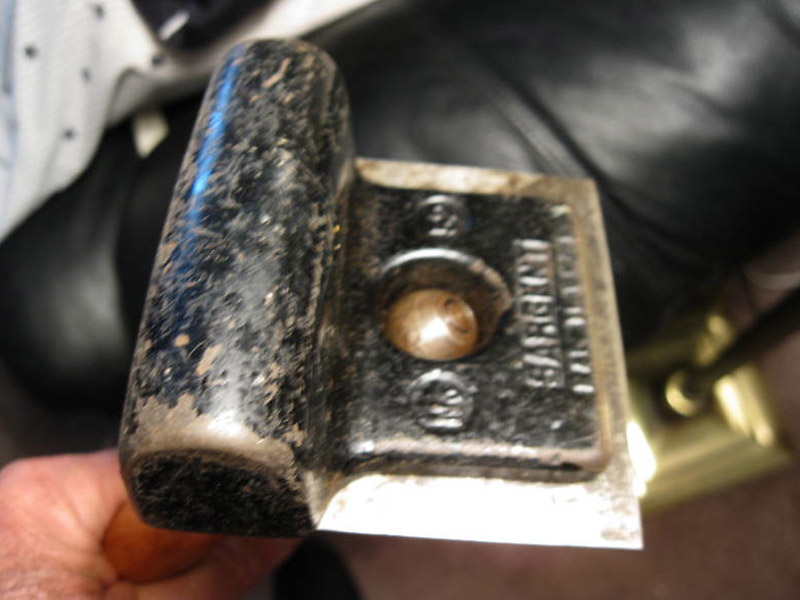

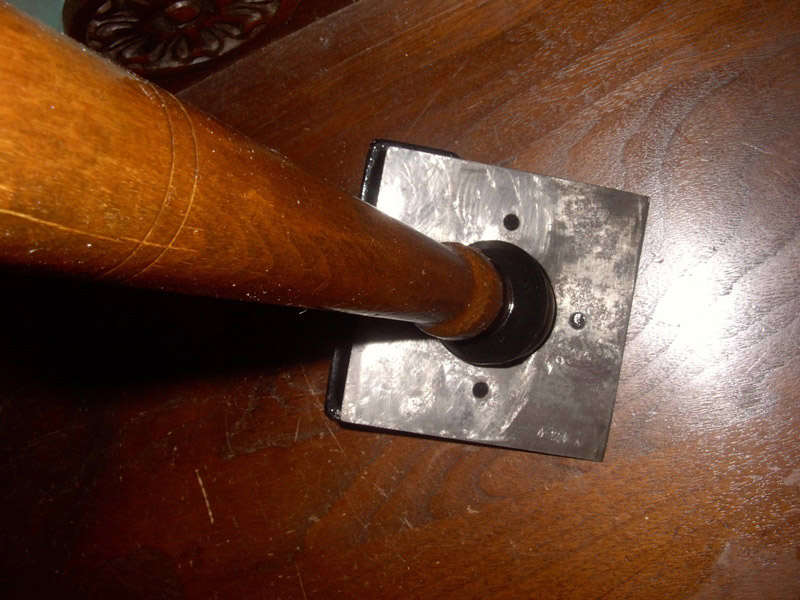

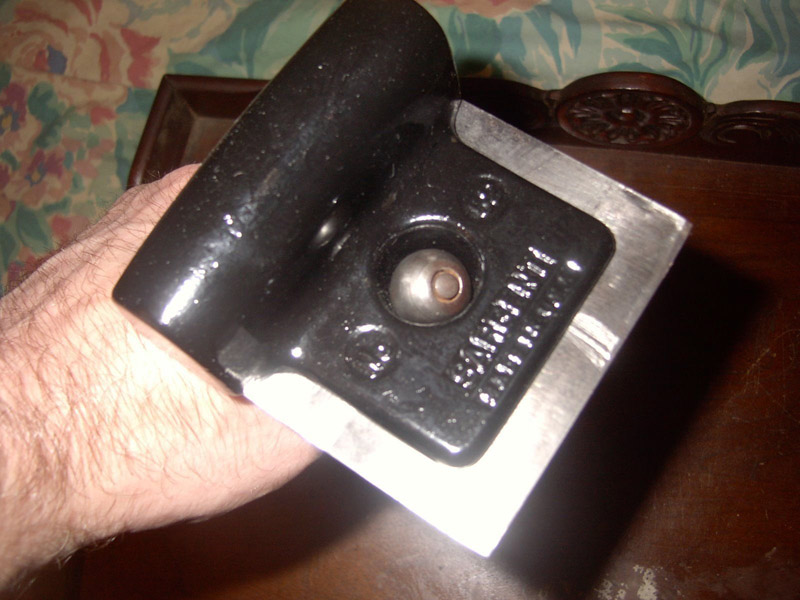

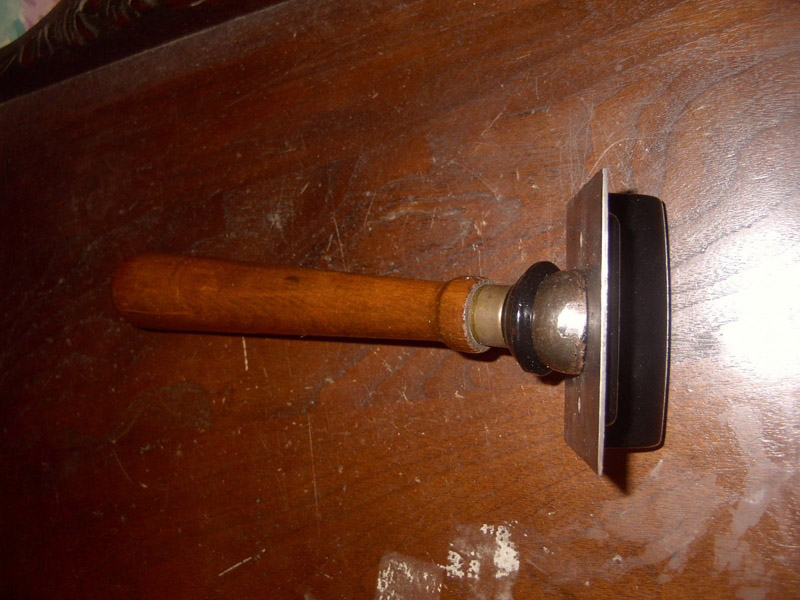

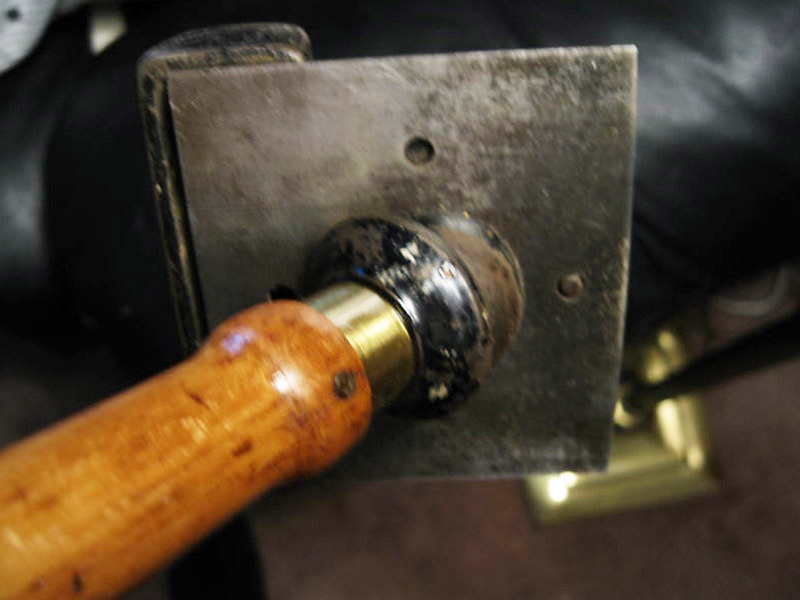

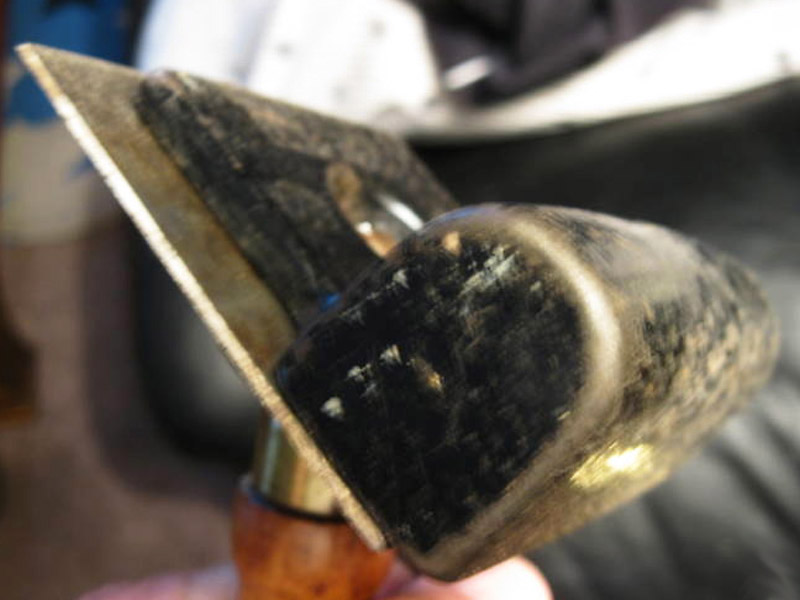

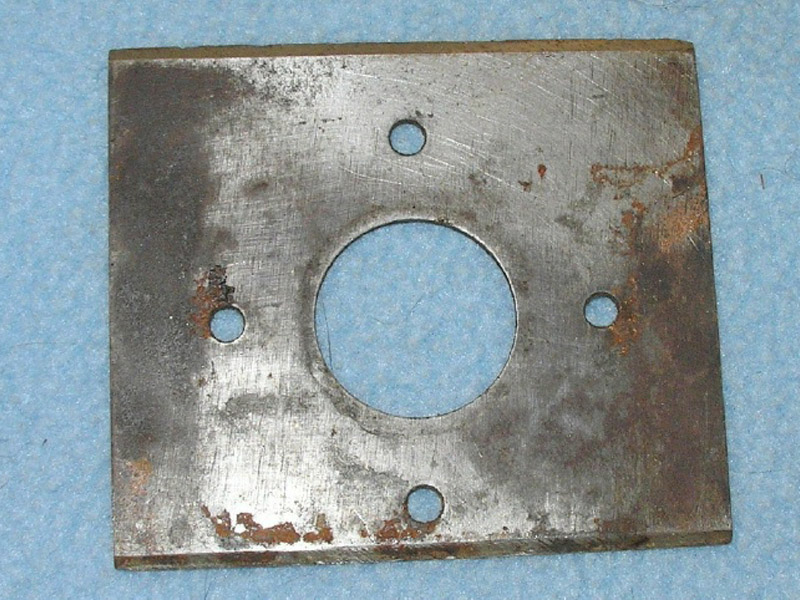

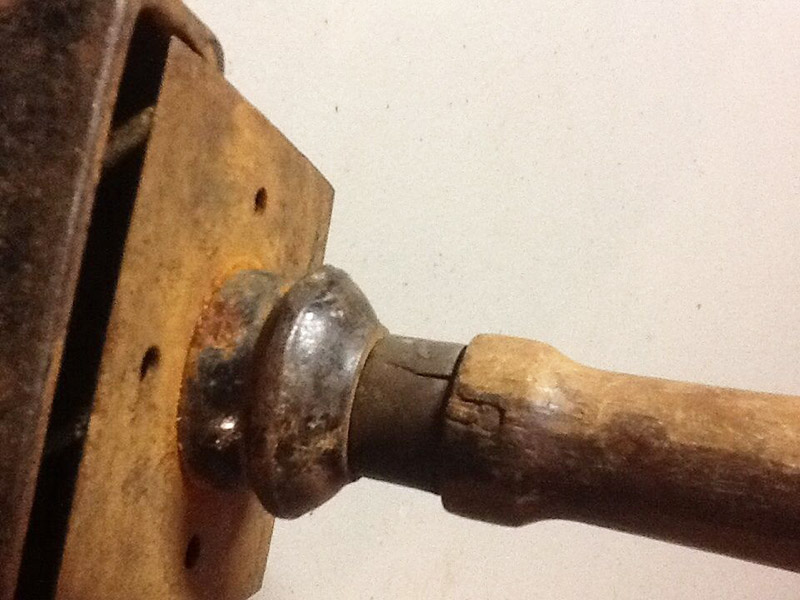

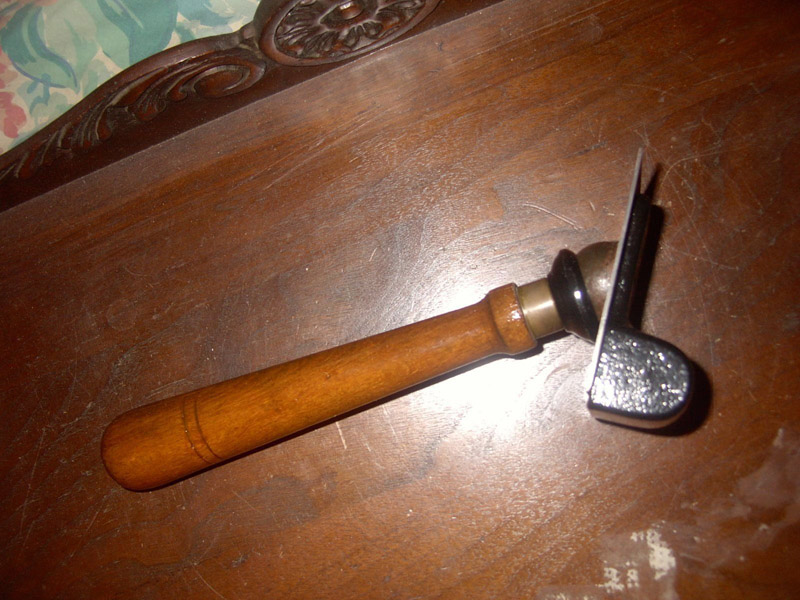

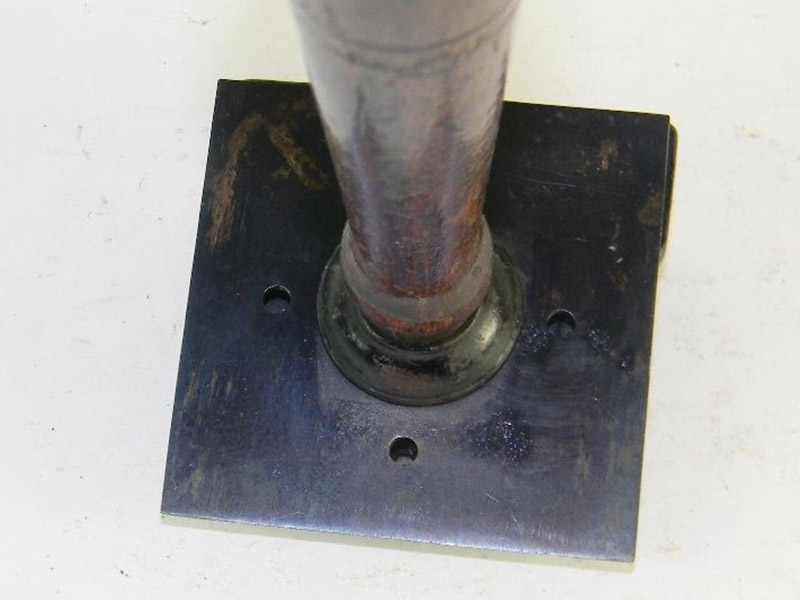

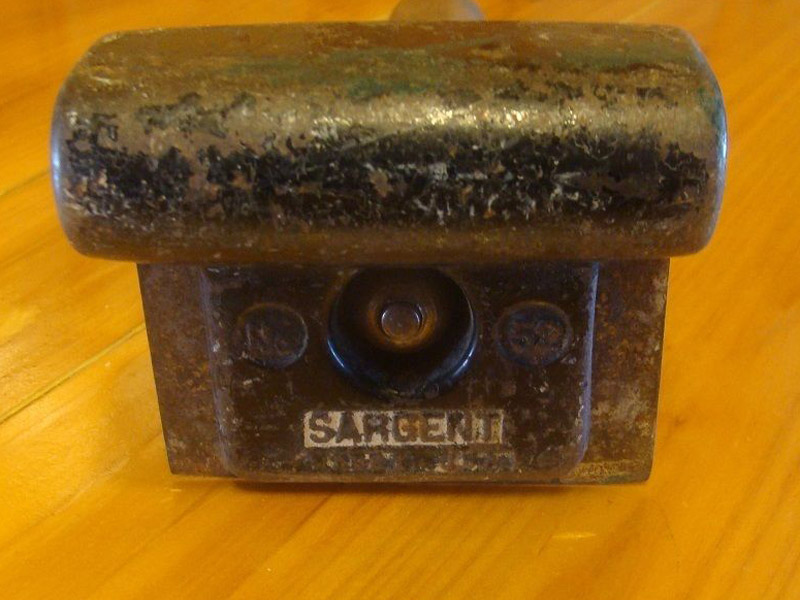

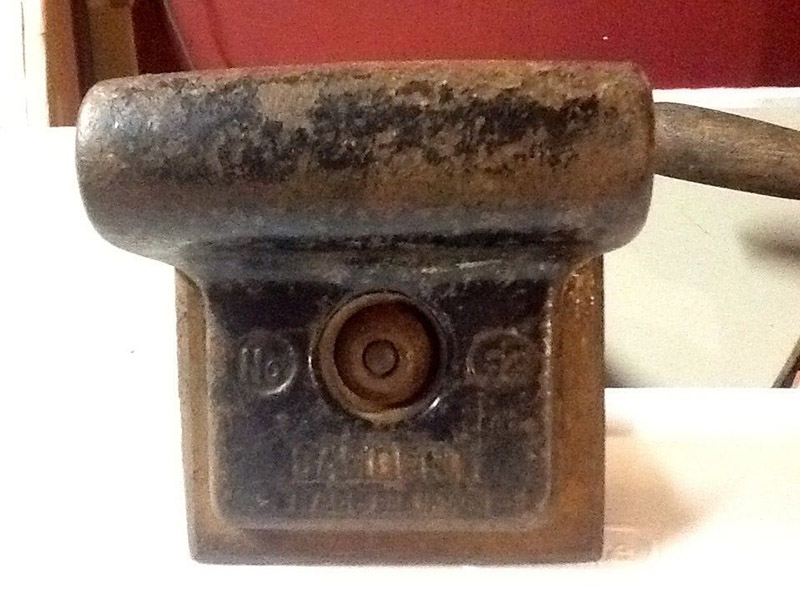

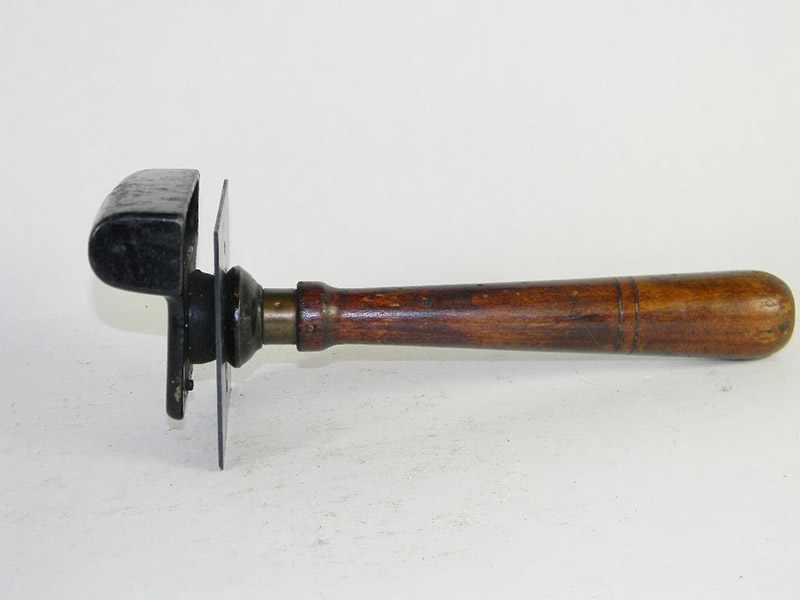

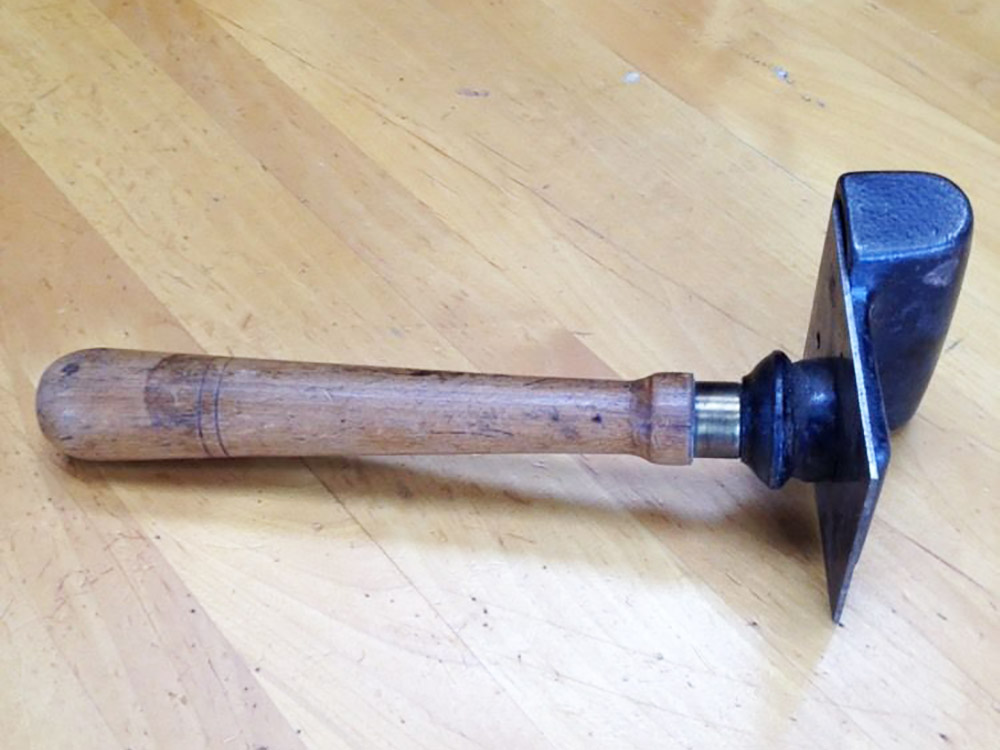

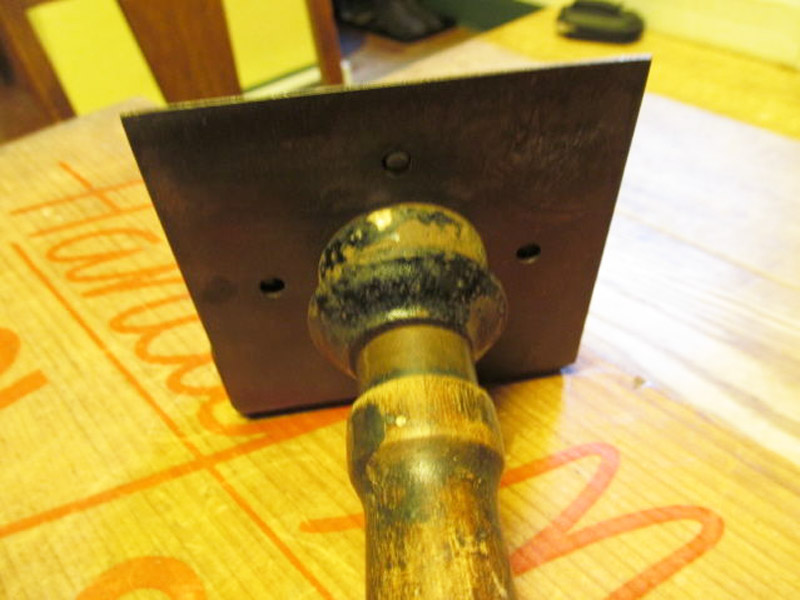

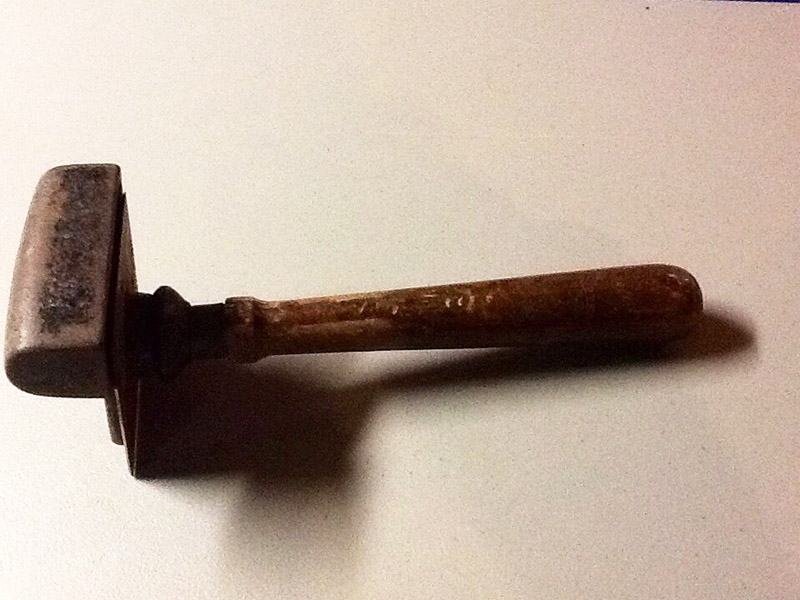

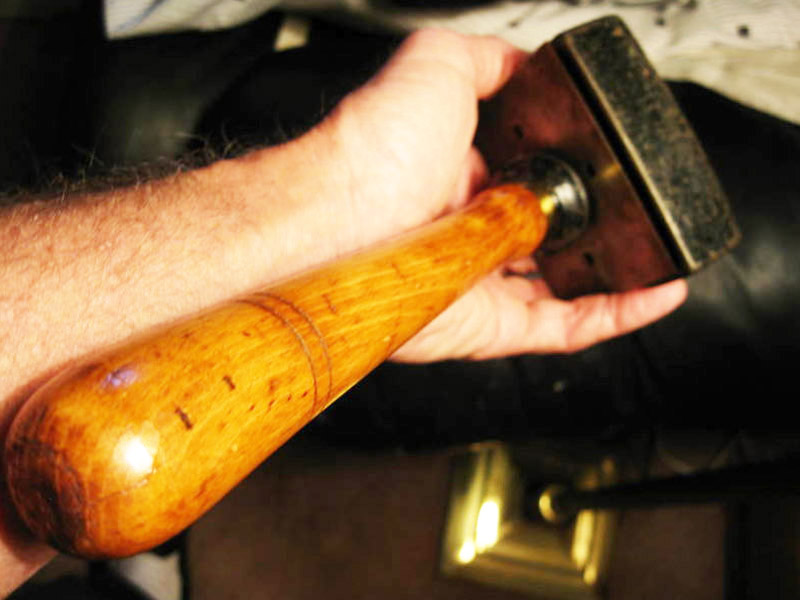

The handle is set on a universal joint and can be readily adjusted to bring the cutter to any angle desired. The top of the clamp is shaped to provide a handy grip that fits the hand. The blade is reversible and all four edges may be used without removing the blade from the clamp. One edge is beveled and sharpened ready for use. It is only necessary to loosen the handle sufficiently to turn the blade until the new cutting edge is in position.

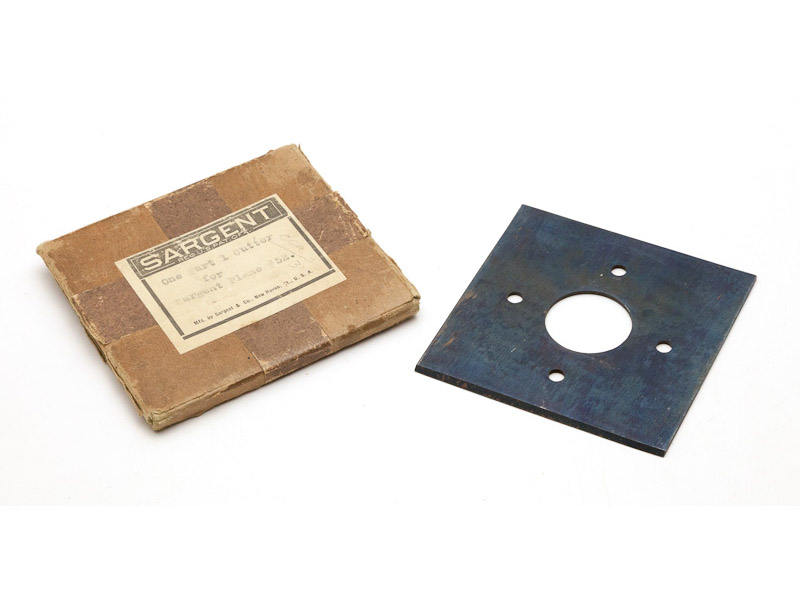

Extra Cutters for the above Scrapers . . . . . . ” 40
Note: The above information has been reproduced from an original catalog listing.
Specifications:
| Plane Type: | Scraper |
| Features: | Adjustable, with wood handle |
| Manufactured: | From 1925 to 1943 |
| Patents: | June 19, 1923 (design of floor scraper) (Frank I. Kimball) |

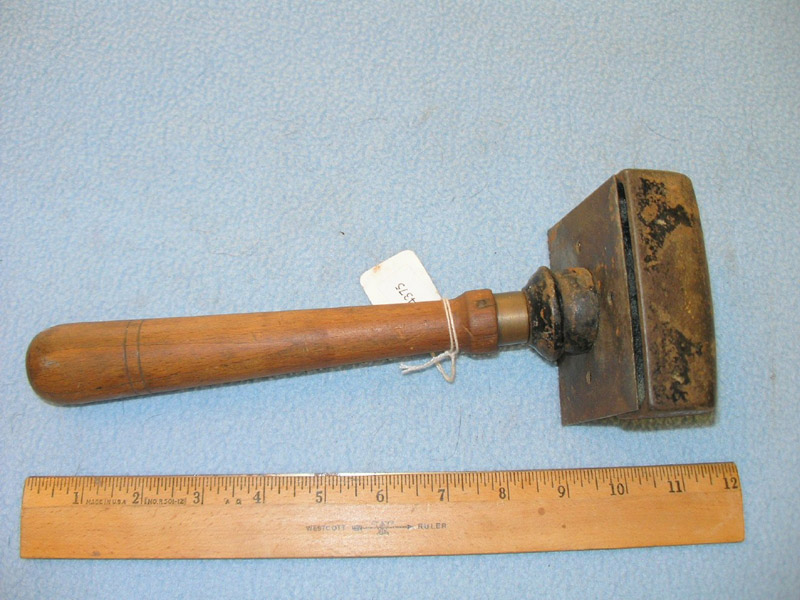

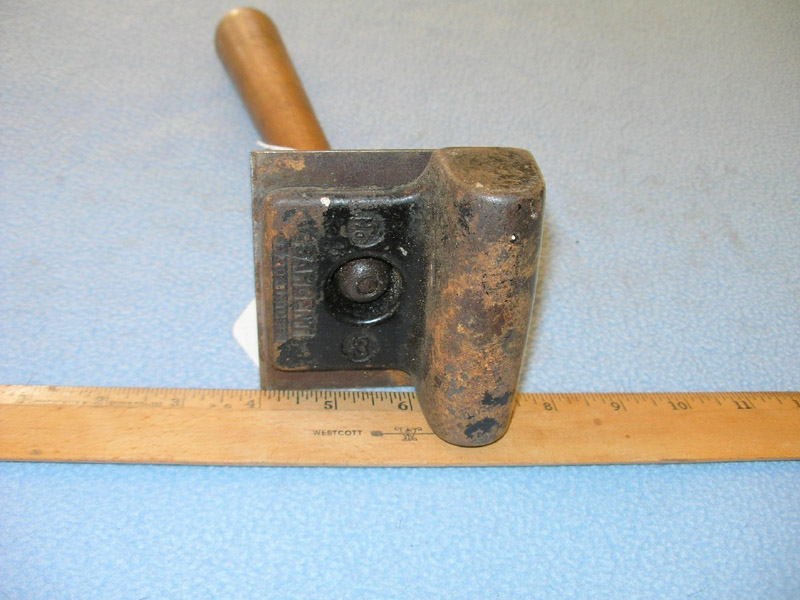

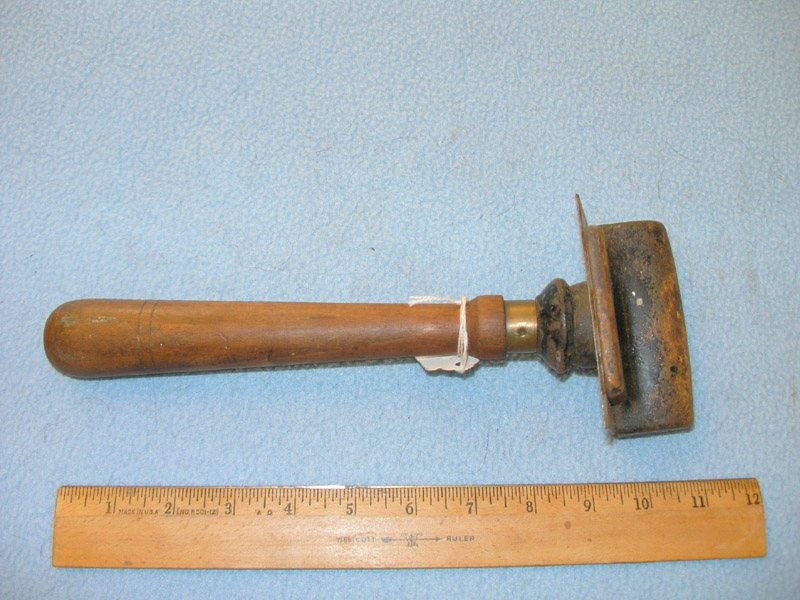

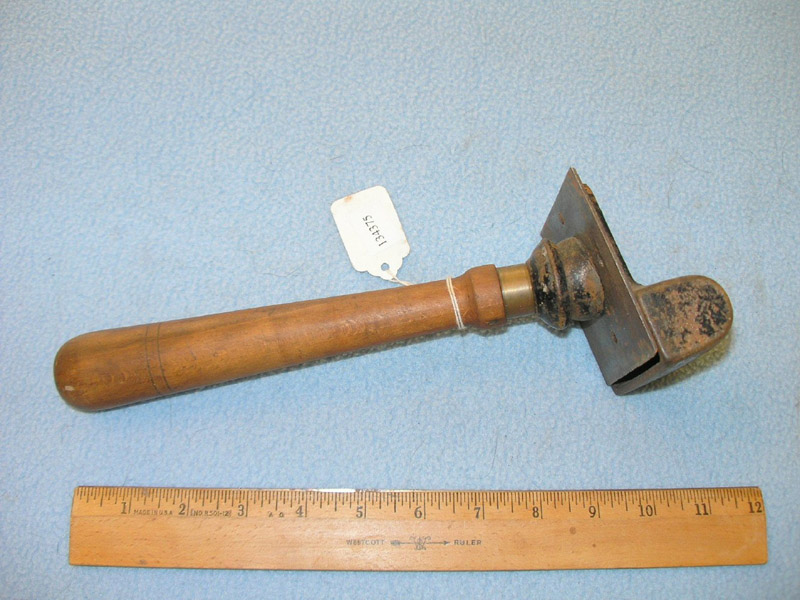

| Length: | 9 inches |
| Cutter Width: | 3½ x 3½ inches |
| Construction: | Cast Iron, Hardwood Handle |
| Finish: | Japanned |
| Uses: | General purpose scraping |
Please check the Value Guide For Sargent Planes page for relative prices.
